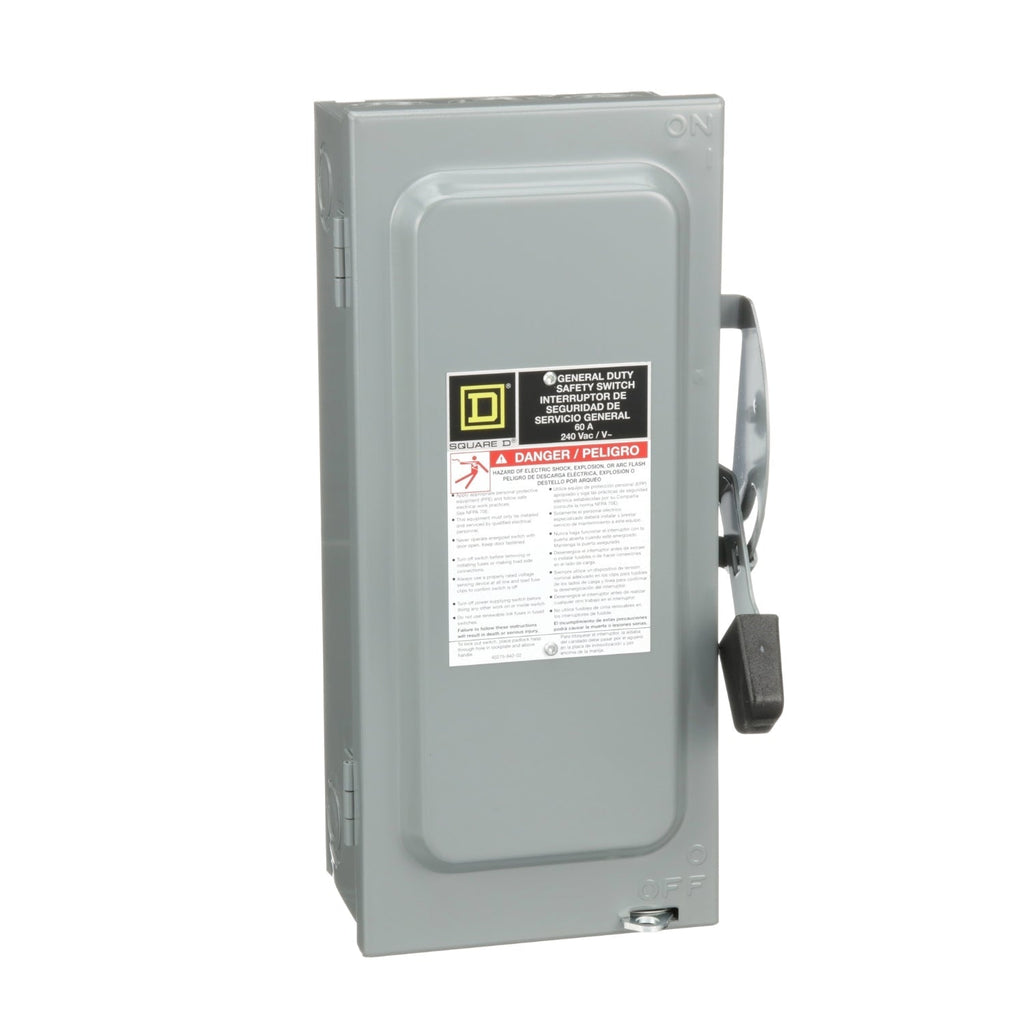

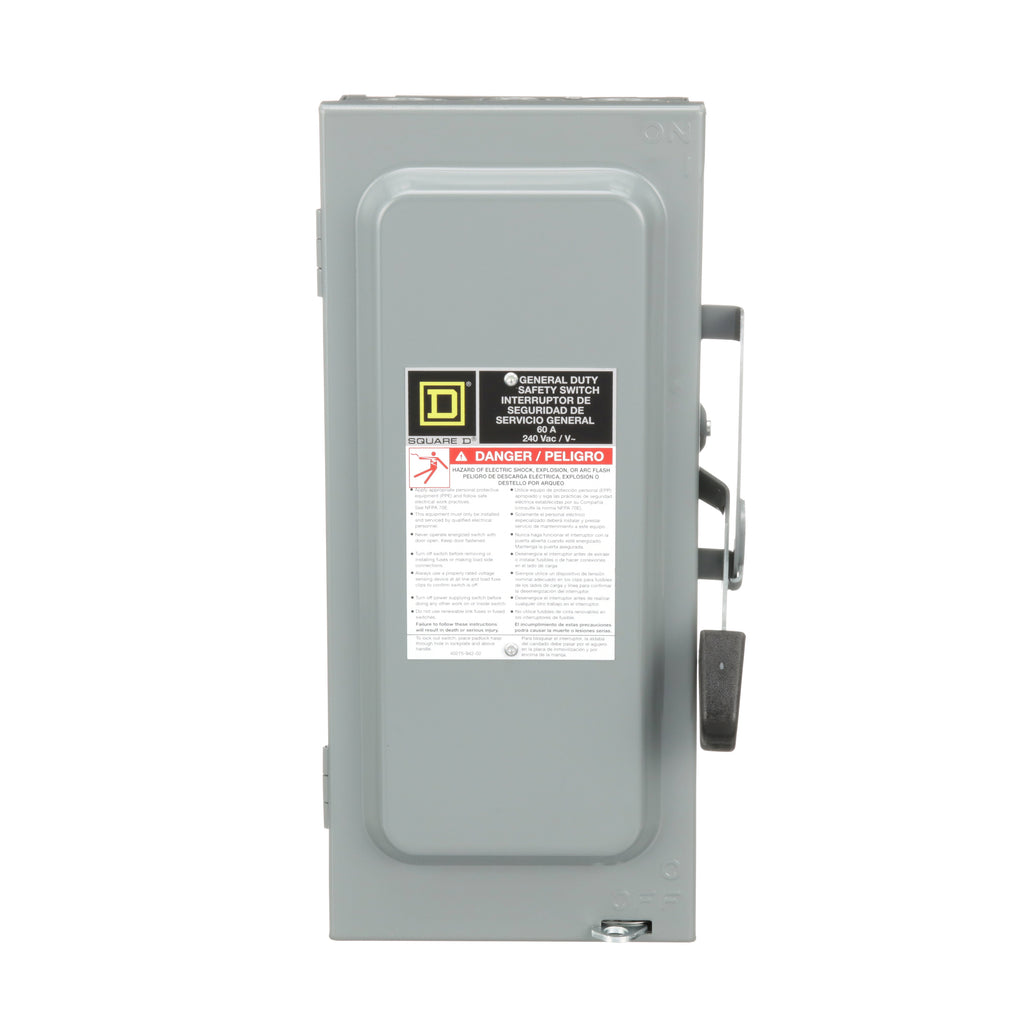

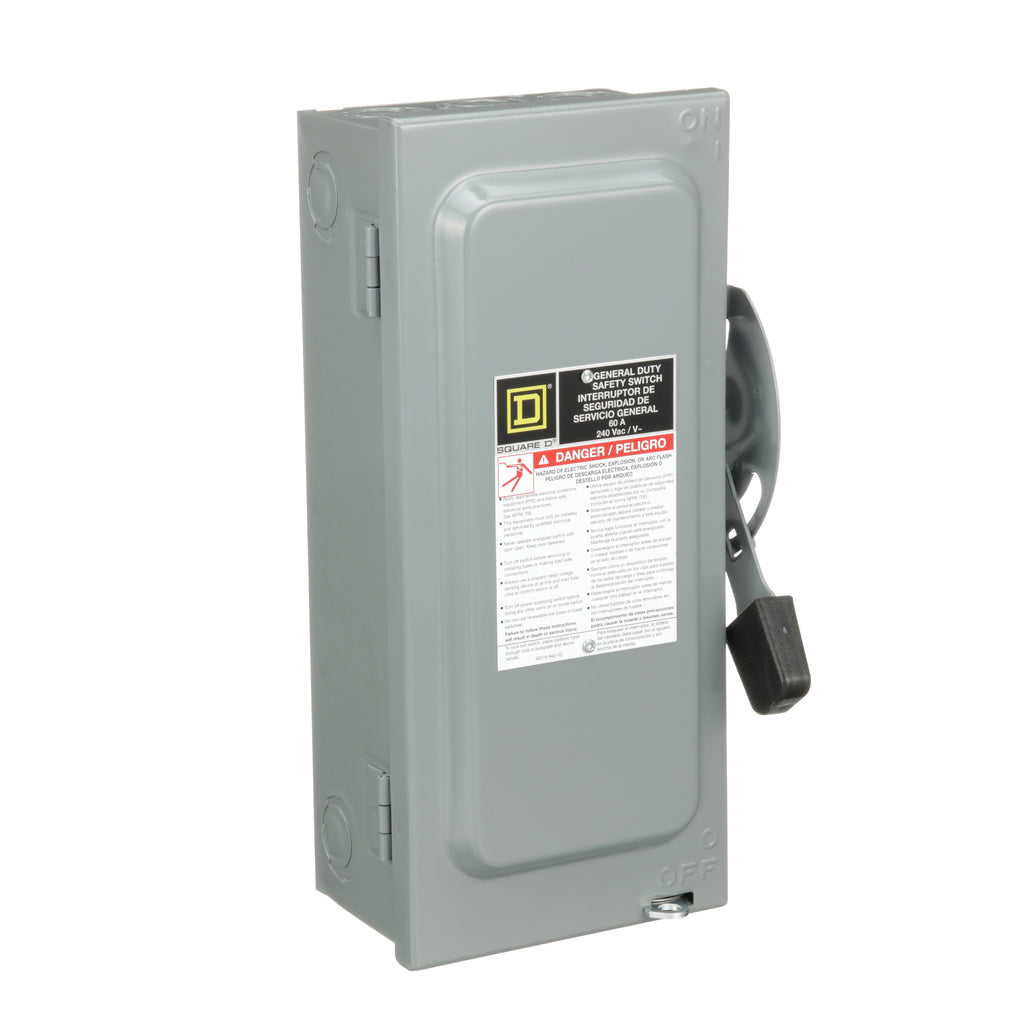

D222N - Square D General Duty Fusible Safety Switch, 60A, 2 Pole, 240V, NEMA 1, Surface Mount, 100kA Interrupt, UL Listed

D222N

D222N is a Square D general duty fusible safety switch designed for reliable over-current and short circuit protection in residential and commercial applications.

This single-throw, two-pole safety switch features a 60A current rating, 240V voltage, and is housed in a NEMA 1 enclosure for indoor use. It is surface mounted, includes a factory-installed neutral, and is suitable for disconnecting lighting, air conditioning, and appliances. The switch is UL listed and provides robust protection with a high interrupting capacity.

Key Specifications
• Part Number: D222N
• Manufacturer: Square D
• Amperage: 60A
• Voltage: 240V
• Poles: 2
• Mounting Type: Surface
• Interrupt Rating: 100 kA
• Series/Frame: General Duty
• Trip Unit: Not applicable (fusible disconnect)
• Certifications: UL Listed
• Enclosure: NEMA 1
• Wiring: 3-wire (includes neutral)
• Wire Size: AWG 12–3 aluminum, AWG 14–3 copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: D222N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : D
• Voltage : 240 AC
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1
• Compatible Frames : RLF

Product Data

• UPC : 785901460626
• GTIN : 00785901460626
• Country of Origin : United States
• Dimensions : 14.88 in (377.95 mm) x 7.45 in (189.23 mm) x 4.87 in (123.70 mm) (Height x Width x Depth)
• Weight : 7.82
• Certification : UL listed
