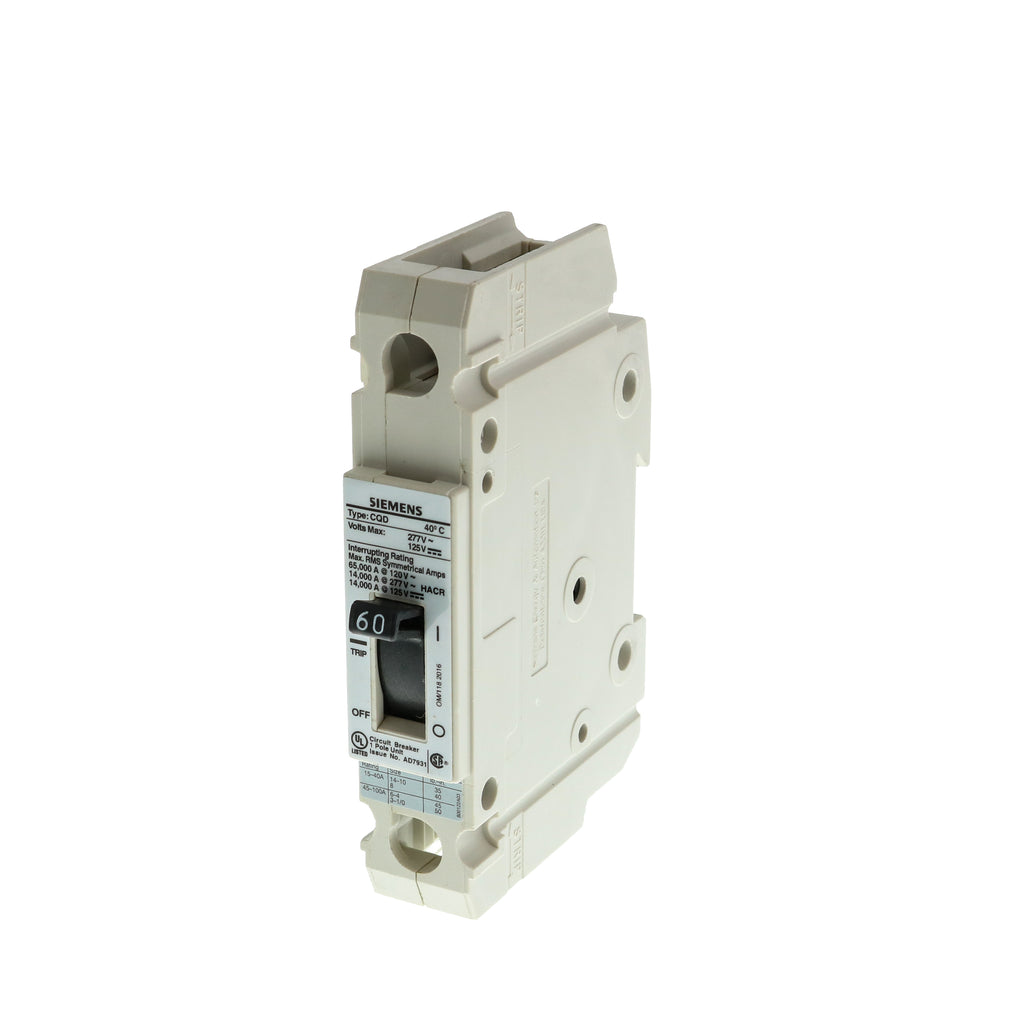

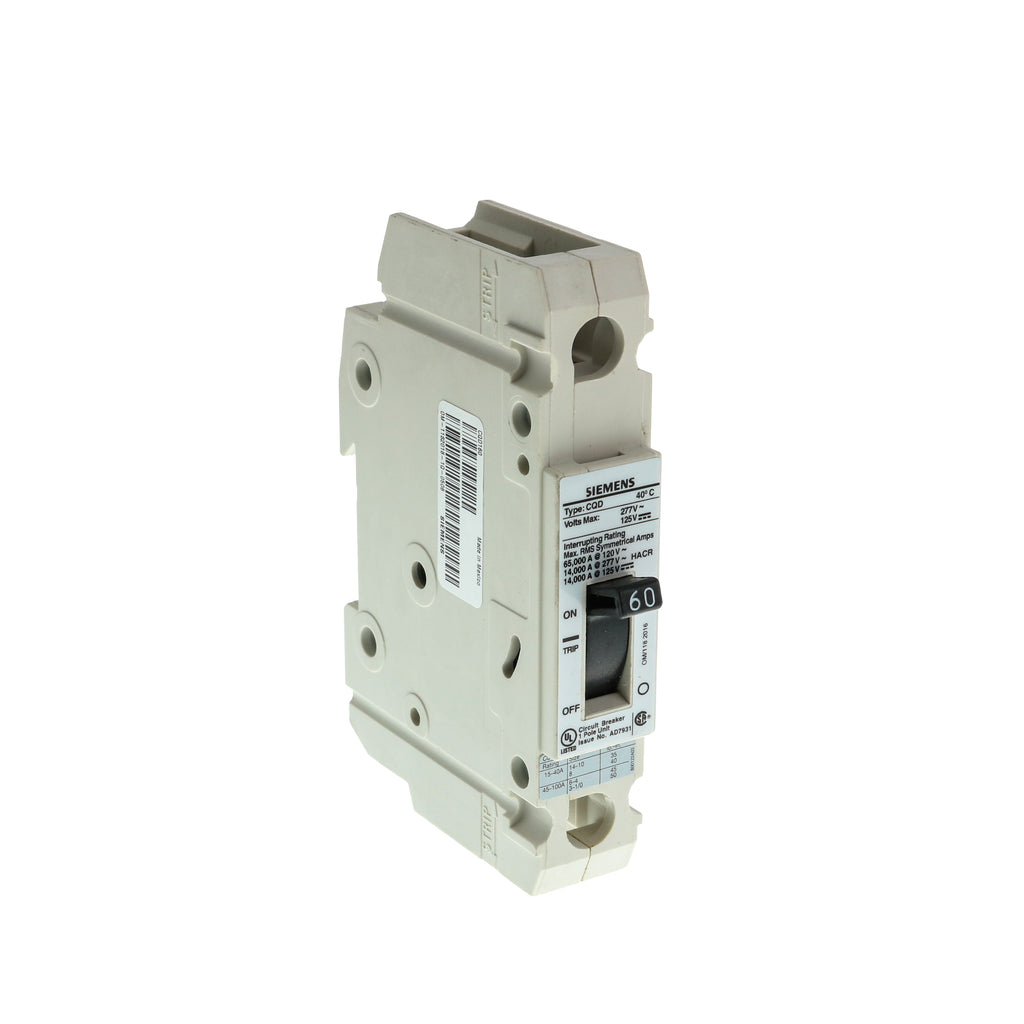

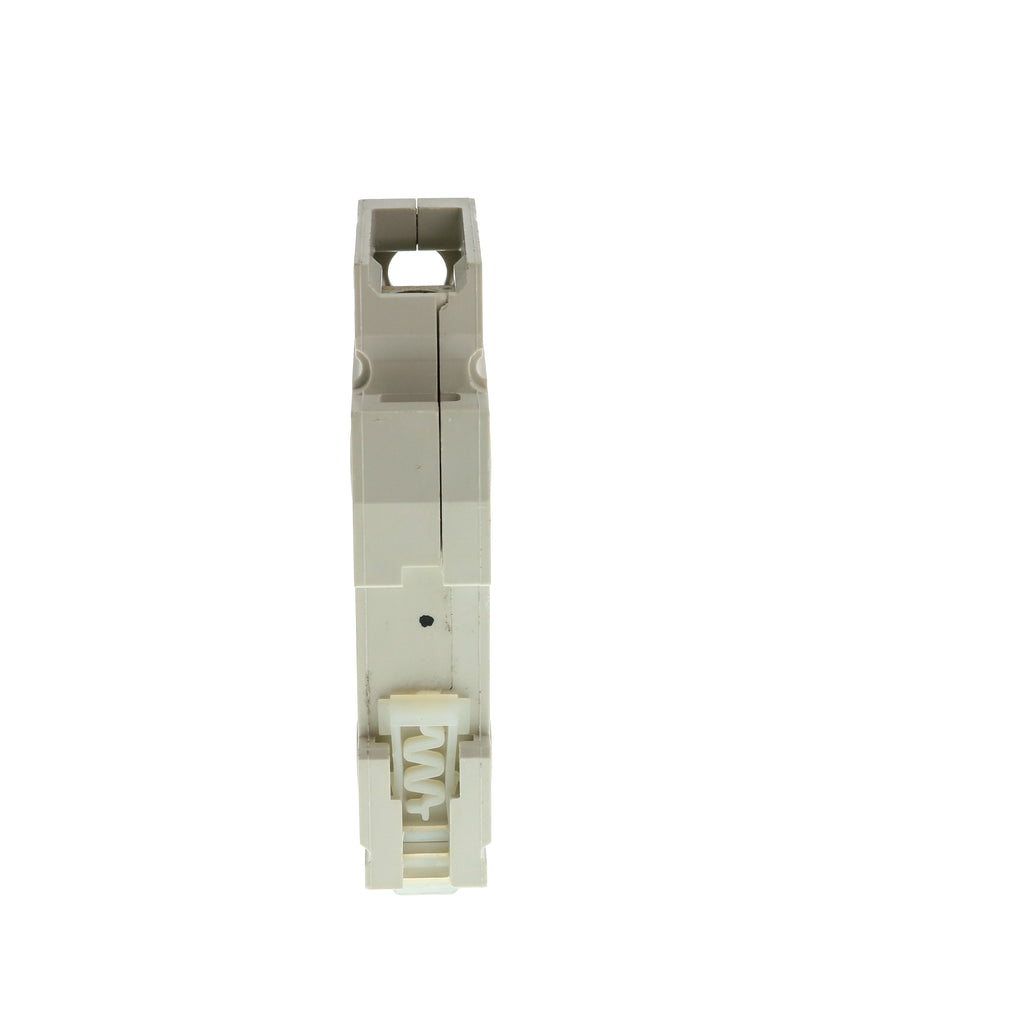

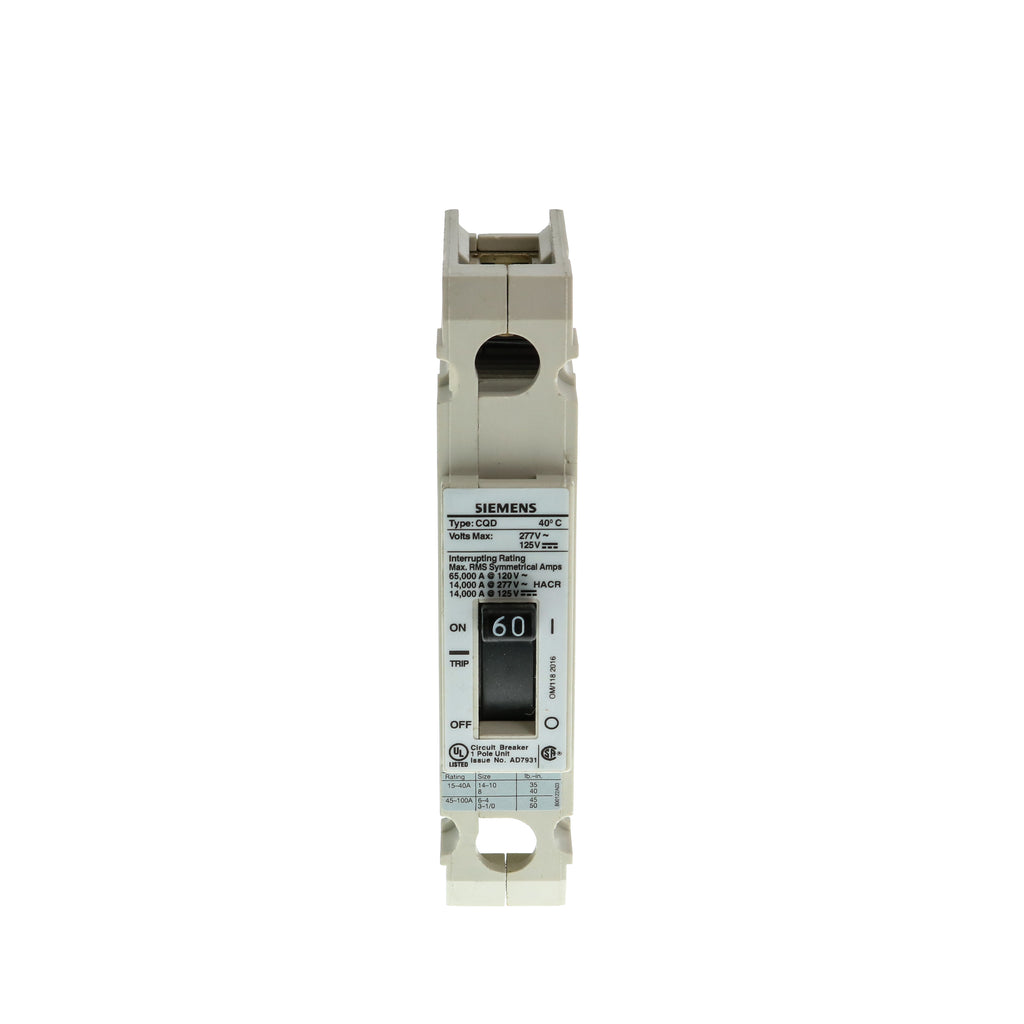

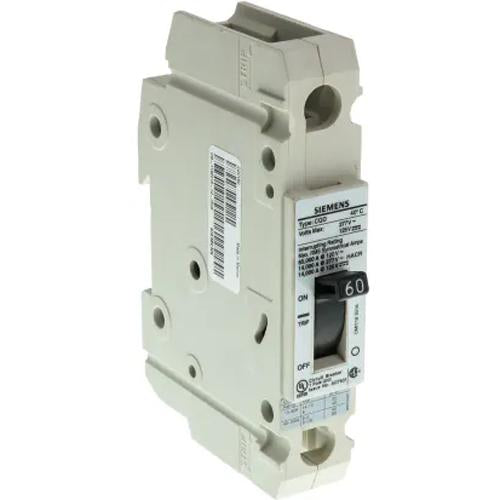

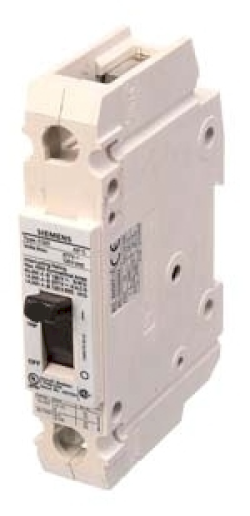

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- CQD Series
- Frame
- CQD
- Rated current
- 60
- Voltage
- 277V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 14kA@277V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Country of origin
- Mexico
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
Show all specifications (4 more)
- UPC
- 783643277557
- GTIN
- 00783643277557
- Weight
- 0.697
- Wire Size
- AWG 6 to AWG 1/0, AWG 8 to AWG 1, Aluminum/Copper
Product description & additional details
CQD160
CQD160 is a Siemens 1-pole molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a 60A current rating, 277V AC voltage rating, and a 14kAIC interrupting capacity at 277V. It is built with a CQD frame and utilizes a thermal magnetic trip unit for long-time and instantaneous protection. The feed-thru connection design allows for easy installation and maintenance. The CQD160 is suitable for use in panelboards and switchgear where compact size and dependable performance are required. It is UL 489 listed and meets relevant safety standards for circuit protection. The breaker is bolt-on mountable, making it compatible with a wide range of enclosures and distribution equipment.
- Part Number: CQD160
- Manufacturer: Siemens
- Amperage: 60A
- Voltage: 277V AC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14kAIC @ 277V
- Series/Frame: CQD
- Connection: Feed-Thru
- Trip Unit: Thermal Magnetic (LI)
- Certifications: UL 489 Listed
- Application: Commercial, Industrial
Specifications
- Part Number: CQD160
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 277
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277557
- GTIN : 00783643277557
- Country of Origin : Mexico
- Weight : 0.697
- Wire Size : AWG 6 to AWG 1/0, AWG 8 to AWG 1, Aluminum/Copper
