Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- CQD Series
- Frame
- CQD
- Rated current
- 20
- Voltage
- 277V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 14kA@277V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Mounting
- DIN Rail
- Country of origin
- Mexico
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 783643277489
- GTIN
- 00783643277489
- Weight
- 0.741
- Certification
- UL Listed
Product description & additional details

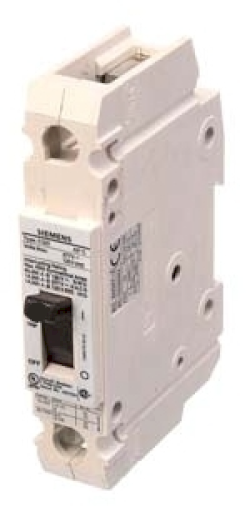

CQD120
CQD120 is a Siemens 1-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.
This thermal magnetic circuit breaker features a 20A current rating, 277VAC voltage rating, and a 14kA interrupting capacity. It is DIN rail mounted for easy installation and supports cable-in/cable-out connections, making it versatile for various electrical setups. The CQD series is UL 489 listed for safety and compliance.
-
Key Specifications
- Part Number: CQD120
- Manufacturer: Siemens
- Amperage: 20A
- Voltage: 277VAC, 125VDC
- Poles: 1
- Mounting Type: DIN Rail
- Interrupt Rating: 14kAIC
- Series/Frame: CQD
- Trip Unit: Thermal Magnetic
- Connection: Cable-In/Cable-Out
- Certifications: UL 489 Listed
- Application: Commercial, Industrial
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CQD120
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Circuit Breaker Mounting Style : DIN Rail
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277489
- GTIN : 00783643277489
- Country of Origin : Mexico
- Weight : 0.741
- Certification : UL Listed
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
