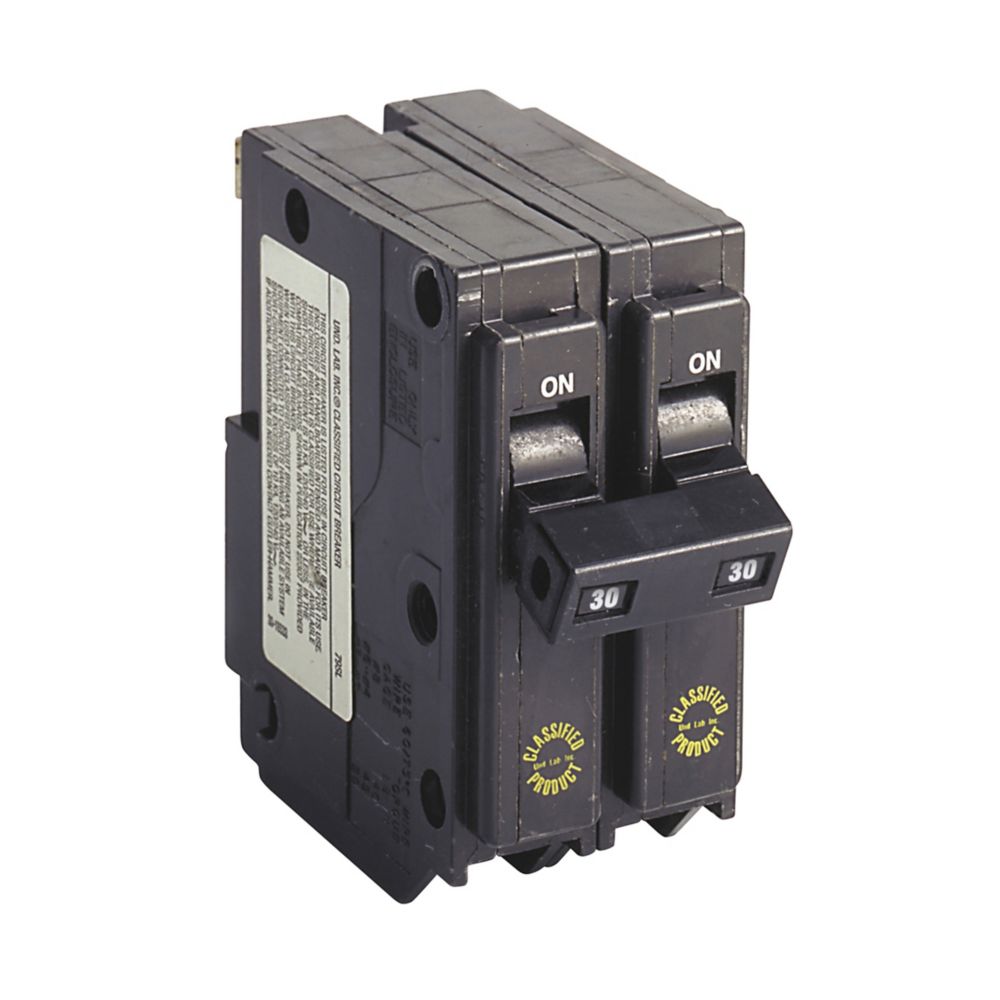

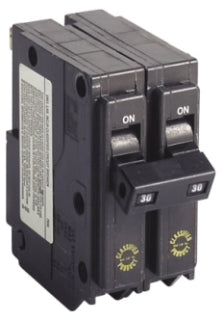

CHQ230 - Cutler Hammer 30A 120/240V 2-Pole Thermal Magnetic Circuit Breaker 10kAIC Type CHQ Classified

CHQ230

CHQ230 is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 30 amps and 120/240 volts with a 10 kA interrupt rating.

This Type CHQ classified replacement breaker features a common trip mechanism and is designed for plug-on mounting. It supports copper and aluminum wiring with (1) #14-8 AWG and (2) #14-10 AWG wire sizes. The breaker provides reliable protection in a compact 3/4-inch frame suitable for residential and light commercial applications.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10 kAIC
• Type: CHQ Classified Replacement
• Trip Unit: Thermal Magnetic, Common Trip
• Mounting Type: Plug-On
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Frame Size: 3/4 Inch
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHQ230
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHQ Series
• Type : CHQ
• Voltage : 5
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 78211301092
• GTIN : 00782113010922
• Country of Origin : Dominican Republic
• Dimensions : 1.5 in x 2.7 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 489
• Wire Size : 2x AWG 14 to AWG 10, Cu/Al, 1x AWG 14 to AWG 8
