BR220 - Eaton 20 Amp 2 Pole 120/240V Type BR Plug-On Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL/CSA Listed

BR220

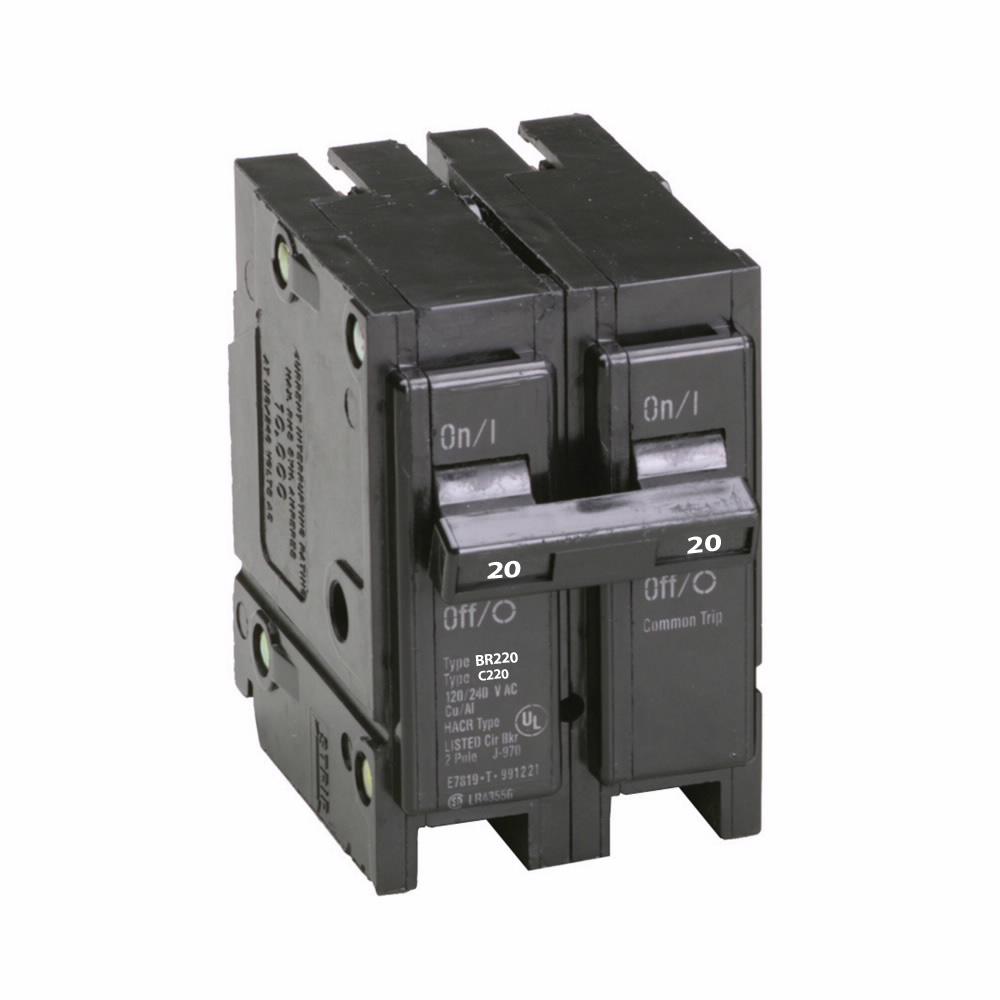

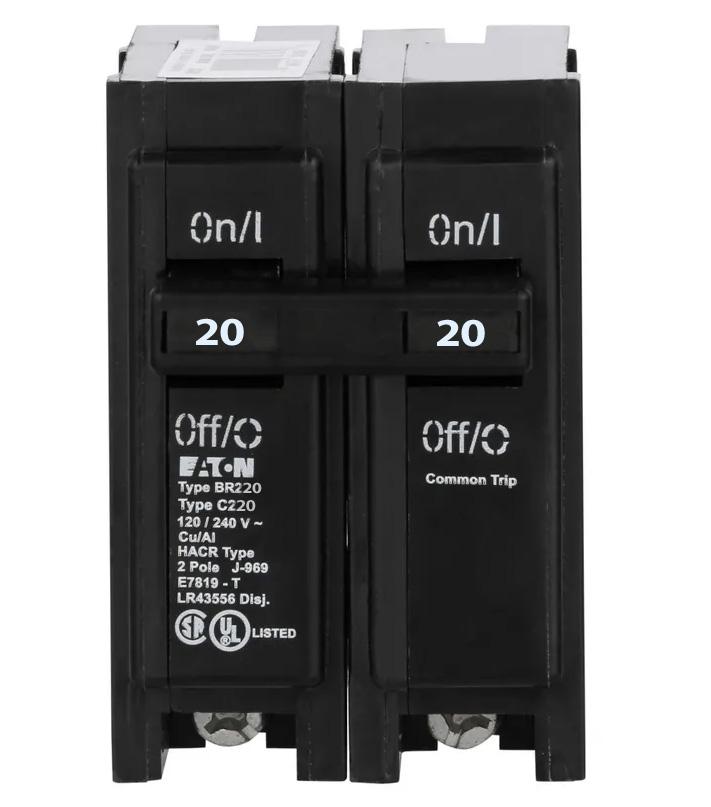

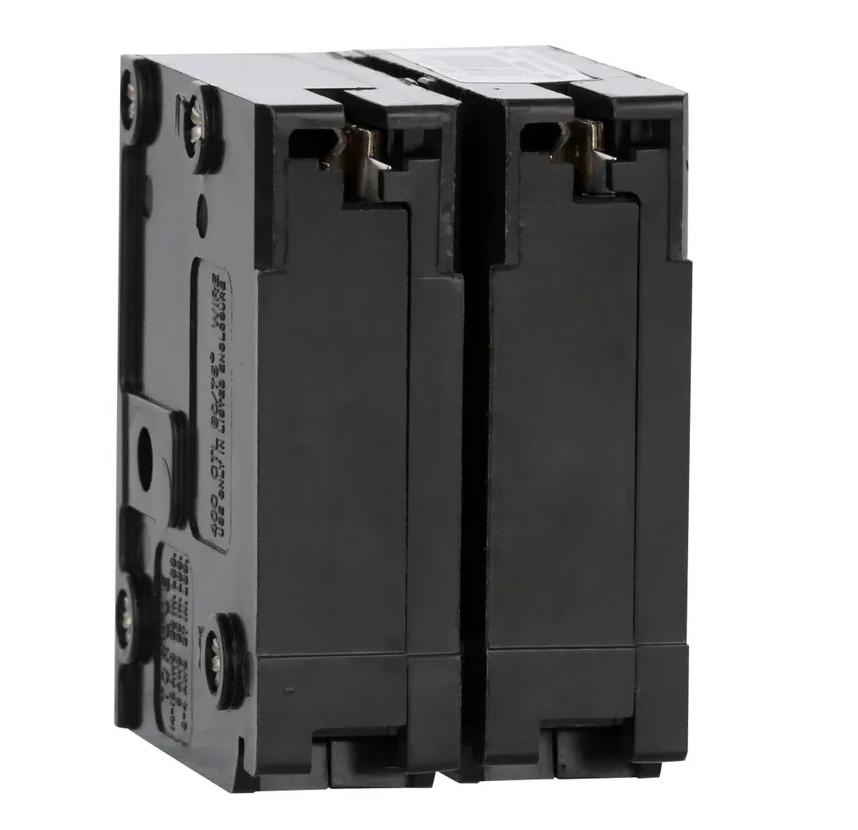

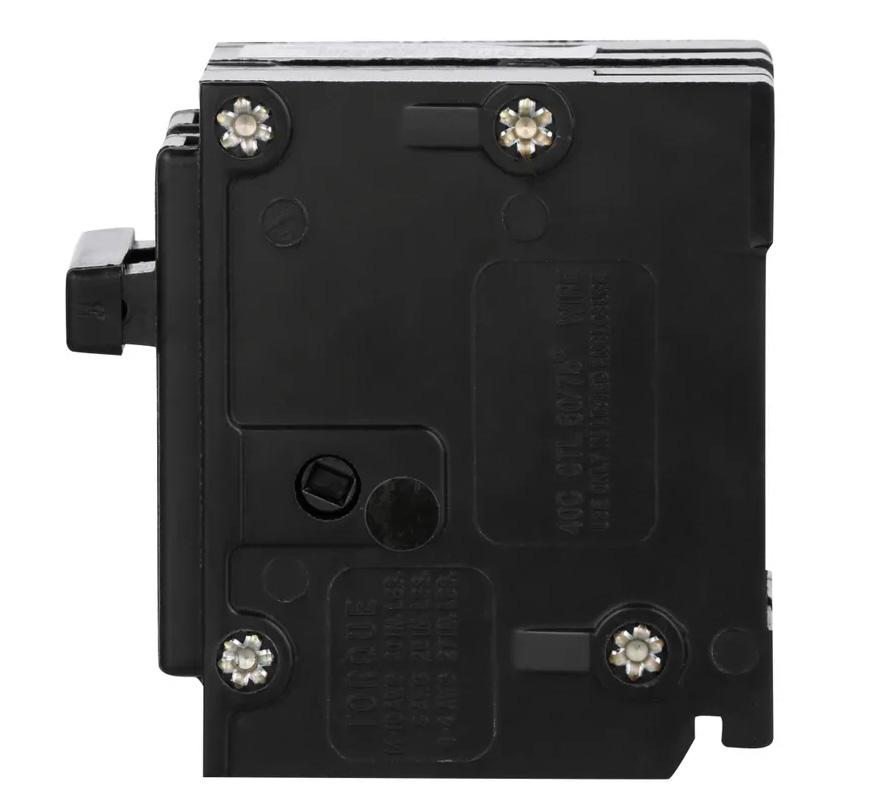

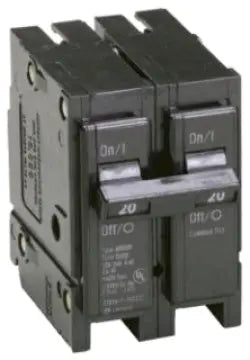

BR220 is a 2-pole, 20 Amp, 120/240V Type BR plug-on circuit breaker from Eaton, designed for residential and light commercial load centers.

This thermal magnetic circuit breaker features a common trip mechanism, 10kA interrupting rating at 240V, and is compatible with copper or aluminum wire from #14 to #3 AWG. It is engineered for reliable overcurrent and short-circuit protection in Type BR load centers.

Key Specifications
• Amperage: 20A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: BR
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL 489, CSA
• Wire Size: #14-3 AWG Cu/Al
• Connection: Plug-in
• Dimensions: 1.9" L x 2" W x 2.5" H
• Weight: 0.6 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR220
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676362856
• GTIN : 00786676362856
• Country of Origin : United States
• Dimensions : 1.9 in x 2.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 3, Cu/Al
