BR2100 - Crouse-Hinds 100A 240V 2-Pole Plug-On Circuit Breaker, 10kA Interrupt Rating

BR2100

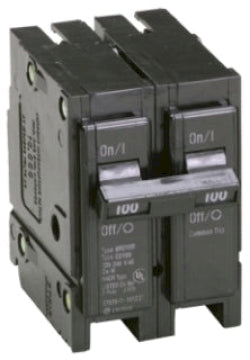

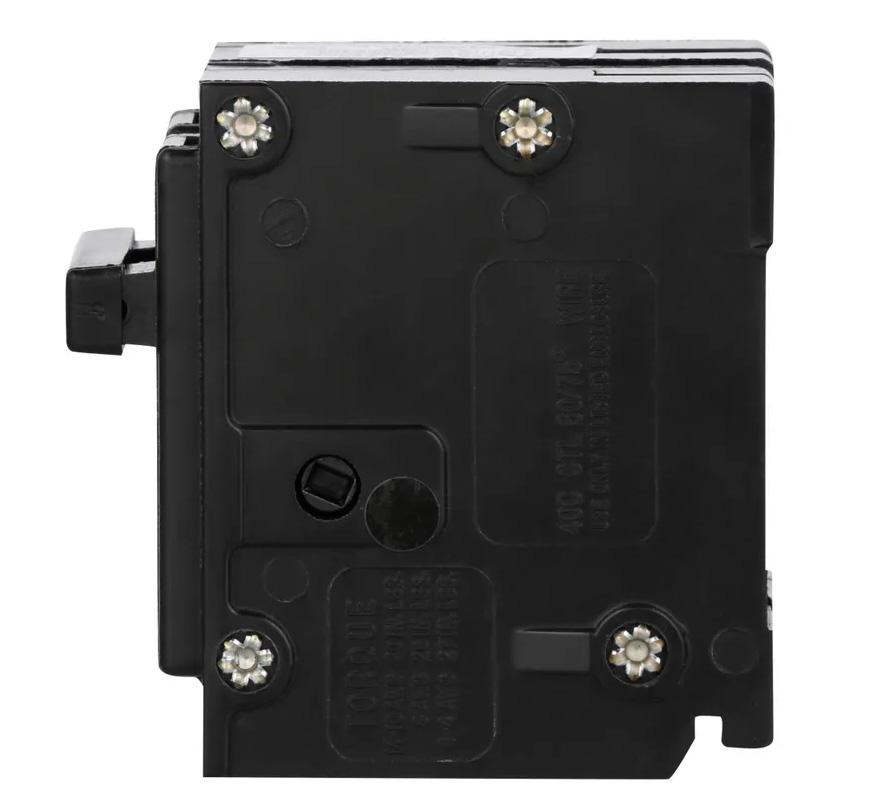

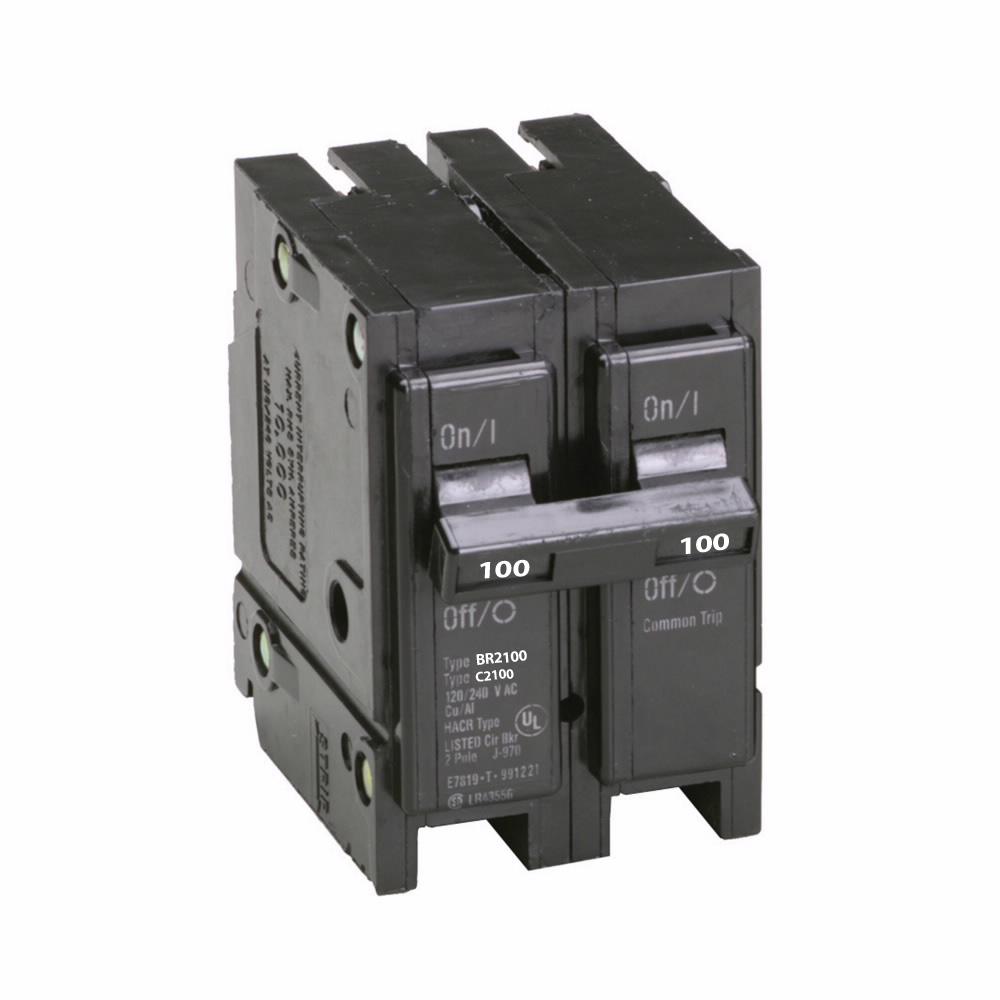

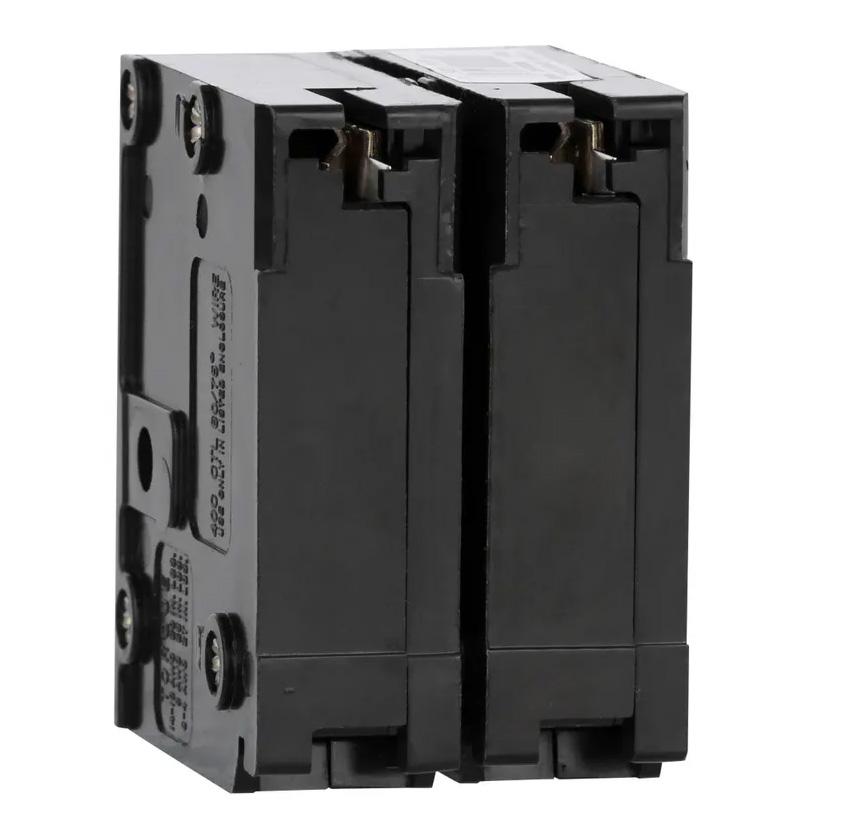

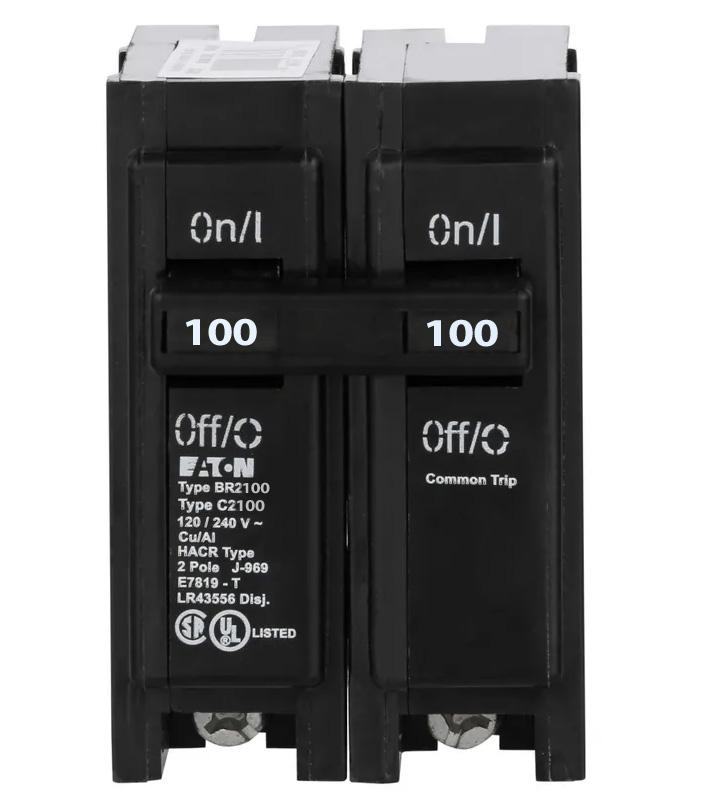

BR2100 is a 2-pole, 100 amp, 240 Volt plug-on circuit breaker manufactured by Crouse-Hinds, designed for use in Type BR loadcenters.The BR2100 circuit breaker features a common thermal magnetic trip unit, a 10,000 amp interrupting capacity at 240V, and supports wire sizes from 8 to 1/0 AWG copper or aluminum. It is UL 489 listed and meets Federal Specification W-C375 standards, ensuring reliable protection for residential and commercial electrical systems.

Key Specifications
• Amperage: 100 A
• Voltage: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC @ 240V
• Trip Type: Common Thermal Magnetic
• Wire Size: 8 - 1/0 AWG Cu/Al
• Certifications: UL 489 Listed, Federal Specification W-C375
• Series/Frame: Type BR
• Dimensions: Approximately 3" L x 2" W x 3" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR2100
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 1/0 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676363259
• GTIN : 00786676363259
• Country of Origin : Dominican Republic
• Dimensions : 1.9 in x 2.4 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6 lb
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 4 to AWG 1/0, Cu/Al
