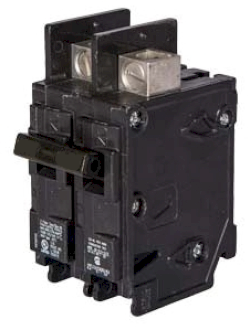

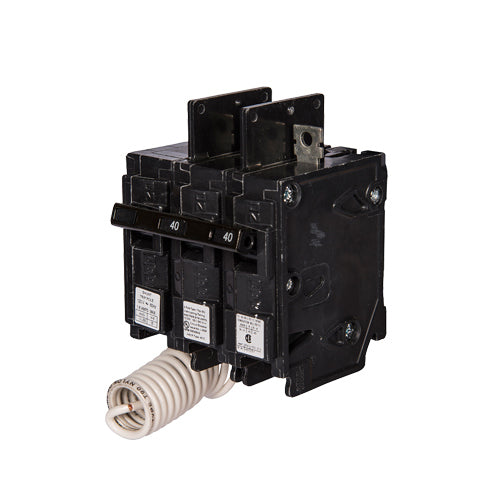

BQ2B01500S01 - Siemens 15A 120/240V 2 Pole Bolt-On Circuit Breaker with Shunt Trip 10kA Interrupt Rating BQ Series

BQ2B01500S01

BQ2B01500S01 is a Siemens 2-pole, 15 amp, 120/240 Volt bolt-on circuit breaker with a 10kA interrupt rating and shunt trip feature.This Siemens BQ Series molded case circuit breaker is designed for low voltage applications, providing reliable protection with a shunt thermal magnetic trip unit. It features a bolt-on mounting style compatible with Siemens panelboards, a 10,000 A interrupting capacity at 120/240V AC, and is HACR rated and UL listed for safety and compliance.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 V AC
• Trip Unit: Shunt Thermal Magnetic Trip
• Series/Frame: BQ Series
• Standards: HACR Rated, UL Listed
• Terminal Connection: Lug
• Max Wire Size: 10 AWG
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ2B01500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643237711
• GTIN : 00783643237711
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 2.756 inch
• Weight : 0.904
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
