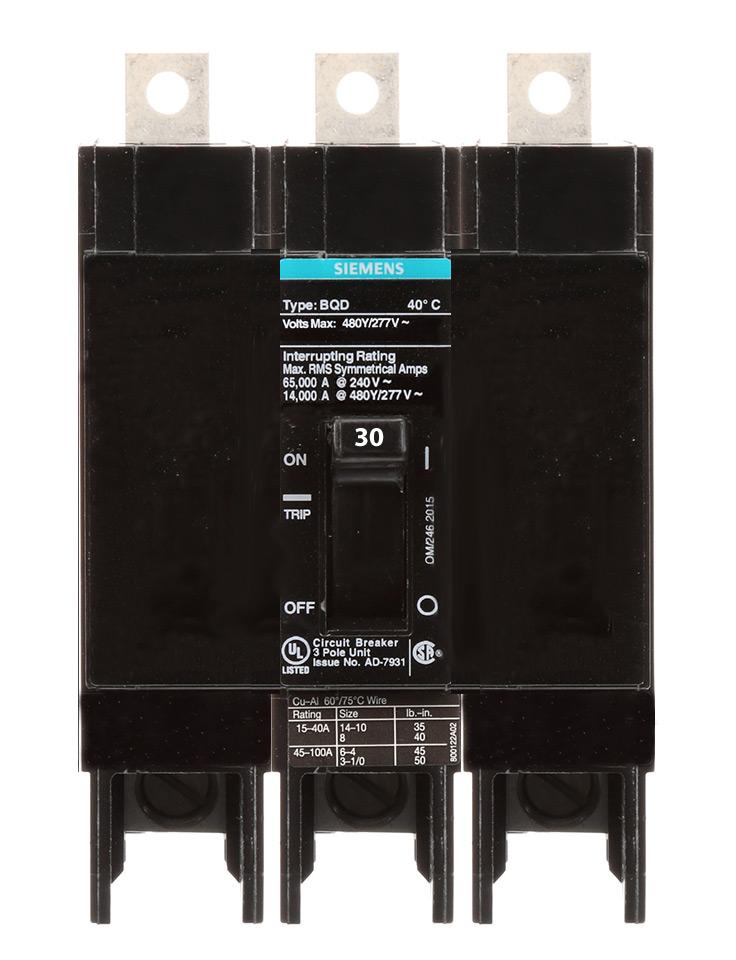

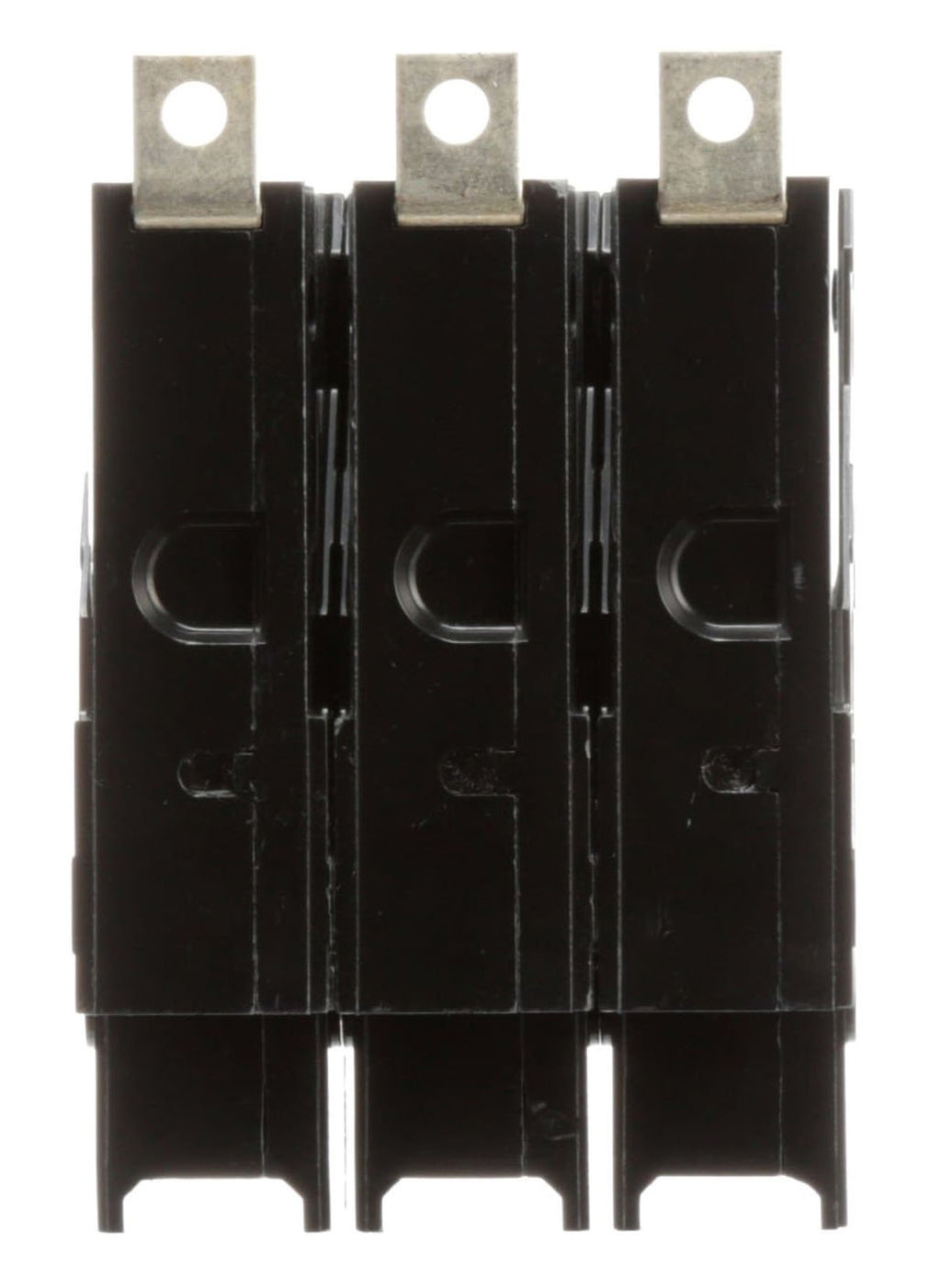

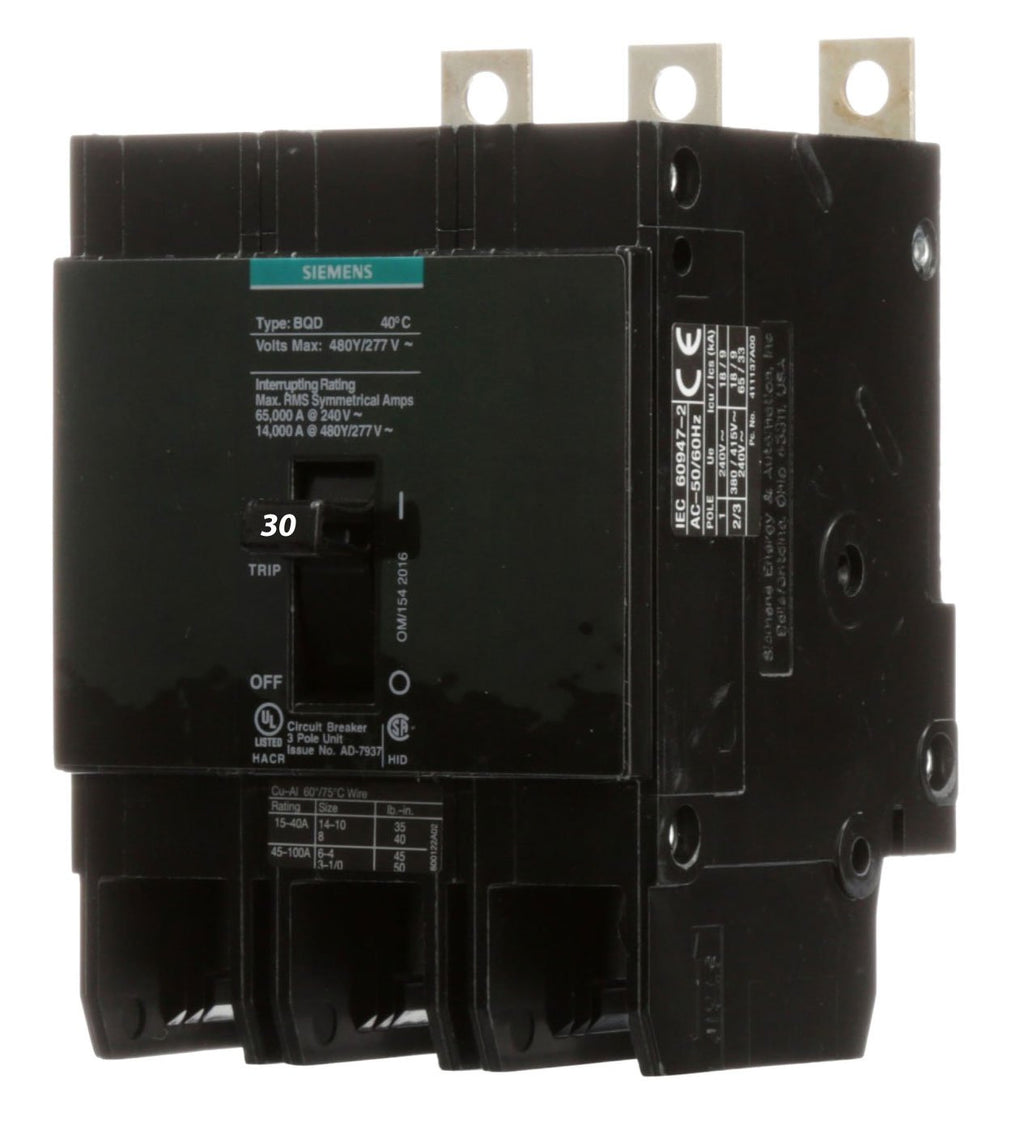

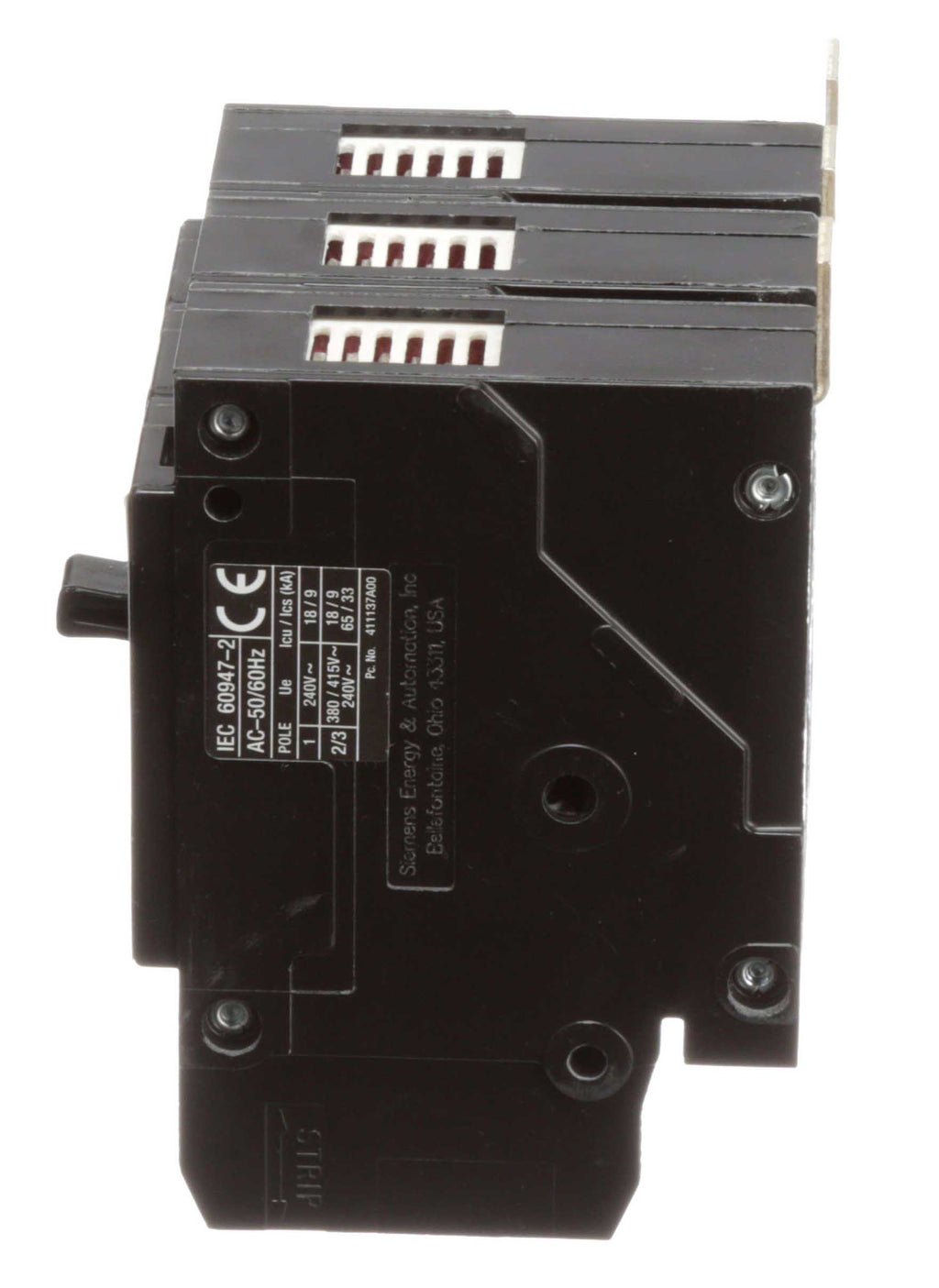

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- BQD Series
- Frame
- BQD
- Rated current
- 30
- Voltage
- 480V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 14kA@480V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-on
- Terminals
- Lug
- Frequency
- 50/60 Hz
- Panel / equipment
- Siemens P1 Panelboards
- Standards
- CSA-C22.2,UL 526
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- 100A/BQD
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type
- Standard
- UPC
- 783643277373
- GTIN
- 00783643277373
- Dimensions
- 3 in x 4.49 in x 4.49 in
- Weight
- 1.301 lb
- Certification
- CSA-C22.2,UL 526
Product description & additional details
BQD330
BQD330 - Siemens Type BQD molded case circuit breaker, 3-pole, 30A, 480VAC, thermal magnetic trip.BQD330 is a 3-pole molded case circuit breaker from the BQD series with 30A amperage rating, 277/480VAC voltage, 14kA interrupt rating at 480V, thermal magnetic trip unit, toggle actuator, and bolt-on/panel mounting for commercial applications.
- Part Number: BQD330
- Manufacturer: Siemens
- Series/Frame: BQD, 100A frame
- Amperage: 30A
- Voltage: 277/480VAC
- Poles: 3
- Phase: 3
- Interrupt Rating: 14kA @ 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On / Panel
- Frequency: 50/60 Hz
- Wire Size: 14-6 AWG CU, 12-6 AWG AL
- Certifications: UL 489, CSA
Specifications
- Part Number: BQD330
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQD Series
- Type : BQD
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 100A/BQD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643277373
- GTIN : 00783643277373
- Country of Origin : Mexico
- Dimensions : 3 in x 4.49 in x 4.49 in
- Weight : 1.301 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA-C22.2,UL 526
- Certification : CSA-C22.2,UL 526
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
