Q330

Q330

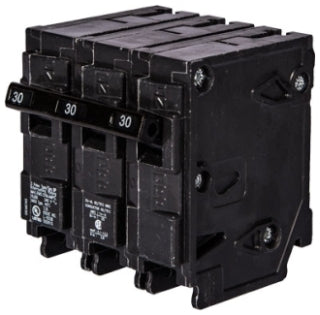

Q330 is a Siemens 30 Amp 3 Pole 240 Volt circuit breaker designed for residential and light commercial electrical distribution protection.This Siemens Q330 circuit breaker features a thermal-magnetic trip unit with a 10,000 Amp interrupting rating, compatible with Siemens QP and MP series load centers. It offers plug-in mounting for easy installation and is UL listed, CSA approved, and HACR rated for HVAC applications. The breaker supports 14 to 6 AWG copper or aluminum wire and provides reliable overload and short-circuit protection.

Key Specifications
• Amperage: 30 Amps
• Voltage: 240 Volts AC
• Poles: 3
• Mounting Type: Plug-In
• Interrupting Rating: 10,000 Amps (10kA)
• Series/Frame: QP
• Trip Unit: Thermal-Magnetic Standard Trip
• Certifications: UL Listed, CSA Approved, HACR Rated
• Wire Range: 14 to 6 AWG Copper/Aluminum
• Dimensions: Approximately 3" x 3" x 3"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: Q330
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643148413
• GTIN : 00783643148413
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 2.756 inch
• Weight : 0.882
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
