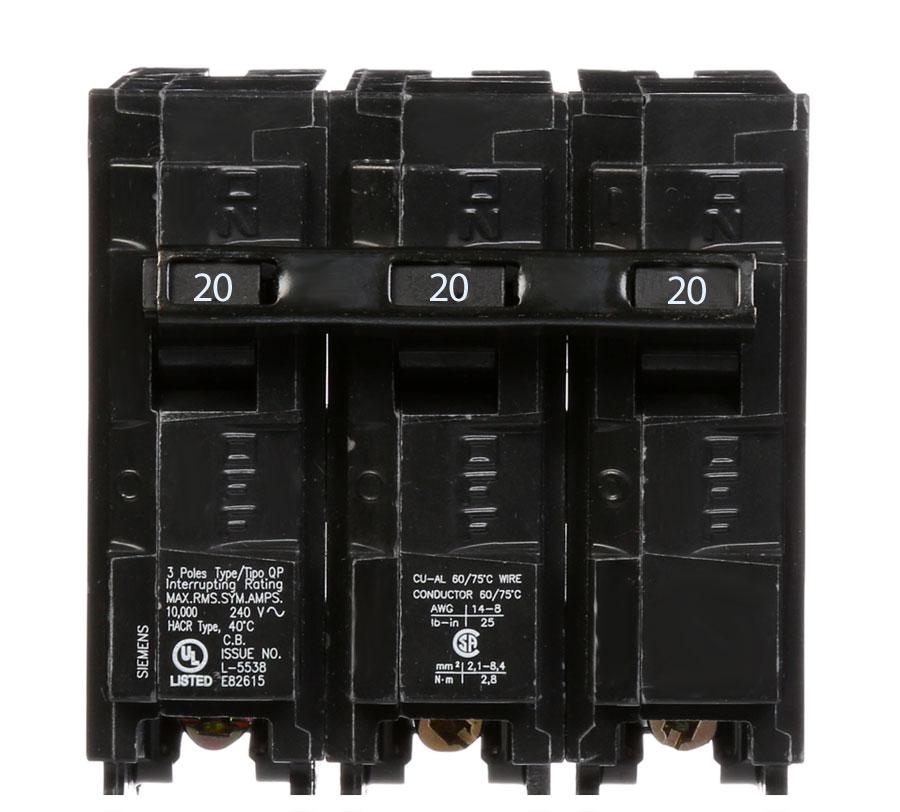

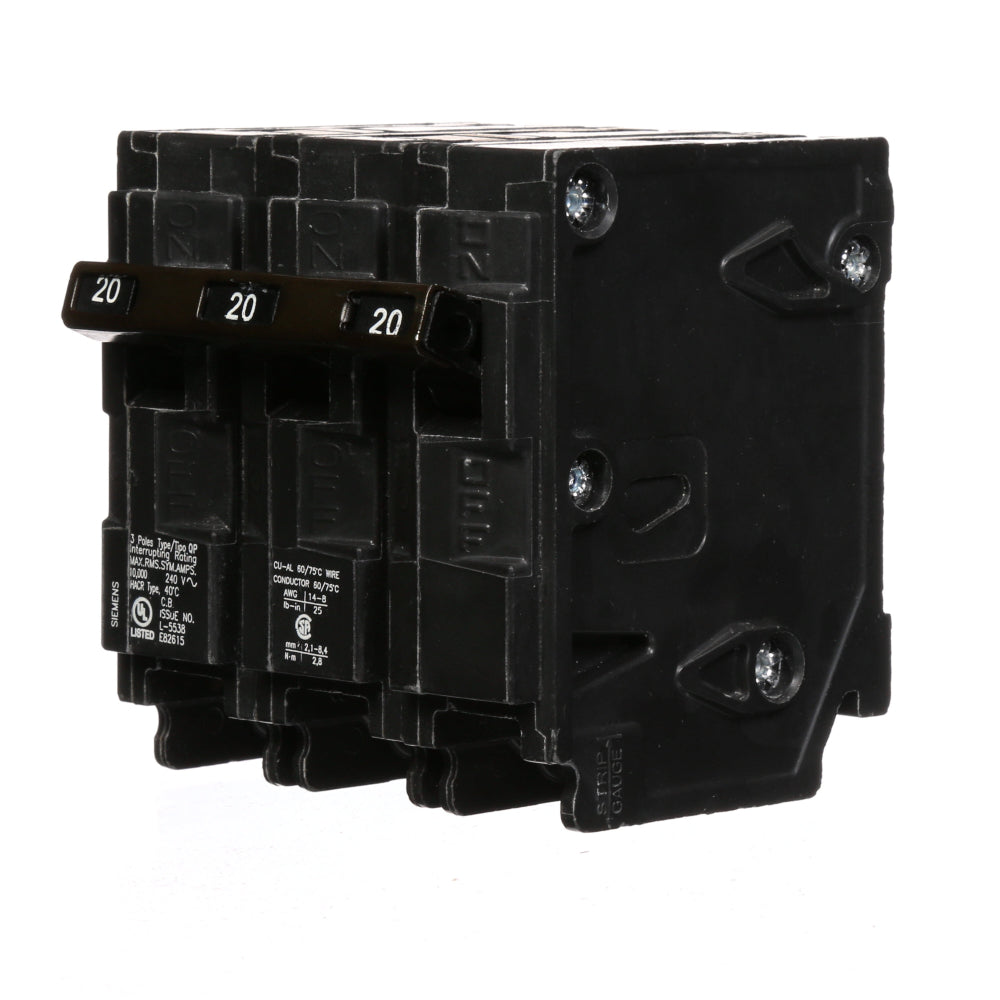

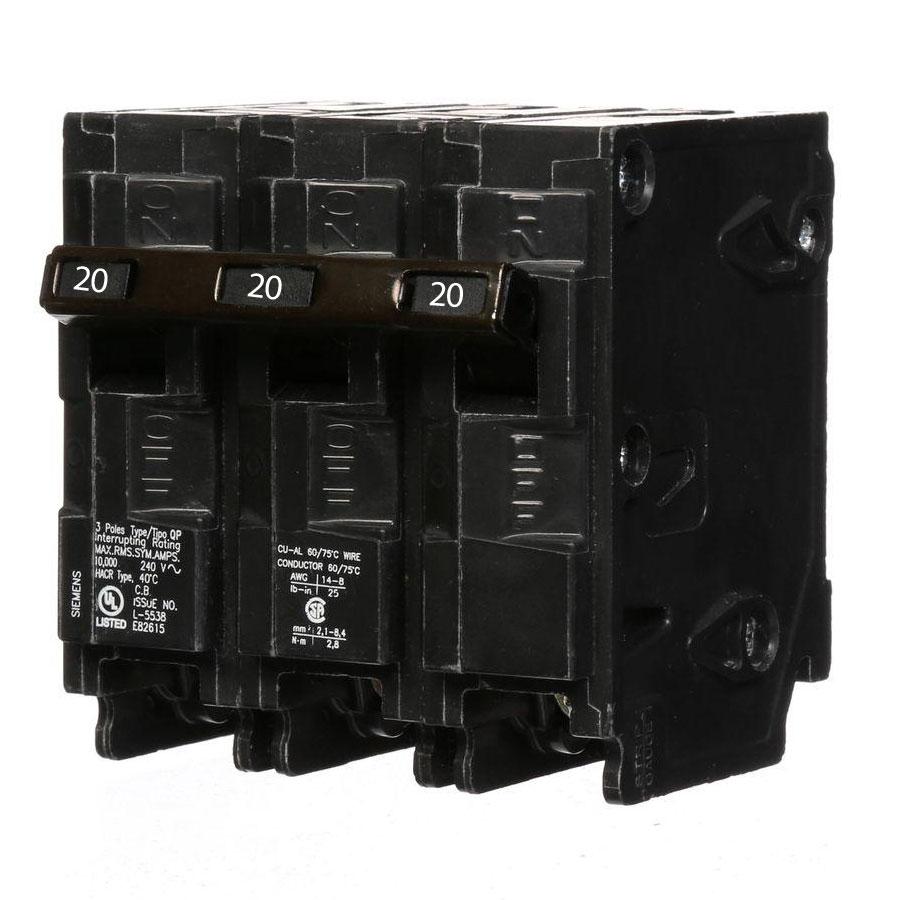

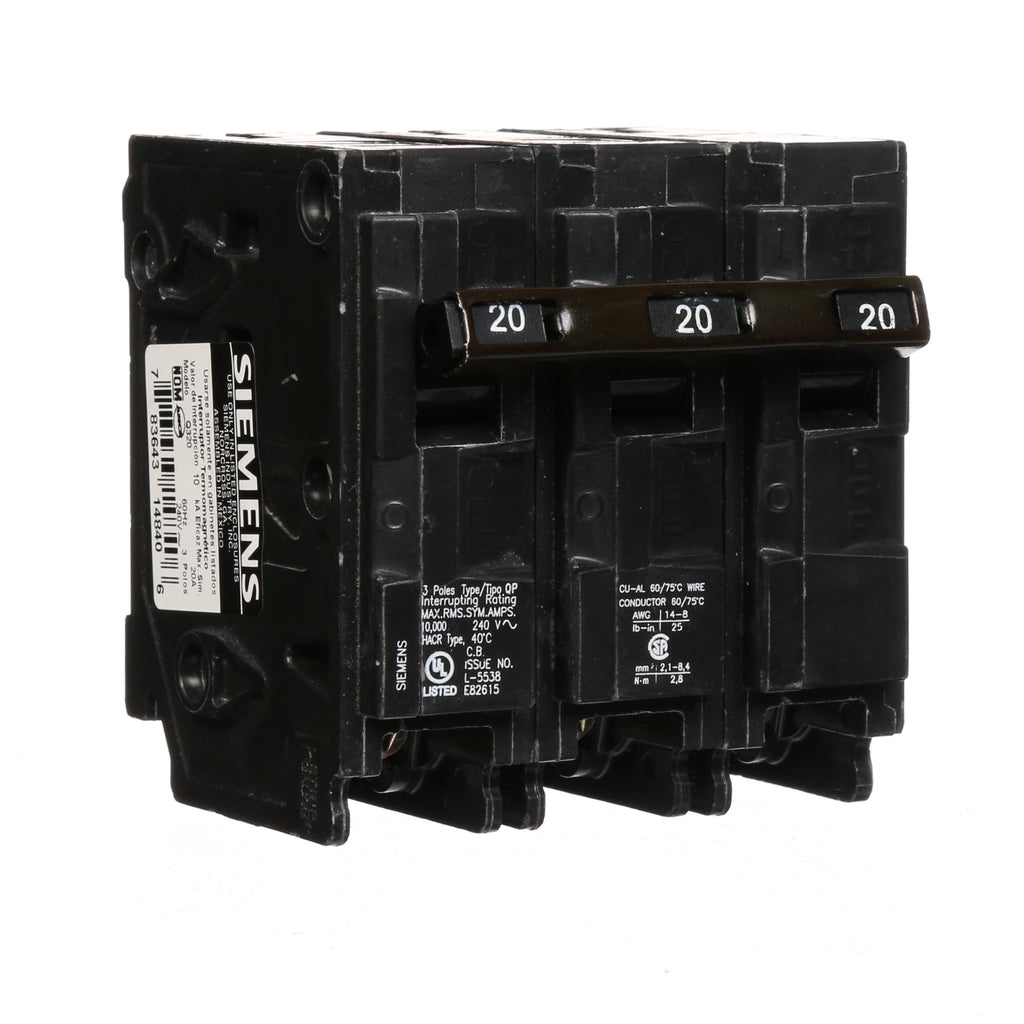

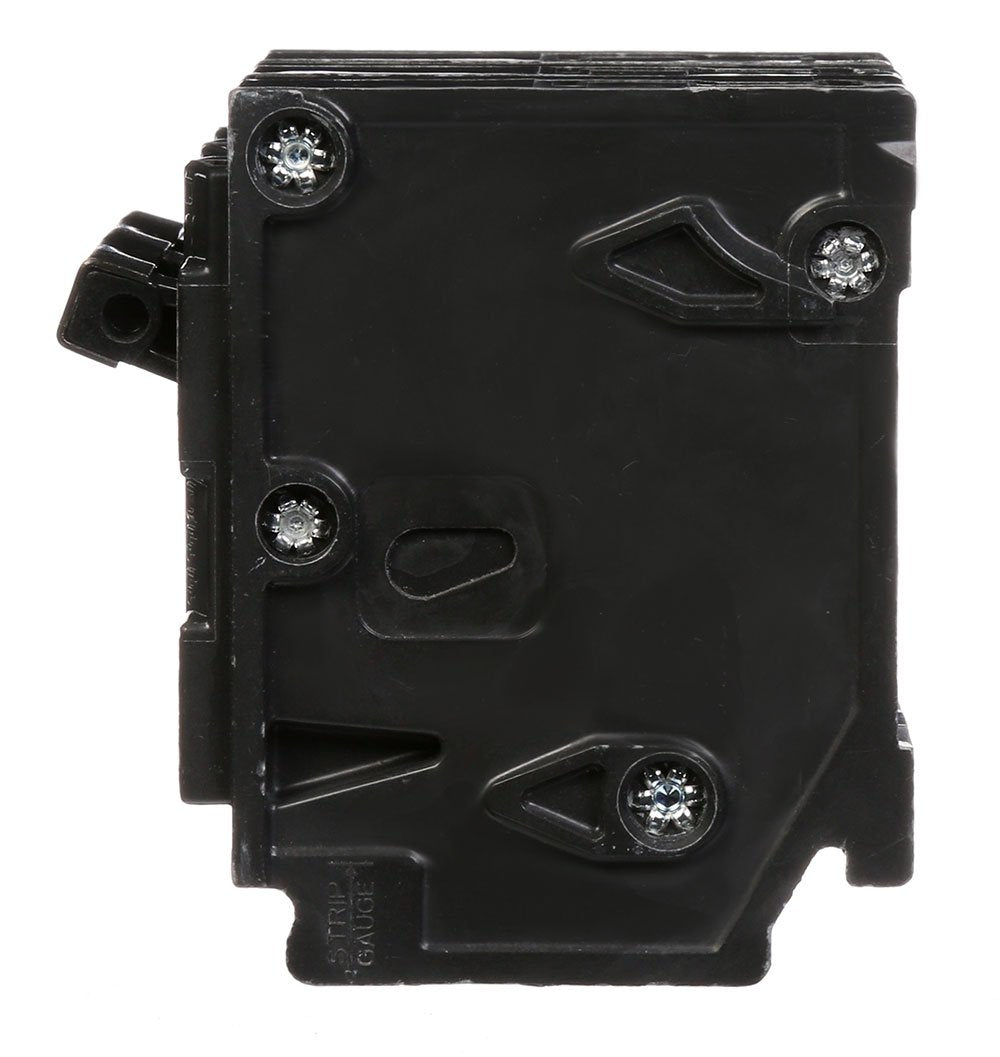

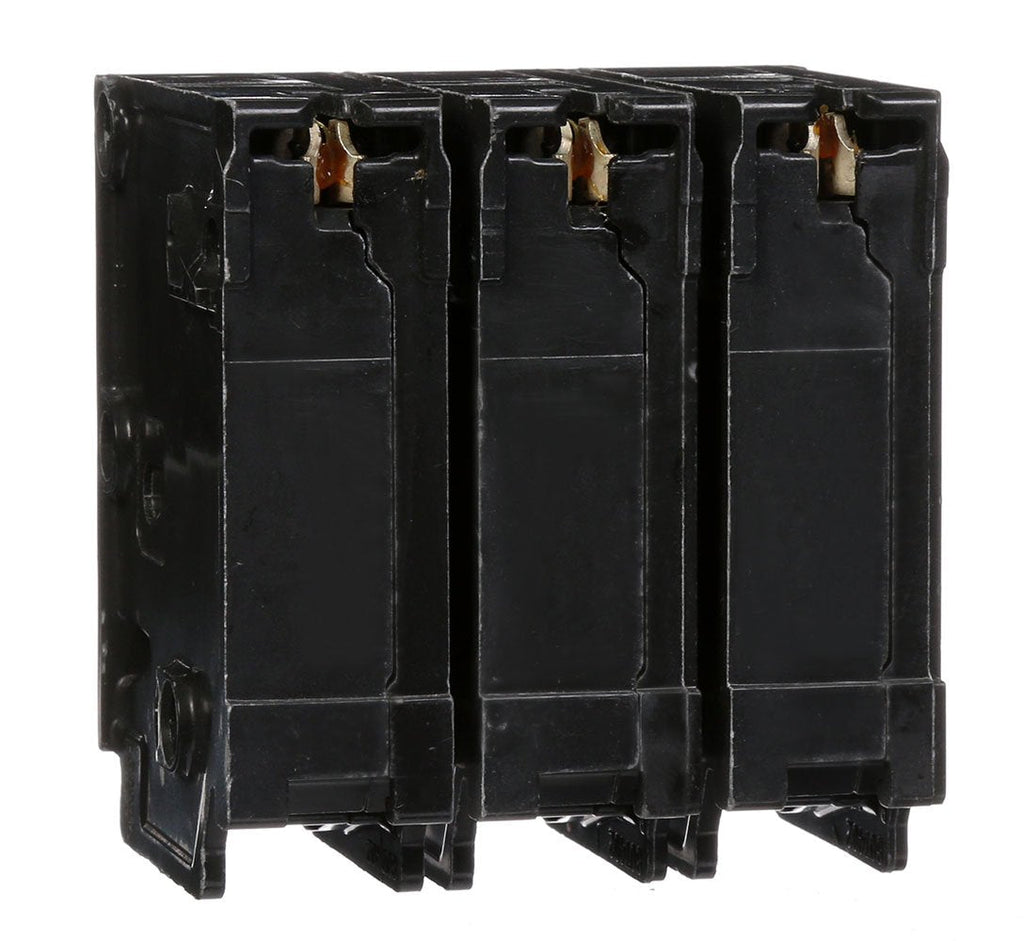

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- Q Series
- Frame
- QP
- Rated current
- 20
- Voltage
- 240V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 10kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- Siemens EQ Load Centers
- Standards
- UL Listed
- Country of origin
- Mexico
Show all specifications (8 more)
- Frame Size
- 125A/QP
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type
- Standard
- UPC
- 783643148406
- GTIN
- 00783643148406
- Dimensions
- 12.598 x 3.543 x 3.15 inch
- Weight
- 0.882
- Certification
- UL Listed
Product description & additional details
Q320
Q320 is a Siemens 20 Amp 3 Pole 240 Volt plug-in circuit breaker from the Q Series designed for reliable thermal magnetic protection.This molded case circuit breaker features a 10,000 Amp interrupting rating and is suitable for three-phase applications such as air conditioning, heating, and refrigeration distribution. It includes long-time and instantaneous trip functions and is compatible with Siemens load centers using the Insta-Wire plug-in connection.
- Manufacturer: Siemens
- Series: Q
- Amperage: 20A
- Voltage Rating: 240 VAC
- Poles: 3
- Connection Type: Plug-In (Insta-Wire)
- Interrupting Rating: 10,000 Amps
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Application: Three-Phase Air Conditioning, Heating, Refrigeration
- Certifications: UL Listed, CSA Approved
- Dimensions: Approximately 3" x 3" x 3"
Specifications
- Part Number: Q320
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/QP
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643148406
- GTIN : 00783643148406
- Country of Origin : Mexico
- Dimensions : 12.598 x 3.543 x 3.15 inch
- Weight : 0.882
- Panel Type : Siemens EQ Load Centers
- Standards : UL Listed
- Certification : UL Listed
