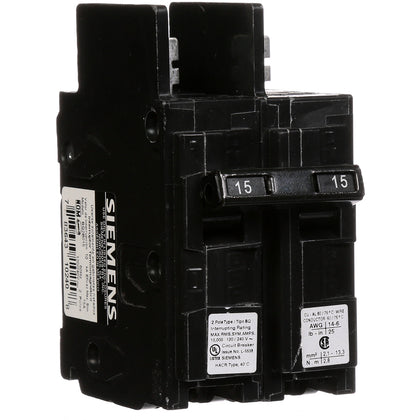

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- BQ Series
- Frame
- BQ
- Rated current
- 15
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-on
- Terminals
- Lug
- Lugs
- Included
- Frequency
- 60 Hz
- Panel / equipment
- Siemens Panelboards
- Standards
- HACR Rated, UL Listed
- Country of origin
- Mexico
Show all specifications (9 more)
- Frame Size
- 125A/BQ
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type
- Standard
- UPC
- 783643102408
- GTIN
- 00783643102408
- Dimensions
- 3.937 x 2.756 x 1.969 inch
- Weight
- 0.617
- Certification
- CSA, HACR, UL
Product description & additional details
BQ2B015
BQ2B015 Siemens 15 Amp 2-Pole 120/240V molded case circuit breaker delivers reliable circuit protection for commercial and industrial applications.
This Siemens Type BQ low voltage molded case circuit breaker features a thermal magnetic trip mechanism, non-interchangeable trip unit, and bolt-on mounting for secure installation. It is designed for general purpose use in power distribution panels where dependable overcurrent protection is required.
-
Key Specifications
- Amperage: 15 A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC
- Series/Frame: Type BQ
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Certifications: Not specified
- Frequency: 60 Hz
- Connection: Lug-style (in and out)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BQ2B015
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 120/240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BQ
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643102408
- GTIN : 00783643102408
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 1.969 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
