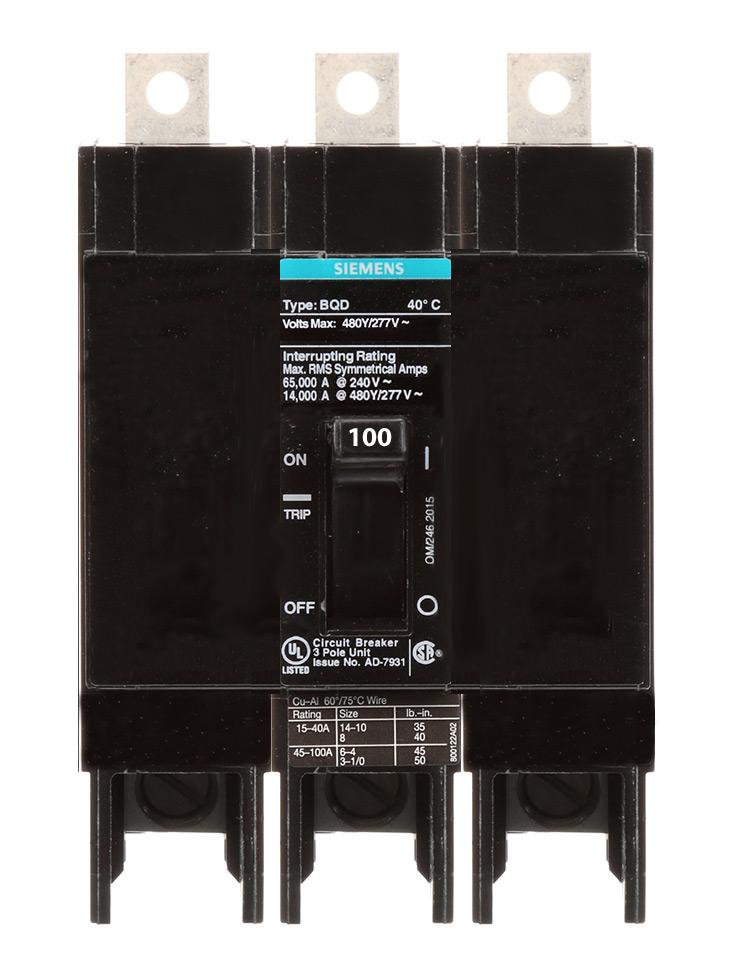

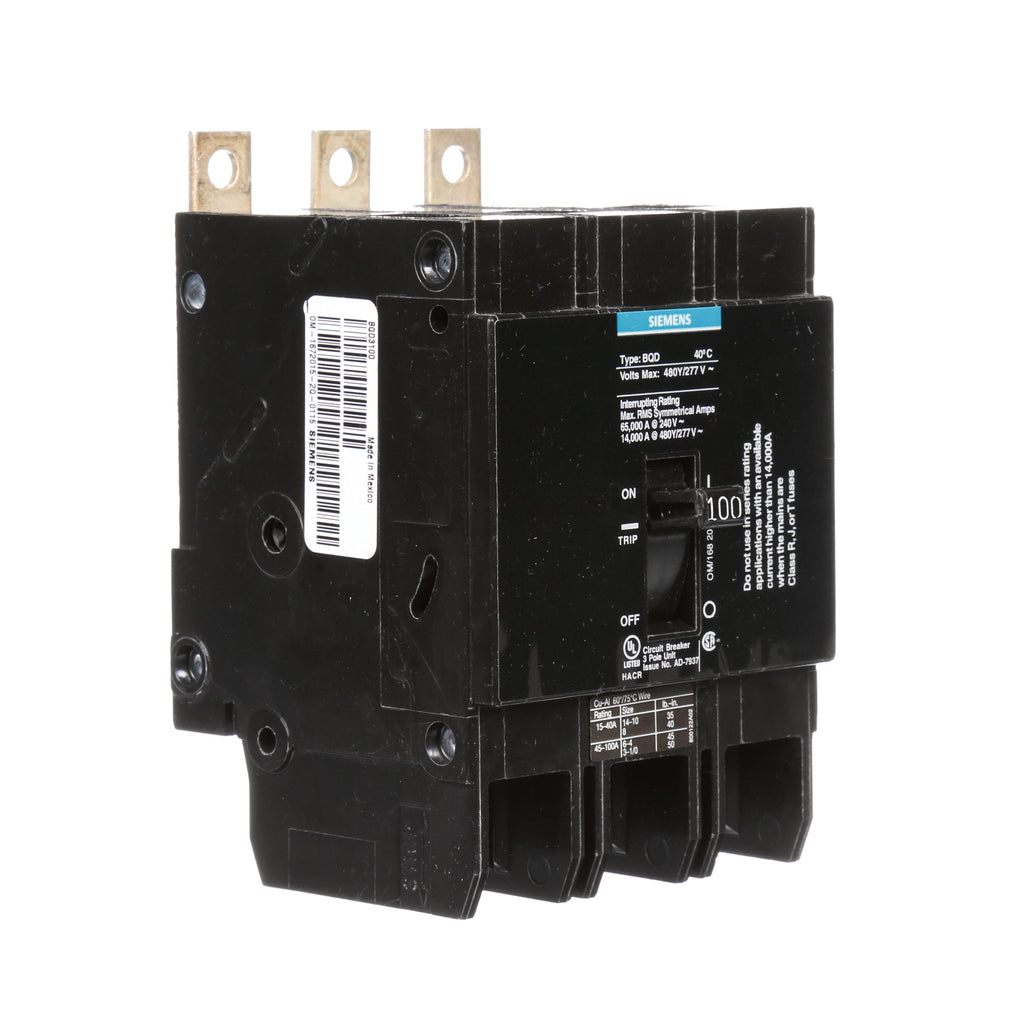

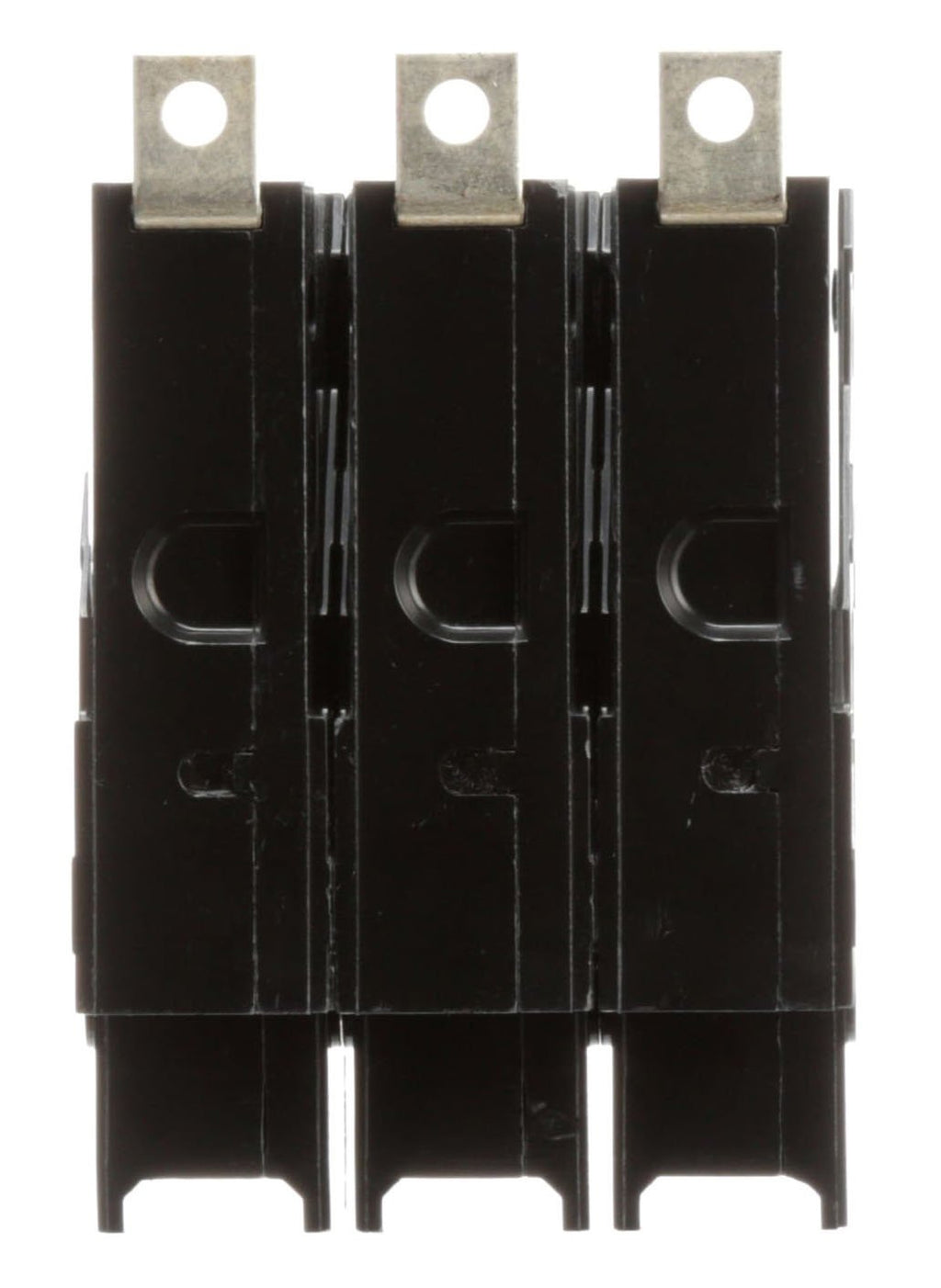

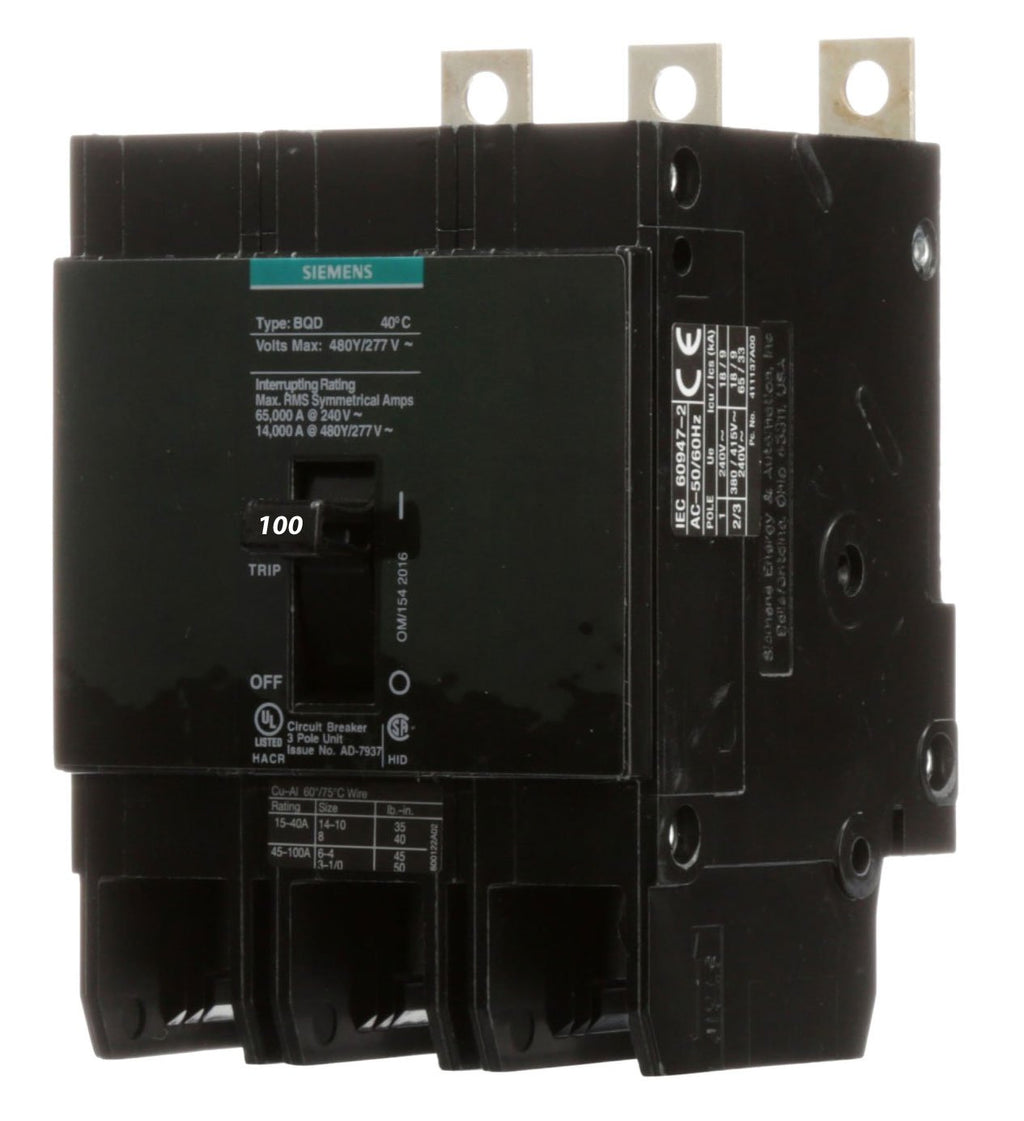

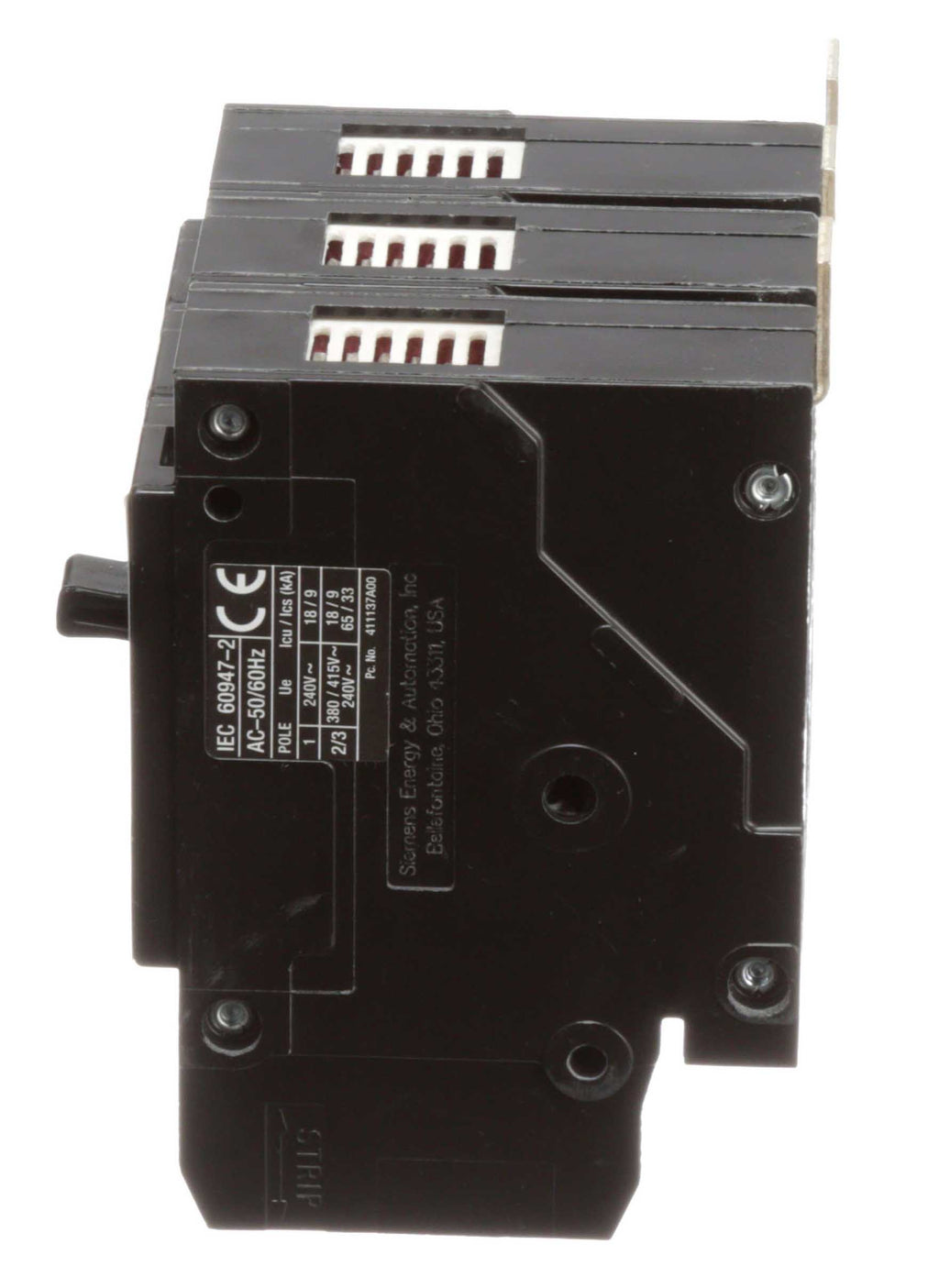

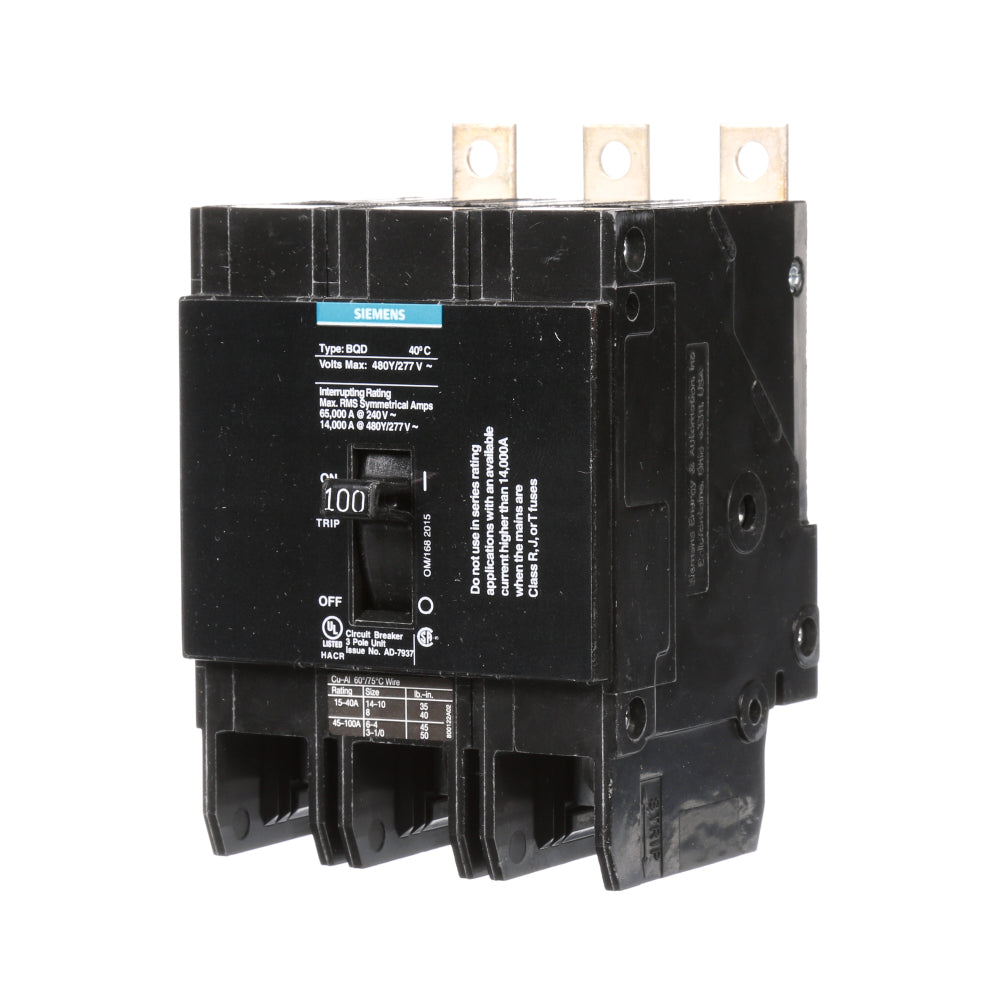

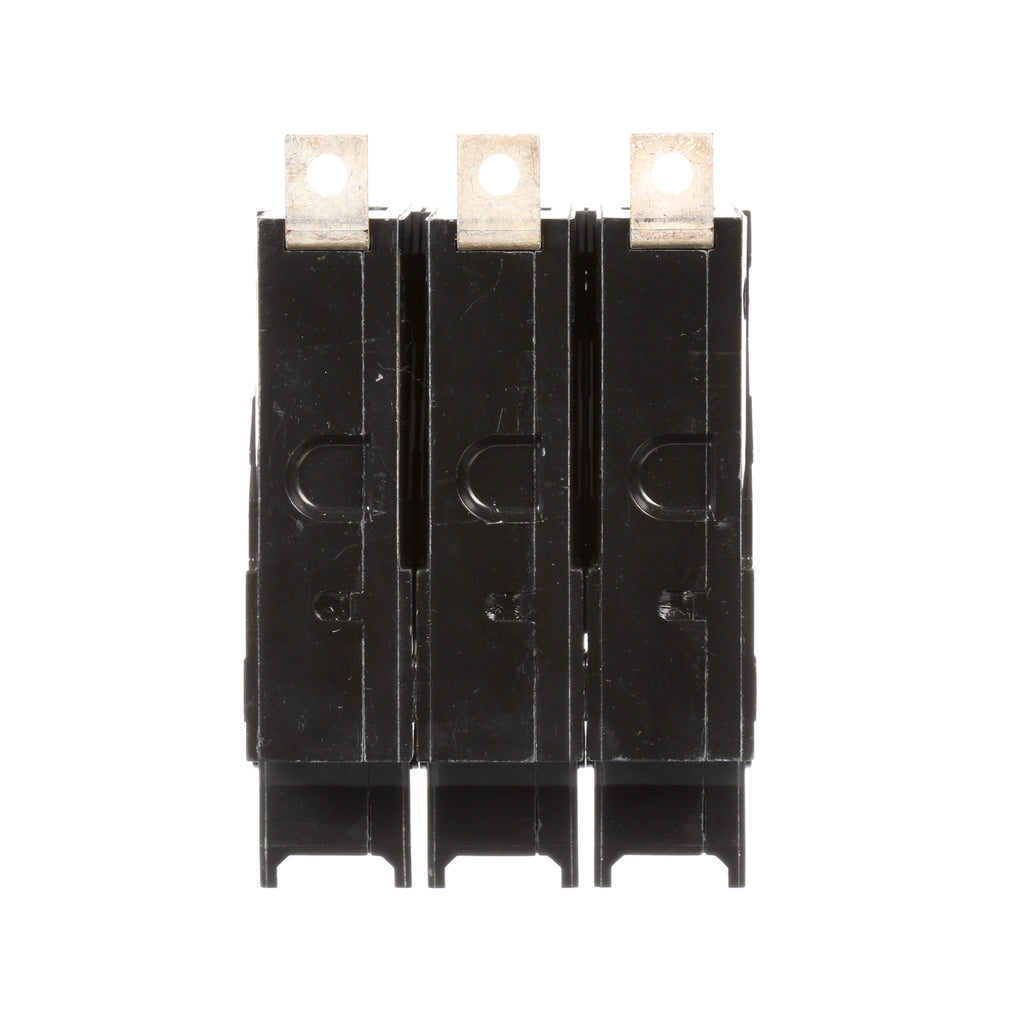

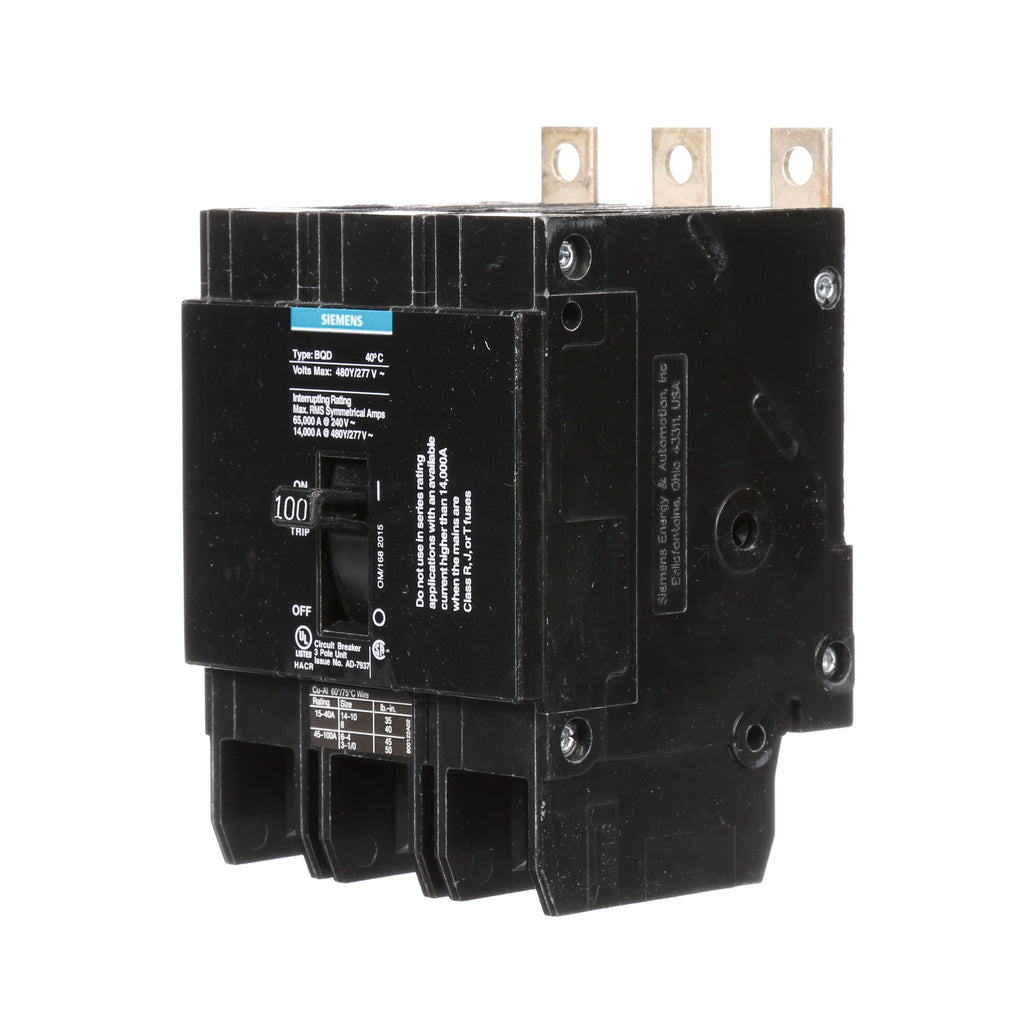

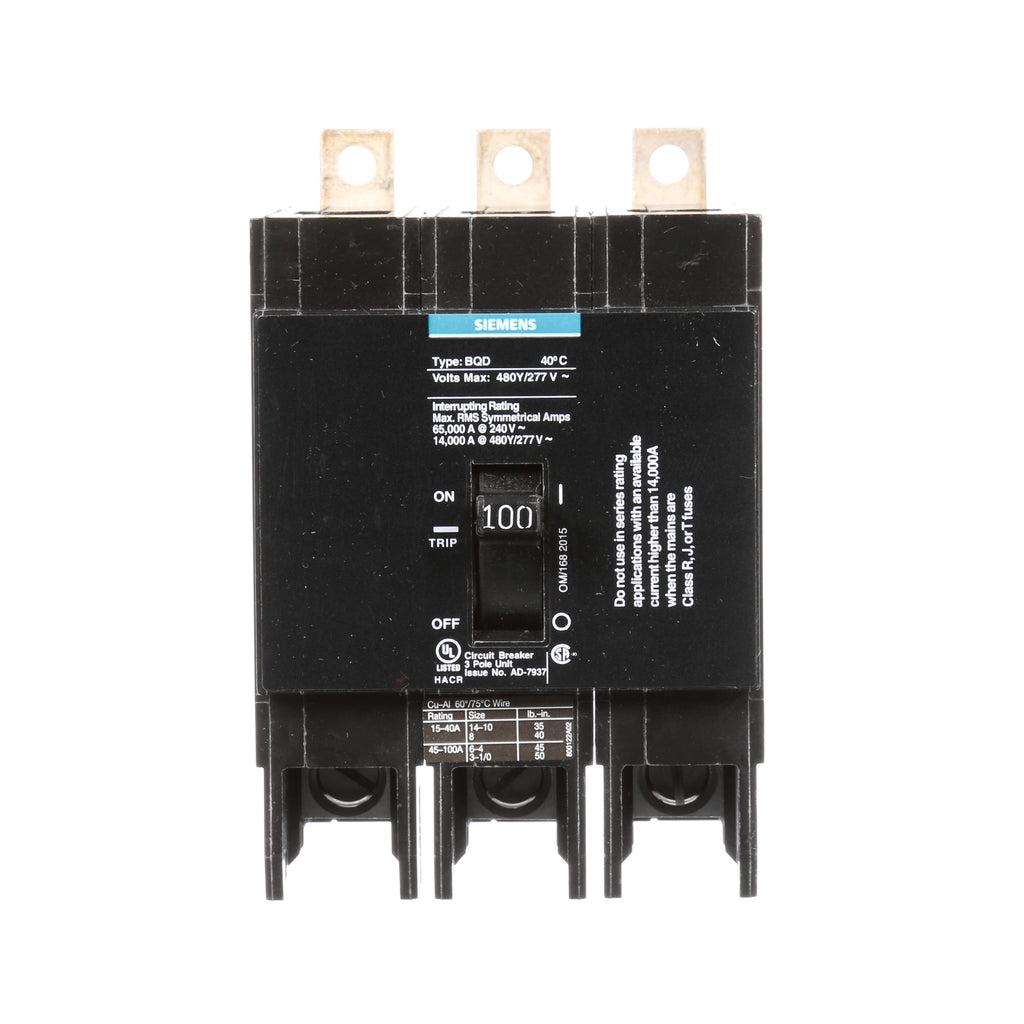

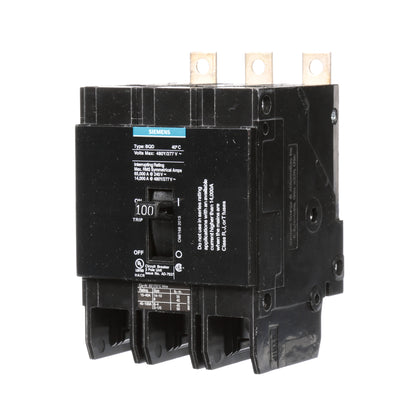

BQD3100 - Siemens 100 Amp 480 VAC 3 Pole Bolt-On Circuit Breaker BQD Frame Thermal Magnetic

BQD3100

BQD3100 is a Siemens 3 Pole, 100 Amp thermal magnetic molded case circuit breaker designed for 480 VAC applications.This Siemens BQD3100 circuit breaker features a bolt-on mounting type with a 14 kA interrupting rating at 480 VAC. It includes long time and instantaneous trip functions, UL and CSA certifications, and is suitable for panelboard mounting. The breaker supports wire sizes from AWG 6 copper to AWG 1/0 aluminum and operates at a temperature rating of 40¡C.

• Manufacturer: Siemens
• Part Number: BQD3100
• Amperage: 100 A
• Voltage Rating: 480 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 480 VAC
• Frame Type: BQD
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL Listed, CSA Certified
• Terminal Connection: Lug
• Operating Temperature: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQD3100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQD Series
• Type : BQD
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/BQD
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 6 AWG (Al), 8 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643277465
• GTIN : 00783643277465
• Country of Origin : Mexico
• Dimensions : 3 in x 4.49 in x
• Weight : 1.92
• Panel Type : Siemens P1 Panelboards
• Standards : CSA-C22.2,UL 519
• Certification : CSA-C22.2,UL 519
