BES3610N - BRAH Electric 100A 600V 4-Pole Fusible Bus Plug BD Series

BES3610N

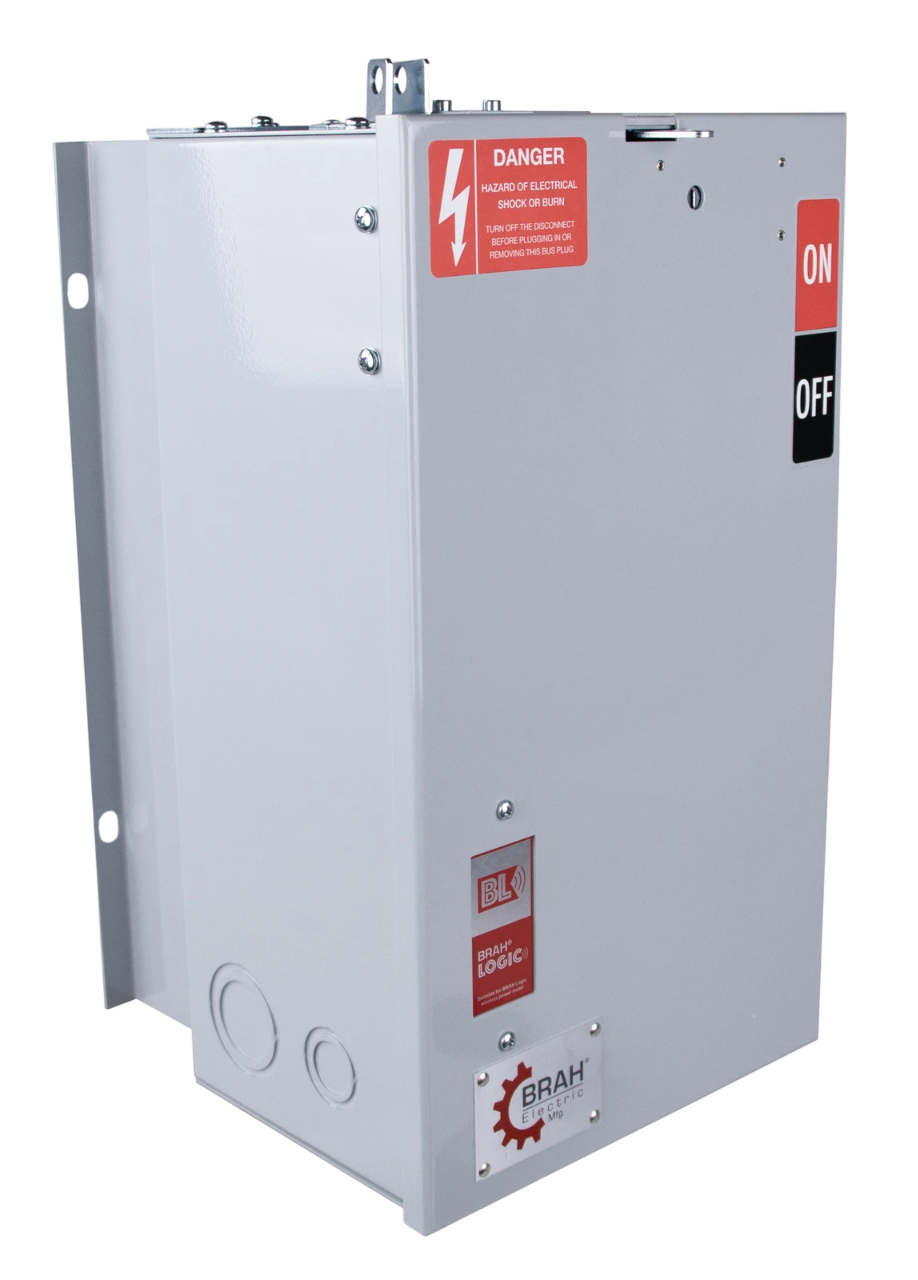

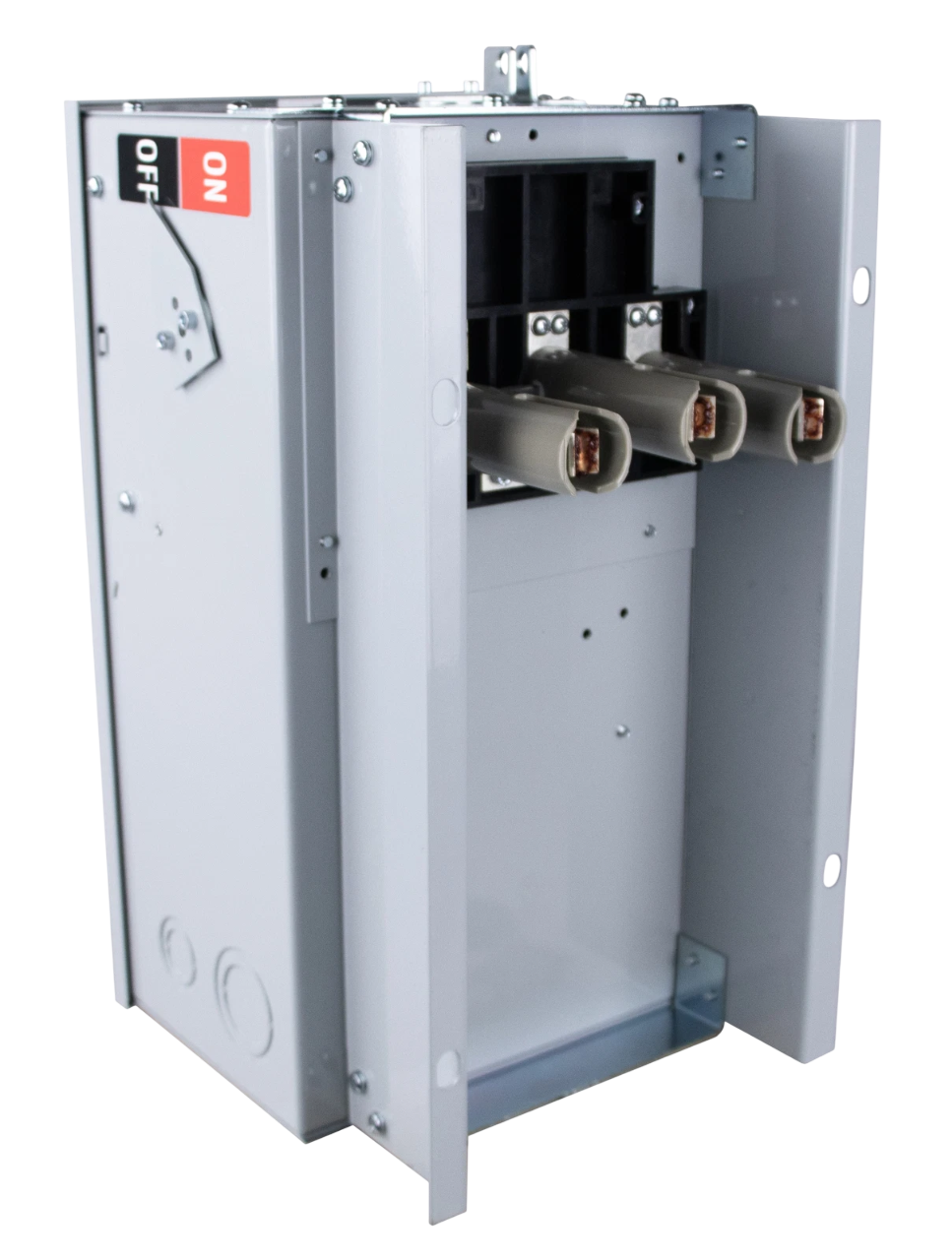

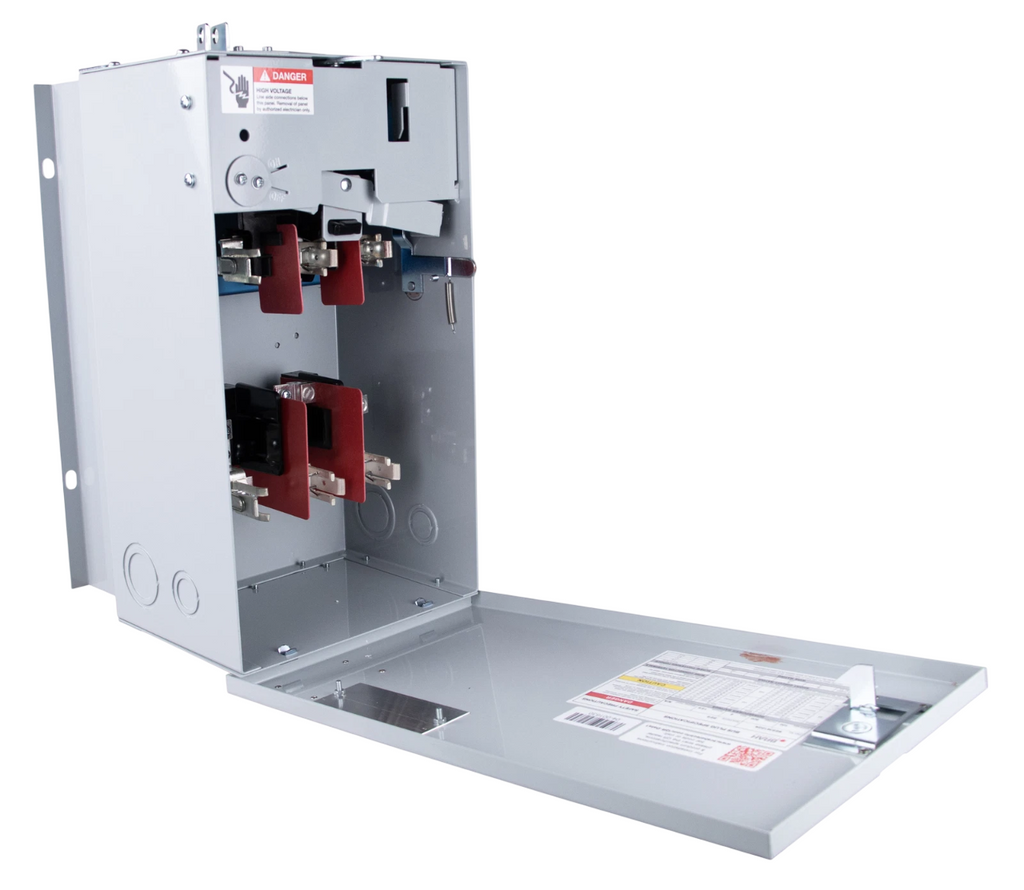

BES3610N is a 100 amp, 600 volt, 4-pole fusible bus plug from BRAH Electric's BD Series designed for reliable power distribution in industrial busway systems.This fusible bus plug is UL Listed and features a 65kA interrupting rating at 480V. It is a direct replacement for Siemens/ITE BOS16453 and BOS16453R models, compatible with Class R, H, and K fuse types. The plug is engineered for 3-phase, 4-wire systems and includes a UL Recognized internal switch and components for safe and efficient operation.

Key Specifications
• Amperage: 100A
• Voltage: 600 VAC
• Poles: 4
• Phase: 3-phase
• Type: Fusible Bus Plug
• Interrupting Rating: 65kA at 480V
• Series: BD
• Fuse Classes: R, H, K
• UL Listed Assembly
• OEM Replacement for Siemens/ITE BOS16453
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BES3610N
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@480V
• Fuse Class : R, H, K
• Wire : 4



Product Data

• UPC : 699252496671
• Country of Origin : China
• Dimensions : 9 61/100 in x 16 7/10 in
• Weight : 45
• Certification : UL Listed, UL Recognized
