BES3203 - BRAH Electric 30A 240V 3Phase Fusible Bus Plug BD Series

BES3203

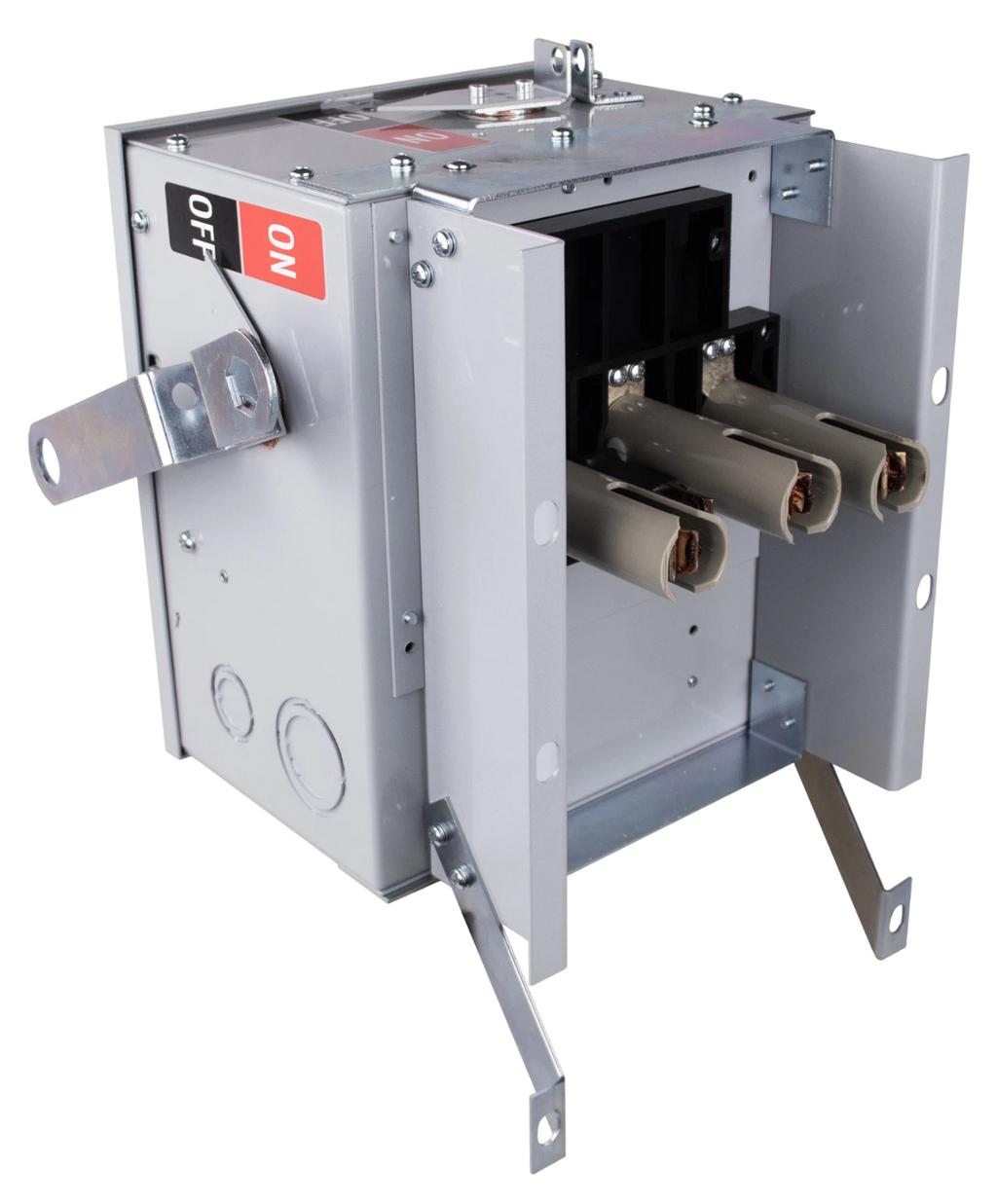

BES3203 is a 30 amp, 240 volt, 3 phase, 3 wire fusible bus plug designed for industrial busway systems. This UL Listed assembly features weather stripping for drip protection and is compatible with Bulldog, ITE, and Siemens BD Series busway systems. The plug accepts Class R, H, and K fuse types and includes a UL Recognized internal switch with complete components for reliable operation. Key Specifications

• Amperage: 30A
• Voltage: 240V
• Phase: 3 Phase
• Wire Configuration: 3 Wire with Ground
• Style: Fusible
• Fuse Class: R, H, K
• AIC Rating: 65kA at 240VAC
• Weather Stripping: Yes
• Certifications: UL Listed, UL Recognized
• Compatible Series: BD Series
• OEM Compatibility: Bulldog, ITE, Siemens

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3203
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 30
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R,H,K
• Wire : 3

Product Data

• UPC : 699252496220
• Country of Origin : China
• Dimensions : 9 61/100 in x 11 19/50 in
• Weight : 35
• Certification : UL Listed, UL Recognized
