Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3203W

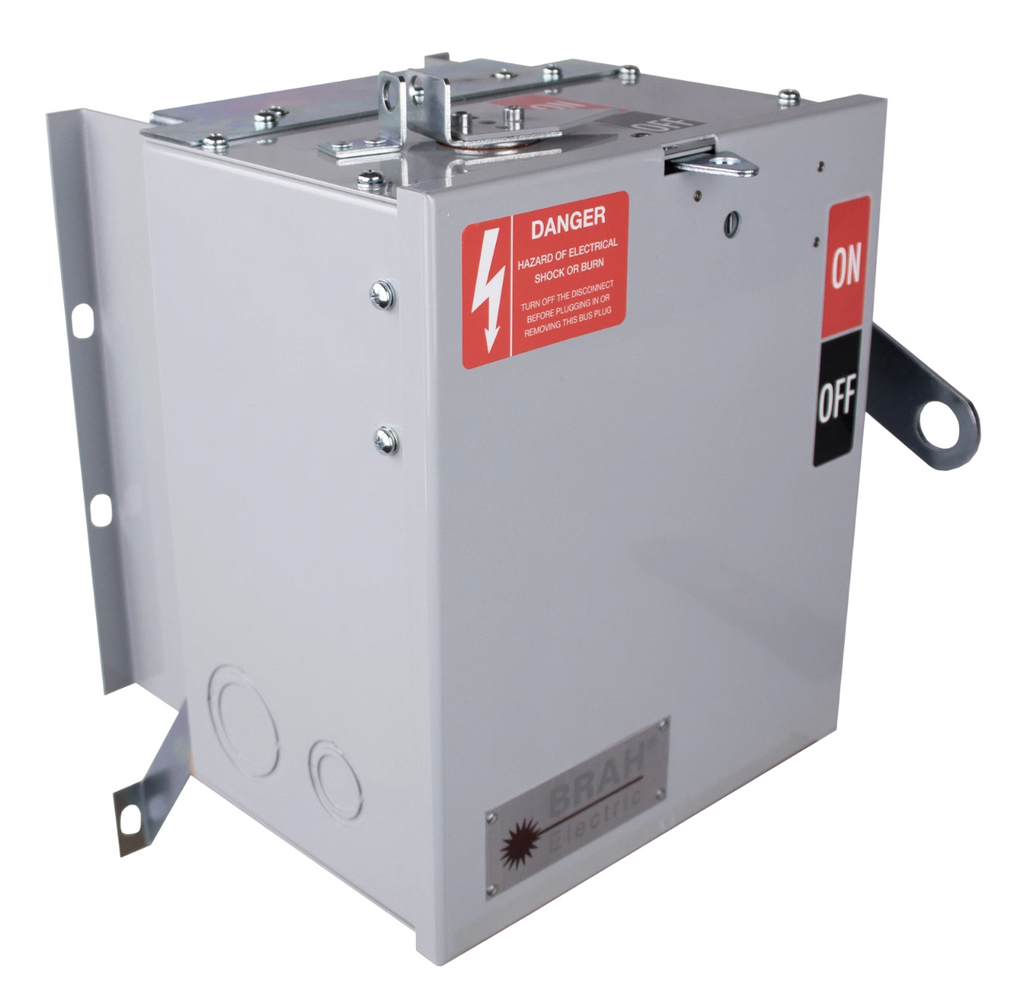

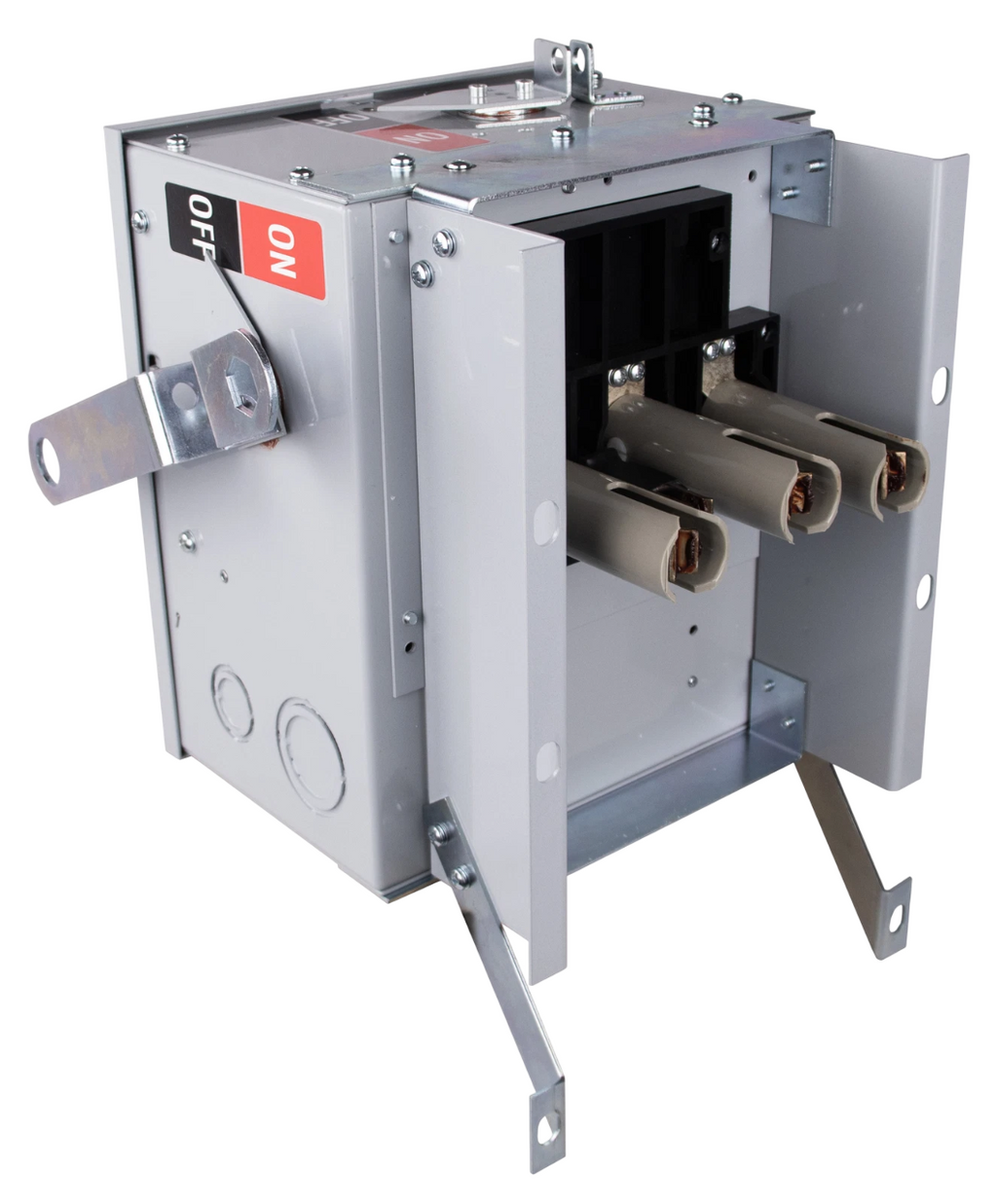

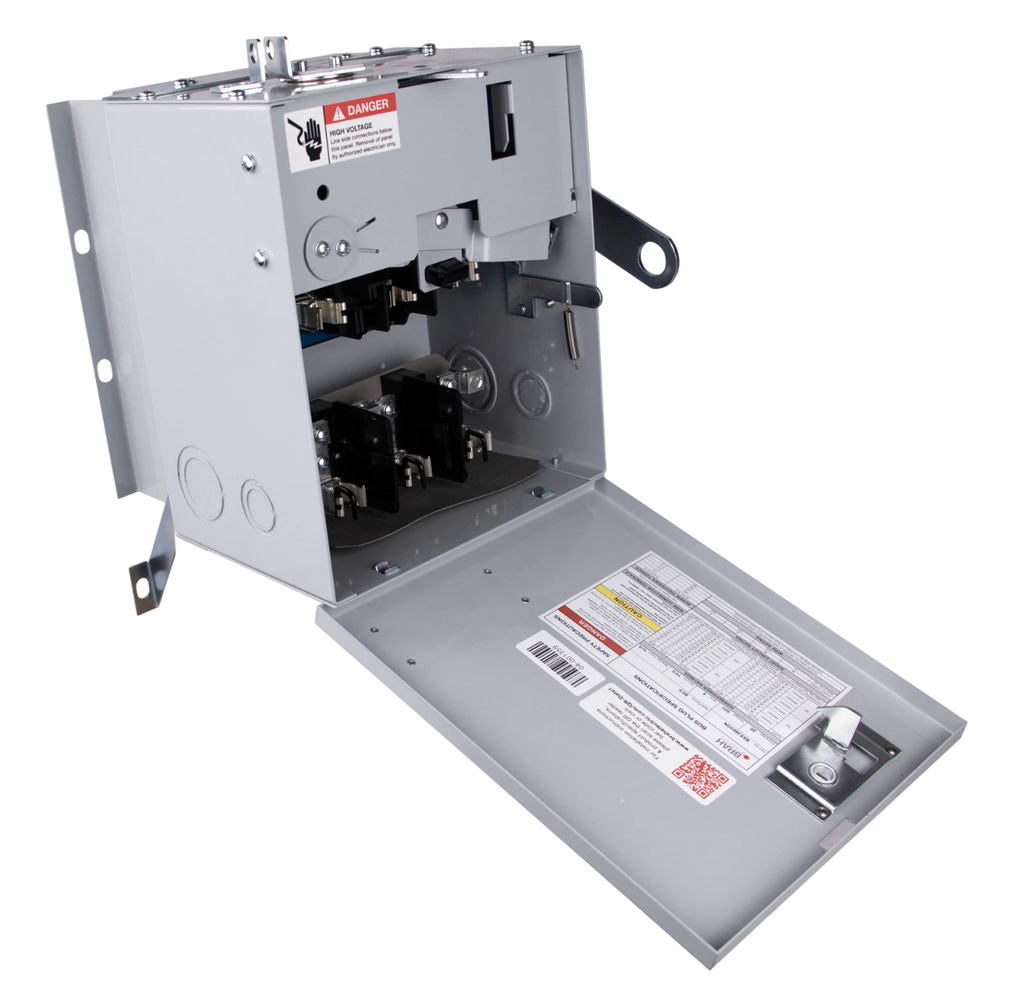

BES3203W is a fusible type bus plug by BRAH Electric designed for 30 amp, 240 volt, 3 phase, 3 wire electrical systems.This bus plug features a fusible design with weather stripping for drip protection, making it suitable for reliable power distribution applications. It is UL Listed and compatible with BES/BOS series, providing a durable and safe connection for industrial and commercial electrical setups.
- Amperage: 30A
- Voltage: 240V
- Phase: 3 Phase
- Wire: 3 Wire
- Type: Fusible Bus Plug
- Series/Frame: BES / BOS
- Includes weather stripping for drip protection
- UL Listed assembly
Specifications
- Part Number: BES3203W
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 699252496299
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
