Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3203GNW

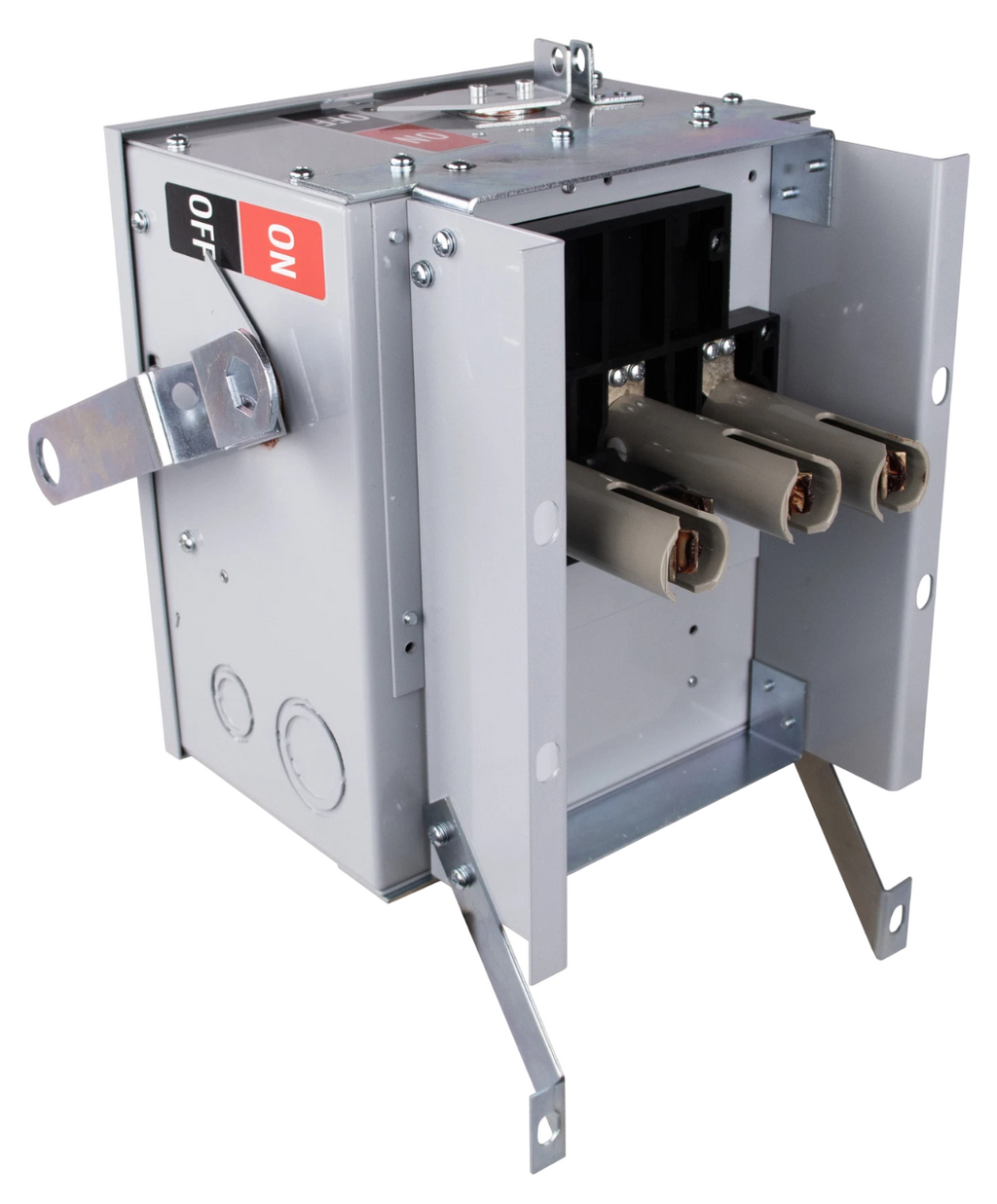

BES3203GNW is a 30 amp, 240 volt, 3 phase, 4 wire fusible bus plug from BRAH Electric designed for industrial busway systems. This UL Listed bus plug features weather stripping for drip protection and is suitable for Bulldog, ITE, and BD Series busway systems. It includes a UL Recognized internal switch and accepts Class H, K, and R fuse types.
- Amperage: 30 Amps
- Voltage: 240 Volts
- Phase: 3 Phase
- Wiring: 4 Wire with Ground
- Type: Fusible Bus Plug
- Fuse Classes Accepted: H, K, R
- UL Listed Assembly
- Includes Weather Stripping for Drip Protection
- UL Recognized Internal Switch and Components
- Compatible with Bulldog, ITE, and BD Series Busway Systems
Specifications
- Part Number: BES3203GNW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496251
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
