Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3203GW

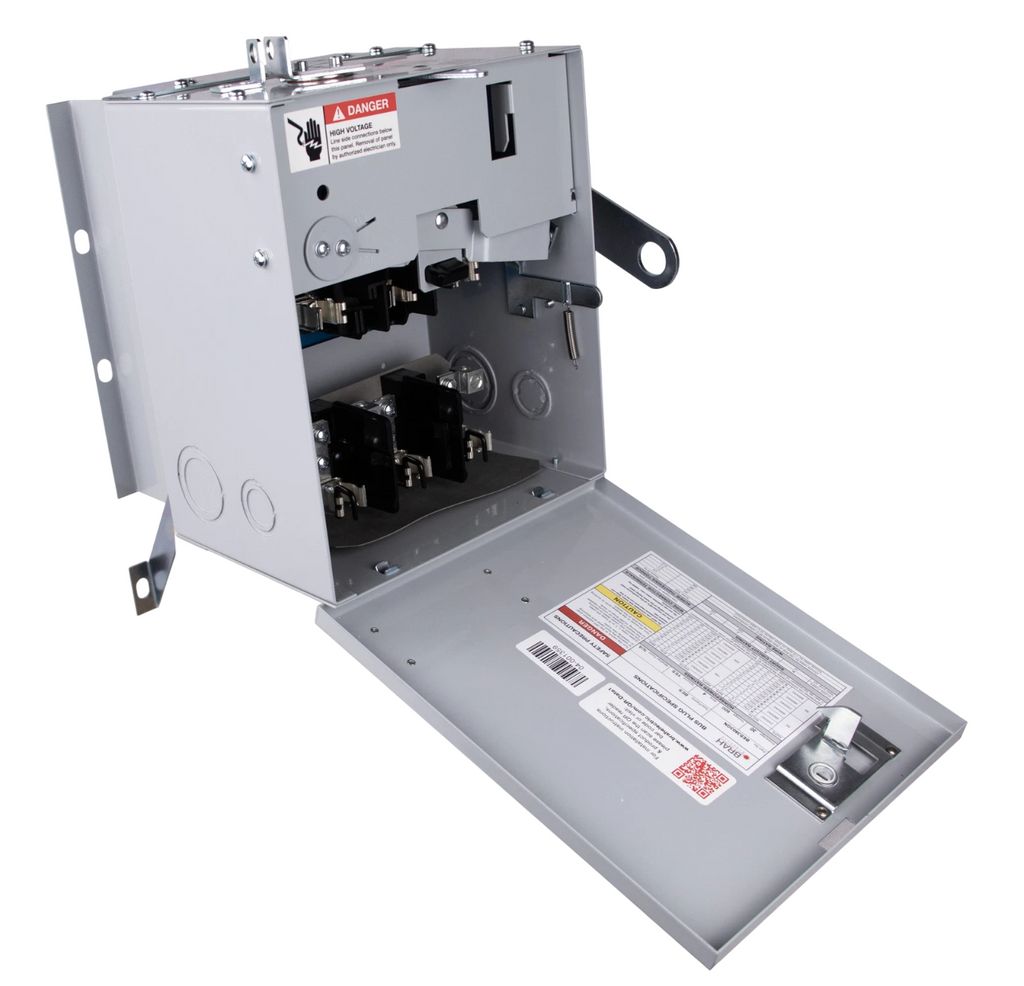

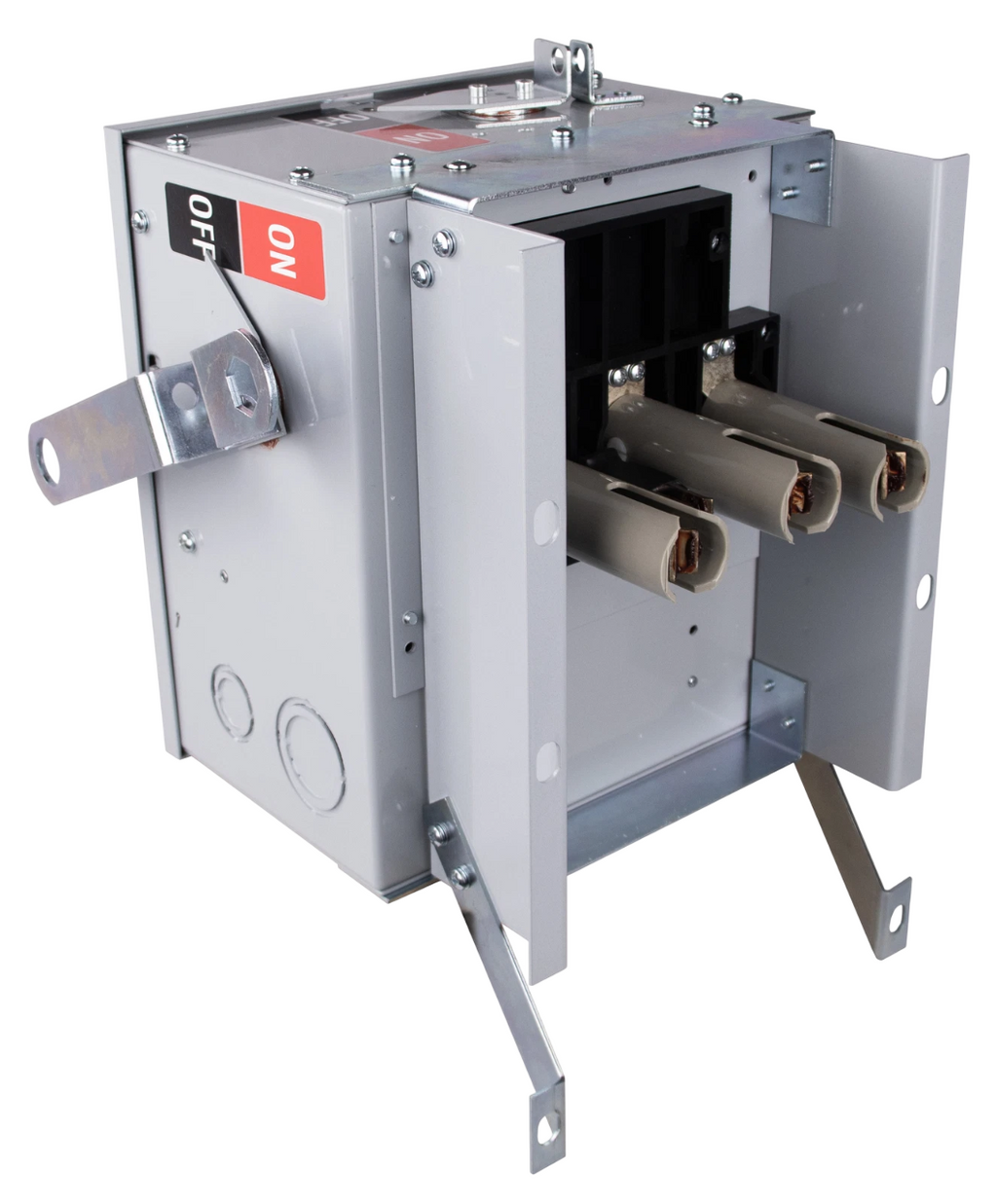

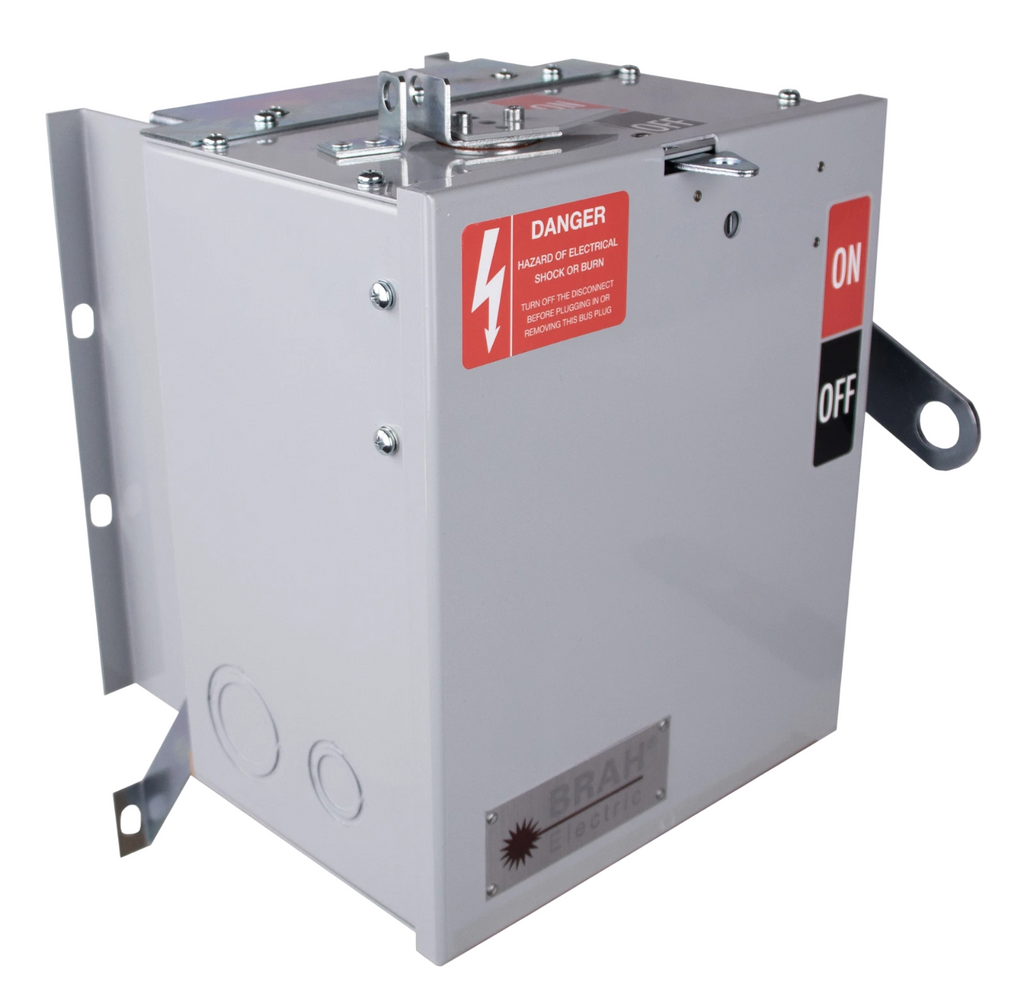

BES3203GW is a 30 amp, 240 volt, 3-phase, 3-wire fusible bus plug with ground designed for industrial busway systems.
This bus plug from BRAH Electric is suitable for use with 240V busway systems and features a fusible design compatible with Class H, K, and R fuse types. It includes weather stripping for drip protection and is a direct substitute for OEM ITE/Siemens BD series bus plugs. The device is UL rated and designed for reliable power distribution in commercial and industrial applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 Volts
- Phase: 3-Phase
- Wires: 3-Wire with Ground
- Type: Fusible Bus Plug
- Fuse Classes: H, K, R
- Weather Stripping: Included for drip protection
- UL Rated
- Compatible with ITE/Siemens BD Series
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BES3203GW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 699252496268
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
