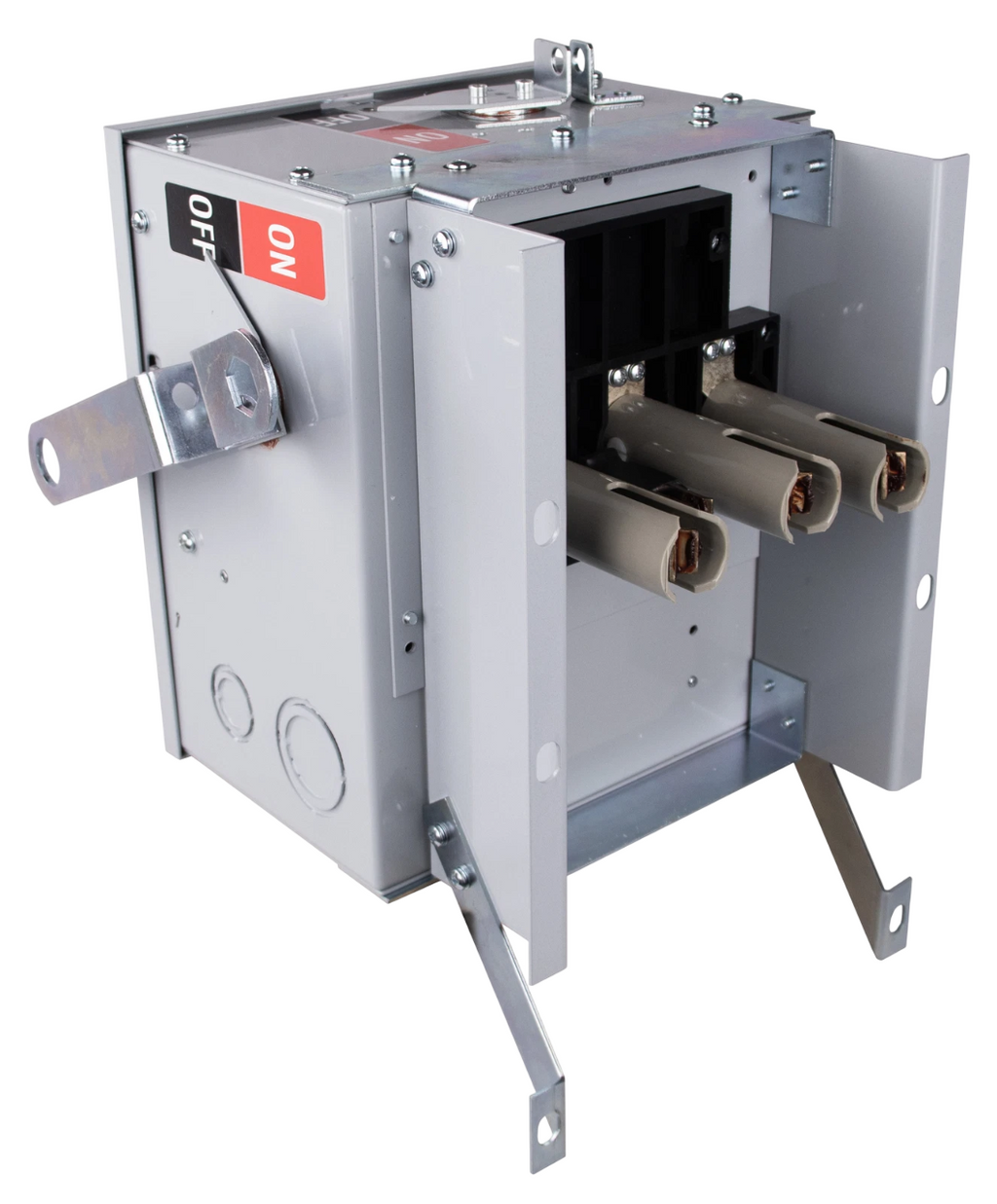

BES3203NW - BRAH Electric 30A 240V 3-Phase 4-Wire Fusible Bus Plug for Bulldog ITE BD Series

BES3203NW

BES3203NW is a 30 amp, 240 volt, 3-phase, 4-wire fusible bus plug designed for Bulldog, ITE, and BD Series industrial busway systems. BES3203NW features a fusible style design with weather stripping for drip protection and is UL Listed with UL Recognized internal switch and components. It accepts Class H, K, and R fuse types and provides a direct substitute fit and function for OEM Bulldog/ITE BD Series bus plugs.

Key Specifications
• Amperage: 30 Amps
• Voltage: 240 Volts
• Phase/Wire: 3 Phase, 4 Wire
• Type: Fusible Bus Plug
• Fuse Classes: H, K, R
• UL Listed Assembly
• Includes Weather Stripping for Drip Protection
• Compatible with Bulldog, ITE, BD Series Busway Systems

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3203NW
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 30
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R,H,K
• Wire : 4

Product Data

• UPC : 699252496282
• Country of Origin : China
• Dimensions : 9 61/100 in x 11 19/50 in
• Weight : 35
• Certification : UL Listed, UL Recognized
