Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3610GN

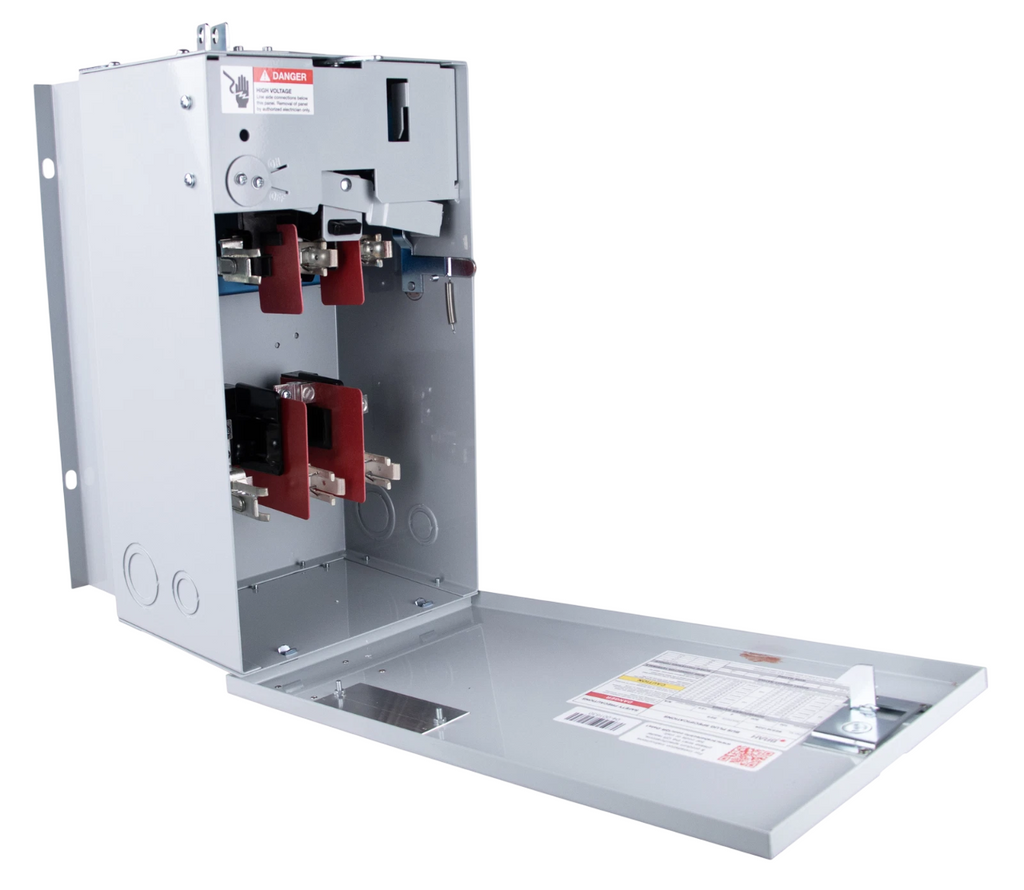

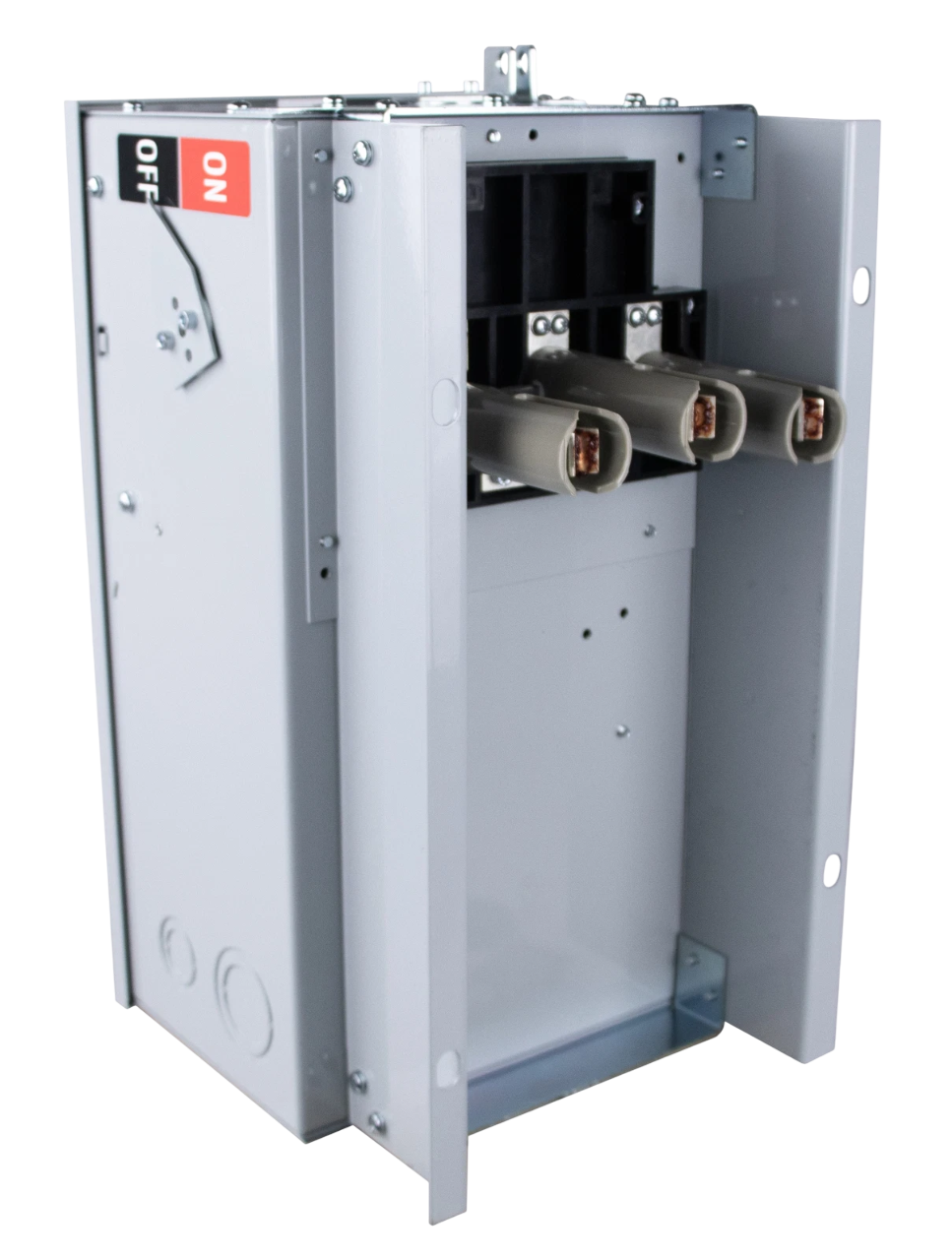

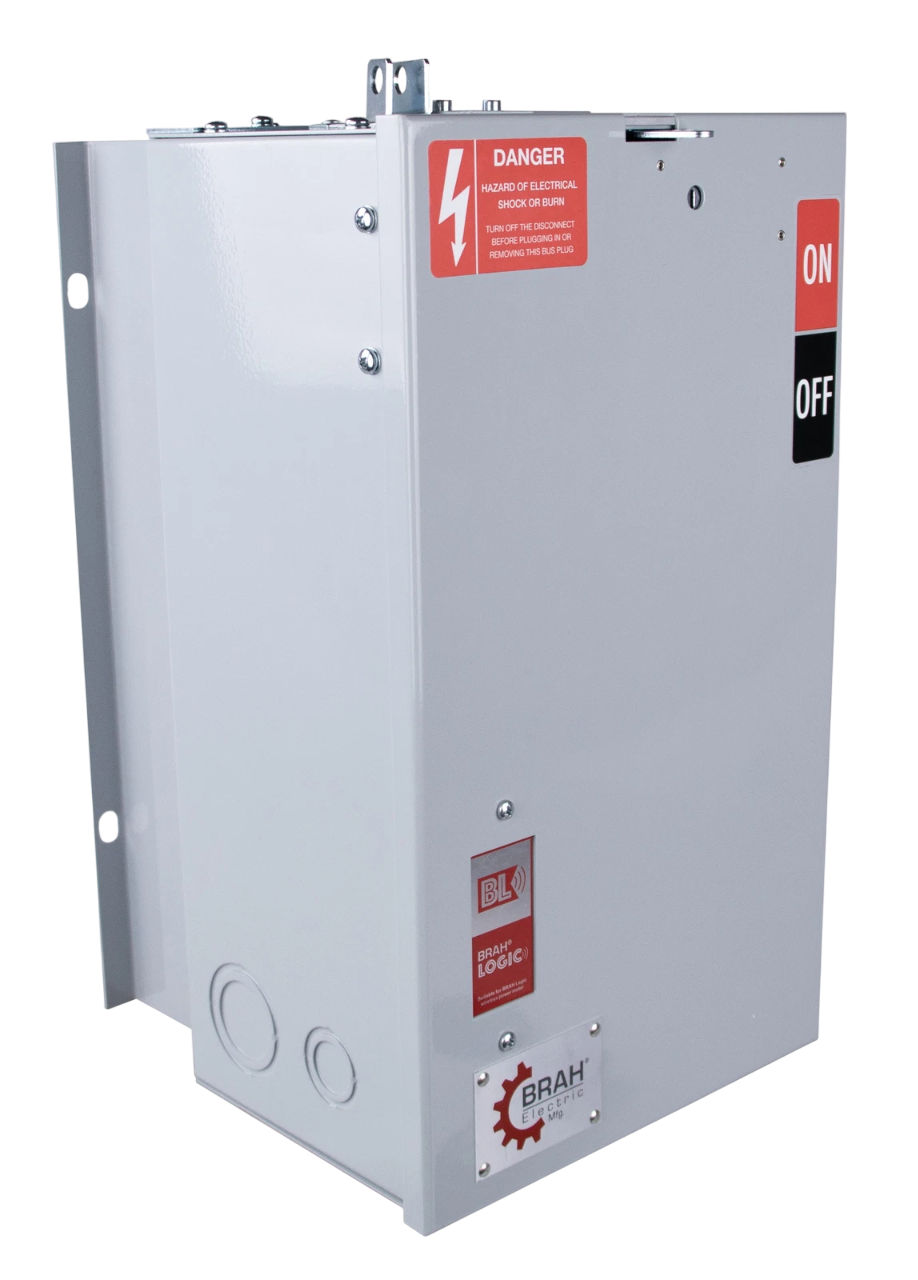

BES3610GN is a fusible style bus plug rated for 100 amp at 600 volt, 3 phase, 4 wire with ground, designed for industrial busway systems. This UL Listed assembly features a UL Recognized internal switch and components suitable for use with Bulldog, ITE, and Siemens BD Series industrial busway systems. The plug accepts Class R, H, and K fuse types and provides direct replacement compatibility for OEM part numbers BOS16453G and BOS16453GR. Key Specifications
- Amperage: 100A
- Voltage: 600V
- Phase: 3 Phase
- Wire: 4 Wire
- Ground: Yes
- Type: Fusible
- Fuse Class: R, H, K
- Interrupting Rating: 65 kAIC at 480VAC
- UL Listed: Yes
- Compatible Series: Bulldog/ITE/Siemens BD
Specifications
- Part Number: BES3610GN
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496640
- Country of Origin : China
- Dimensions : 9 61/100 in x 16 7/10 in
- Weight : 45
- Certification : UL Listed, UL Recognized
