Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3610G

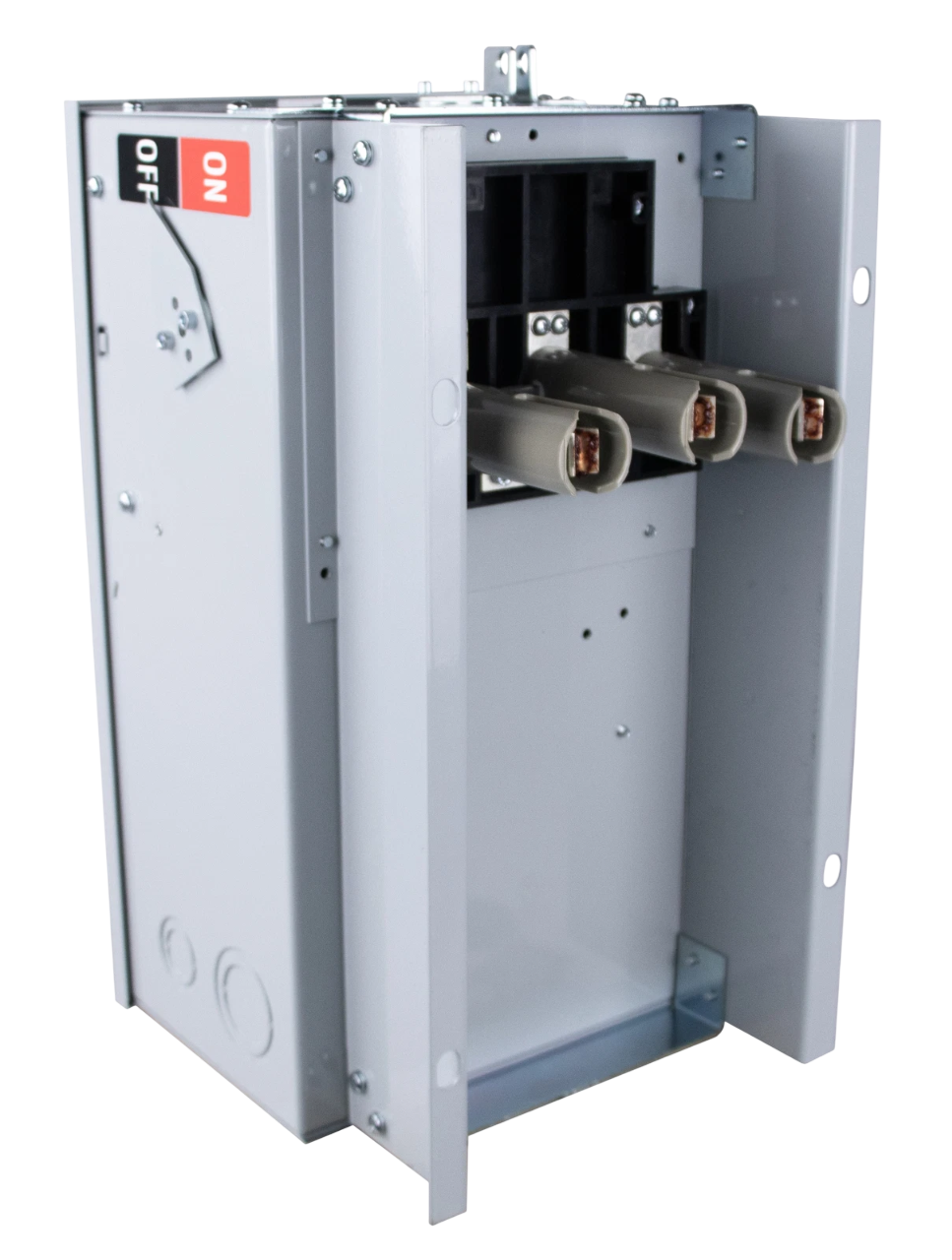

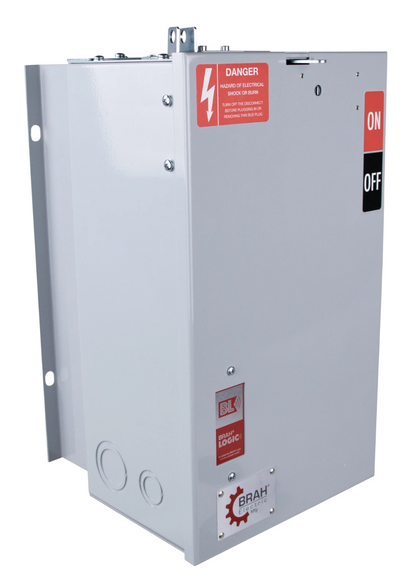

BES3610G is a fusible style bus plug designed for reliable power distribution in industrial busway systems. This plug provides overcurrent protection and seamless integration with compatible busway installations.Engineered as a direct replacement for ITE/Bulldog/Siemens BD Series busway systems, the BES3610G features a 100 amp, 600 volt, 3 phase, 3 wire with ground configuration. It is UL Listed and includes UL Recognized internal switch and components for safety and compliance. The plug accepts Class R, H, and K fuse types, making it suitable for a wide range of industrial applications.
- 100A Amperage
- 600V Voltage
- 3 Phase, 3 Wire with Ground
- Fusible Style
- Accepts Class R, H, K Fuses
- UL Listed Assembly
- UL Recognized Components
- Direct Replacement for ITE/Bulldog/Siemens BD Series
- Interrupt Rating: 65kA@480VAC
- Mounting Type: Busway Plug-In
- Series/Frame: BD Series
- Standards: UL Listed, UL Recognized
Specifications
- Part Number: BES3610G
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 3
Product Data
- UPC : 699252496633
- Country of Origin : China
- Dimensions : 9 61/100 in x 16 7/10 in
- Weight : 45
- Certification : UL Listed, UL Recognized
