2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3610

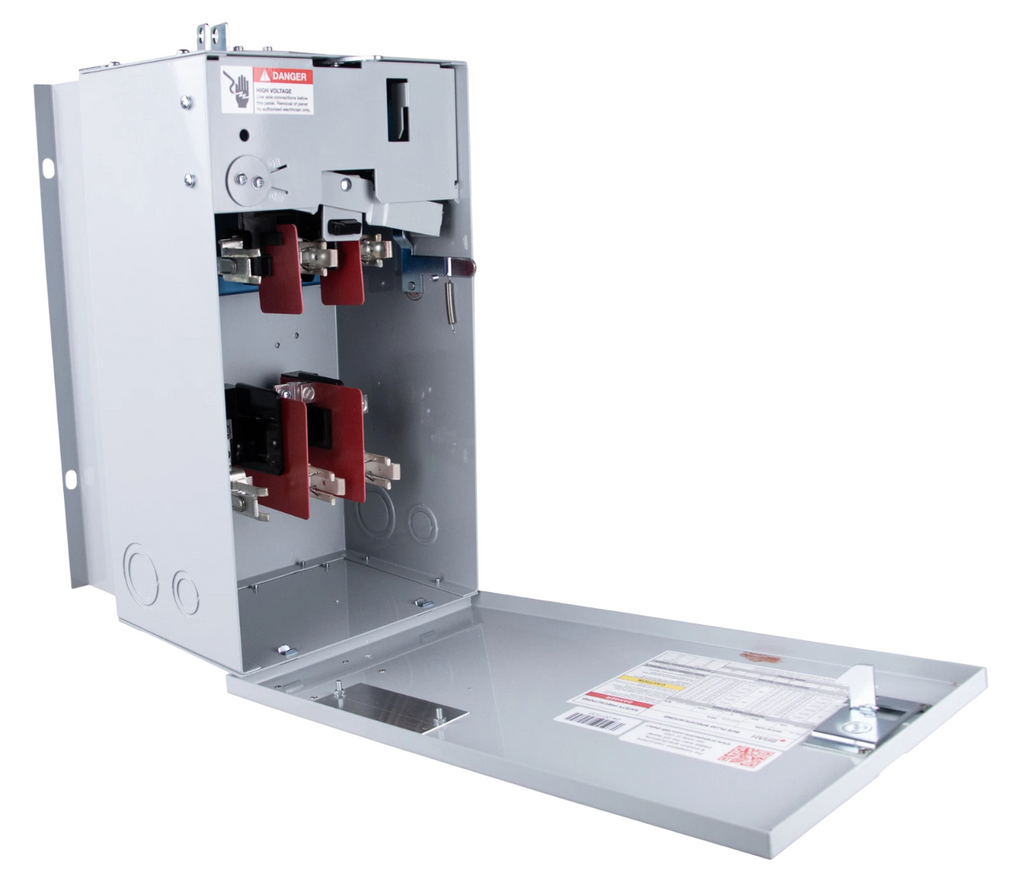

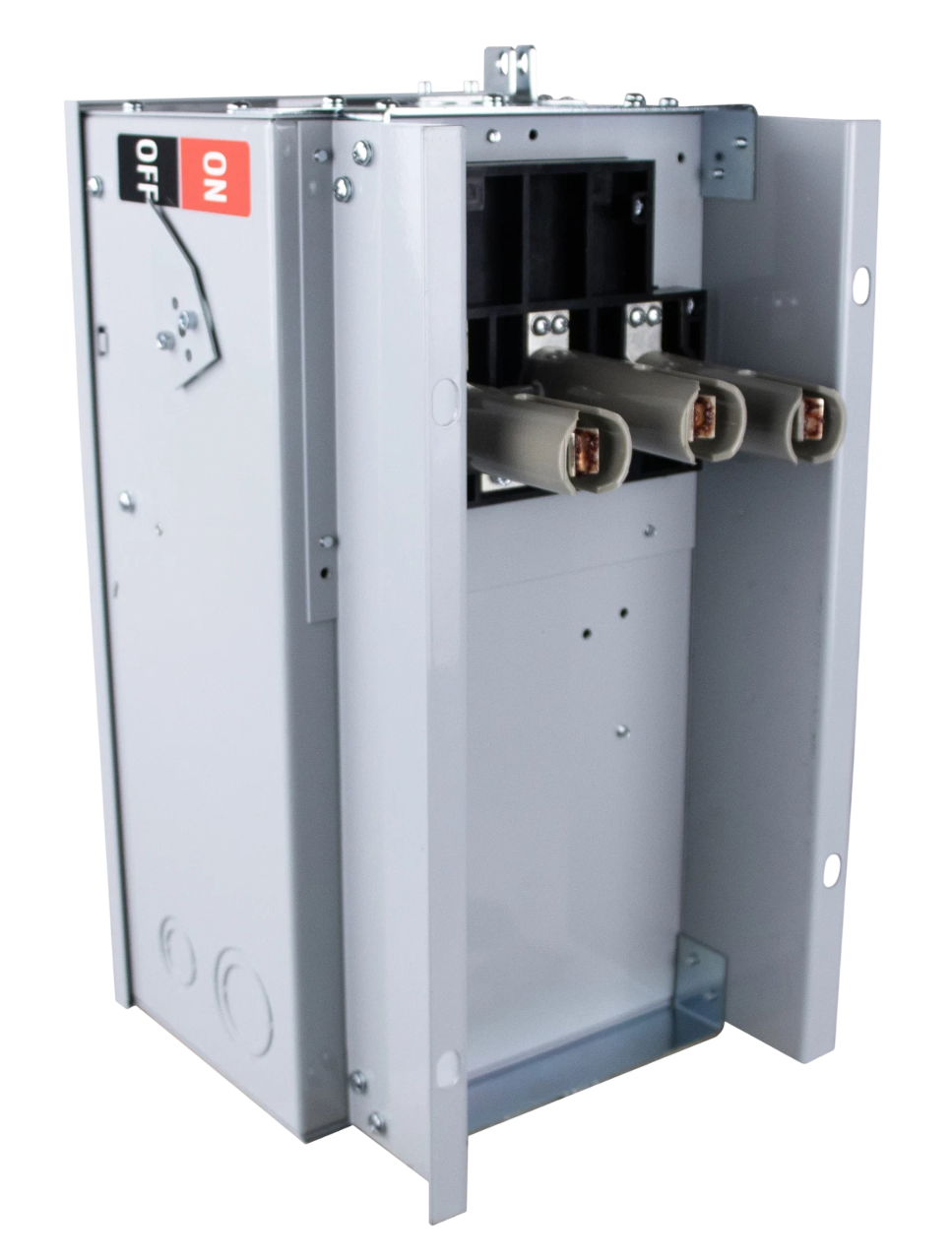

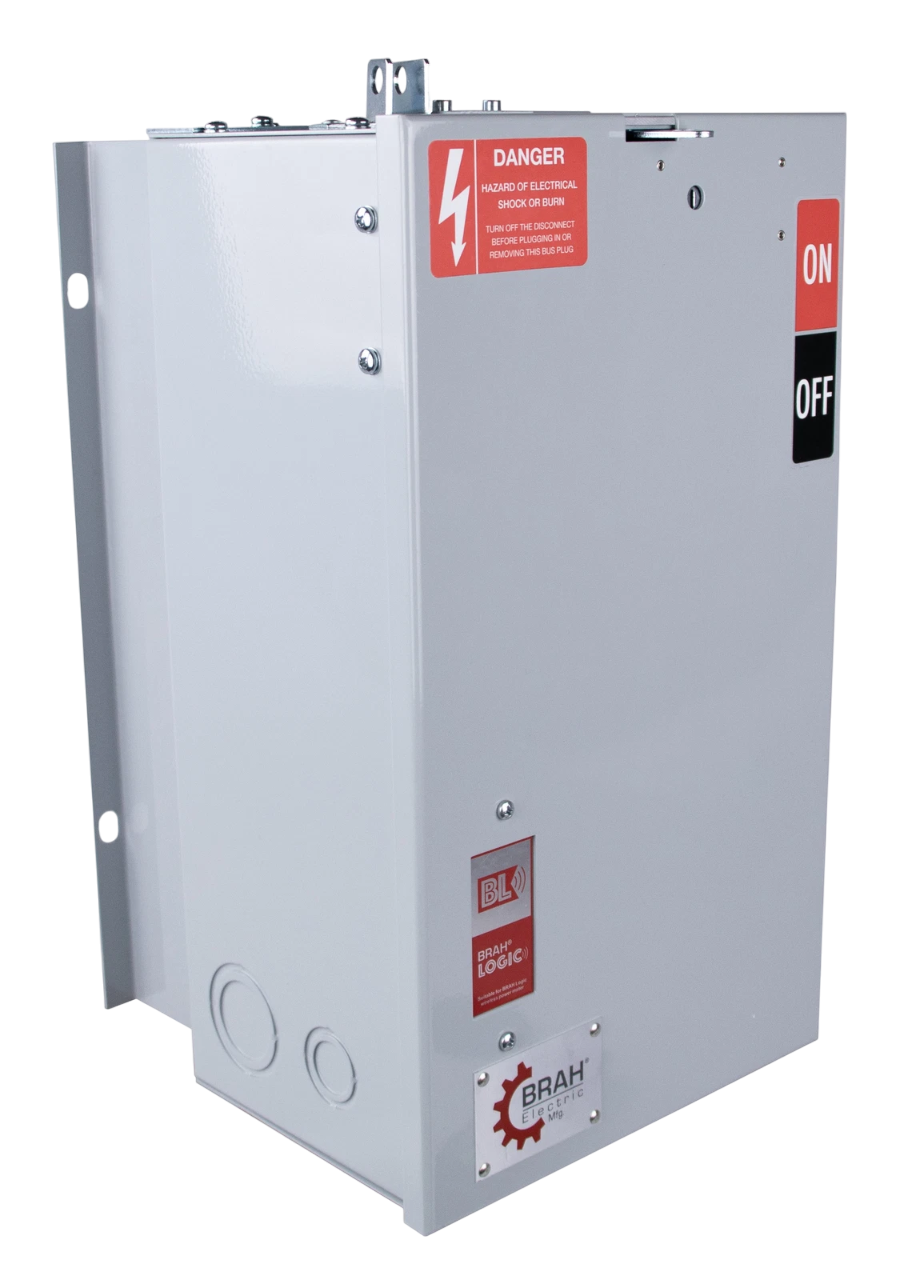

BES3610 is a 100 amp, 600 volt, 3 phase, 3 wire fusible style bus plug designed for industrial busway systems. This UL Listed assembly features a complete internal switch with UL Recognized components and is compatible with Bulldog, ITE, and Siemens BD Series busway systems as a direct substitute for OEM type BOS bus plugs. Key Specifications
- Amperage: 100A
- Voltage: 600 VAC
- Phase: 3 Phase
- Wire Configuration: 3 Wire
- Type: Fusible
- Fuse Class: H, K, R
- UL Listed Assembly
- Compatible with Bulldog, ITE, Siemens BD Series
Specifications
- Part Number: BES3610
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 3
Product Data
- UPC : 699252496626
- Country of Origin : China
- Dimensions : 9 61/100 in x 16 7/10 in
- Weight : 45
- Certification : UL Listed, UL Recognized
