Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3606NW

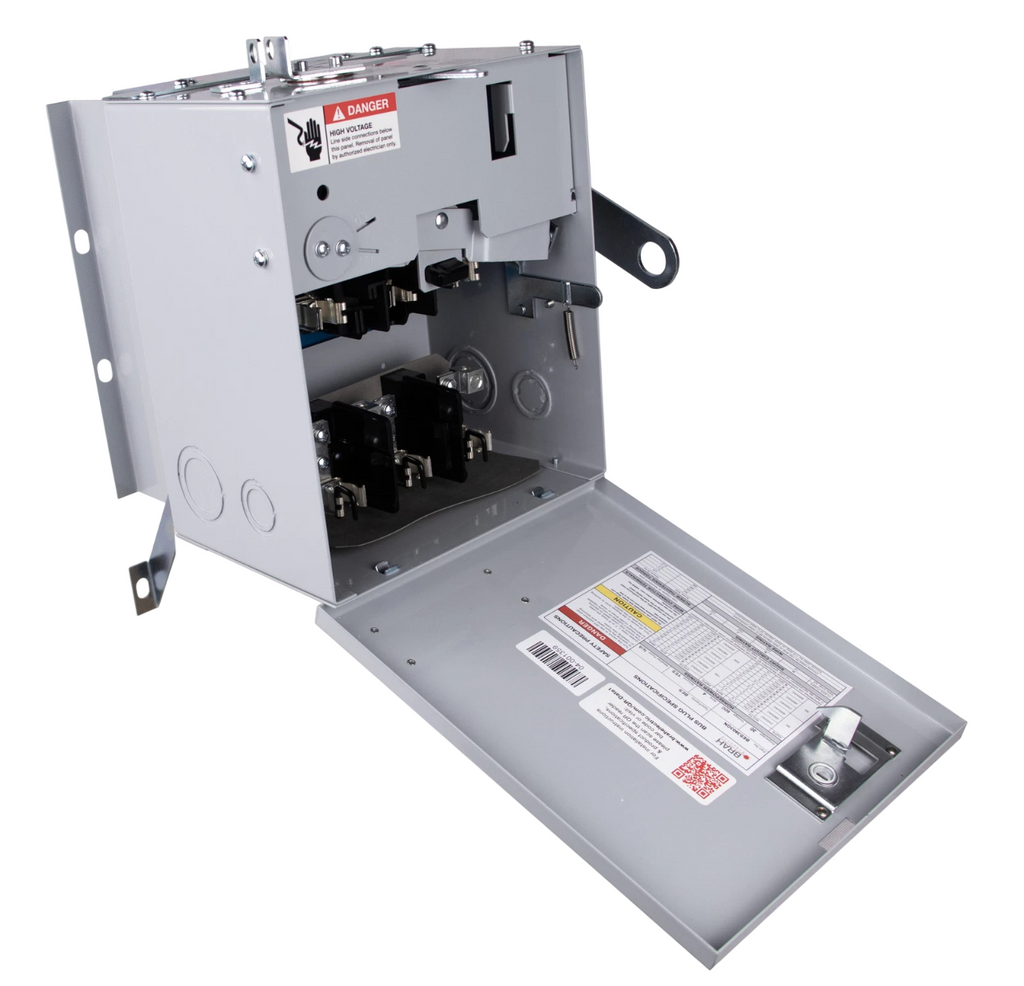

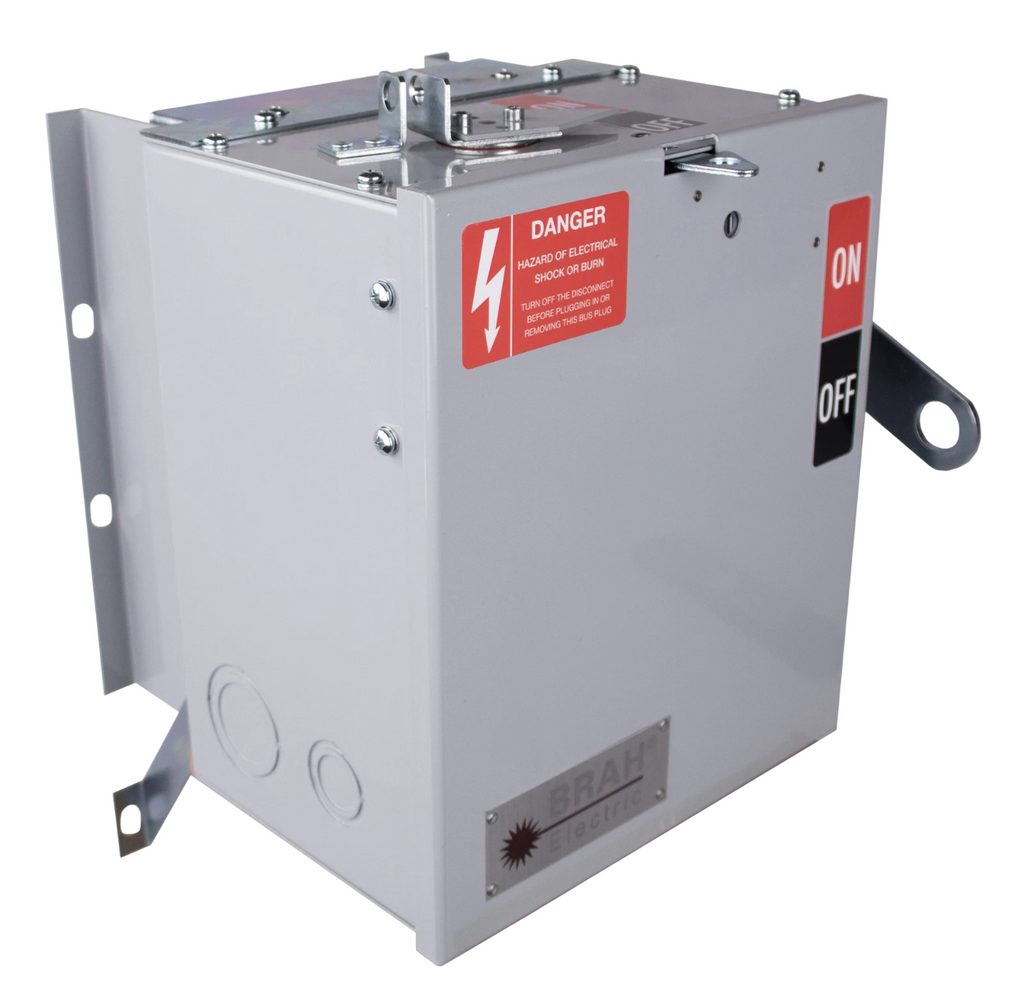

BES3606NW is a fusible type bus plug from BRAH Electric designed for 60 amp, 600 volt, 3 phase, 4 wire electrical systems.This bus plug features a fusible design with R-class fuses and includes weather stripping for drip protection. It is UL Listed and compatible with BES / BOS series busway systems. The unit is designed to provide reliable and safe power distribution with a 65 kA interrupting rating at 480V.
- Amperage: 60 A
- Voltage: 600 V
- Phase/Wire: 3 Phase, 4 Wire
- Fusible: Yes, R Fuse Class
- Series: BES / BOS
- UL Listed Assembly
- Includes Weather Stripping for Drip Protection
- Interrupt Rating: 65 kA at 480 V
- Mounting Type: Bus Plug
Specifications
- Part Number: BES3606NW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496602
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
