2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3606N

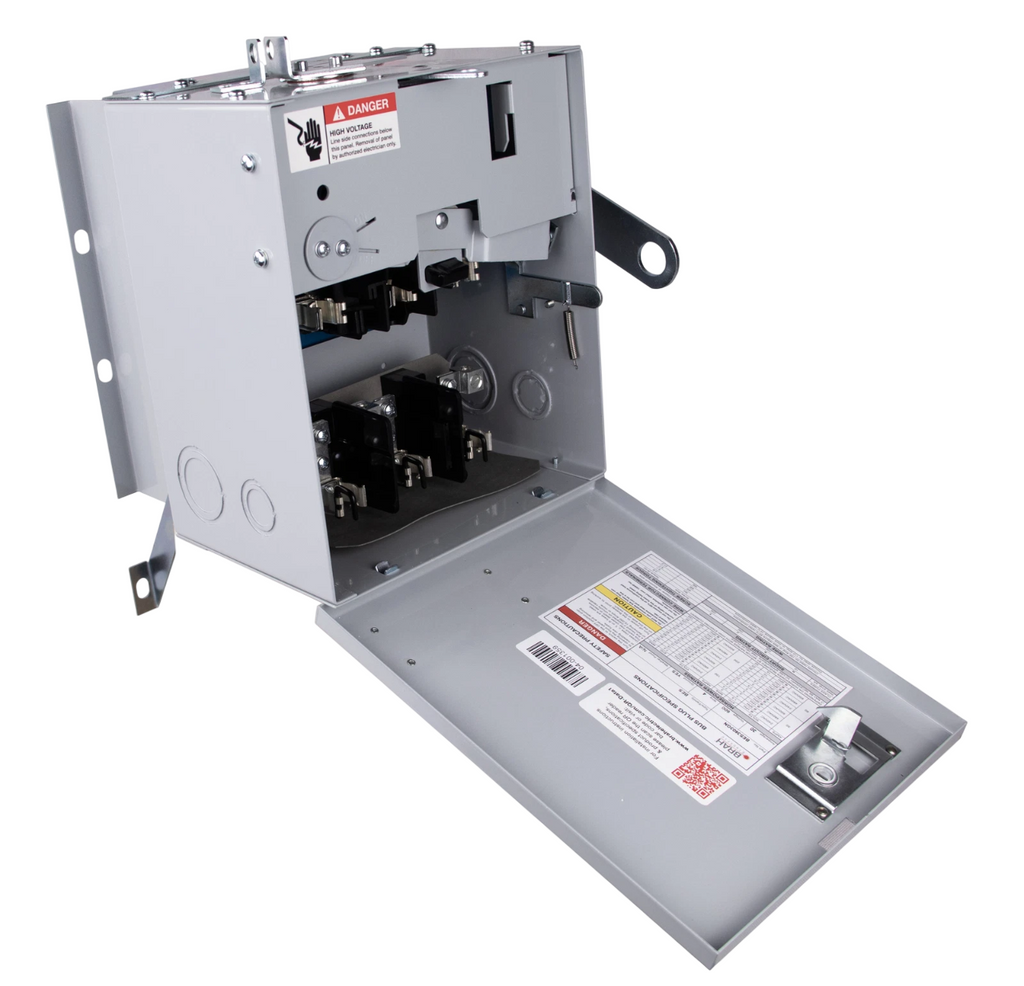

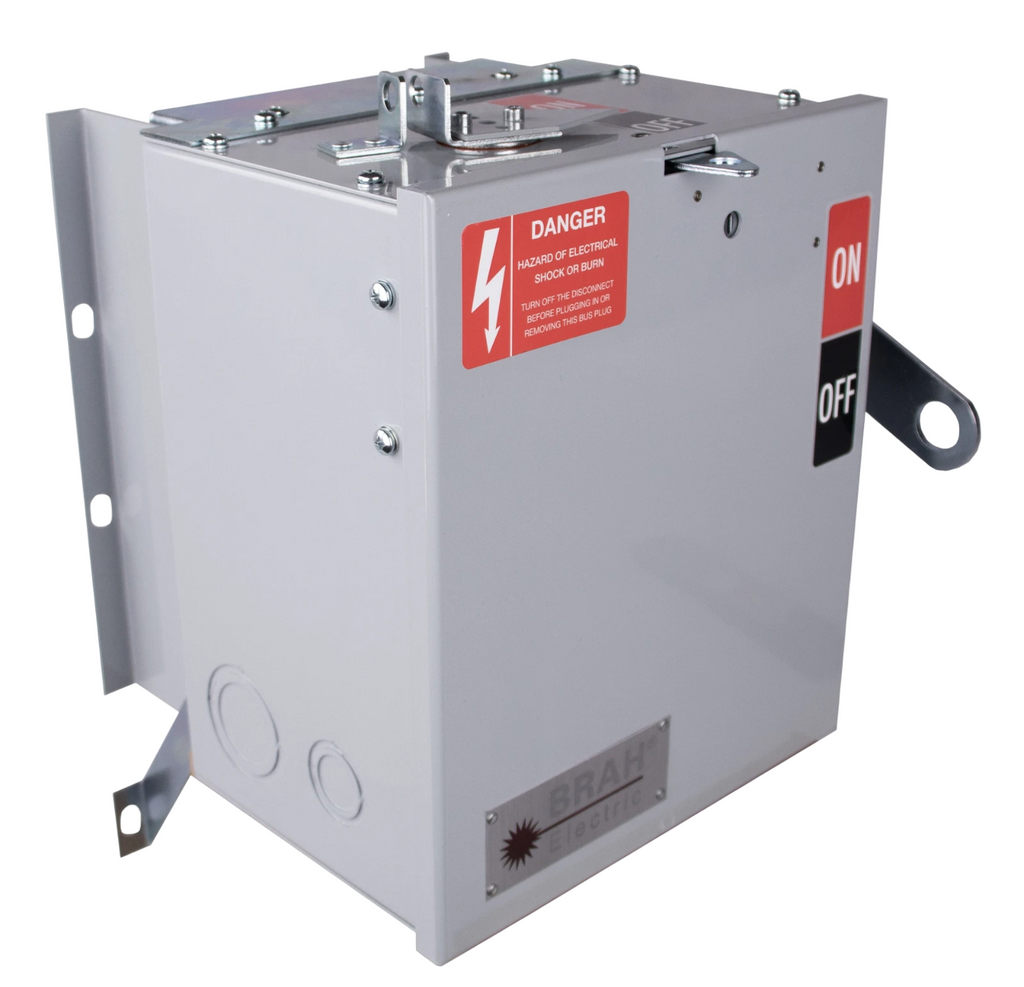

BES3606N is a 60 amp, 600 volt, 3 phase, 4 wire fusible type bus plug designed for industrial busway systems. This UL Listed assembly features a UL Recognized internal switch and components suitable for use with Bulldog, ITE, and Siemens BD series busway systems. The BES3606N accepts Class H, K, and R fuse types and delivers reliable performance in demanding industrial applications.Key Specifications
- Amperage: 60A
- Voltage: 600V
- Phase: 3 Phase
- Wire: 4 Wire
- Type: Fusible
- Fuse Class: H, K, R
- Series: BD
- Certifications: UL Listed, UL Recognized
- Interrupting Rating: 65 kAIC at 480V
- Weight: 23.0 lbs
Specifications
- Part Number: BES3606N
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 699252496596
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
