Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3606GN

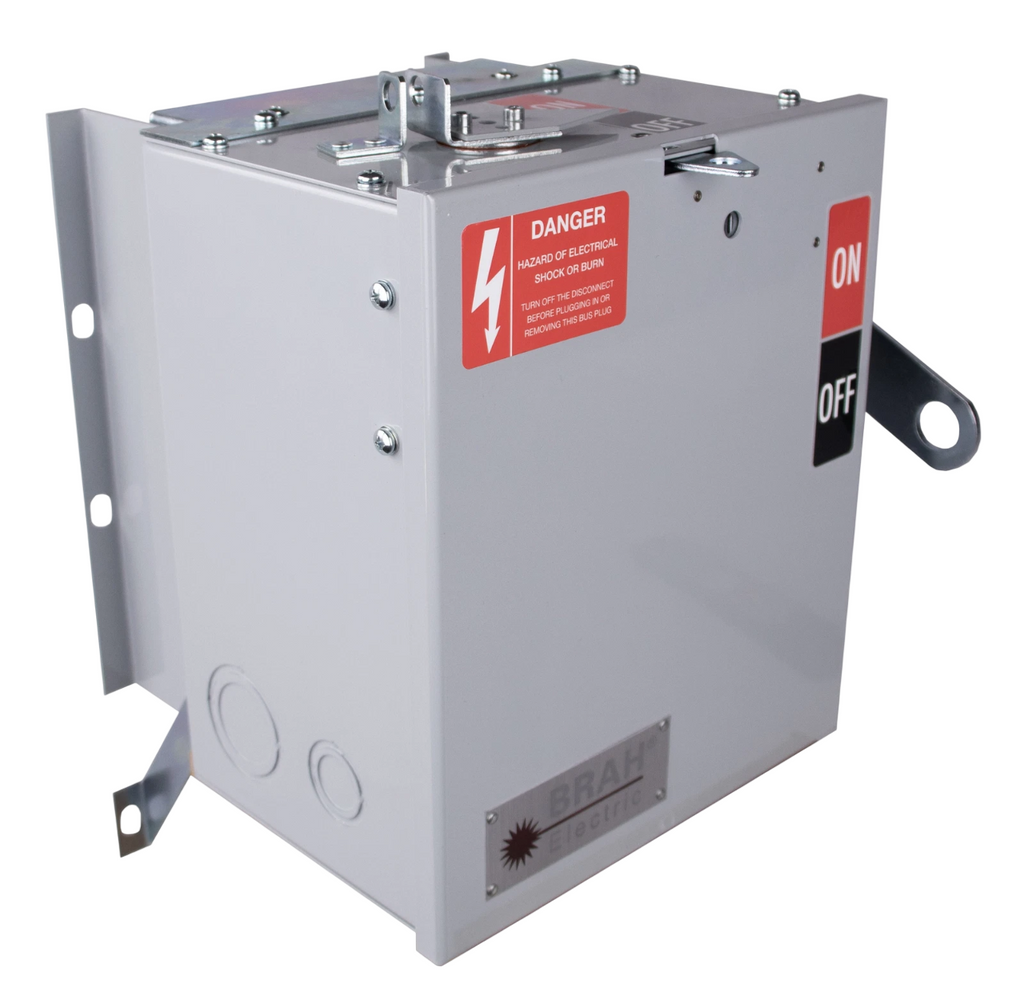

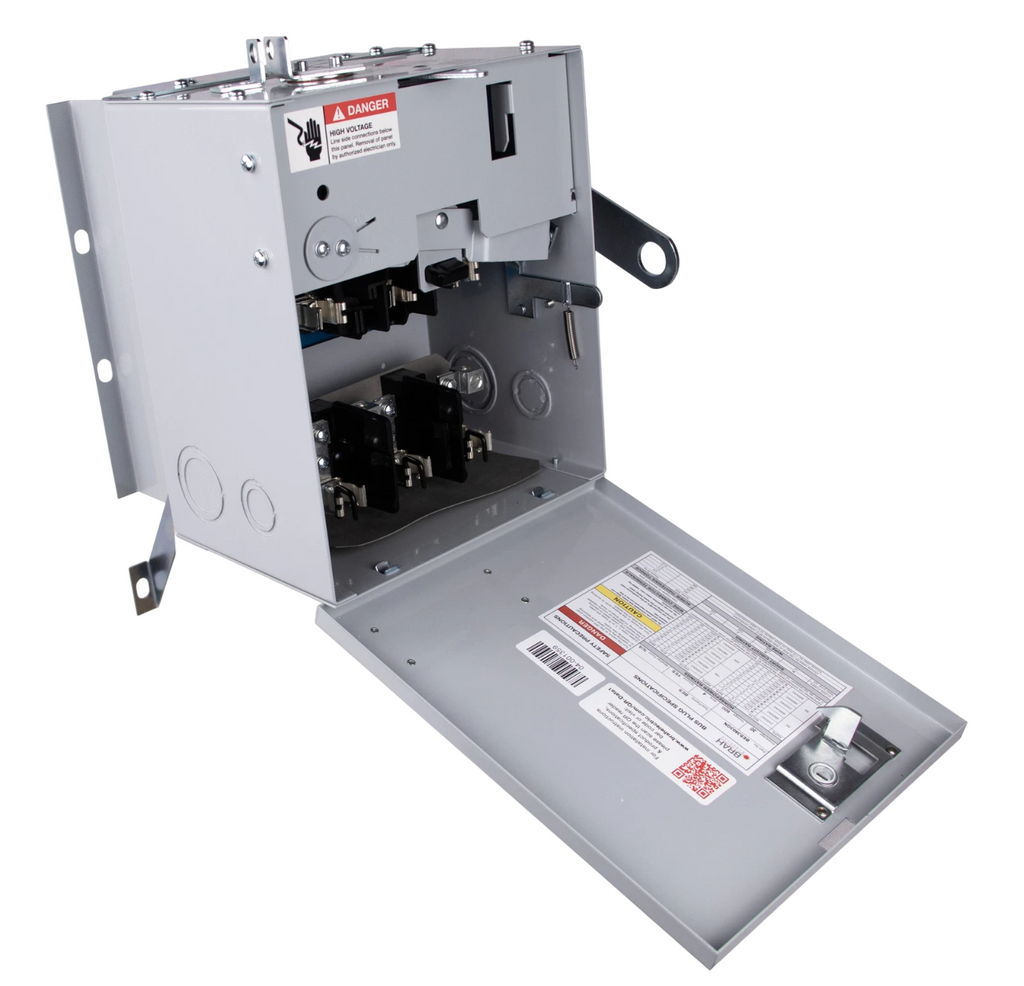

BES3606GN is a fusible type bus plug designed for 60 amp, 600 volt, 3-phase, 4-wire systems with ground, compatible with Siemens BD Series busway systems. This bus plug includes weather stripping for drip protection and is UL Listed and UL Recognized as an assembly. It accepts Class R, H, and K fuse types and serves as a direct substitute for ITE BOS bus plugs, providing reliable and safe power distribution.
- Amperage: 60 Amps
- Voltage: 600 Volts
- Phase/Wire: 3 Phase, 4 Wire with Ground
- Type: Fusible Bus Plug
- Fuse Classes: R, H, K
- Interrupt Rating: 65kA at 480VAC
- UL Listed and UL Recognized Assembly
- Includes Weather Stripping for Drip Protection
- Compatible with Siemens BD Series Busway
- Direct Replacement for ITE BOS16452G
Specifications
- Part Number: BES3606GN
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 699252496565
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
