Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3603NW

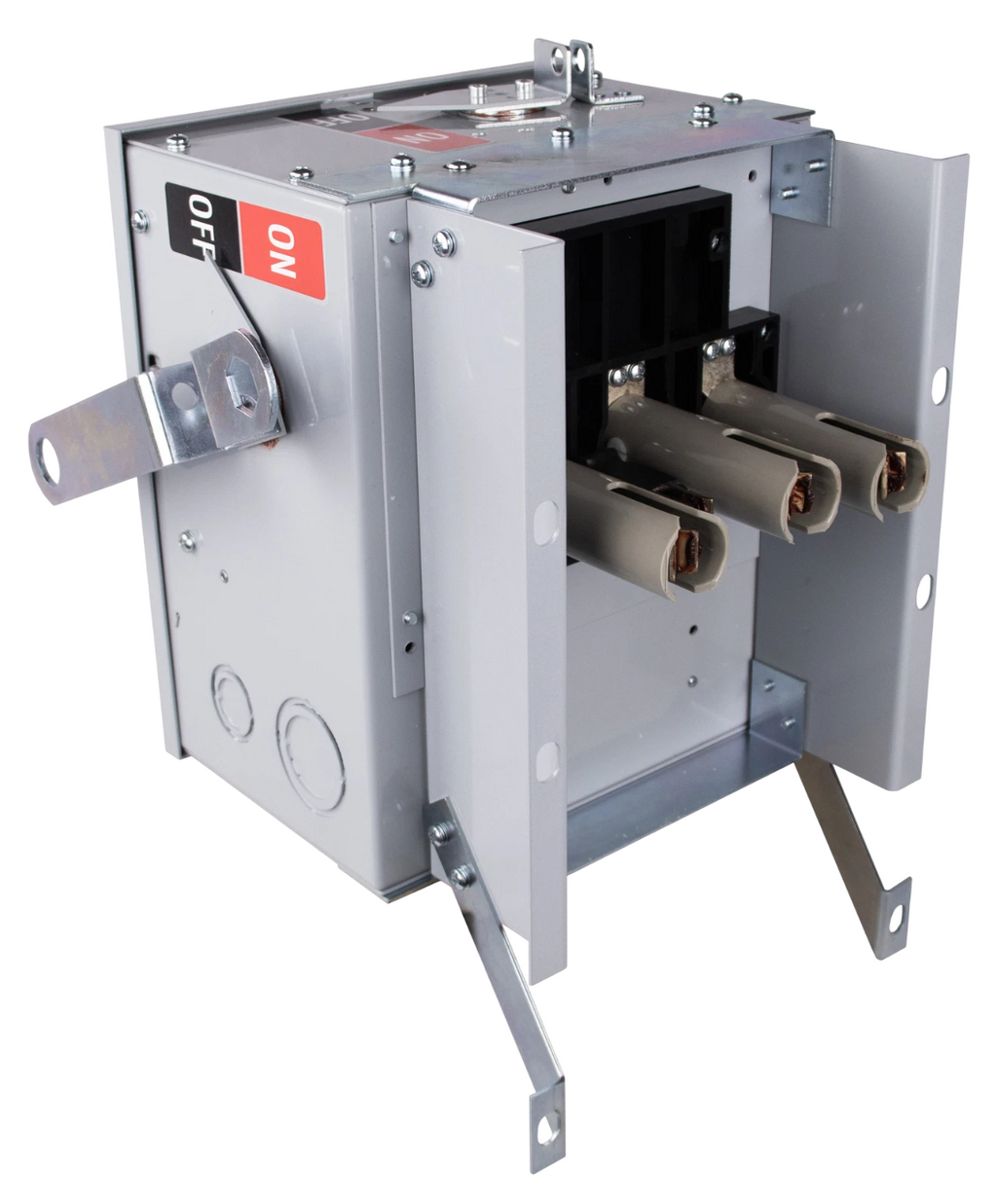

BES3603NW is a 30 amp, 600 volt, 3 phase, 4 wire fusible bus plug designed for industrial busway systems. This BRAH Electric bus plug features weather stripping for drip protection and is a direct replacement for obsolete or hard-to-find models, ensuring fit and function without modification. The BES3603NW is a UL Listed assembly, complete with UL Recognized internal switch and components. It is suitable for use with Bulldog/ITE/Siemens BD Series busway systems and accepts Class H, K, and R fuse types. The plug is designed for reliable performance in demanding electrical environments.
- 30A Amperage
- 600V Voltage
- 3 Phase
- 4 Wire
- Fusible Style
- Weather Stripping Included
- UL Listed Assembly
- Accepts Class H, K, R Fuses
- Direct Replacement for Bulldog/ITE/Siemens BD Series
- 200kA AIC Rating @ 480VAC
Specifications
- Part Number: BES3603NW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496527
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
