Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3603N

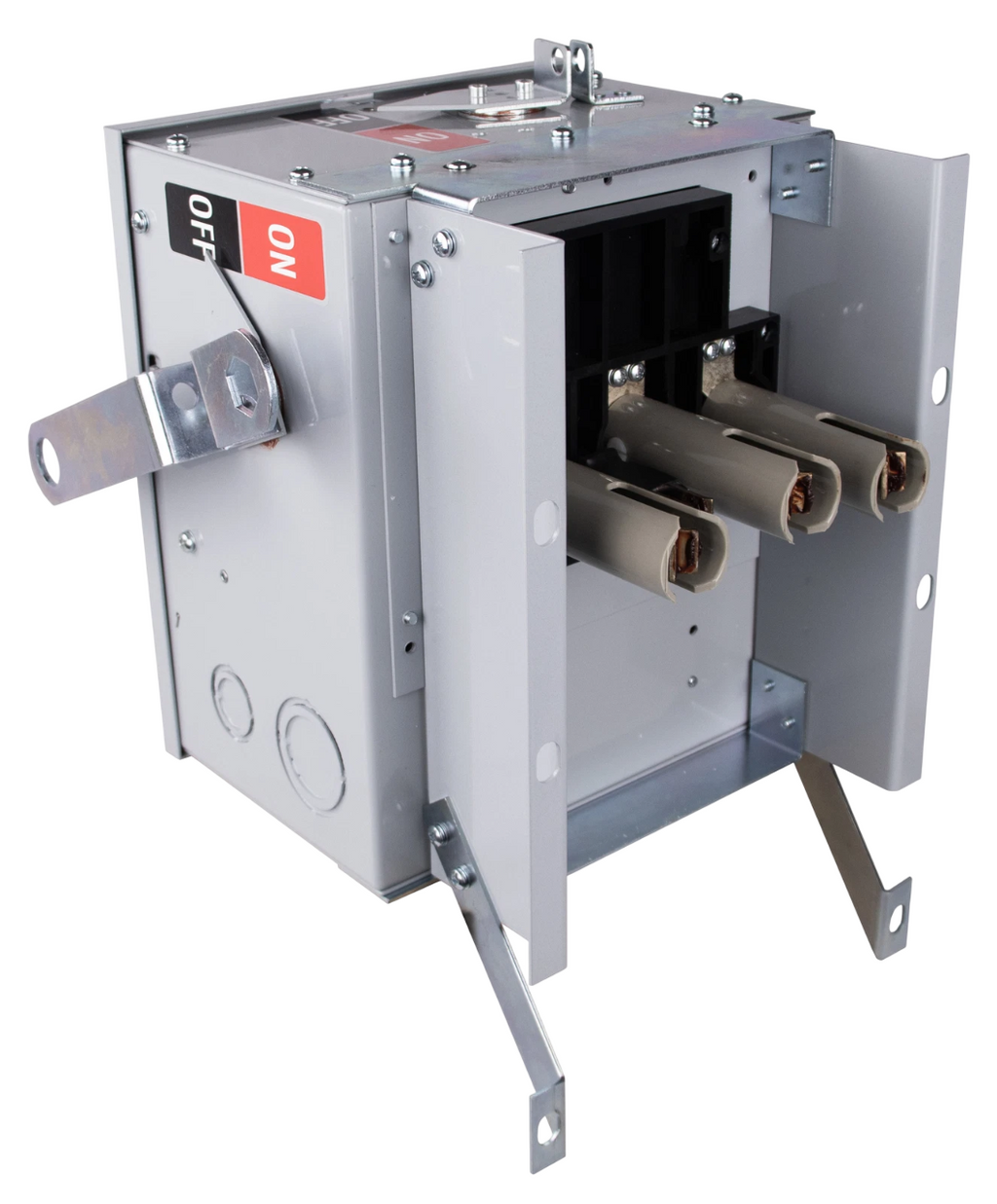

BES3603N is a 30 amp, 600 volt, 3 phase, 4 wire fusible bus plug from BRAH Electric designed for industrial busway systems.This bus plug is a UL Listed assembly featuring a UL Recognized internal switch and components. It is suitable for use with Bulldog, ITE, and Siemens BD Series busway systems. The BES3603N accepts Class R, H, and K fuse types and includes weather stripping for drip protection, ensuring reliable performance in demanding environments.
- Amperage: 30A
- Voltage: 600V
- Phase: 3-Phase
- Wire: 4-Wire
- Fuse Classes: R, H, K
- Style: Fusible
- Includes weather stripping for drip protection
- UL Listed assembly with UL Recognized internal switch
- Compatible with Bulldog, ITE, Siemens BD Series busway systems
- Mounting Type: Bus Plug
Specifications
- Part Number: BES3603N
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 699252496510
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
