Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3603GW

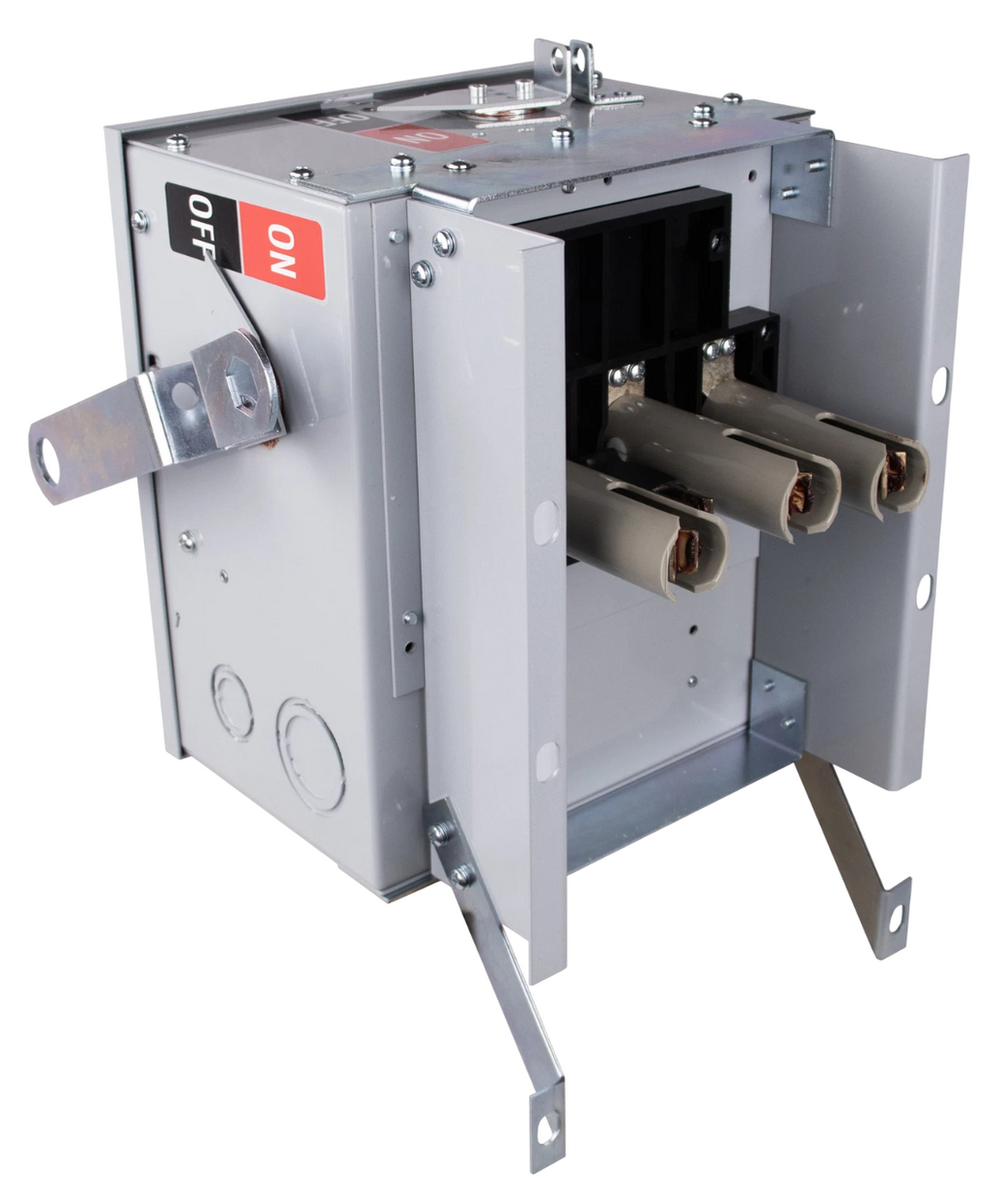

BES3603GW is a 30 Amp, 600 Volt, 3-phase, 3-wire fusible bus plug from BRAH Electric designed for busway systems.
This fusible bus plug features weather stripping for drip protection and is part of the BD Series. It is UL Listed as an assembly and fits Bulldog/ITE/Siemens BD busway systems. The plug includes a ground and is suitable for 600 Volt busway applications requiring a 30 Amp rating.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 Volts
- Phase: 3-Phase
- Wiring: 3-Wire with Ground
- Type: Fusible Bus Plug
- Series: BD Series
- Mounting: Busway Plug-In
- UL Listed Assembly
- Includes Weather Stripping for Drip Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BES3603GW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 699252496503
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
