Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3603GN

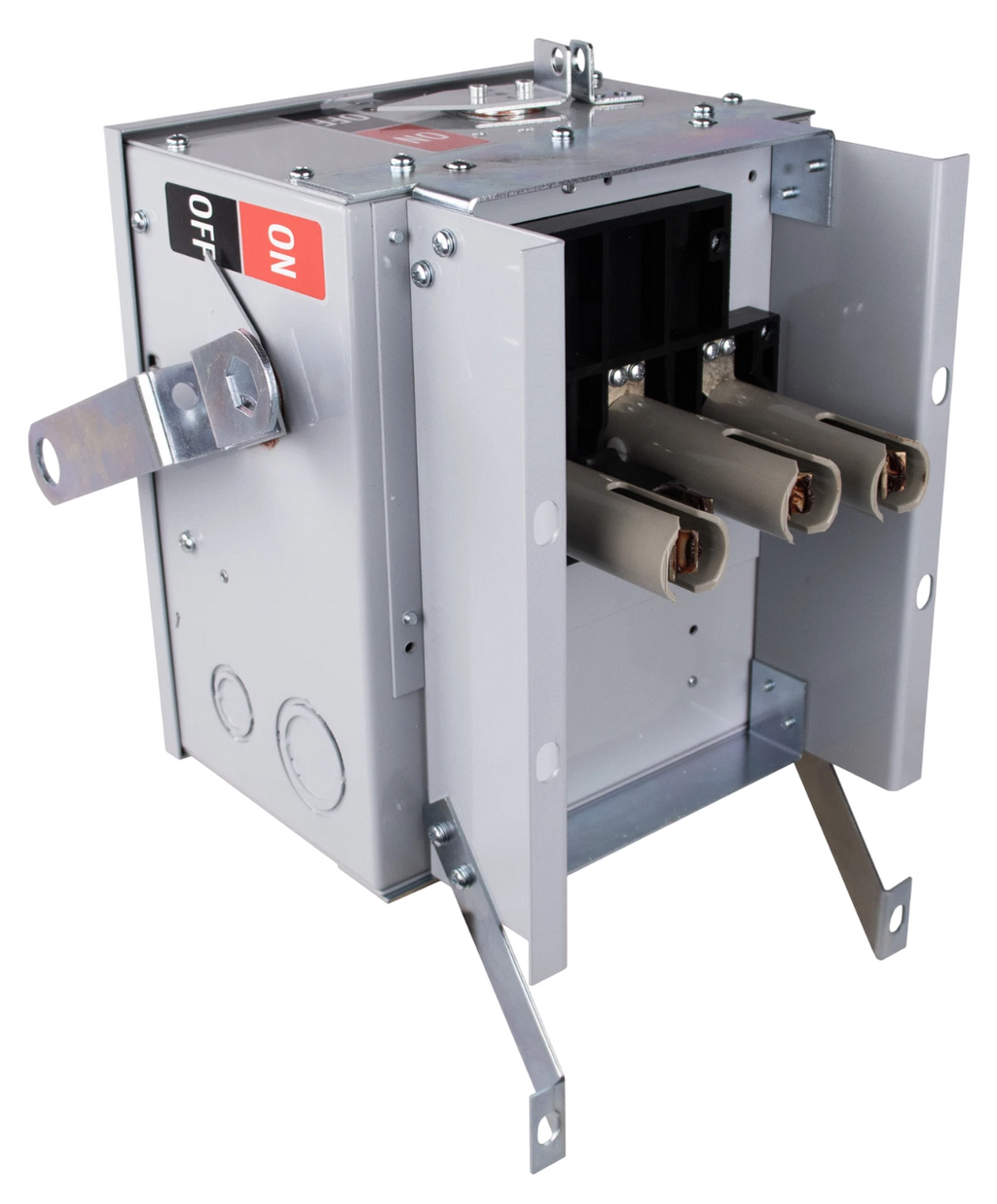

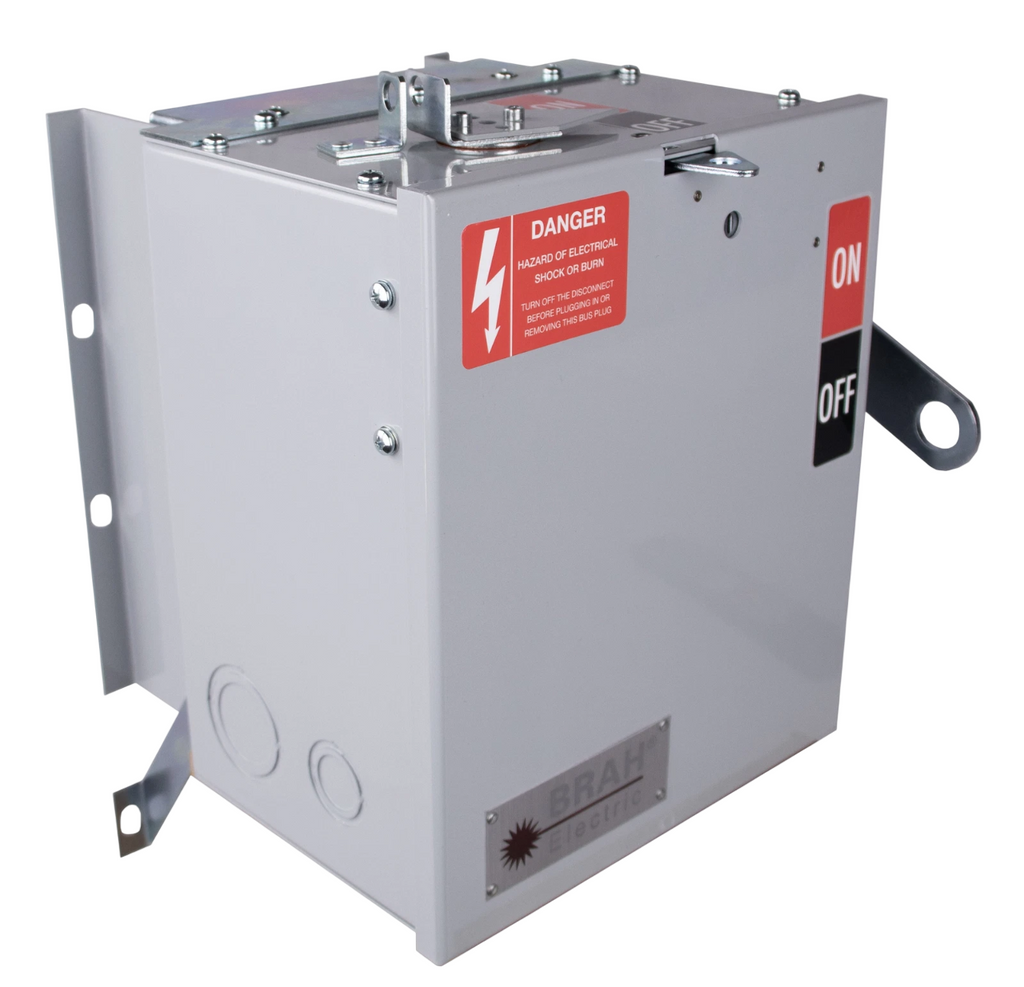

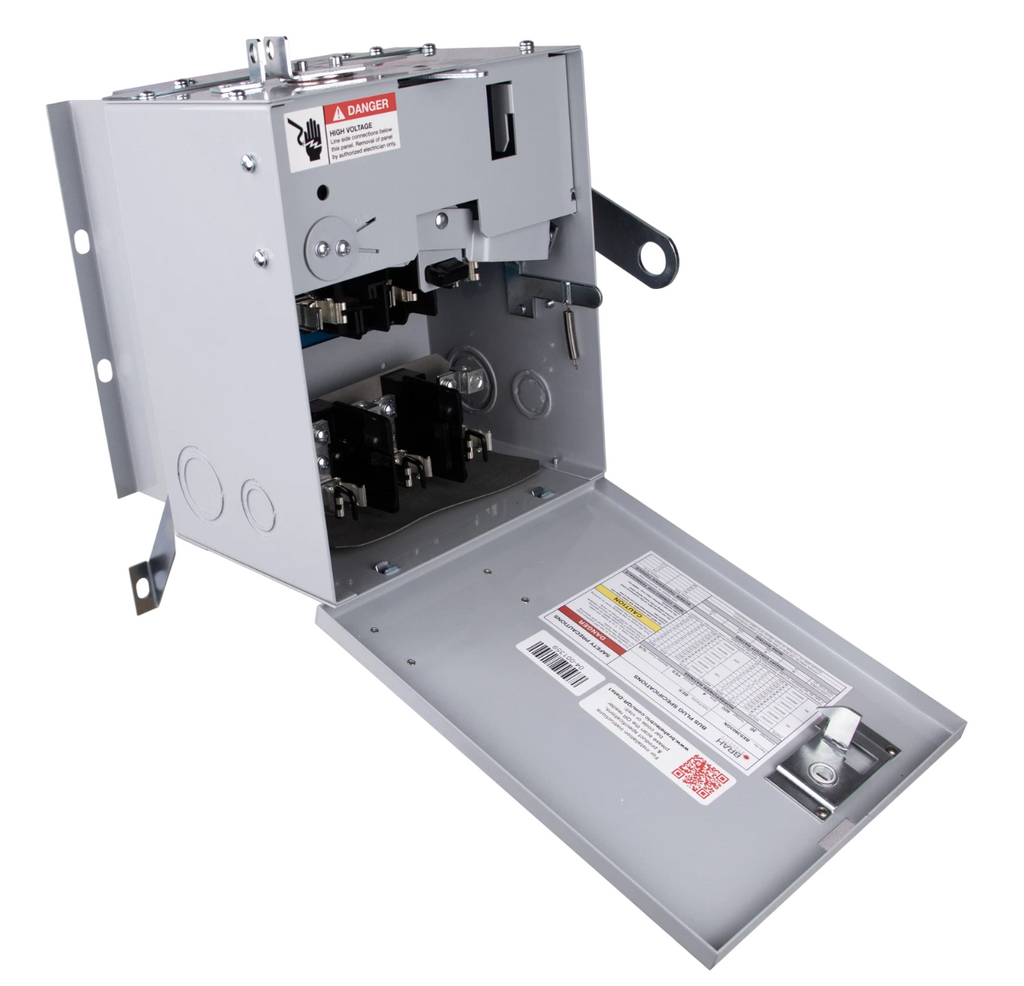

BES3603GN is a fusible style bus plug from BRAH Electric designed for reliable power distribution in industrial busway systems.
This 30 amp, 600 volt, 3 phase, 4 wire bus plug includes a ground and weather stripping for drip protection. It is UL Listed as an assembly and features UL Recognized internal switches and components. The BES3603GN is engineered as a direct replacement for ITE/Siemens BOS16451G bus plugs and is compatible with Bulldog, ITE, and Siemens BD Series busway systems. It accepts Class R, H, and K fuse types, providing essential overcurrent protection and ensuring safe, efficient electrical distribution.
- Amperage: 30 Amps
- Voltage: 600 Volts
- Phase: 3 Phase
- Wiring: 4 Wire with Ground
- Type: Fusible Bus Plug
- UL Listed Assembly
- Compatible with ITE/Siemens BD Series Busway
- Accepts Class R, H, and K Fuses
- Includes Weather Stripping for Drip Protection
- UL Recognized Internal Switch and Components
- Direct Replacement for BOS16451G
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BES3603GN
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 699252496480
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
