Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3603

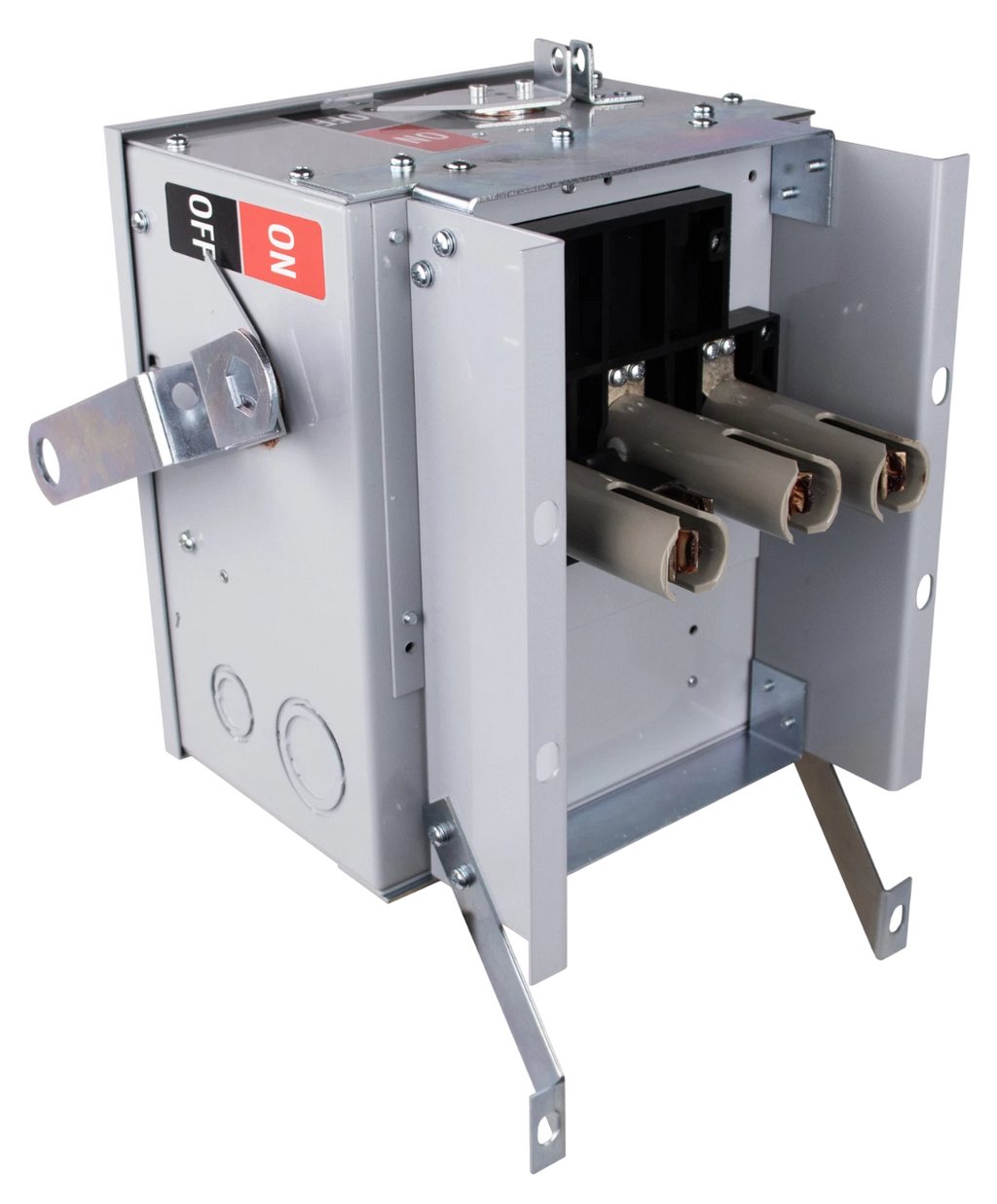

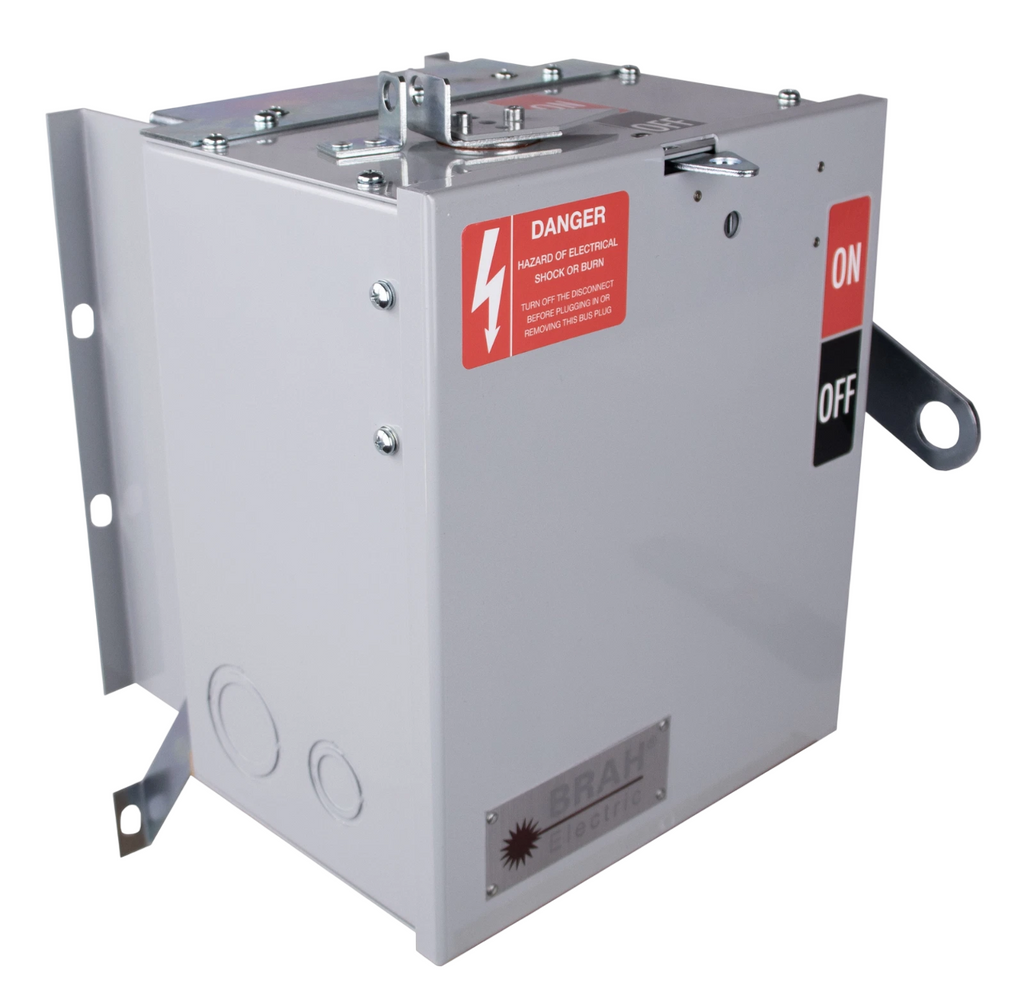

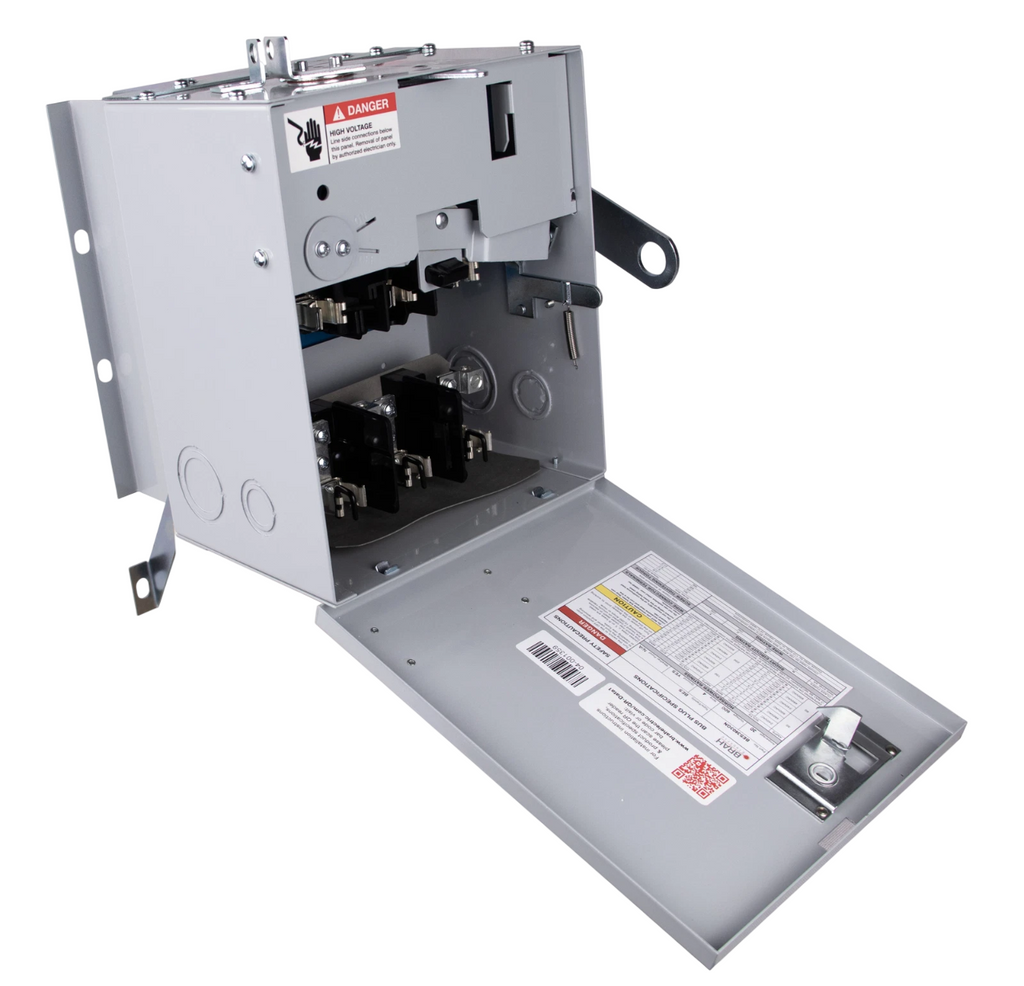

BES3603 is a 30 amp, 600 volt, 3 phase fusible style bus plug designed for industrial busway systems. This UL Listed assembly features a UL Recognized internal switch and components suitable for use with Bulldog, ITE, and Siemens BD Series industrial busway systems. The plug accepts Class R, H, and K fuse types and provides a direct substitute for OEM BOS series bus plugs.The BES3603 is available in multiple configurations to meet different installation requirements. Standard models include 3-wire and 4-wire versions, with optional weather stripping for drip protection in outdoor or wet environments. The unit delivers an AIC rating of 65kA at 480VAC, ensuring reliable performance in demanding industrial applications.
- Amperage: 30A
- Voltage: 600V
- Phase: 3 Phase
- Wire Configuration: 3-Wire or 4-Wire options
- Fuse Class: R, H, K
- AIC Rating: 65kA at 480VAC
- Type: Fusible
- UL Listed Assembly
- Compatible with BD Series Busway Systems
- Weather Stripping Available
Specifications
- Part Number: BES3603
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R, H, K
- Wire : 3
Product Data
- UPC : 699252496466
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
