Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3210N

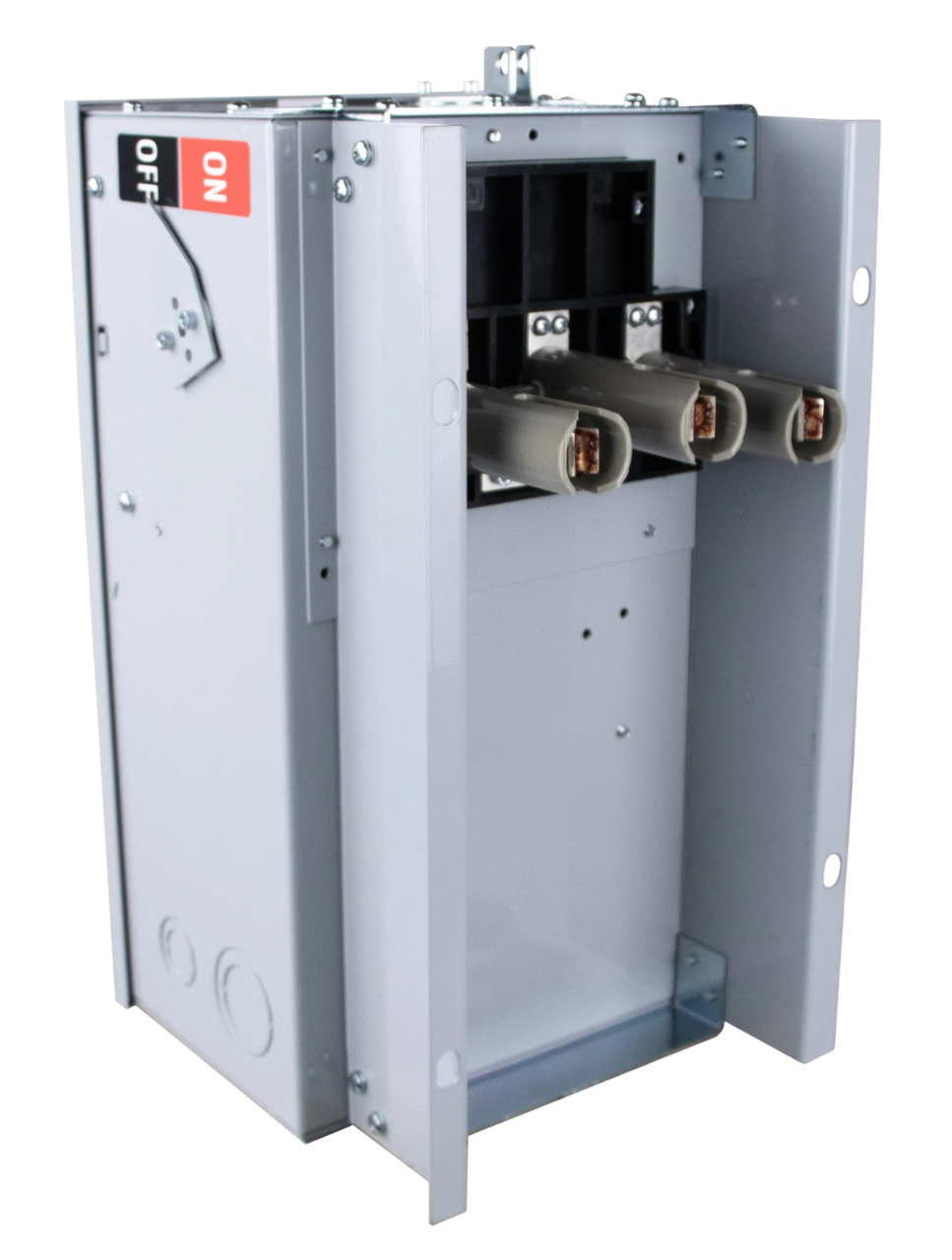

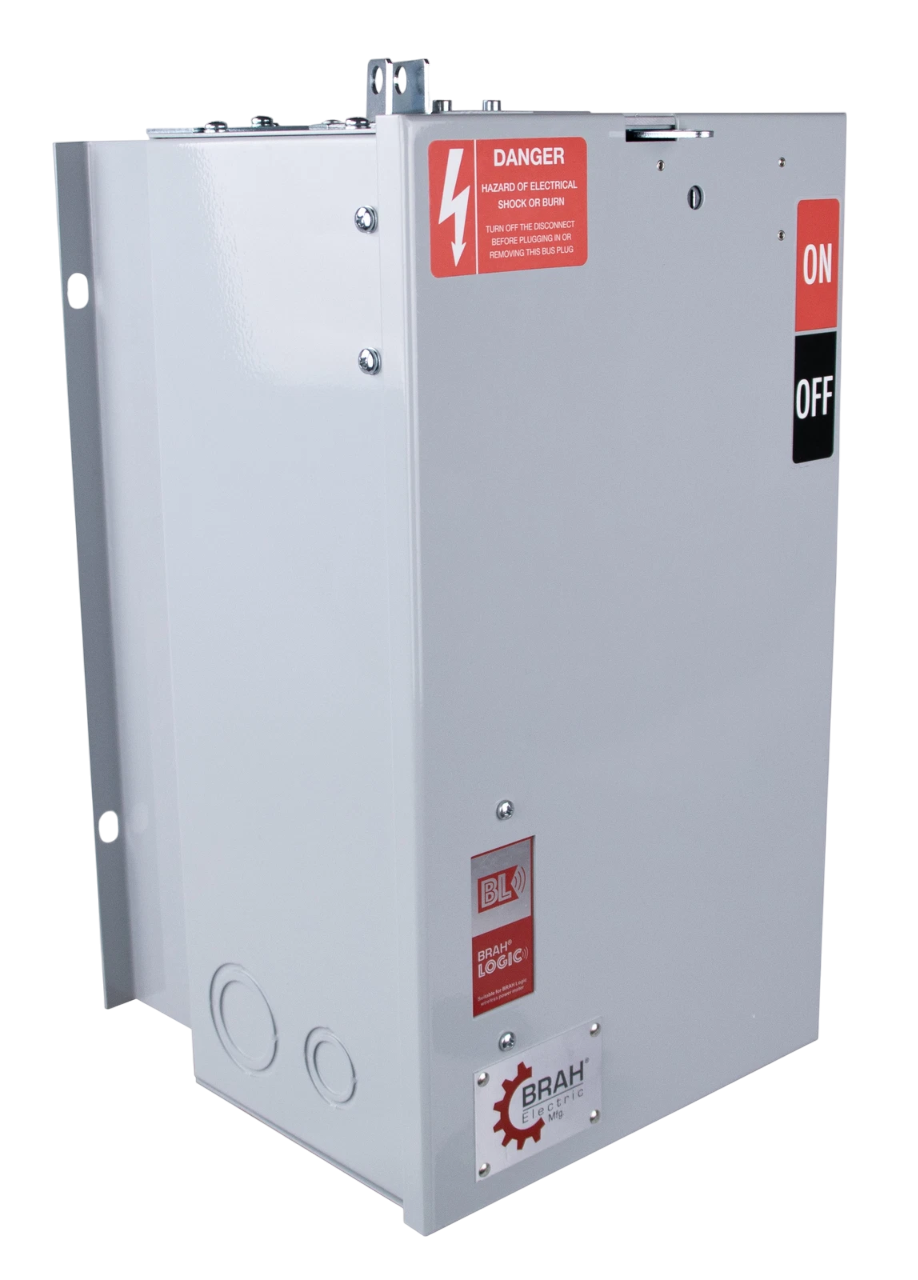

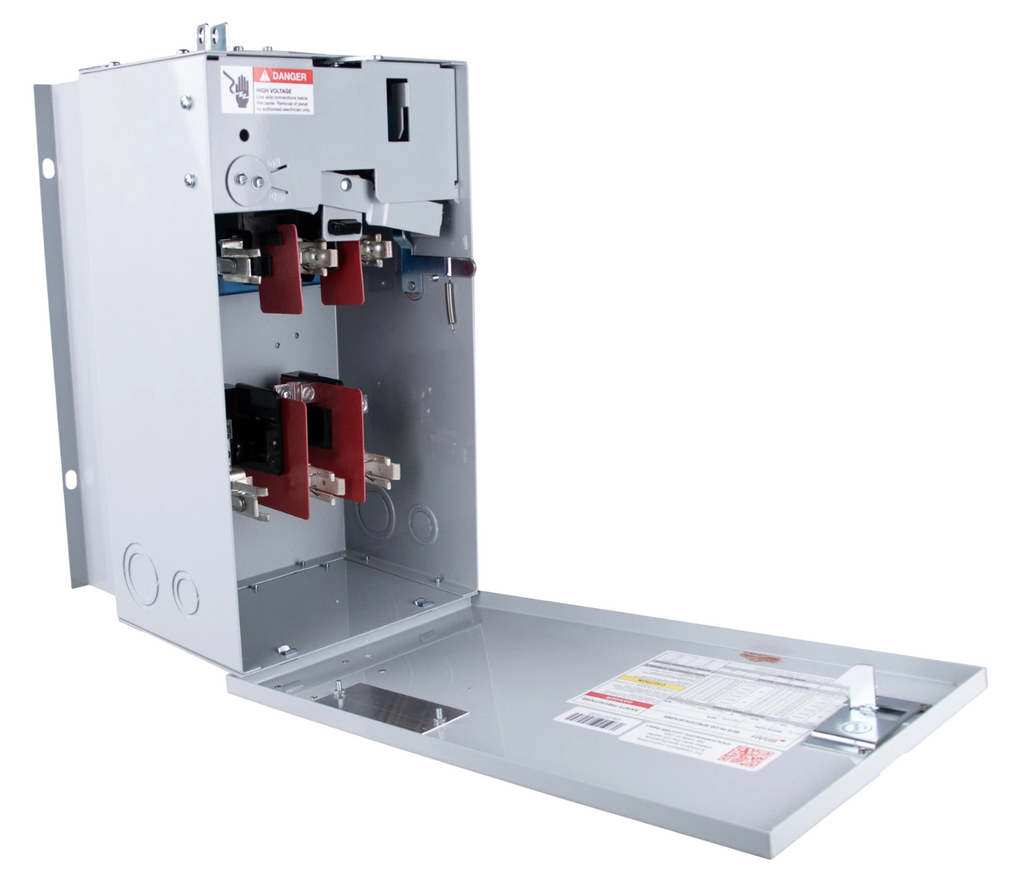

BES3210N is a fusible type bus plug designed for 3-phase, 4-wire busway systems. This BRAH Electric bus plug offers reliable circuit protection and is a direct replacement for ITE/Siemens BD series bus plugs. The BES3210N features a 100A rating, 240V AC operation, and is UL Listed for safety and performance. It is compatible with Bulldog/ITE/Siemens BD busways and includes a UL Recognized internal switch for added reliability. The fusible design provides protection for branch circuits in industrial and commercial power distribution applications.
- 100A Amperage
- 240V AC Voltage
- 3-Phase, 4-Wire
- 4 Poles
- Fusible Type
- Interrupting Rating: 65 kAIC at 240V
- UL Listed
- UL Recognized Internal Switch
- Compatible with Bulldog/ITE/Siemens BD Series
- Direct Replacement for BOS16423/BOS16423R
Specifications
- Part Number: BES3210N
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 699252496435
- Country of Origin : China
- Dimensions : 9 61/100 in x 16 7/10 in
- Weight : 45
- Certification : UL Listed, UL Recognized
