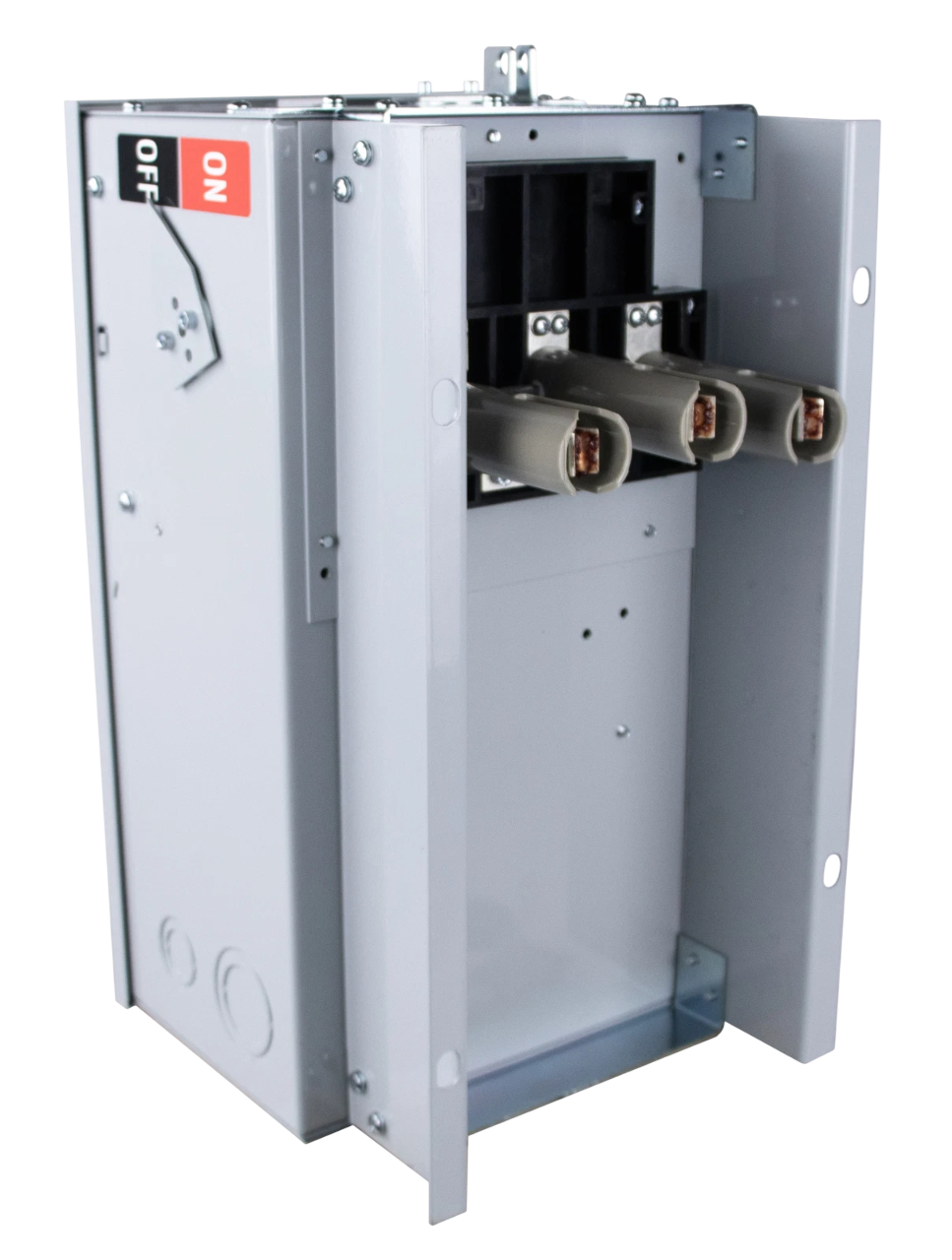

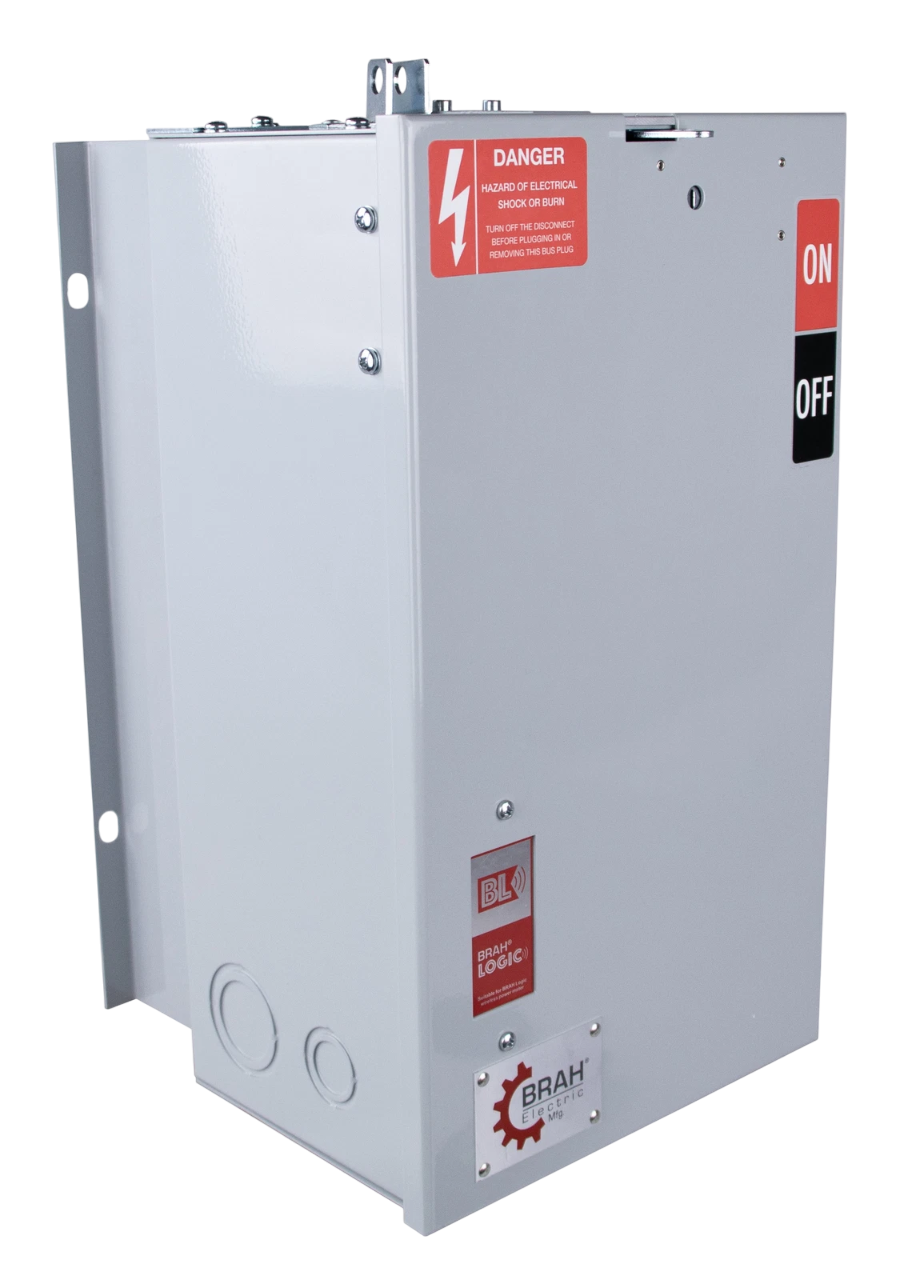

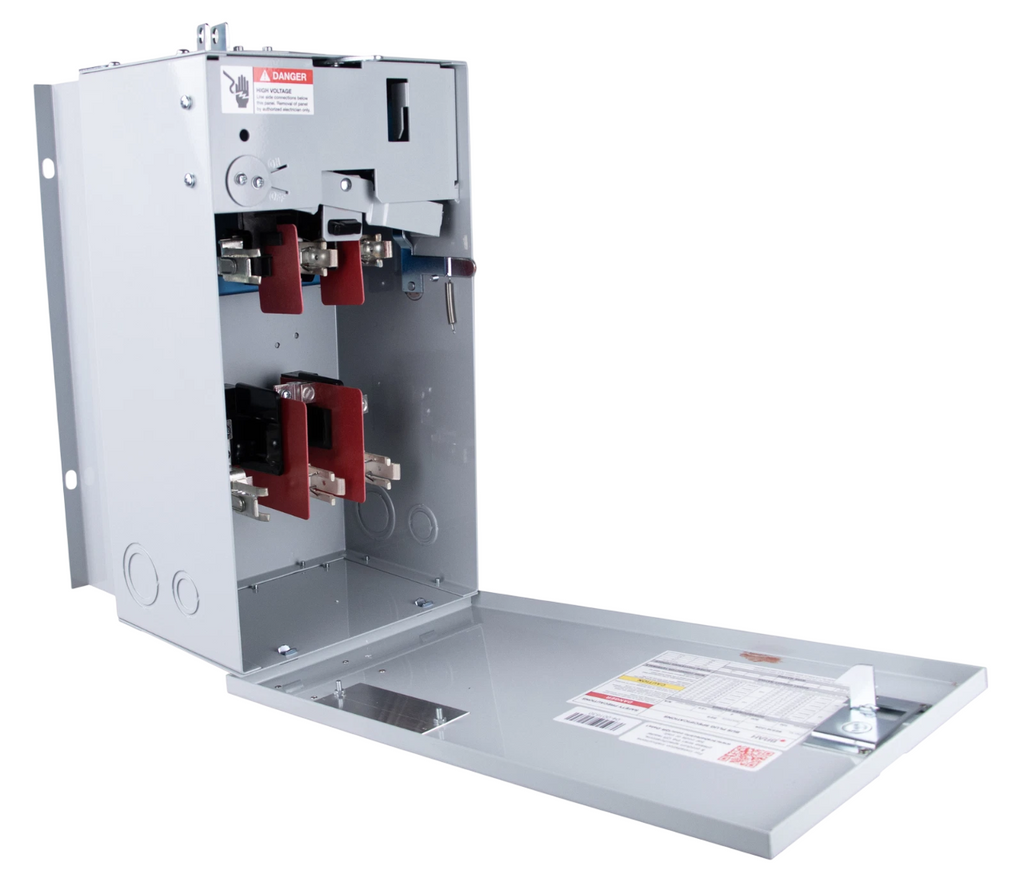

BES3210GW - BRAH Electric 100 Amp 240 Volt 3 Pole Fusible Bus Plug

BES3210GW

BES3210GW is a 100 amp, 240 volt, 3 pole fusible bus plug designed for reliable power distribution in industrial applications.This fusible bus plug features a 3 phase, 3 wire with ground configuration and is UL Listed for safety and performance. It includes weather stripping for drip protection and accepts Class H, J, and R fuse types. The BES3210GW is compatible with Bulldog, ITE, Siemens BD series busway systems and serves as a direct replacement for OEM models such as BOS14323. It offers a 65 kA interrupting rating at 240 volts, ensuring robust fault current protection.

Key Specifications
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 3
• Phase/Wire: 3 Phase, 3 Wire with Ground
• Fusible: Yes
• Fuse Classes: H, J, R
• Interrupting Rating: 65 kA at 240V
• UL Listed Assembly
• Includes Weather Stripping for Drip Protection
• Compatible with Bulldog/ITE/Siemens BD Series Busway
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BES3210GW
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R,H,K
• Wire : 3



Product Data

• UPC : 699252496428
• Country of Origin : China
• Dimensions : 9 61/100 in x 16 7/10 in
• Weight : 45
• Certification : UL Listed, UL Recognized
