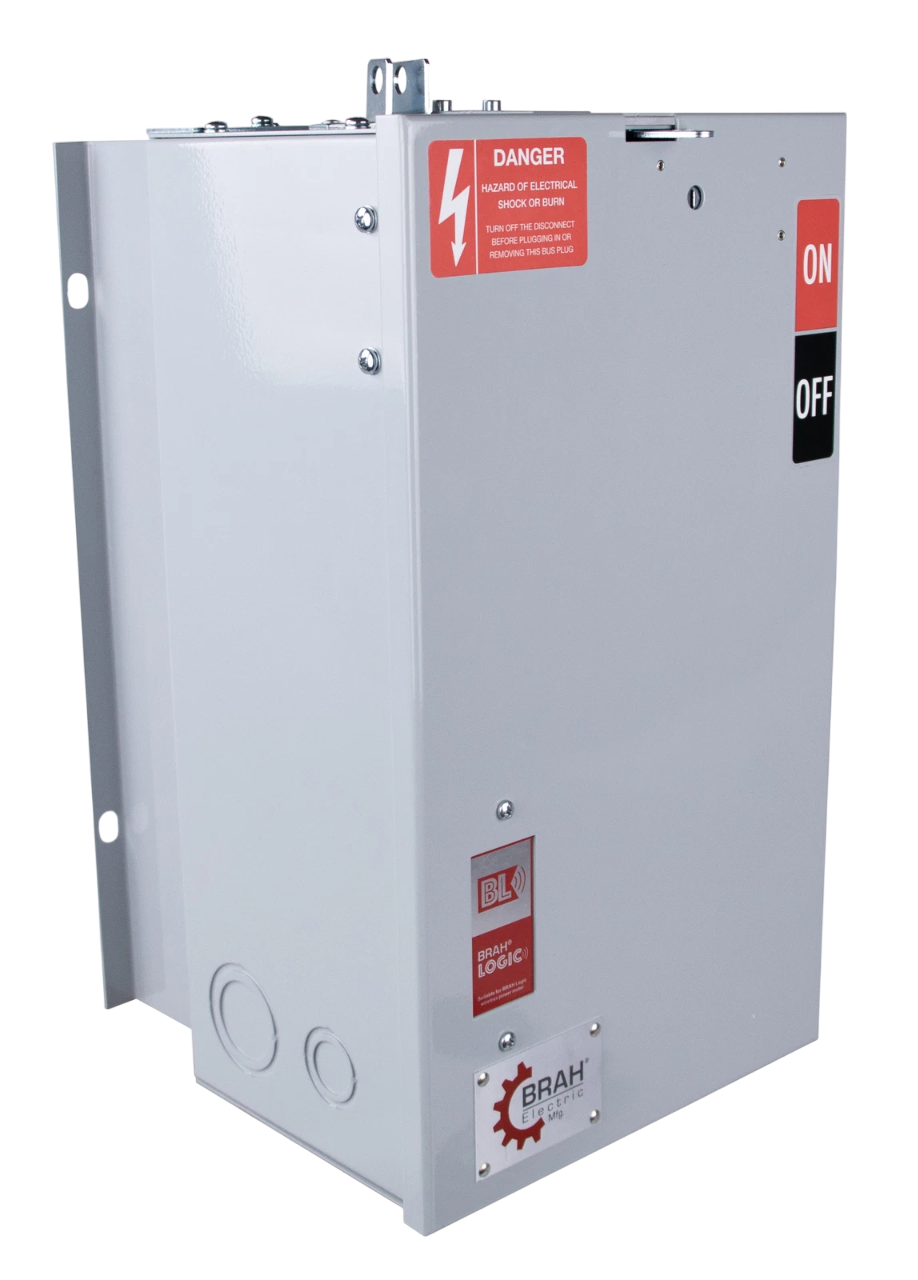

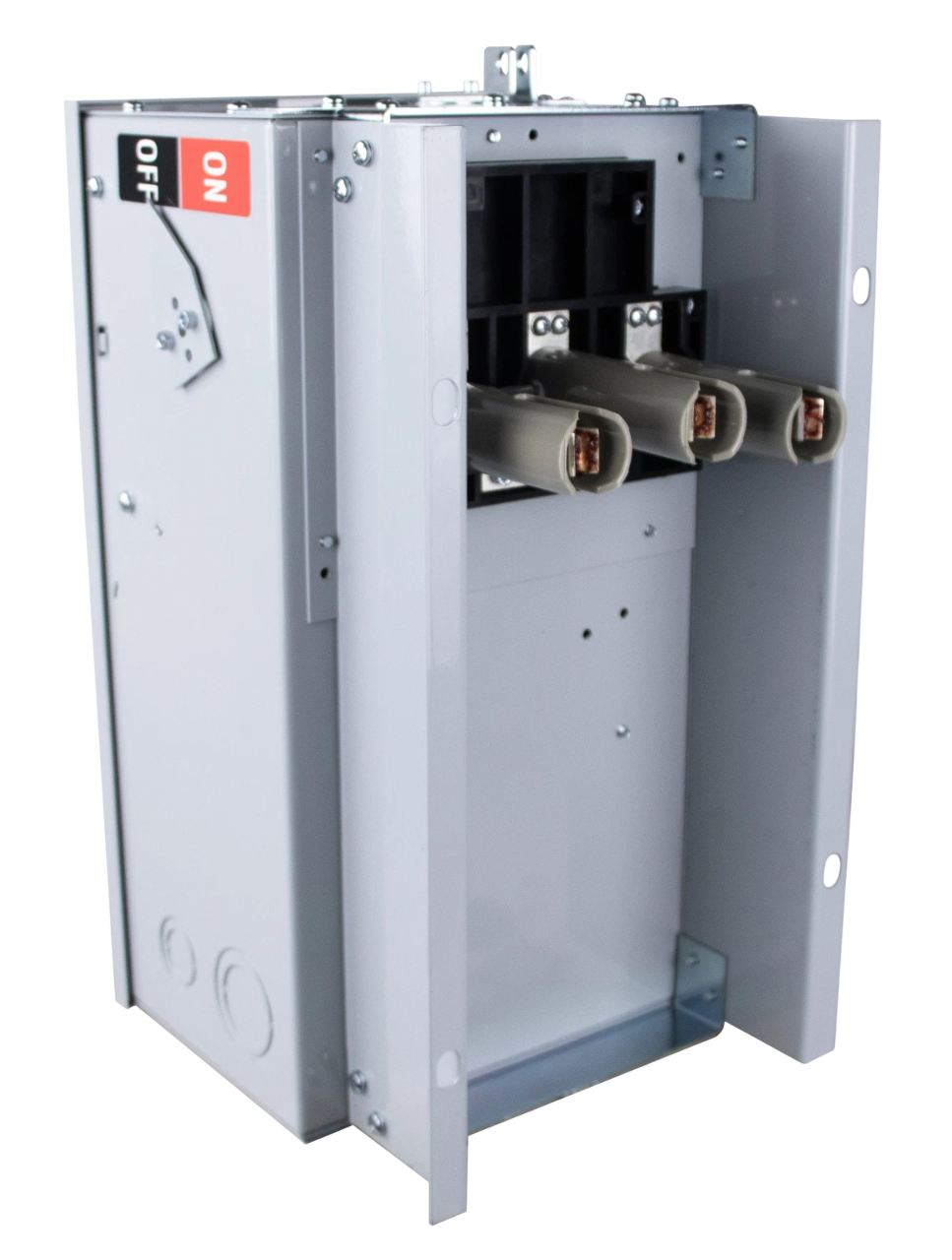

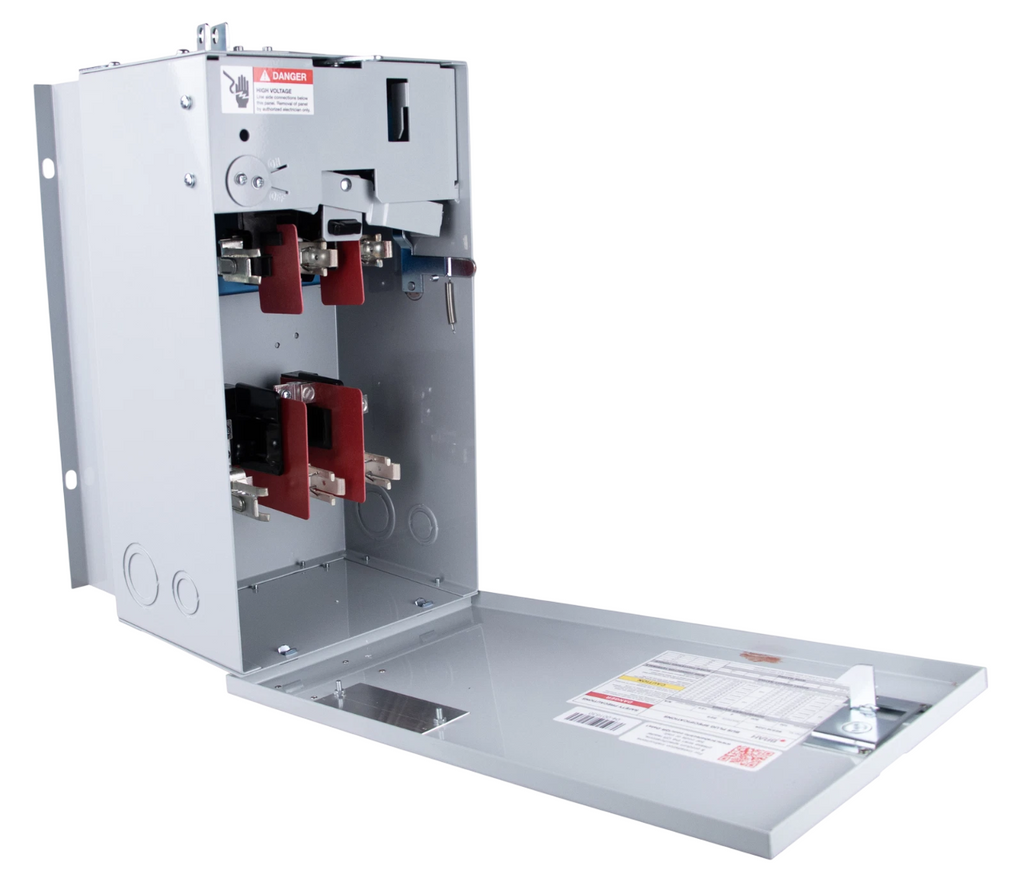

BES3210GNW - BRAH Electric 100A 240V 3-Phase 4-Wire Fusible Bus Plug with Ground

BES3210GNW

BES3210GNW is a fusible bus plug designed for 100 amp, 240 volt, 3 phase, 4 wire systems with ground, suitable for industrial busway applications.BES3210GNW features a fusible style design compatible with OEM Bulldog, ITE, and BD Series busway systems. It includes weather stripping for drip protection and is a UL Listed assembly with UL Recognized internal switch and components. This bus plug accepts Class R, H, and K fuse types and serves as a direct substitute for ITE OEM type BOS bus plugs.

Key Specifications
• Amperage: 100 Amps
• Voltage: 240 Volts
• Phase: 3-Phase
• Wiring: 4-Wire with Ground
• Type: Fusible Bus Plug
• Compatible with Bulldog/ITE/BD Series Busway Systems
• Includes Weather Stripping for Drip Protection
• UL Listed Assembly
• Accepts Class R, H, and K Fuse Types

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3210GNW
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R,H,K
• Wire : 4

Product Data

• UPC : 699252496411
• Country of Origin : China
• Dimensions : 9 61/100 in x 16 7/10 in
• Weight : 45
• Certification : UL Listed, UL Recognized
