BES3210GN - BRAH Electric 100A 240V 3-Phase 4-Wire Fusible Bus Plug

BES3210GN

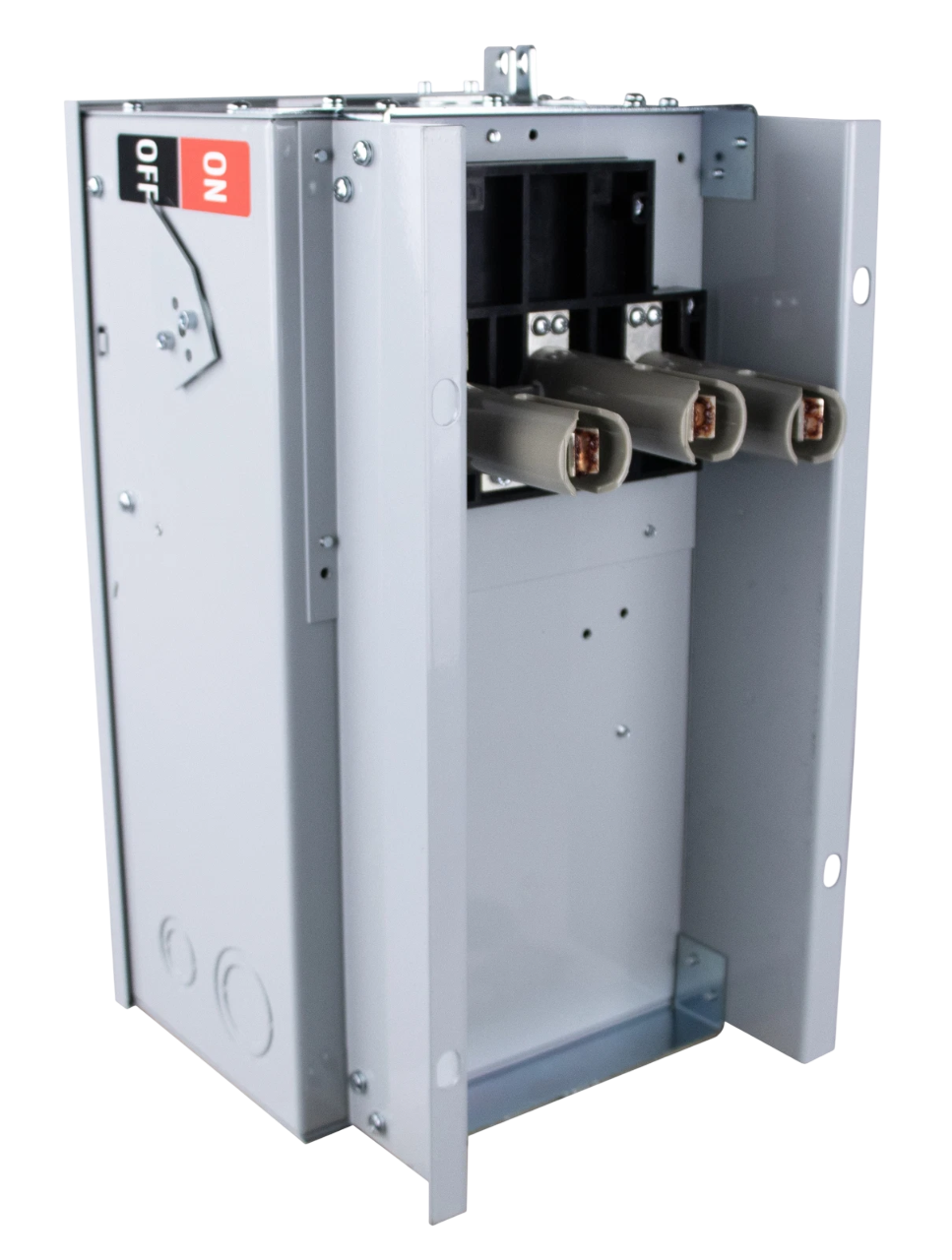

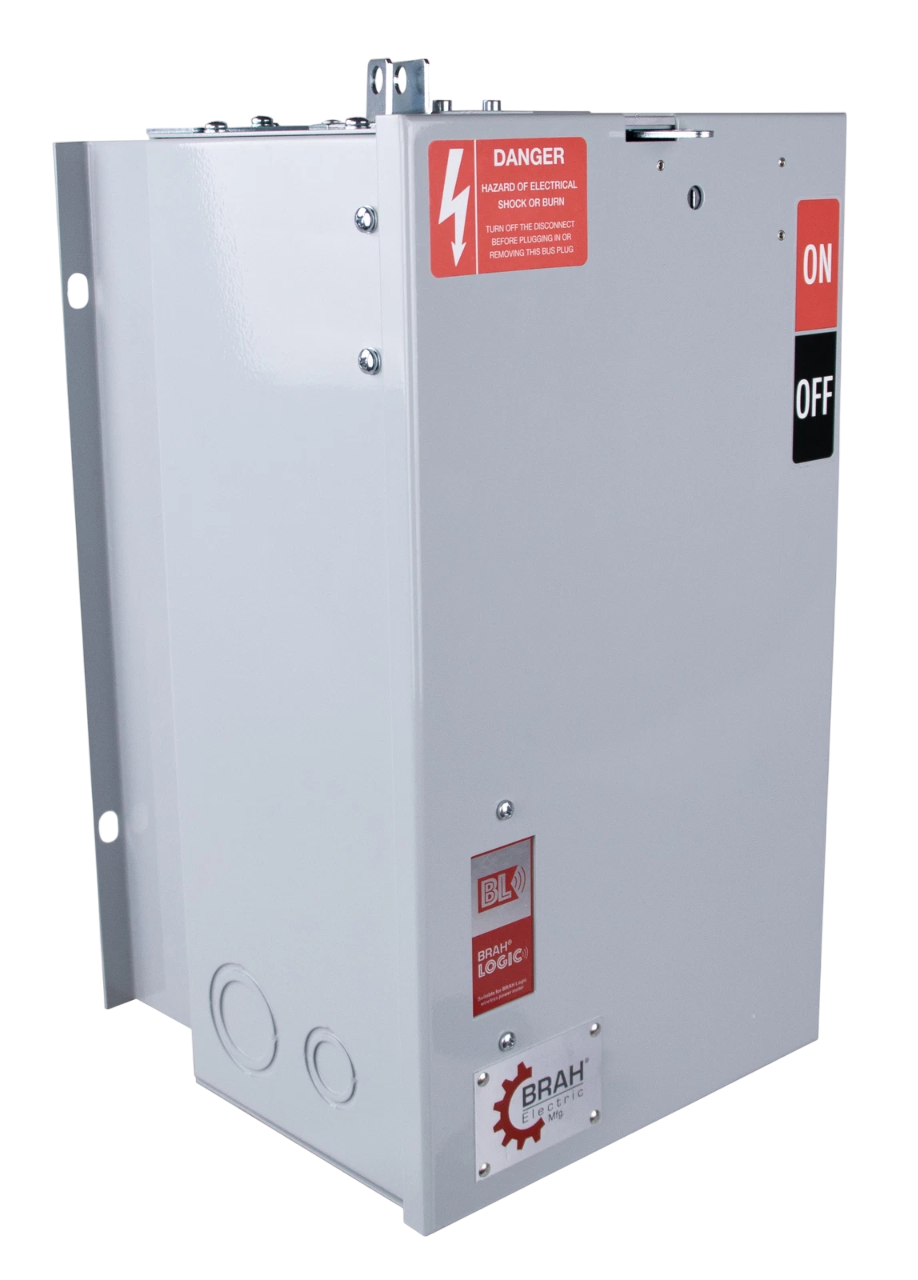

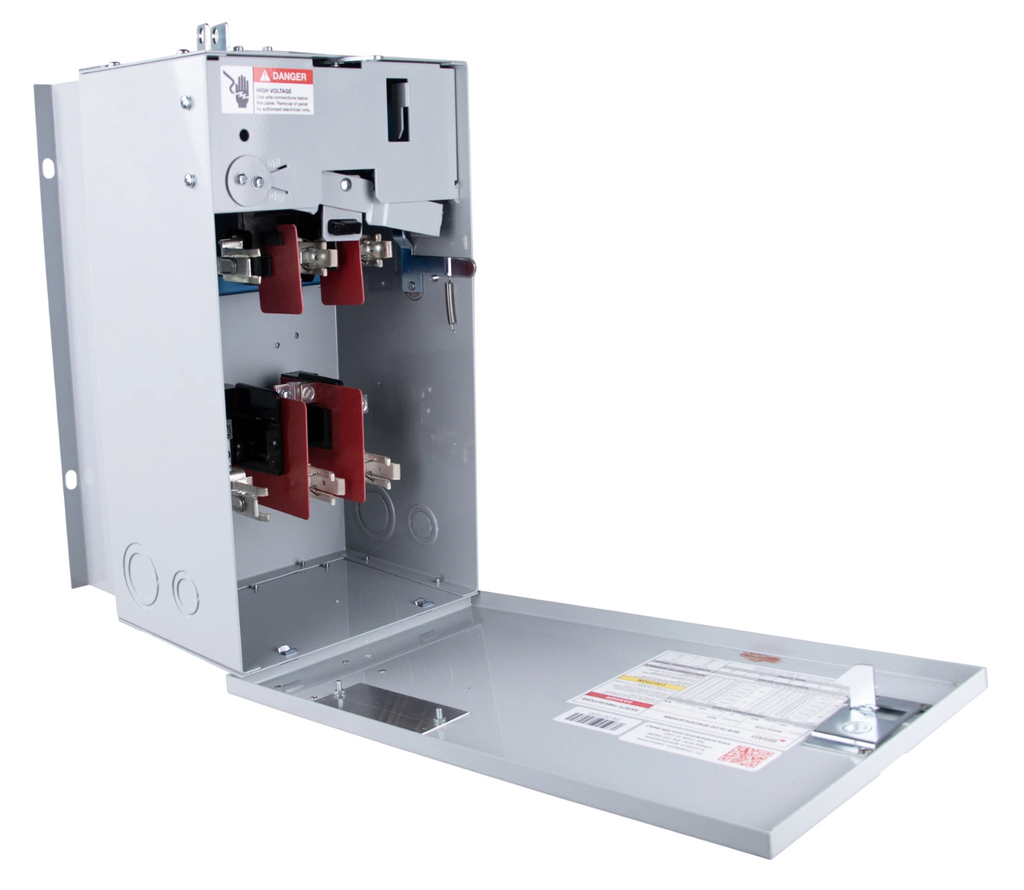

BES3210GN is a 100 amp, 240 volt, 3 phase, 4 wire fusible style bus plug designed for industrial busway systems. This UL Listed assembly features weather stripping for drip protection and includes a UL Recognized internal switch with floating contact design for enhanced efficiency and longer operational life. The unit is compatible with Bulldog, ITE, and Siemens BD Series industrial busway systems and accepts Class R, H, and K fuse types.

• Amperage: 100 A
• Voltage: 240V
• Phase: 3 Phase
• Poles: 4 Wire with Ground
• Type: Fusible Style Bus Plug
• Series: BES / BOS Type
• Interrupting Rating: 200 kAIC at 240V
• UL Listed Assembly
• Weather Stripping for Drip Protection
• Patented Internal 3-Phase Switch with Floating Contact Design
• Compatible with Bulldog, ITE, and Siemens BD Series Busway Systems
• Accepts Class R, H, and K Fuse Types

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3210GN
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R, H, K
• Wire : 4

Product Data

• UPC : 699252496404
• Country of Origin : China
• Dimensions : 9 61/100 in x 16 7/10 in
• Weight : 45
• Certification : UL Listed, UL Recognized
