BES3210G - BRAH Electric 100A 240V 3-Phase Fusible Bus Plug with Ground for ITE Bulldog BD Series

BES3210G

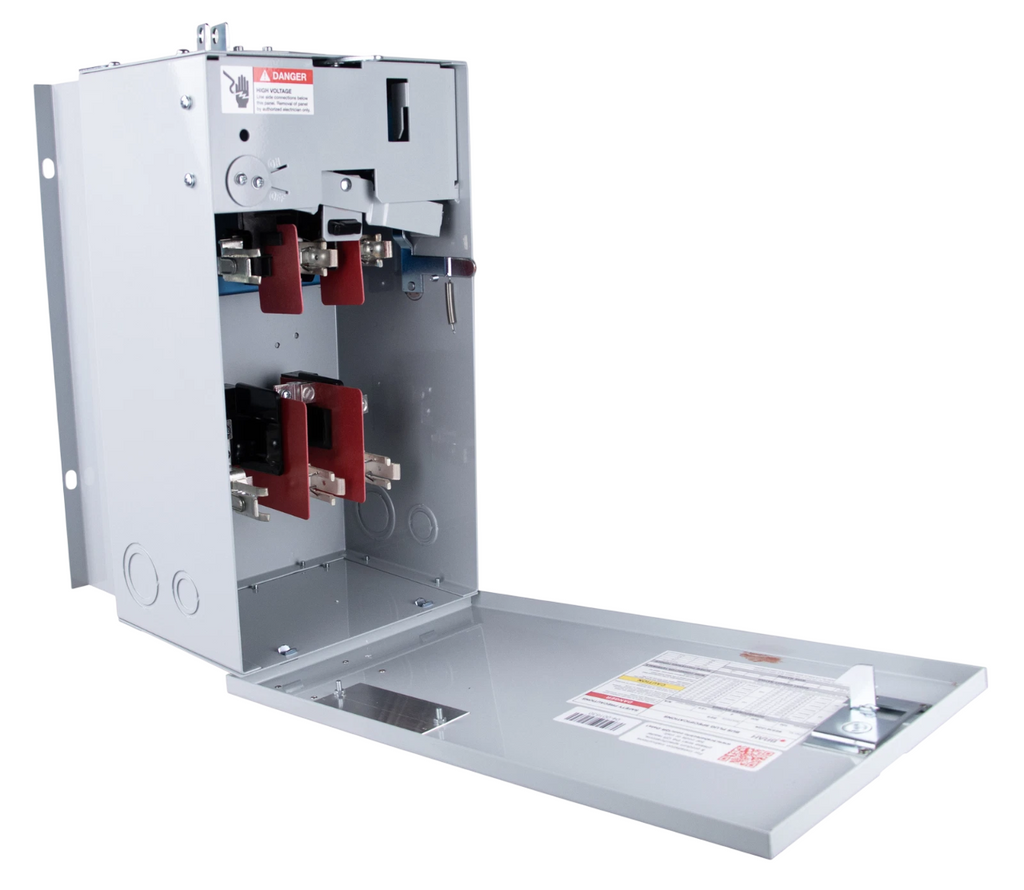

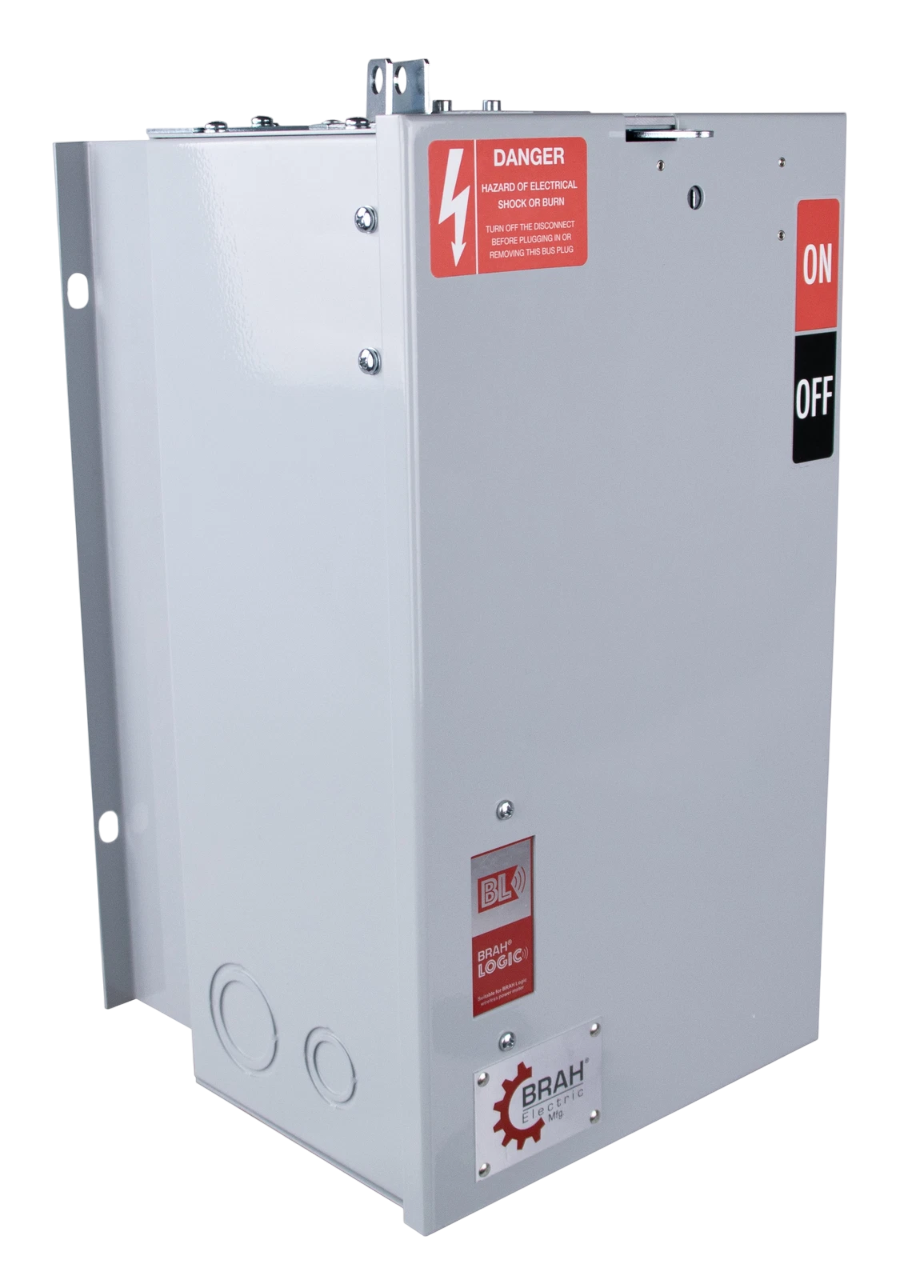

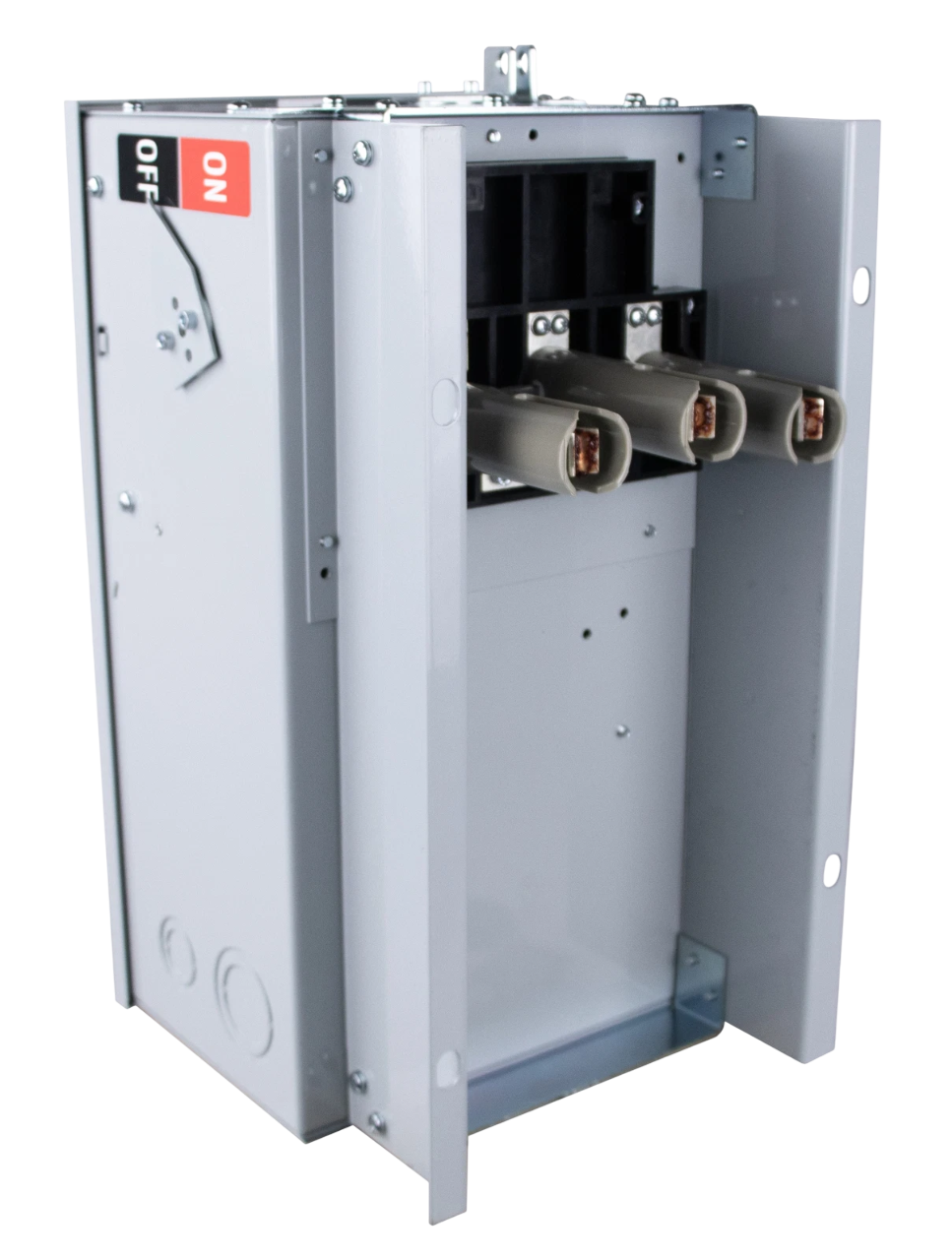

BES3210G is a fusible type bus plug designed for industrial power distribution systems, offering reliable circuit protection and compatibility with OEM Bulldog / ITE / BD Series busway systems.Engineered for use in 3-phase, 3-wire with ground applications, the BES3210G features a 100 amp rating and 240 volt maximum voltage. This UL Listed assembly includes UL Recognized internal switch and components, accepts Class R, H, and K fuse types, and serves as a direct substitute for ITE OEM BOS14323G and BOS14323GR. The plug is suitable for industrial environments requiring robust, code-compliant power distribution.

• 100 amp rating
• 240 volt maximum
• 3-phase, 3-wire with ground
• Fusible type bus plug
• UL Listed assembly
• UL Recognized internal switch and components
• Accepts Class R, H, K fuses
• Direct substitute for ITE BOS14323G/BOS14323GR
• Compatible with Bulldog / ITE / BD Series busway
• Interrupting rating: 65 kAIC at 240V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3210G
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R, H, K
• Wire : 3

Product Data

• UPC : 699252496398
• Country of Origin : China
• Dimensions : 9 61/100 in x 16 7/10 in
• Weight : 45
• Certification : UL Listed, UL Recognized
