Product Info
- Manufacturer:BRAH Electric
- Sub-Category:Fusible
Description
BES3206GNW

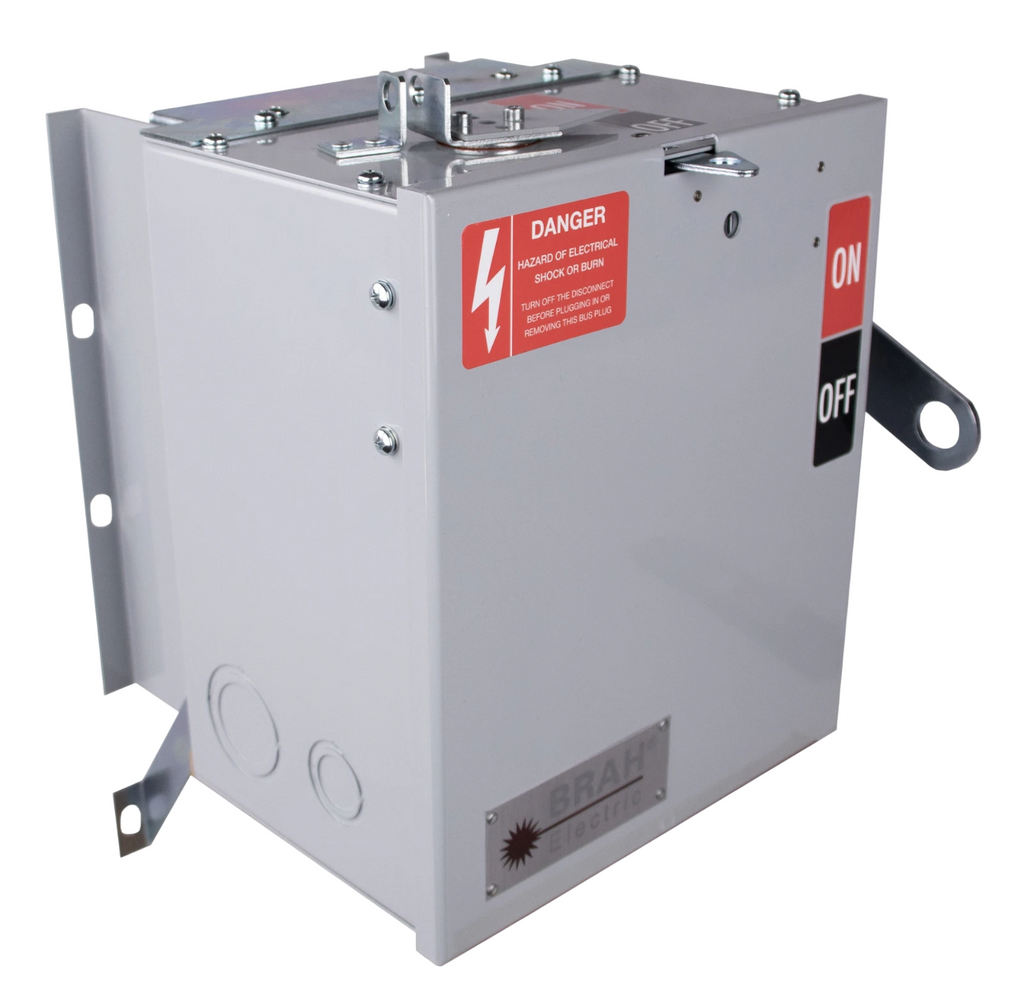

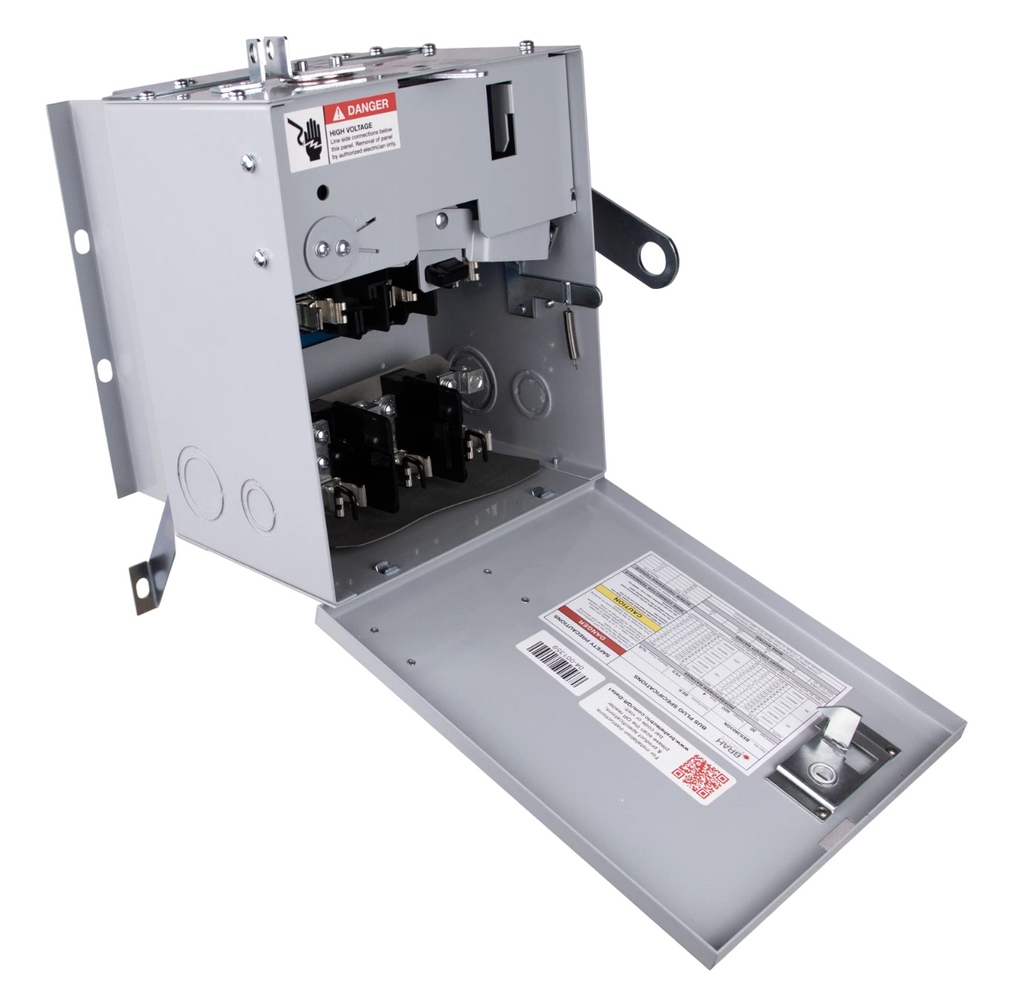

BES3206GNW is a 60 amp, 240 volt, 3-phase, 4-wire fusible bus plug with ground designed for industrial busway systems.
This bus plug features a fusible style with weather stripping for drip protection and is UL Listed as an assembly. It includes a UL Recognized internal switch and components, compatible with OEM Bulldog, ITE, and Siemens BD Series busway systems. It accepts Class H, J, and R fuse types and is suitable for use with Eaton POW-R-WAY III Busway. The plug includes neutral and ground conductors and is designed for reliable and safe power distribution.
- Amperage: 60A
- Voltage: 240V
- Phase/Wire: 3 Phase, 4 Wire with Ground
- Type: Fusible Bus Plug
- Fuse Classes: H, J, R
- UL Listed Assembly
- Includes Weather Stripping for Drip Protection
- Compatible with Bulldog/ITE/Siemens BD Series Busway
- Includes Neutral and Ground Conductors
- UL Recognized Internal Switch and Components
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BES3206GNW
- Manufacturer : BRAH Electric
- Brand : BRAH Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS/BES
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 4
Product Data
- UPC : 699252496336
- Country of Origin : China
- Dimensions : 9 61/100 in x 11 19/50 in
- Weight : 35
- Certification : UL Listed, UL Recognized
