BES3203G - BRAH Electric 30A 240V 3-Phase Fusible Bus Plug BD Series

BES3203G

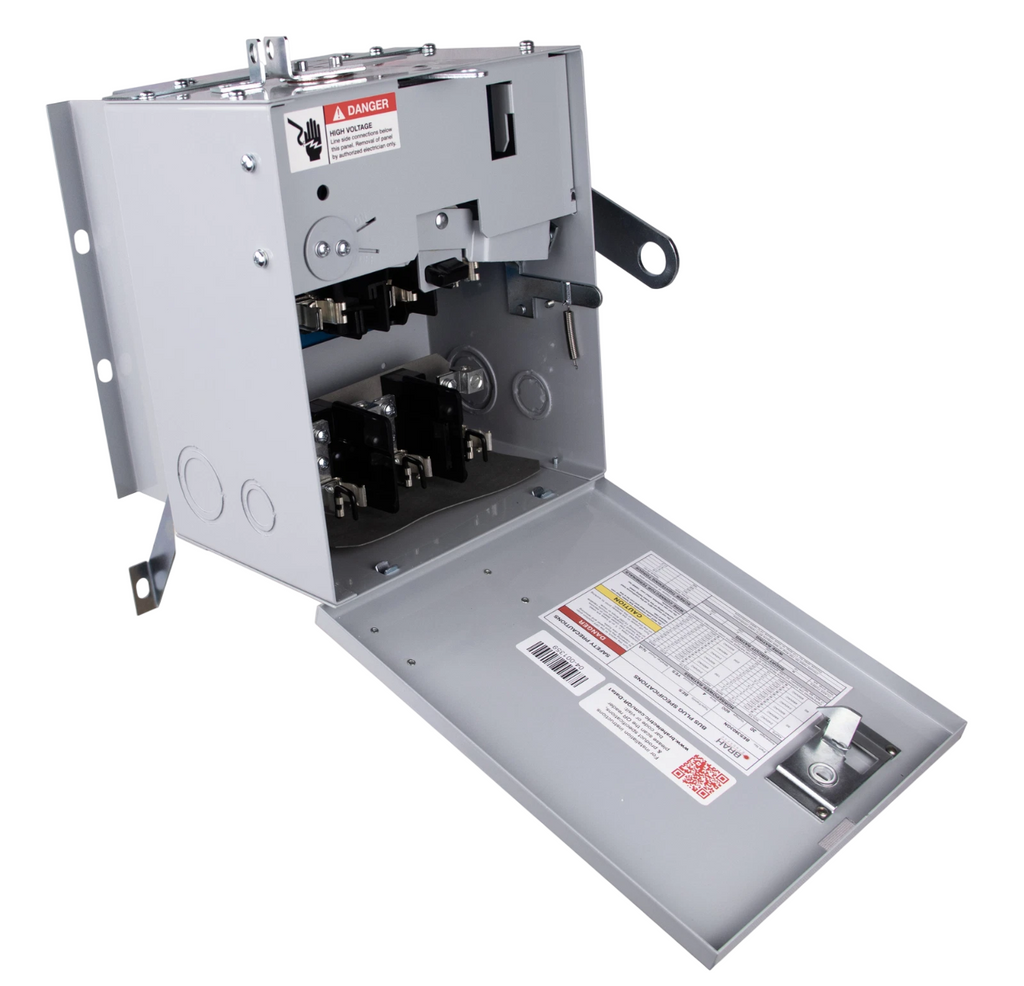

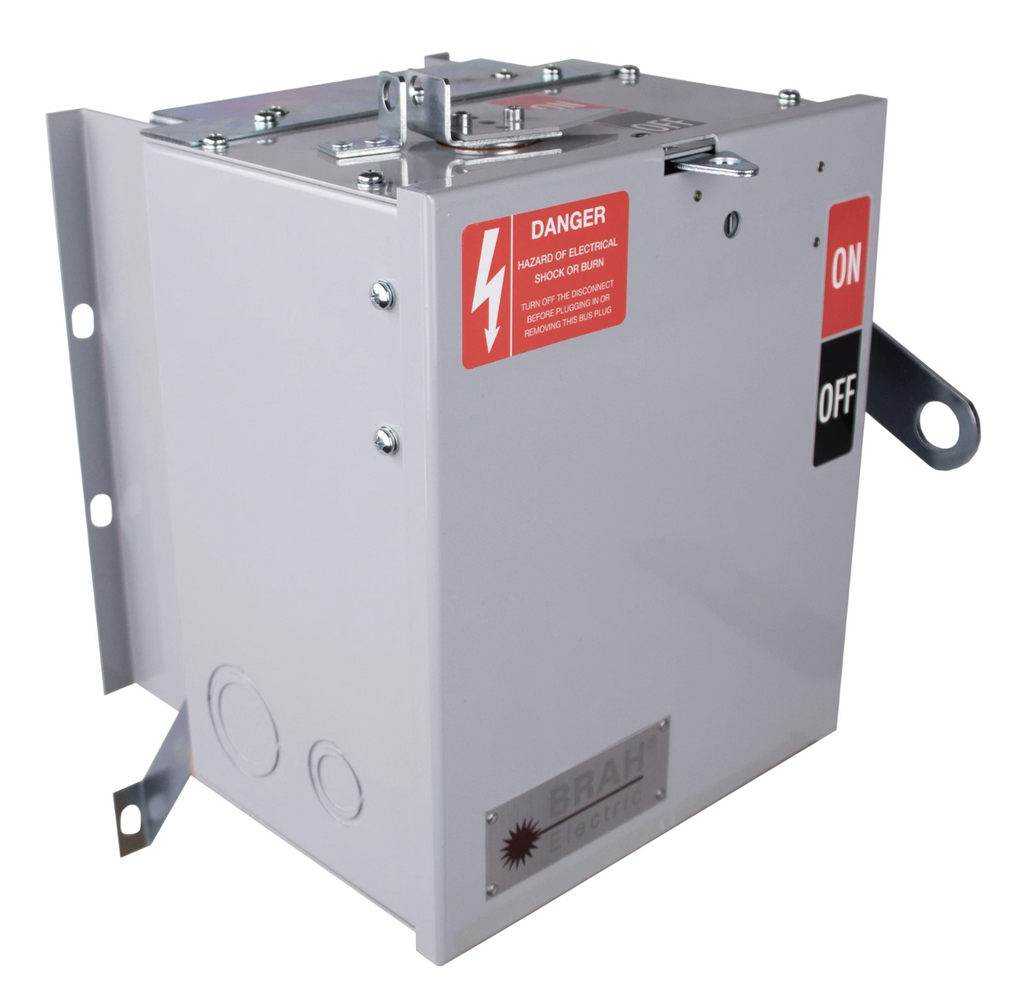

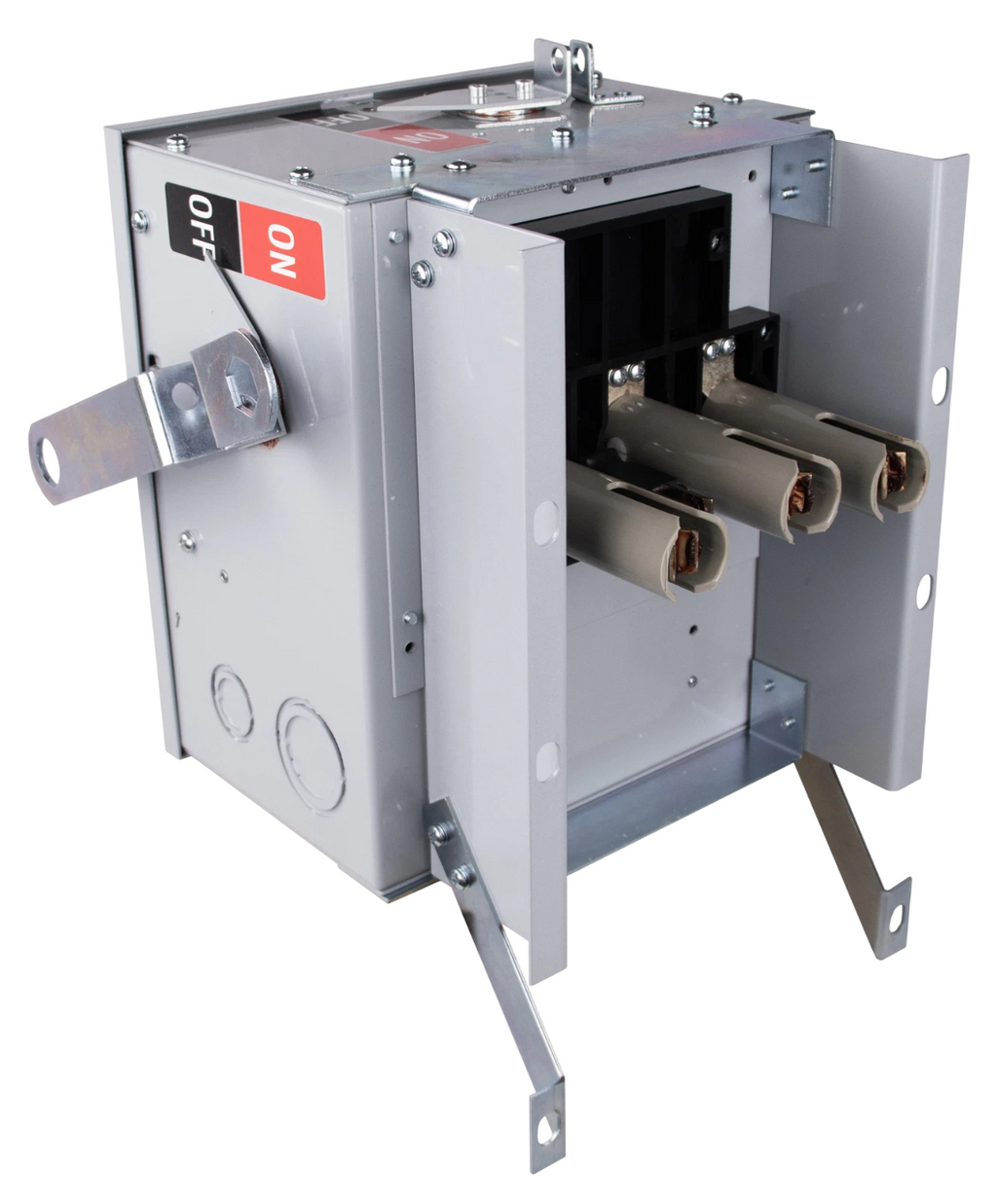

BES3203G is a 30 amp, 240 volt, 3 phase fusible bus plug designed for industrial busway systems in the BD Series. This UL Listed assembly features a 3 wire configuration with ground and is compatible with Bulldog, ITE, and Siemens BD Series industrial busway systems as a direct substitute for OEM type BOS bus plugs. BES3203G includes UL Recognized internal switch components and accepts Class R, H, and K fuse types for flexible installation requirements. The unit delivers a 65 kaic interrupting rating at 240V and is engineered for reliable performance in demanding industrial applications.

• Amperage: 30A
• Voltage: 240V
• Phase: 3 Phase
• Wire: 3 Wire with Ground
• Type: Fusible Bus Plug
• Series: BD Series
• Fuse Class: R, H, K
• Interrupting Rating: 65 kaic at 240V
• Certification: UL Listed
• Dimensions: 15 inches wide x 13 inches long x 16 inches high
• Weight: 23 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BES3203G
• Manufacturer : BRAH Electric
• Brand : BRAH Electric
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : BD Series
• Type : BOS/BES
• Voltage : 240
• Amperage : 30
• Phase : 3
• AIC rating : 65kA@240V
• Fuse Class : R,H,K
• Wire : 3

Product Data

• UPC : 699252496237
• Country of Origin : China
• Dimensions : 9 61/100 in x 11 19/50 in
• Weight : 35
• Certification : UL Listed, UL Recognized
