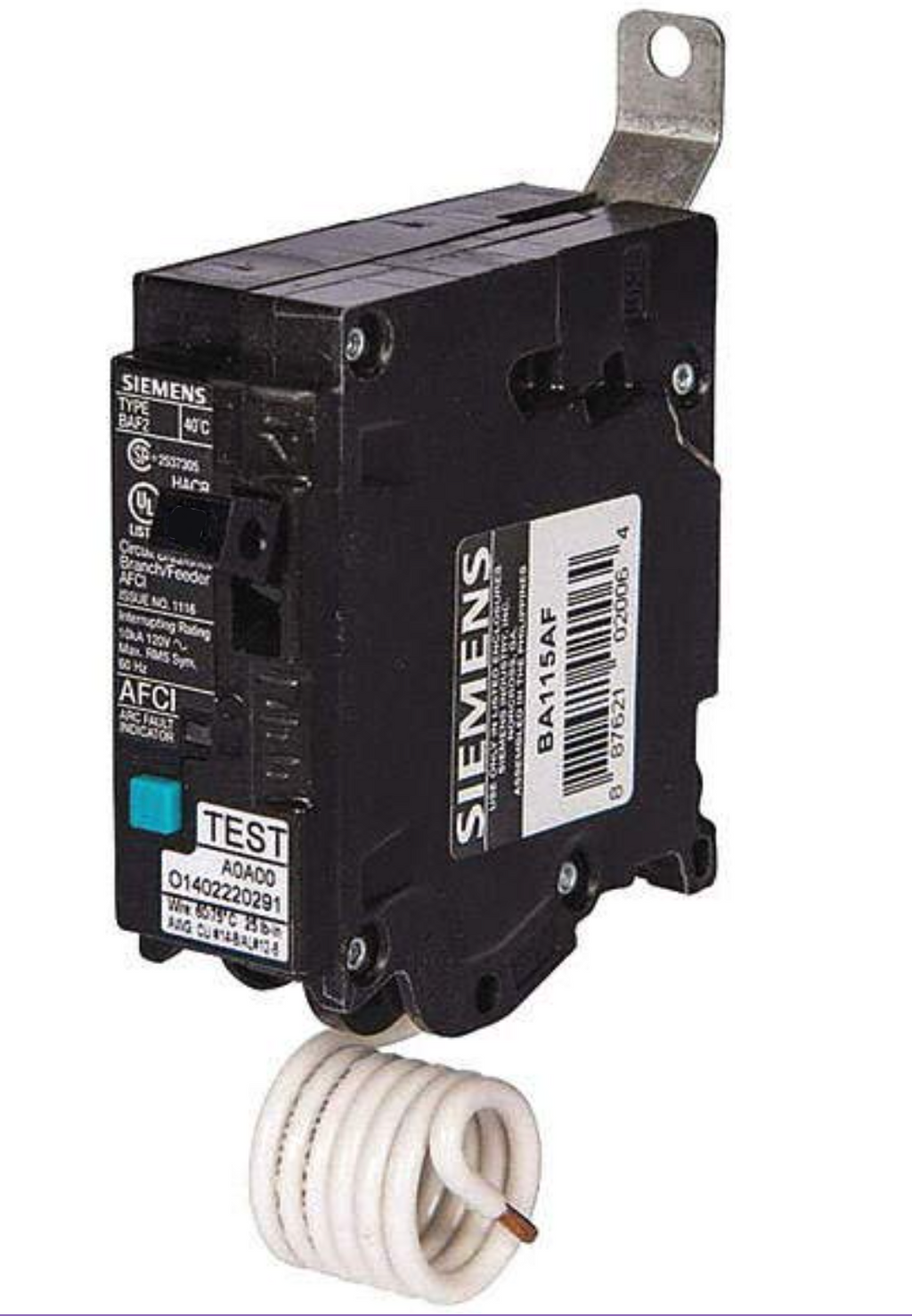

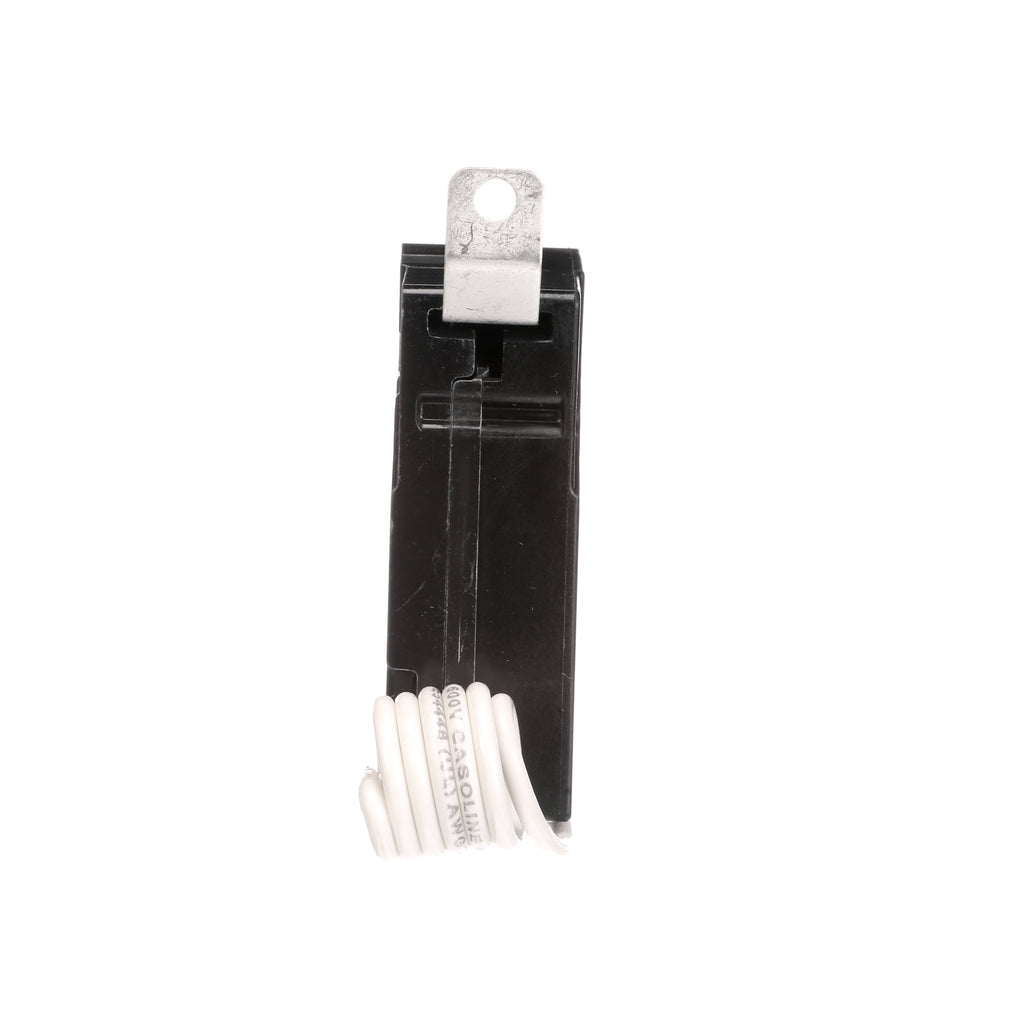

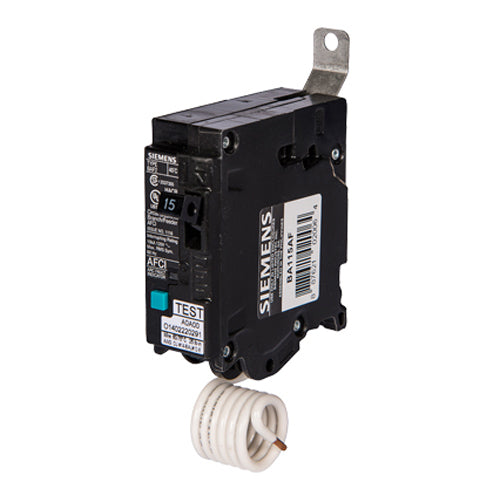

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- BL Series
- Frame
- BA
- Rated current
- 20
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 65kA@120V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Terminals
- Load Side Lug
- Standards
- UL 1699 Listed
- Country of origin
- Mexico
Show all specifications (4 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 887621215026
- GTIN
- 00887621215026
- Weight
- 0.243
Product description & additional details

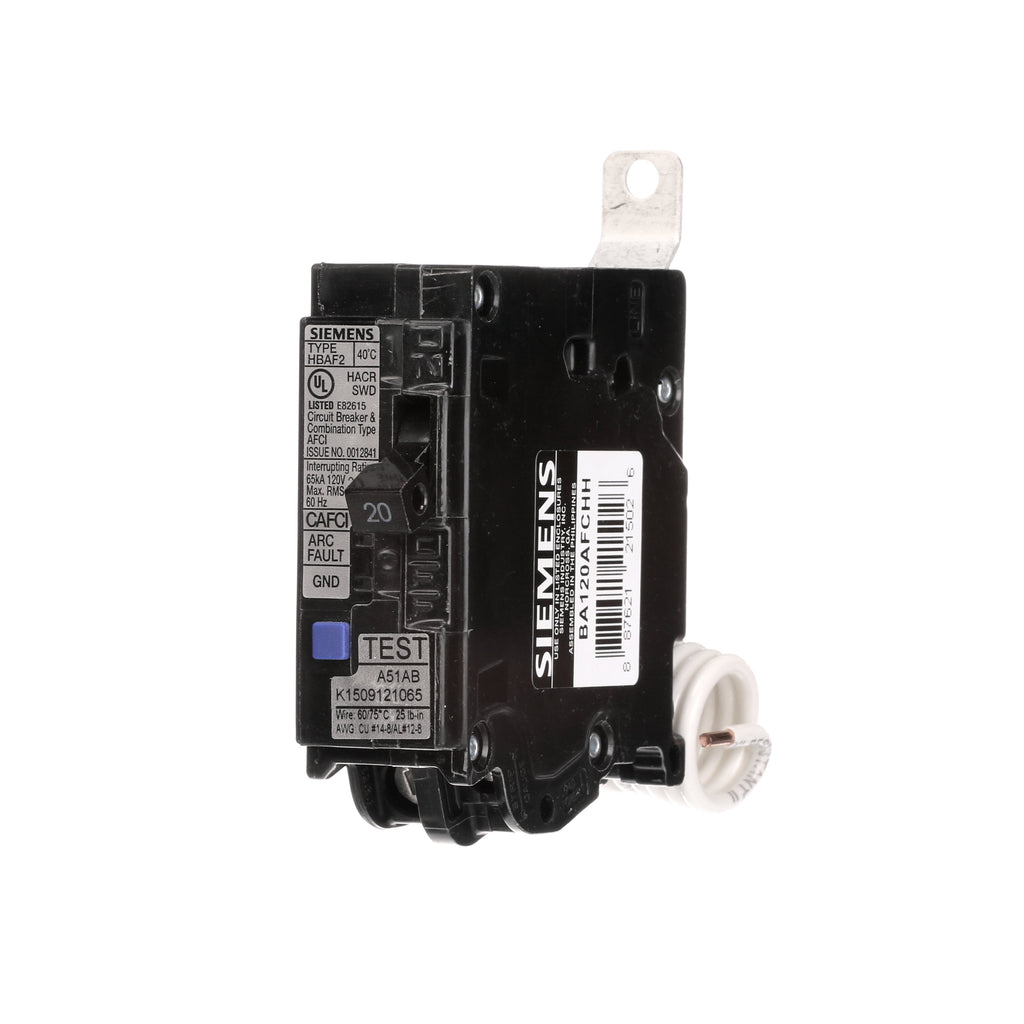

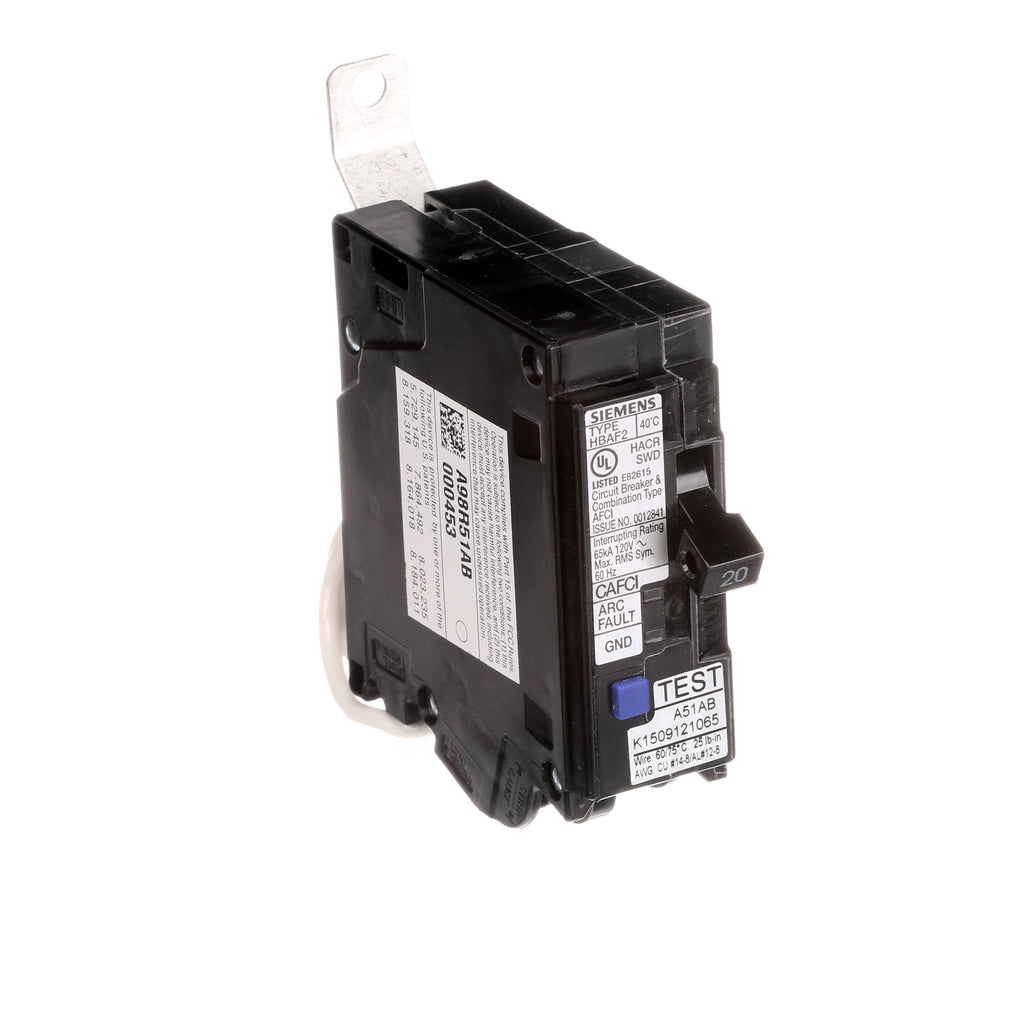

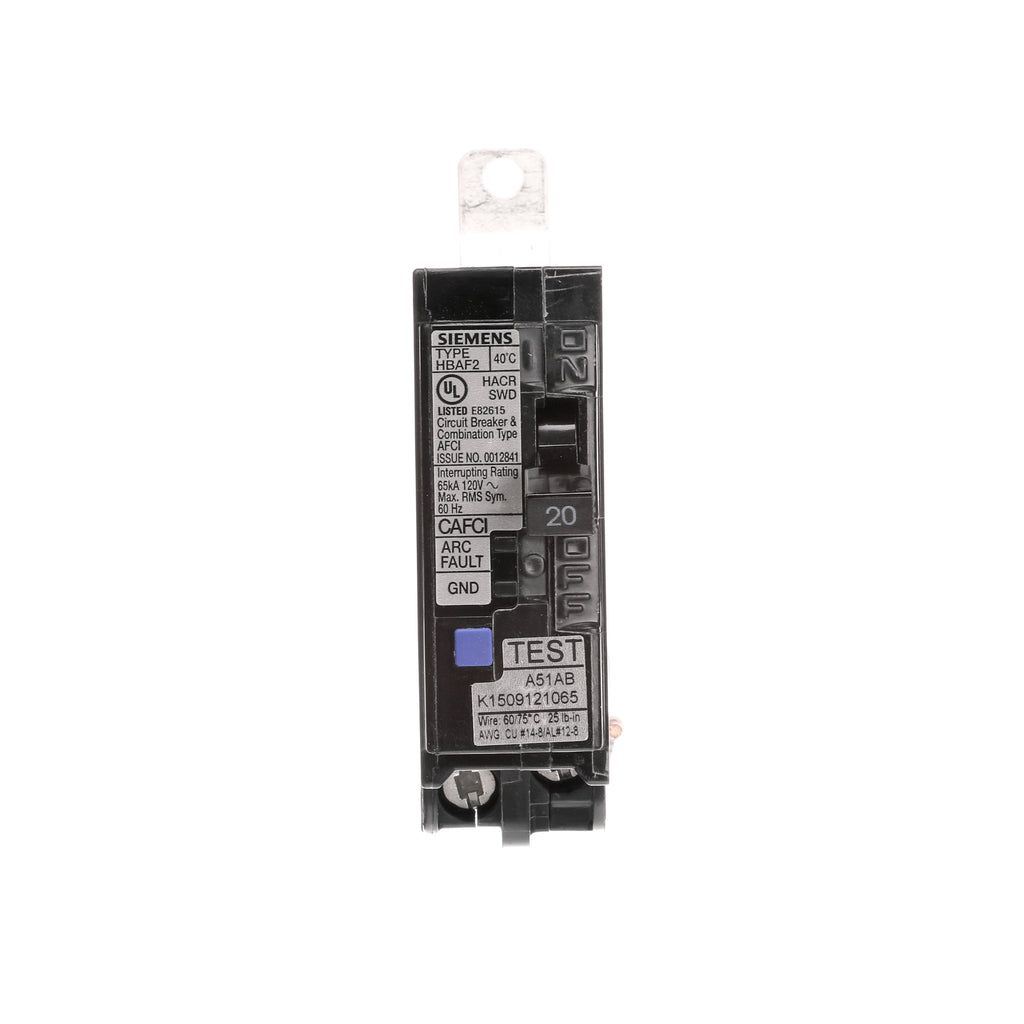

BA120AFCHH
BA120AFCHH is a 1-pole combination arc fault circuit breaker designed for residential and commercial panelboard applications. This Siemens HBAF2 series breaker provides reliable protection against arc faults, including series, line-to-line, and line-to-ground faults, and features a thermal-magnetic trip unit for overload and short-circuit protection. It is panelboard mounted with a bolt-on connection for secure installation. The BA120AFCHH breaker is rated for 20 amps and 120/240VAC, with a 65kA interrupting rating at 120V. It is UL 1699 listed and meets all relevant safety standards for arc fault protection. The breaker includes a load side lug for easy wiring and is designed for use in Siemens panelboards.
- Part Number: BA120AFCHH
- Manufacturer: Siemens
- Series: HBAF2
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Panelboard, Bolt-On
- Interrupt Rating: 65kAIC @ 120V
- Protection Type: Combination Arc Fault (CAFCI)
- Frame Type: BA
- Connection Type: Bolt-On
- Terminal Connection: Load Side Lug
- Standards: UL 1699 Listed
- Temperature Rating: 40°C
- UPC: 887621215026
Specifications
- Part Number: BA120AFCHH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BA
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 65kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Load Side Lug
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621215026
- GTIN : 00887621215026
- Country of Origin : Mexico
- Weight : 0.243
- Standards : UL 1699 Listed
