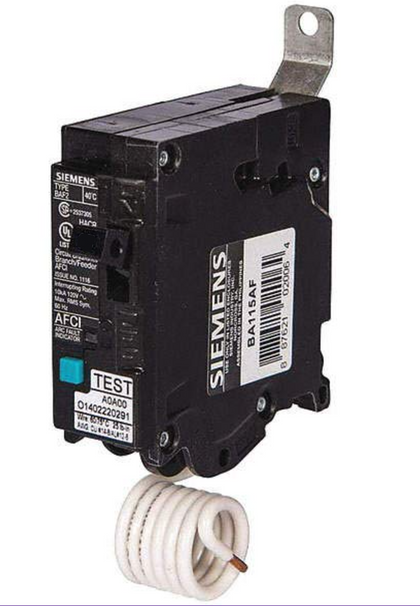

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Molded Case
- Series
- BL Series
- Frame
- BA
- Rated current
- 20
- Voltage
- 120V
- Poles
- 1
- Phases
- 1
- Interrupting rating
- 22kA@120V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Breaker type
- AFCI
- Country of origin
- Philippines
Show all specifications (5 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 887621020095
- GTIN
- 00051712258319
- Dimensions
- 1.181 x 3.15 x 5.118 inch
- Weight
- 0.243
Product description & additional details
BA120AFH
BA120AFH is a 1 pole, 20A, 120V arc fault circuit breaker from Siemens' BL series, designed for panelboard mounting with bolt-on connection. This molded case circuit breaker provides reliable thermal magnetic protection with long time and instantaneous trip functions, suitable for residential and commercial applications requiring arc fault protection. The BA120AFH features a 22kAIC interrupting rating at 120V, making it suitable for use in systems with high available fault current. It is UL and CSA listed for safety and compliance, and is designed for use with panelboards in standard 1-inch wide mounting spaces.
- Part Number: BA120AFH
- Manufacturer: Siemens
- Series: BL
- Amperage: 20A
- Voltage: 120VAC
- Poles: 1
- Mounting Type: Panelboard (Bolt-On)
- Interrupting Rating: 22kAIC at 120V
- Frame Type: BA
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Certifications: UL, CSA
Specifications
- Part Number: BA120AFH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BA
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621020095
- GTIN : 00051712258319
- Country of Origin : Philippines
- Dimensions : 1.181 x 3.15 x 5.118 inch
- Weight : 0.243
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
