Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2021-1FA10

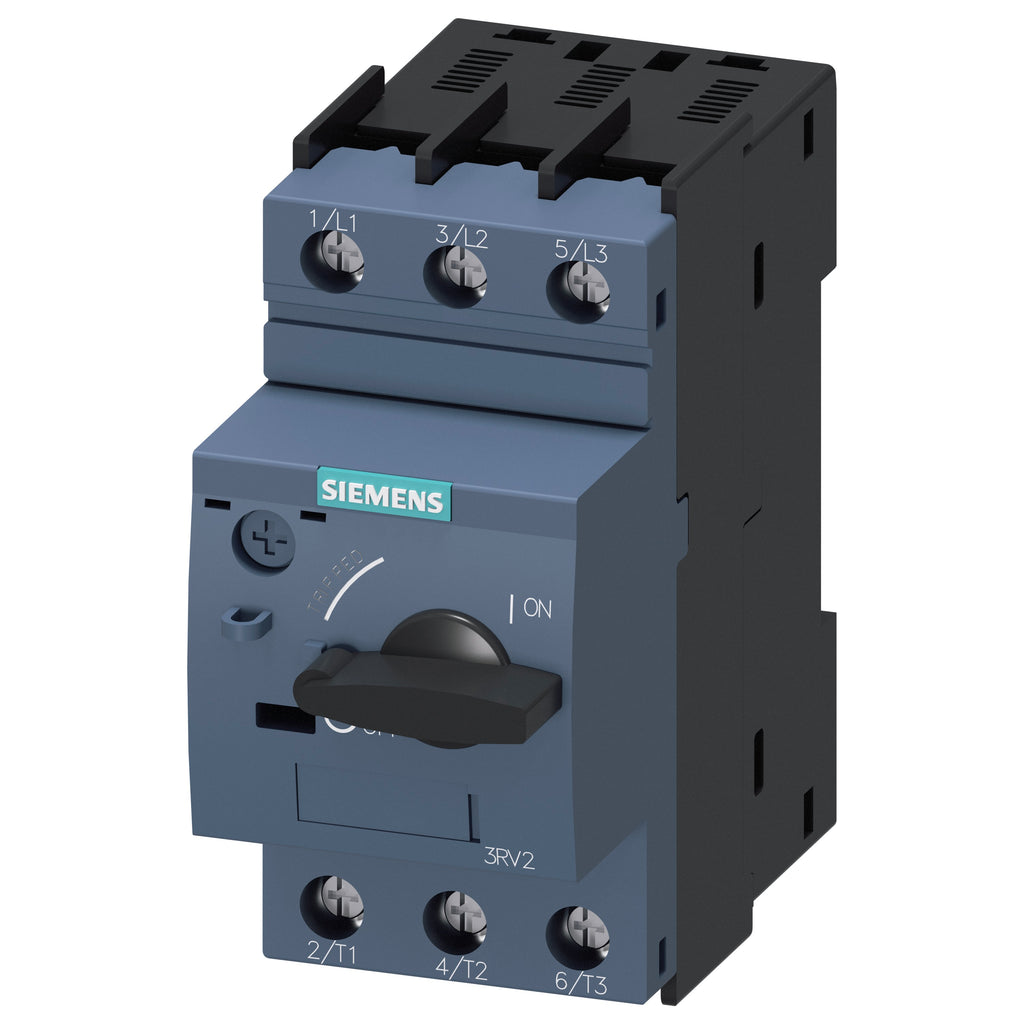

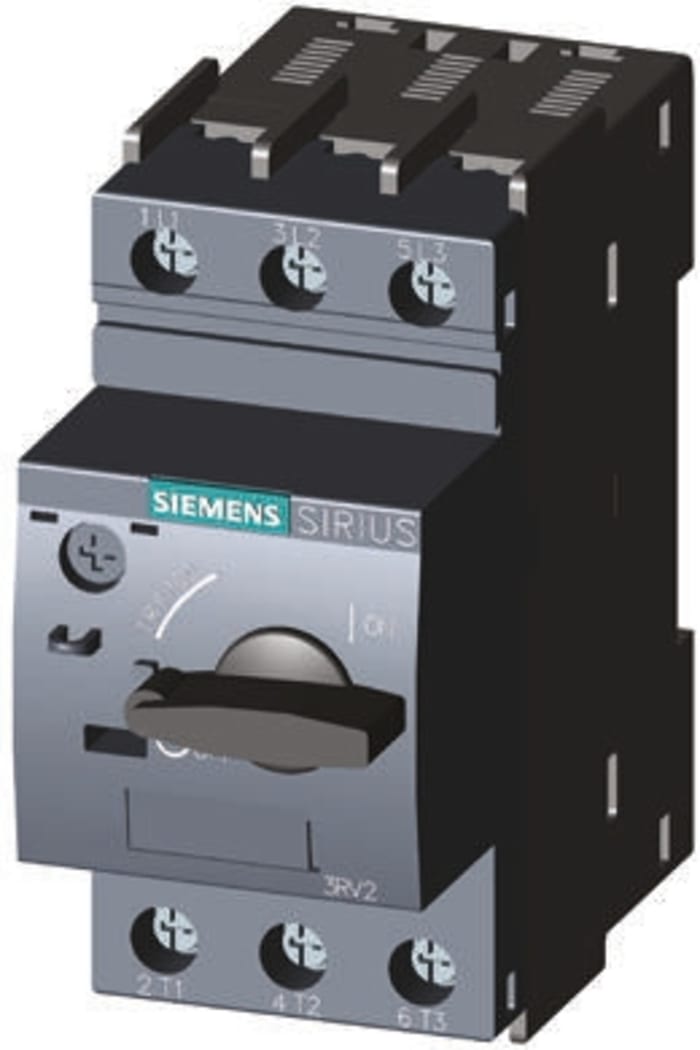

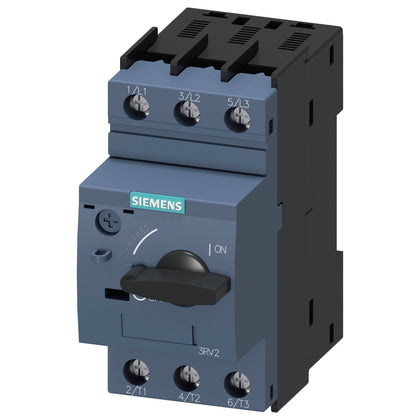

3RV2021-1FA10 is a Siemens Sirius 3RV2021 motor protection circuit breaker designed for reliable overload and short circuit protection in motor control applications. This device features a 3.5-5A adjustable thermal overload range, 690VAC voltage rating, and 3-pole configuration for versatile installation. The rotary actuator provides easy ON/OFF operation, while the built-in magnetic trip elements deliver fast short circuit response. Designed for DIN rail mounting, the 3RV2021-1FA10 offers compact, space-saving installation and is suitable for use in industrial environments requiring robust motor protection. Key Specifications
- Part Number: 3RV2021-1FA10
- Manufacturer: Siemens
- Series/Frame: Sirius 3RV2021, Frame Size S0
- Amperage: 3.5-5A adjustable
- Voltage Rating: 690VAC
- Poles: 3
- Interrupt Rating: 6 kA
- Mounting Type: DIN Rail
- Trip Unit: Thermal/Magnetic, Class 10
- Actuator Type: Rotary
- Terminals: Screw
- Certifications: UL Type E, Class 10 overload protection
Specifications
- Part Number: 3RV2021-1FA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 04089294222
- GTIN : 00040892942224
- Country of Origin : Czechia
- Weight : 0.792
