Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2021-1EA15

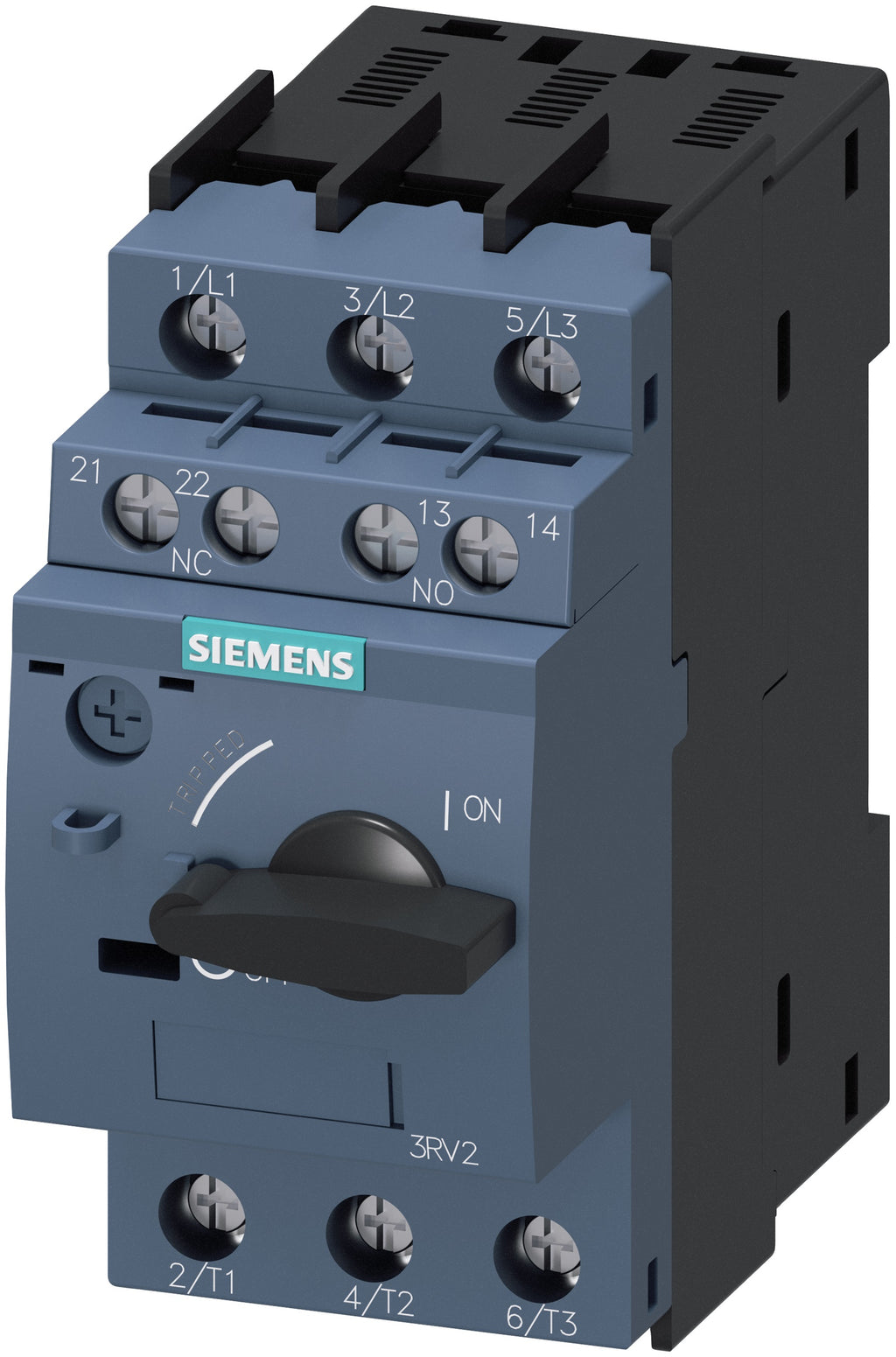

3RV2021-1EA15 is a Siemens motor protection circuit breaker designed for reliable motor control and protection.This circuit breaker features a 3-pole configuration with an adjustable current range of 2.8 to 4 amps, suitable for motors up to 3 kW. It operates at a voltage rating of 690 VAC and includes a magnetic trip unit with a trip class 10. The device has a 52 A N release and an interrupt rating of 2 kA. It is built on the S0 frame series and mounts easily on a DIN rail with screw terminal connections. The enclosure rating is IP20, and it includes a 1NO-1NC transverse auxiliary contact for signaling. The breaker is rated for use in 3-phase systems and supports wire sizes from 16 to 12 AWG. It is manufactured in Germany and certified for industrial use.
- Key Specifications
- Amperage Rating: 2.8 to 4 A
- Voltage Rating: 690 VAC
- Number of Poles: 3
- Frame/Series: S0
- Interrupt Rating: 2 kA
- Trip Unit: Magnetic, Class 10
- Trip Release: 52 A N release
- Mounting Type: DIN Rail
- Connection Type: Screw Terminals
- Auxiliary Contacts: 1NO-1NC
- Enclosure Type: IP20
- Wire Size: 16 to 12 AWG
- Country of Origin: Germany
- Part Number: 3RV2021-1EA15
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
- Weight : 1
