Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Standards
- JIS C8201-5-1, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, JIS C8201-1
- Country of origin
- France
- UPC
- 038911016563
- Dimensions
- 30 mm x 47 mm
- Weight
- 0.075
- Certification
- JIS C8201-5-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1
Product description & additional details
ZD5PA24

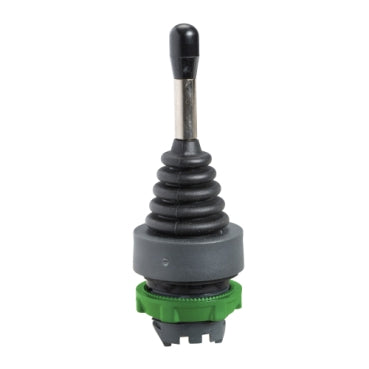

ZD5PA24 is a 22mm joystick controller head from Schneider Electric designed for Harmony XB5 series with 4-direction spring return and 1 normally open contact per direction.
This joystick head features a round plastic operating shaft 54mm long, providing precise control with a spring return to zero position mechanism. It is rated IP66 for ingress protection, suitable for harsh environments, and supports panel mounting with a 22mm cutout diameter. The unit is non-illuminated and designed for momentary operation with a 1NO contact configuration.
- Key Specifications
- Manufacturer: Schneider Electric
- Part Number: ZD5PA24
- Mounting Diameter: 22 mm (0.9 in)
- Operating Shaft Length: 54 mm
- Operator Type: Joystick, 4 directions
- Return Mechanism: Spring return to zero position
- Contact Configuration: 1 Normally Open (1NO) per direction
- Ingress Protection: IP66
- Material: Plastic, round head
- Compatible Series: Harmony XB5, XDA
- Operation: Momentary (MO)
- Color: Silver
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ZD5PA24
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
Product Data
- UPC : 038911016563
- Country of Origin : France
- Dimensions : 30 mm x 47 mm
- Weight : 0.075
- Certification : JIS C8201-5-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1
