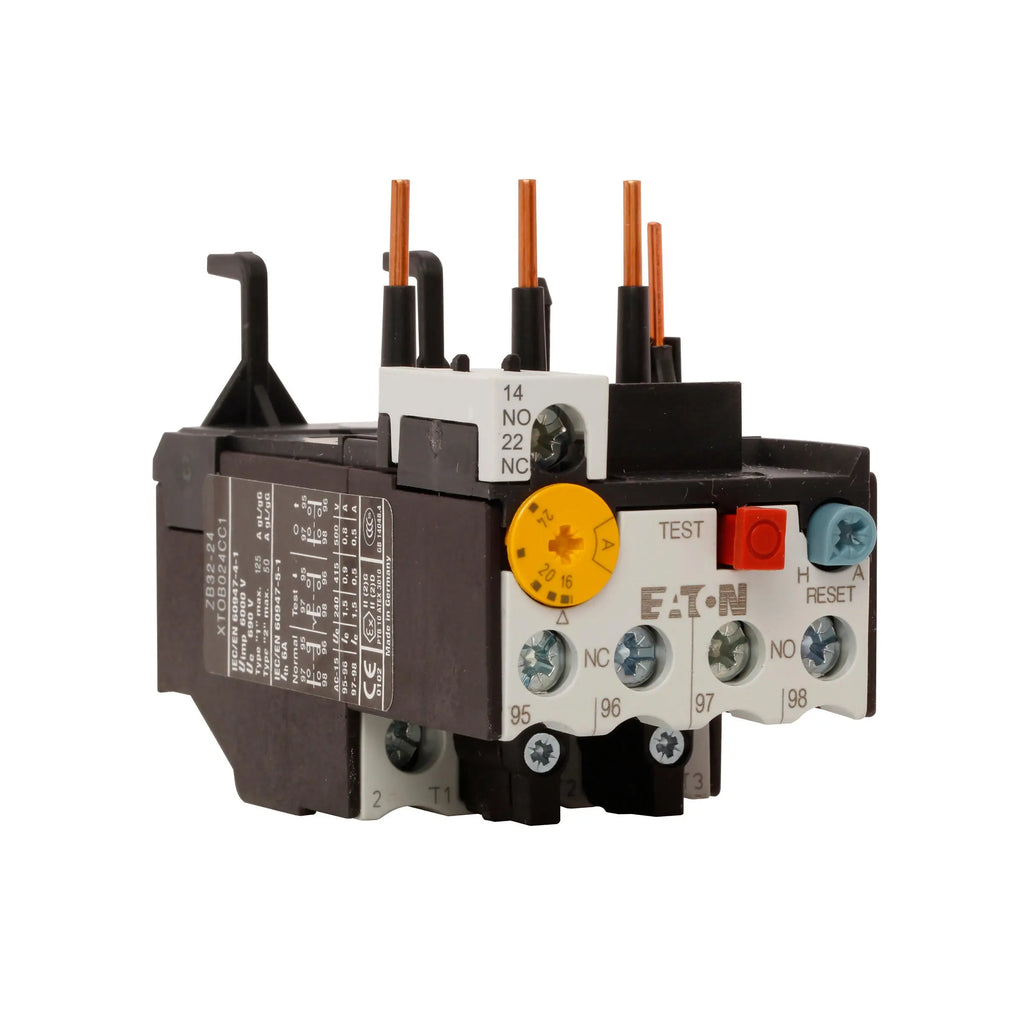

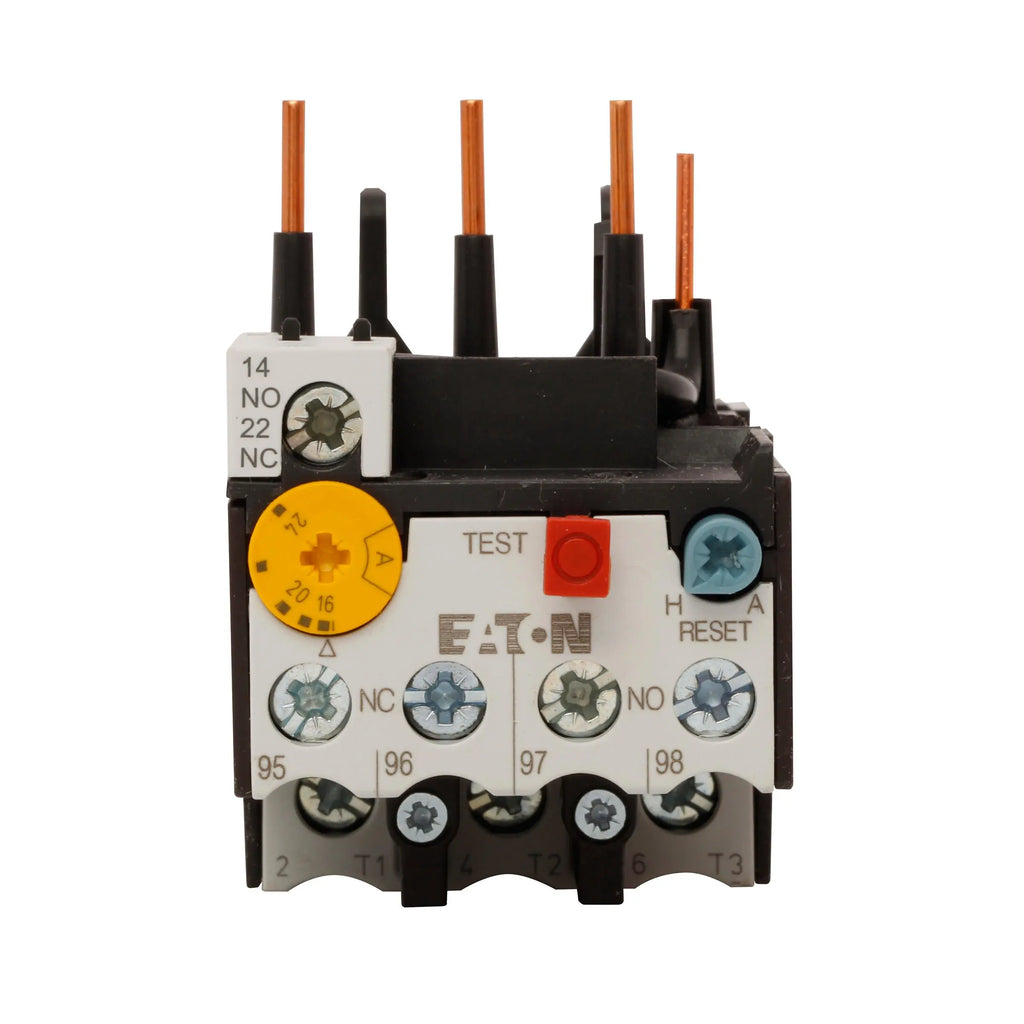

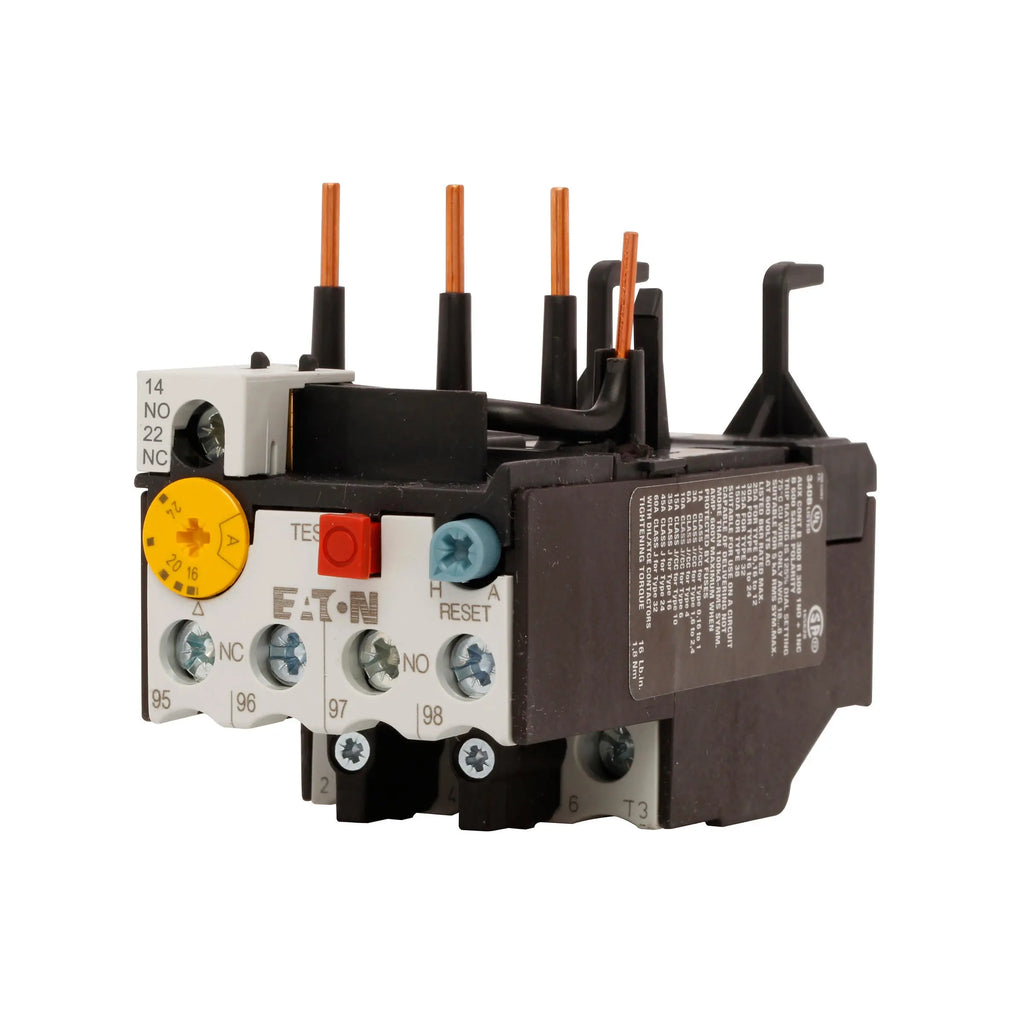

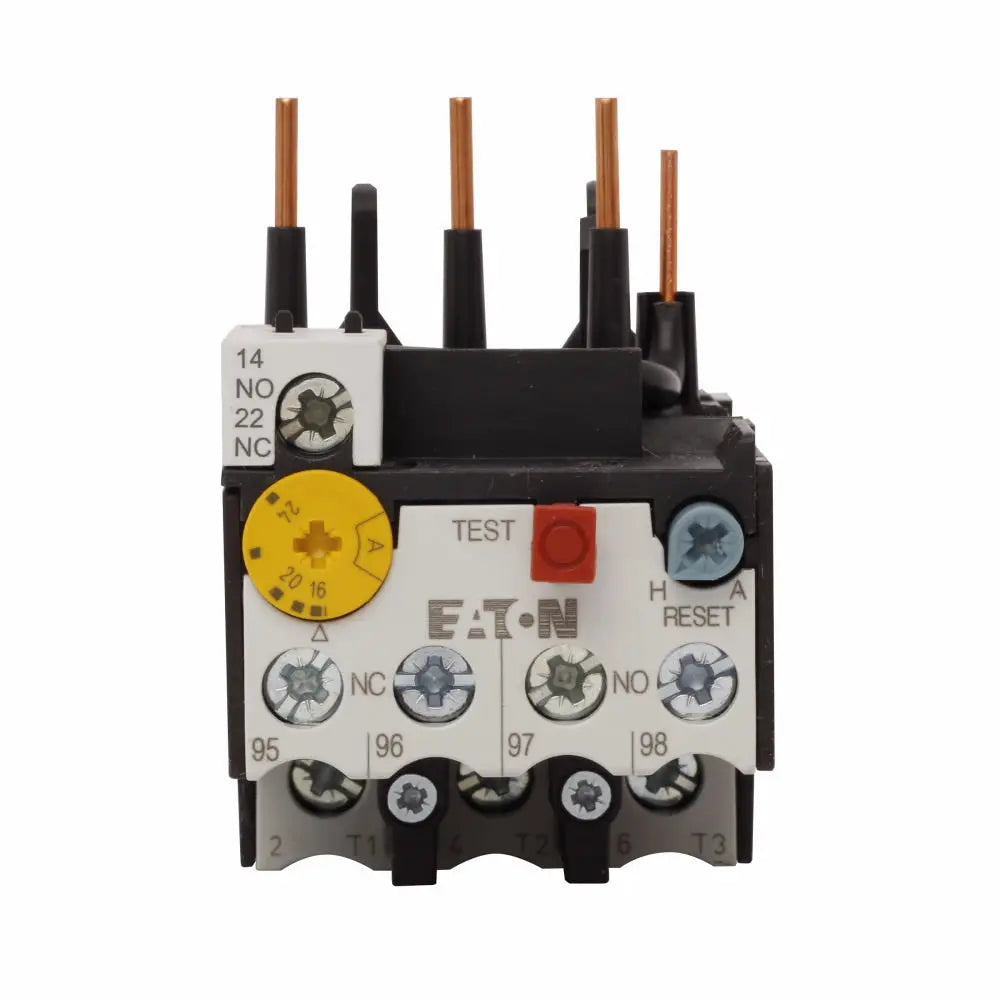

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Overload Relay
- Series
- XT Series
- Frame
- XTOB
- Max current rating
- 24
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Relay Style
- Thermal
- Amperage Maximum
- 24
- Amperage Minimum
- 16
- UPC
- 015082784533
- GTIN
- 04015082784539
- Dimensions
- 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
- Weight
- 0.4 lb
Product description & additional details
XTOB024CC1
XTOB024CC1 is an Eaton XT IEC bimetallic overload relay designed to monitor motor current and protect circuits from overload conditions. This thermal overload relay features a 16-24A adjustable range with direct-to-contactor mounting for seamless integration into motor control systems.Key Specifications
- Overload Range: 16-24A
- Frame Size: 45mm
- Contact Configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
- Trip Type: 10A
- Mounting: Direct to Contactor
- Relay Type: IEC Bimetallic Thermal Overload
- Manual and Automatic Reset Options
- Phase Loss Protection
Specifications
- Part Number: XTOB024CC1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : XT Series
- Type : XTOB
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Relay Style : Thermal
- Amperage Maximum : 24
- Amperage Minimum : 16
Product Data
- UPC : 015082784533
- GTIN : 04015082784539
- Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
- Weight : 0.4 lb
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
