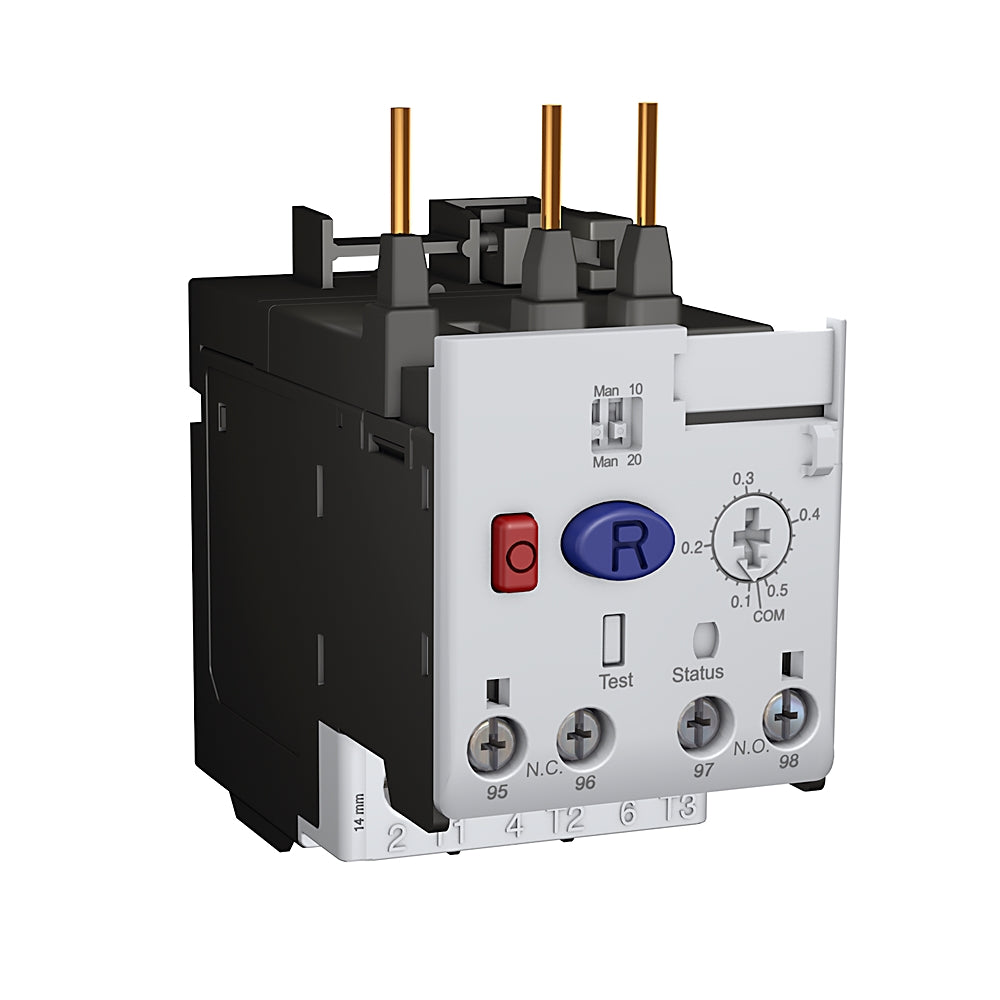

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Overload Relay
- Poles
- 3
- UPC
- 889508722221
- GTIN
- 10781180129473
- Weight
- 0.26 lb
Product description & additional details
193-1EEDB
193-1EEDB is an Allen-Bradley electronic overload relay designed for motor protection with adjustable current from 3.2 to 16 amps and manual reset.This 3 pole solid state overload relay mounts directly to IEC contactors sized 100-C09 to 100-C23 and features selectable trip classes 10 or 20, phase loss protection, and trip indication. It includes two auxiliary contacts (one normally open alarm and one normally closed trip contact) for comprehensive motor protection and is IEC rated with a 690 VAC insulation voltage.
- Amperage range: 3.2 to 16 Amps adjustable
- Voltage rating: 690 VAC insulation voltage
- Poles: 3
- Mounting type: Direct mount to IEC 100-C09 to 100-C23 contactors
- Trip class selectable: 10 or 20
- Manual reset overload relay
- Phase loss (single phase) protection
- Includes normally open alarm and normally closed trip auxiliary contacts
- Solid state electronic overload protection
- Certifications: cULus Listed, CE Marked, RCM, ABS, RINA, DNV/GL, CCC, KC, EAC
- Low heat dissipation for cooler panel operation
Specifications
- Part Number: 193-1EEDB
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
- Poles : 3
Product Data
- UPC : 889508722221
- GTIN : 10781180129473
- Weight : 0.26 lb
