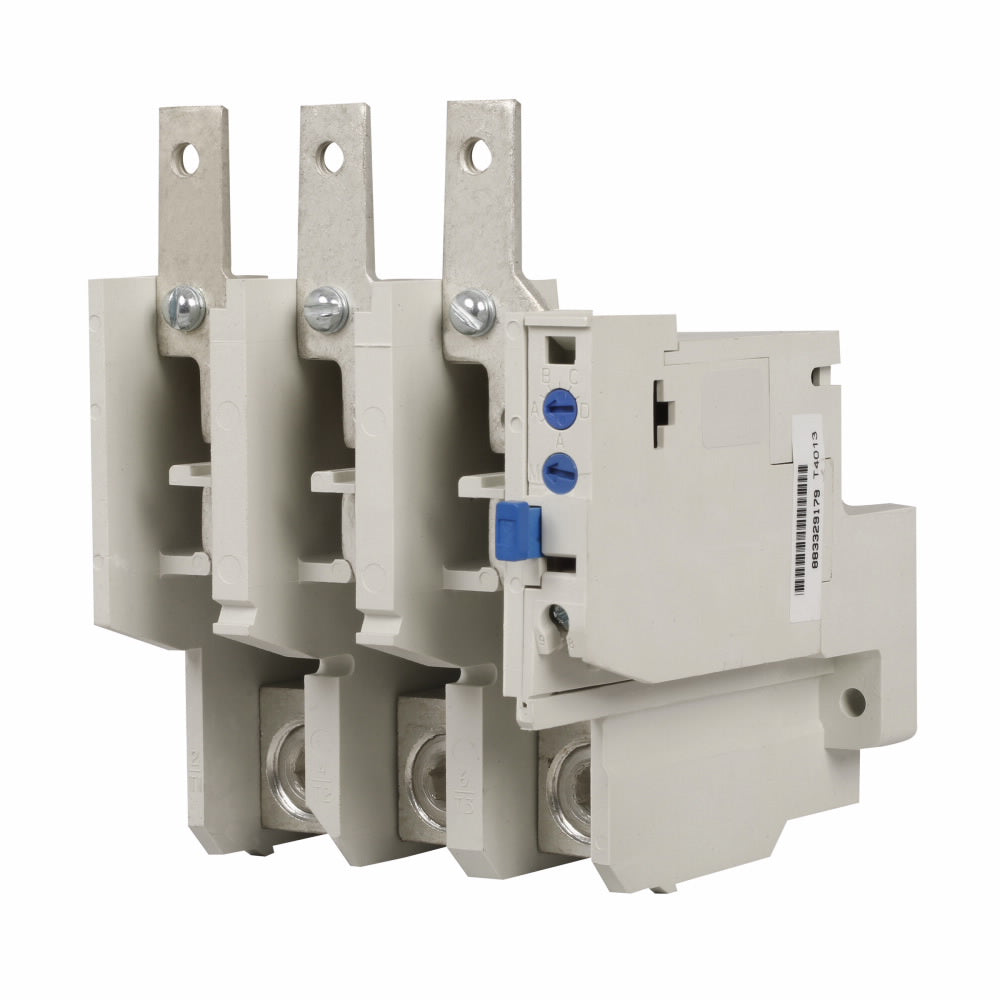

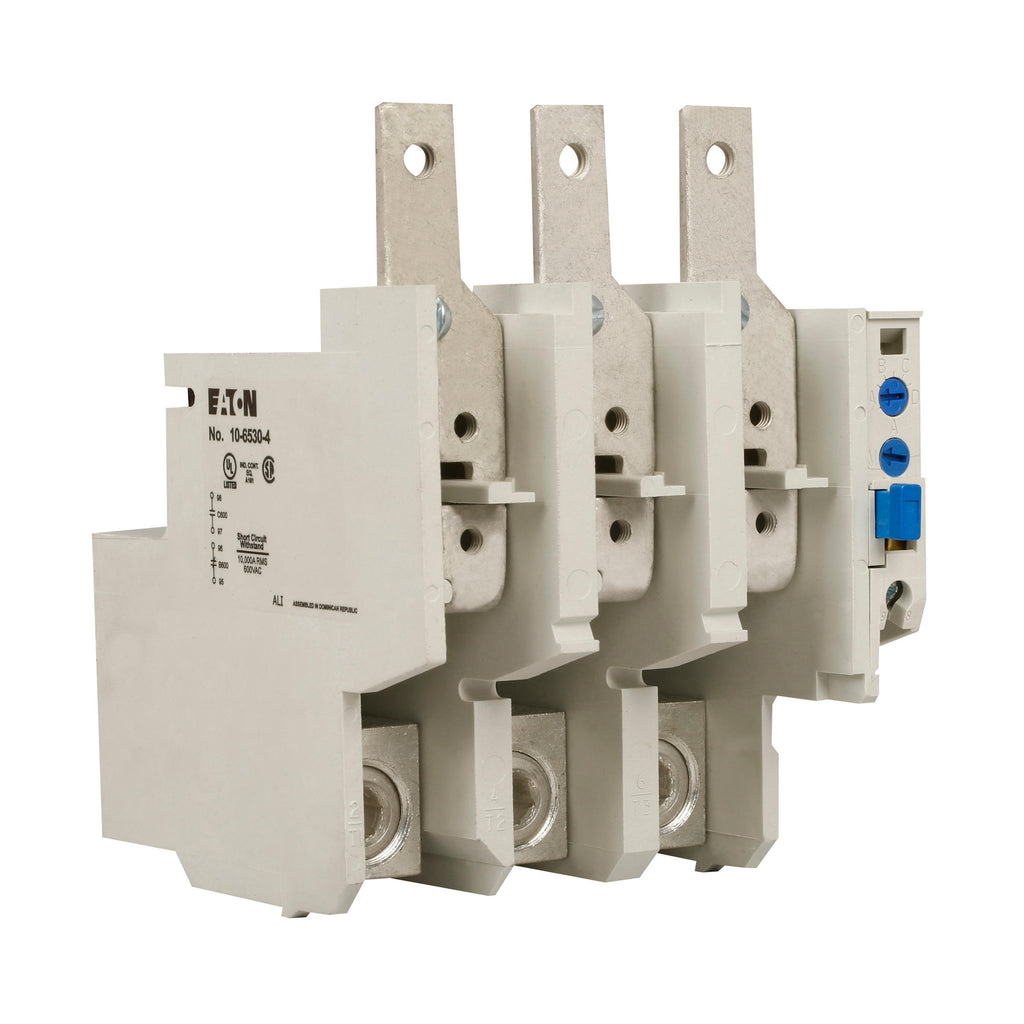

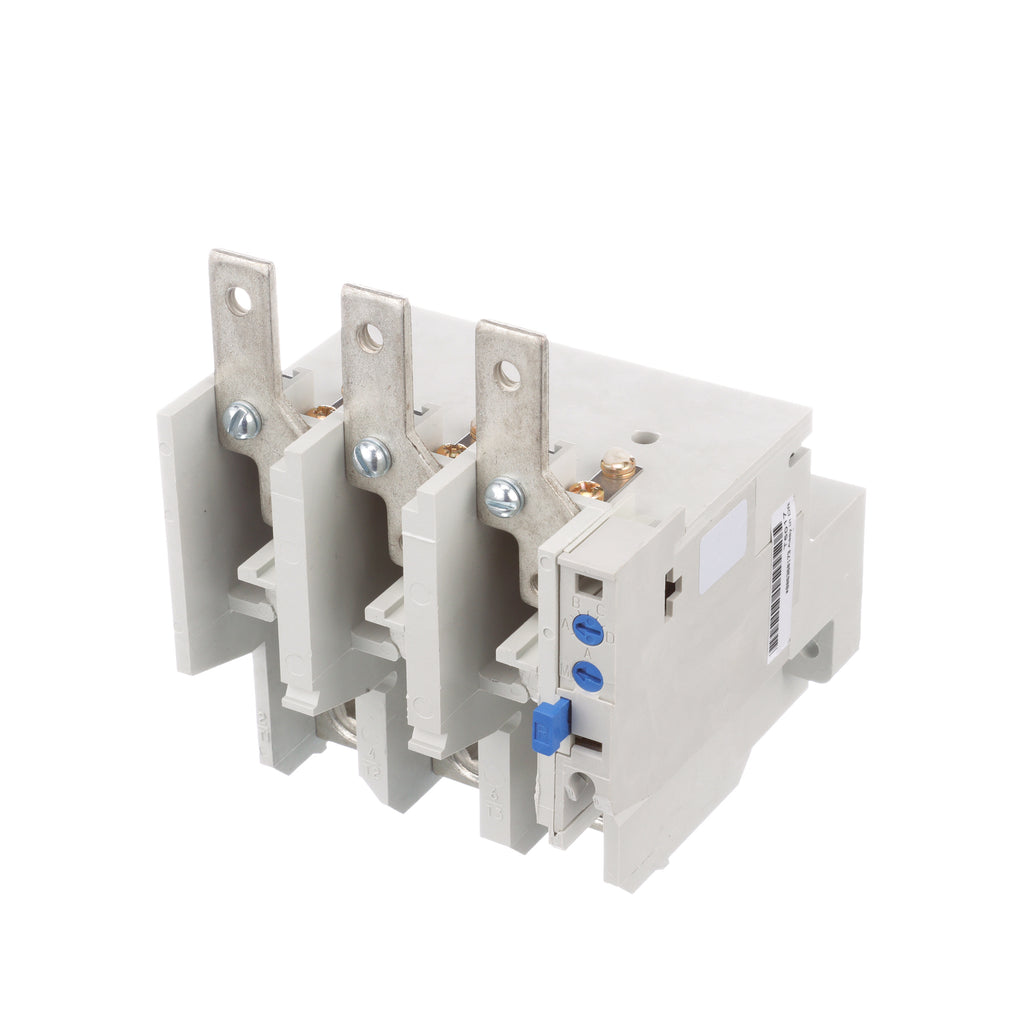

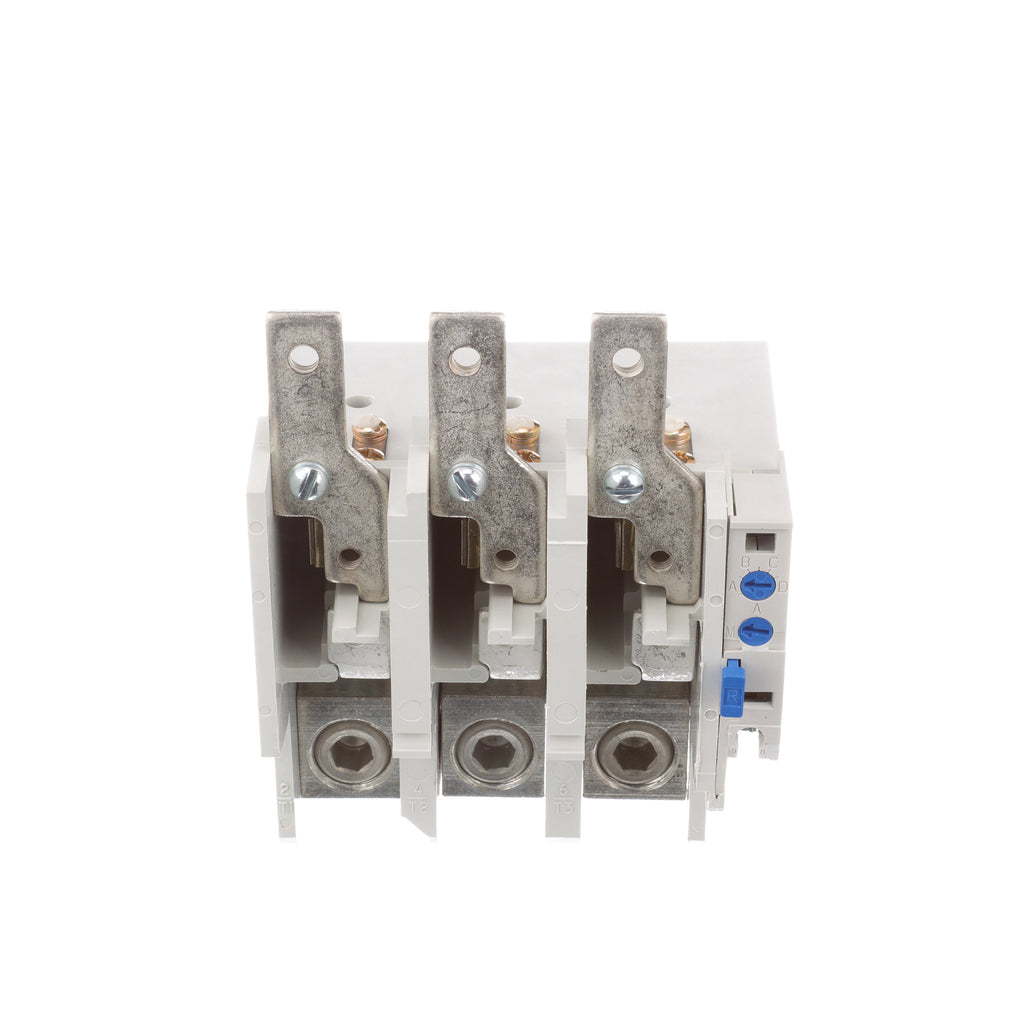

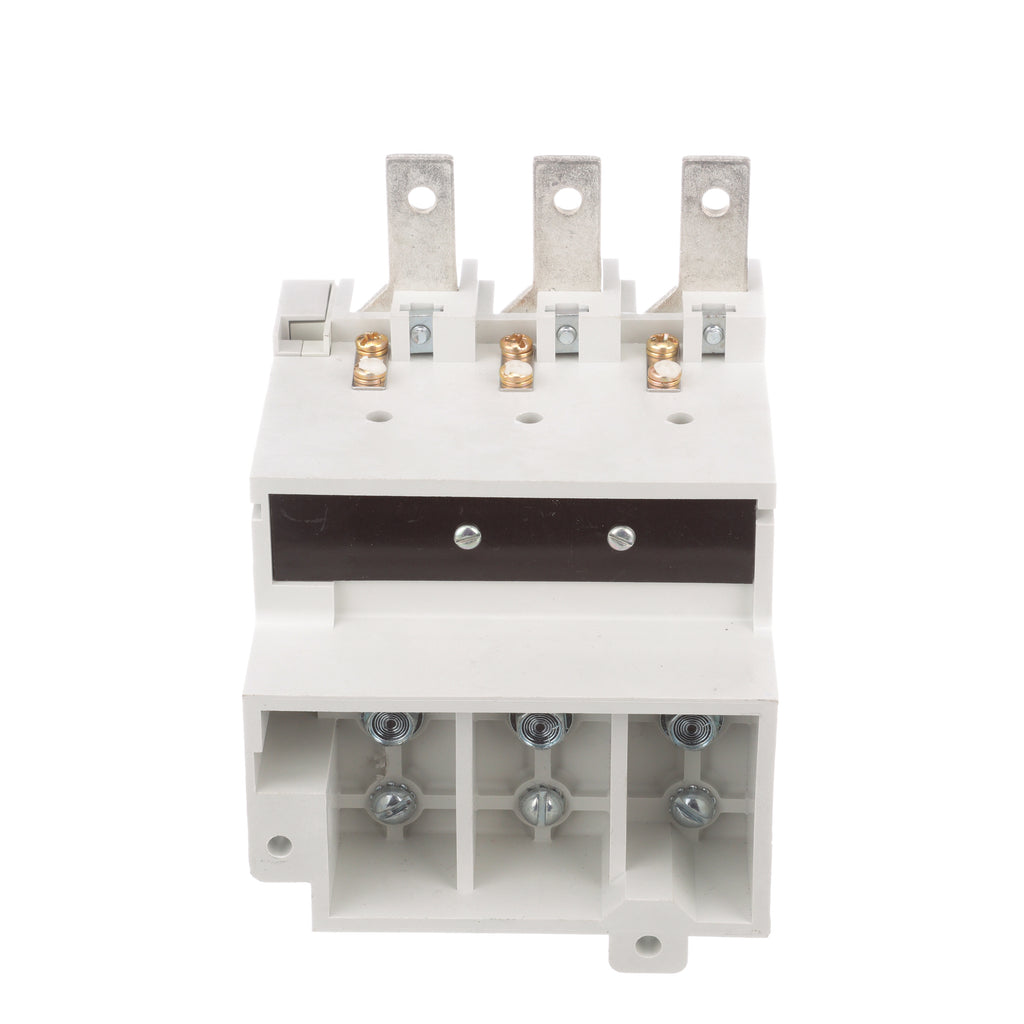

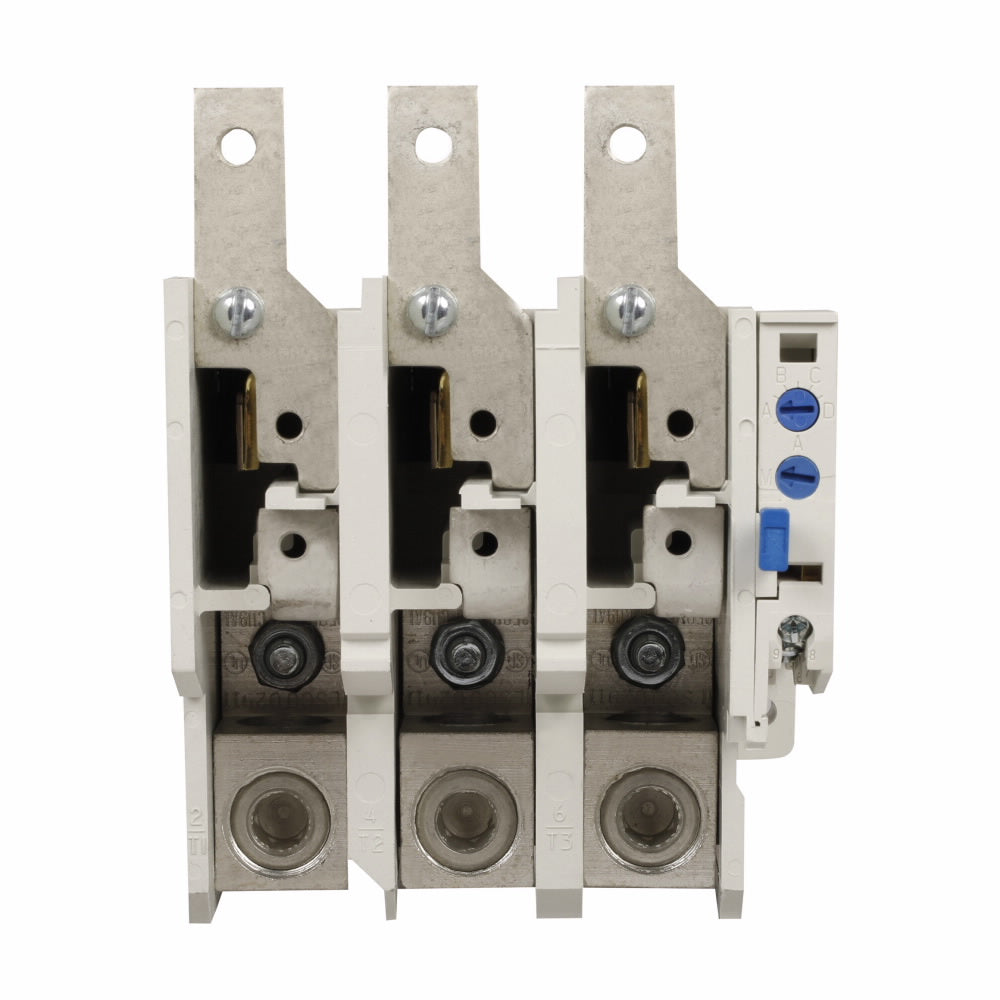

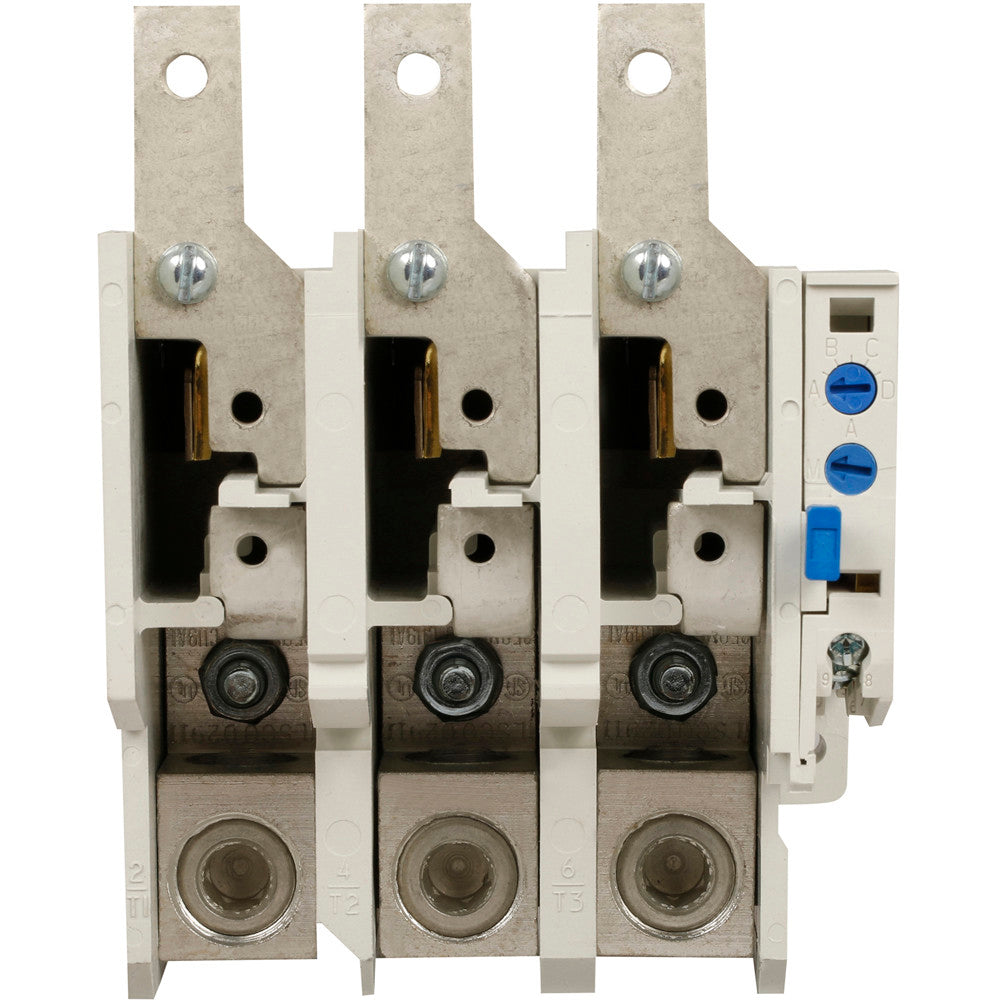

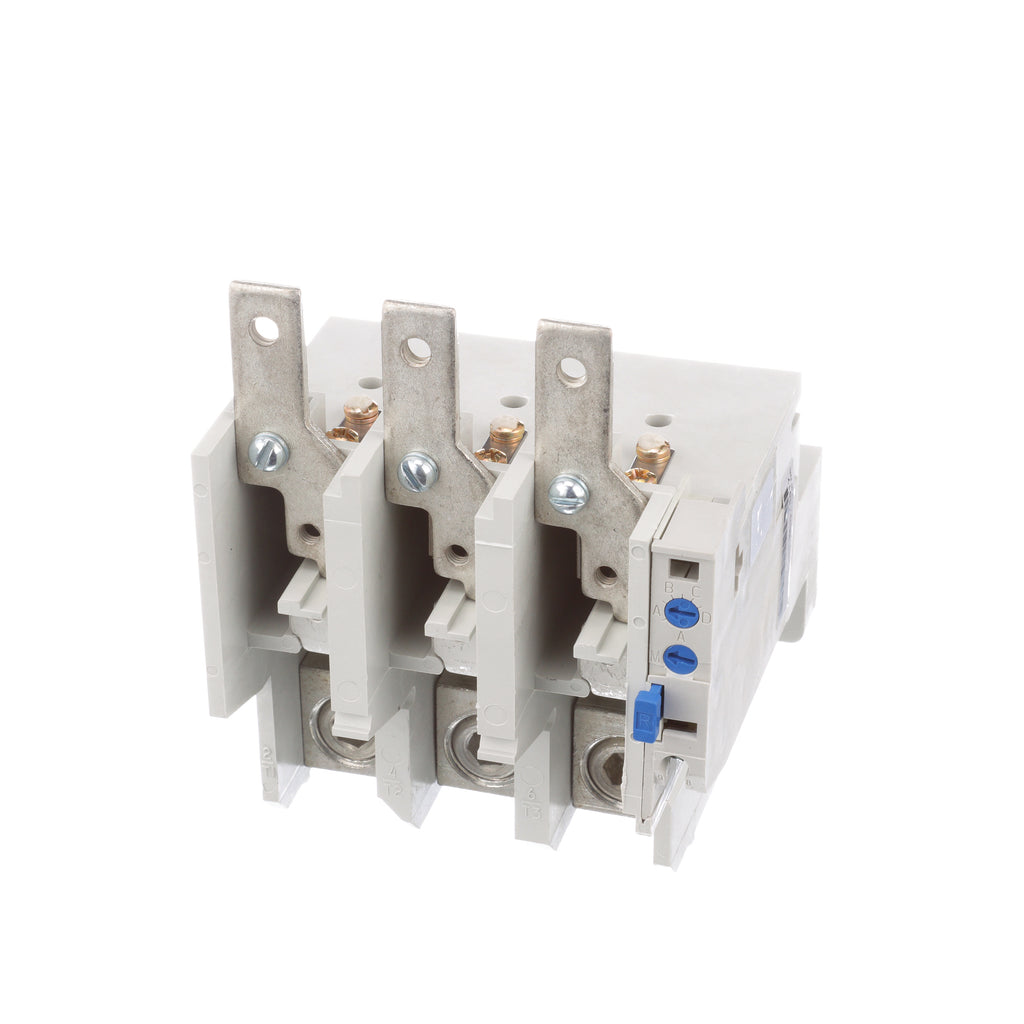

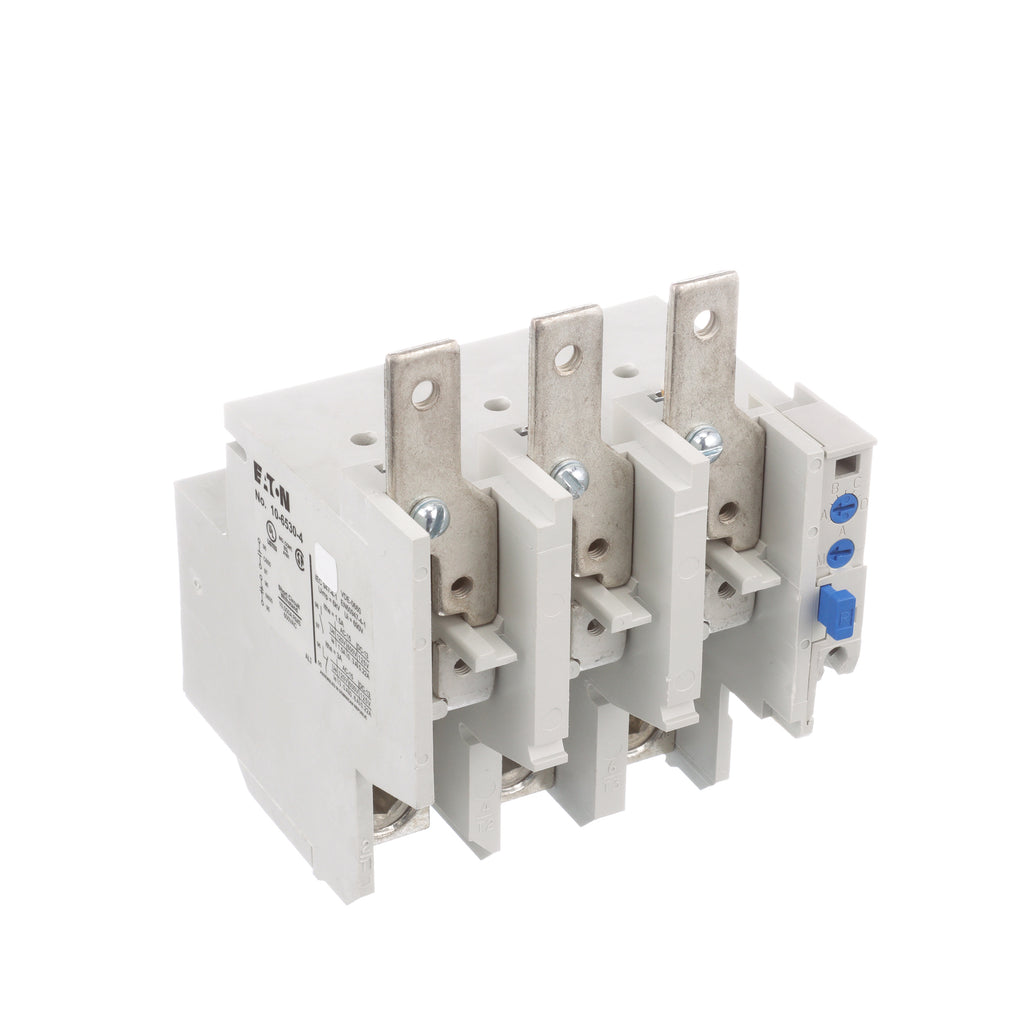

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Overload Relay
- Series
- Freedom Series
- Frame
- 10
- Rated current
- 135
- Max current rating
- 135
- Voltage
- 600V
- Poles
- 3
- Country of origin
- Dominican Republic
- Relay Style
- Thermal
- Amperage Maximum
- 135
- UPC
- 782113646015
- GTIN
- 00782113646015
- Dimensions
- 6 in x 5 in x 5.5 in (Length/Depth x Height x Width)
Show all specifications (1 more)
- Weight
- 2 lb
Product description & additional details
10-6530-4
10-6530-4 is an Eaton definite purpose motor control overload relay designed for reliable motor protection in industrial applications.10-6530-4 features a 135 amp current rating, 600VAC voltage rating, and 3 poles, compatible with existing starters. It is a NEMA size 4 auxiliary contact overload relay with ambient compensated bimetallic trip elements, suitable for commercial and industrial motor control circuits.
- Key Specifications
- Manufacturer: Eaton
- Part Number: 10-6530-4
- Current Rating: 135 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: CN15
- Mounting: Used with existing starters
- Type: Auxiliary contact overload relay
- Size: NEMA 4
- Trip Unit: Ambient compensated bimetallic
- Weight: 2 lbs
- Warranty: 1 year
Specifications
- Part Number: 10-6530-4
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Freedom Series
- Type : 10
- Voltage : 600
- Amperage : 135
- Poles : 3
- Relay Style : Thermal
- Amperage Maximum : 135
Product Data
- UPC : 782113646015
- GTIN : 00782113646015
- Country of Origin : Dominican Republic
- Dimensions : 6 in x 5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 2 lb
