LRD22 - Schneider Electric TeSys Deca Thermal Overload Relay 16-24A, 3-Pole, Class 10A, Screw Terminals

LRD22

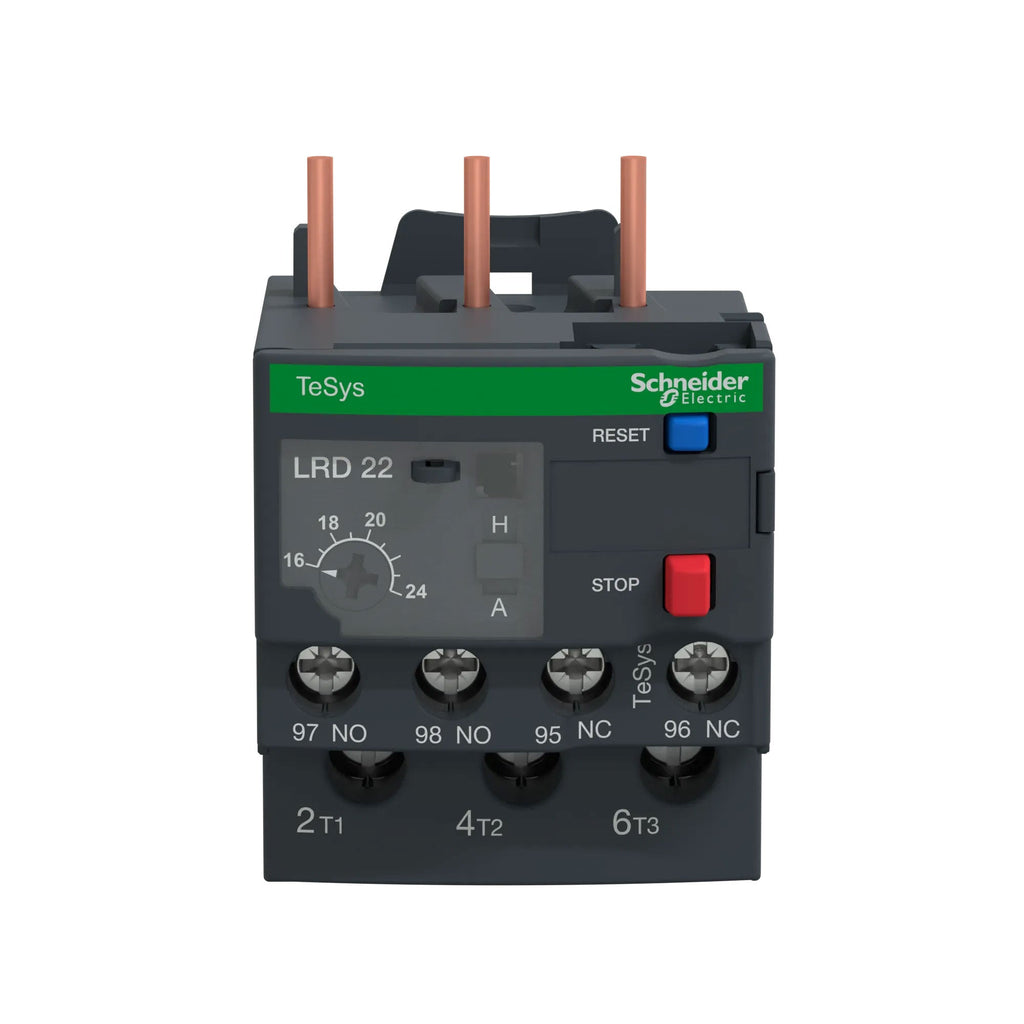

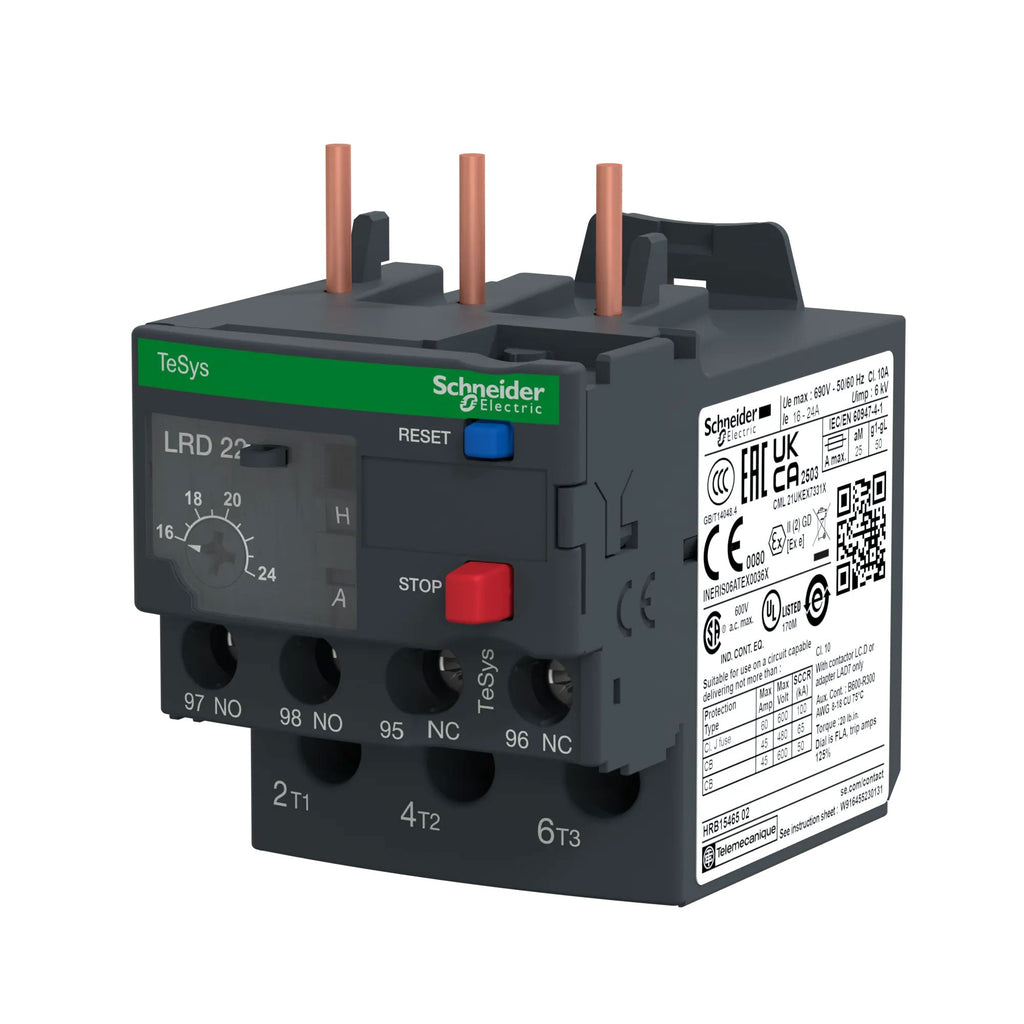

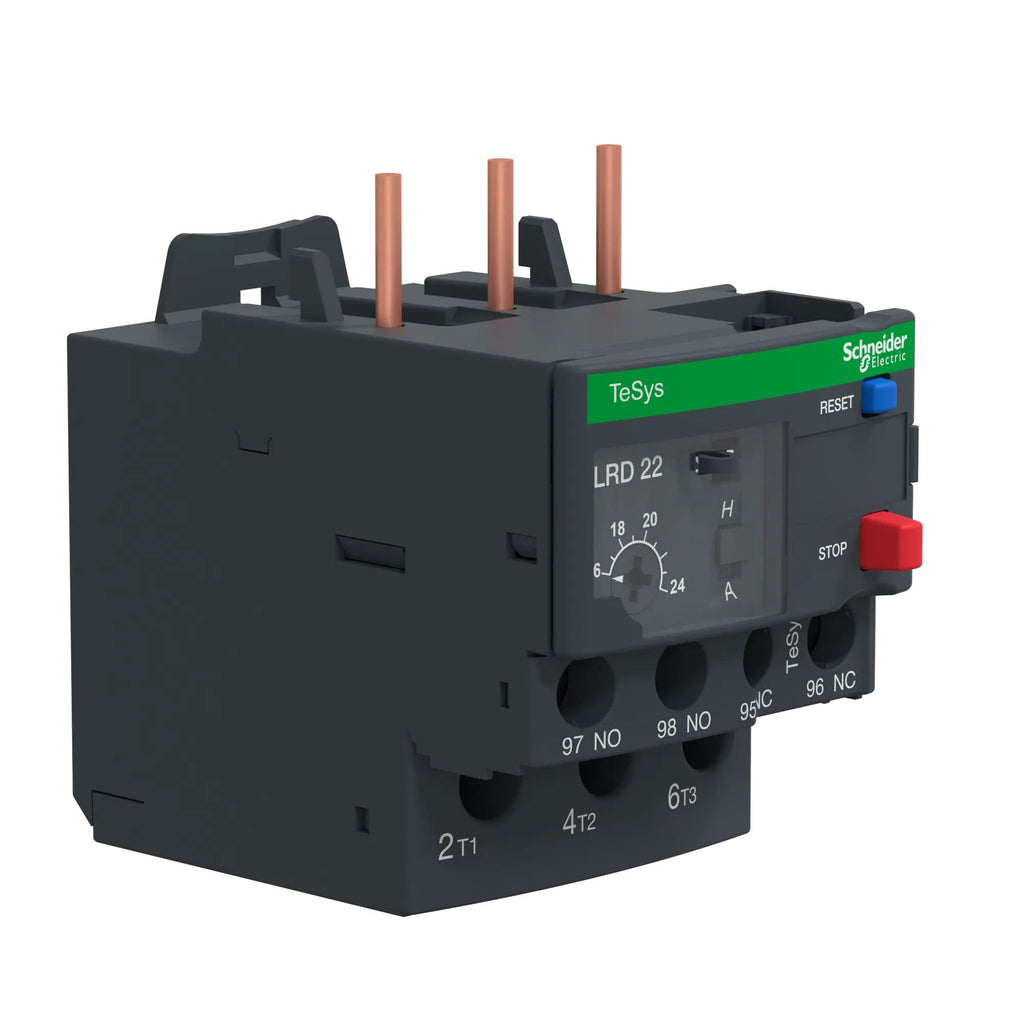

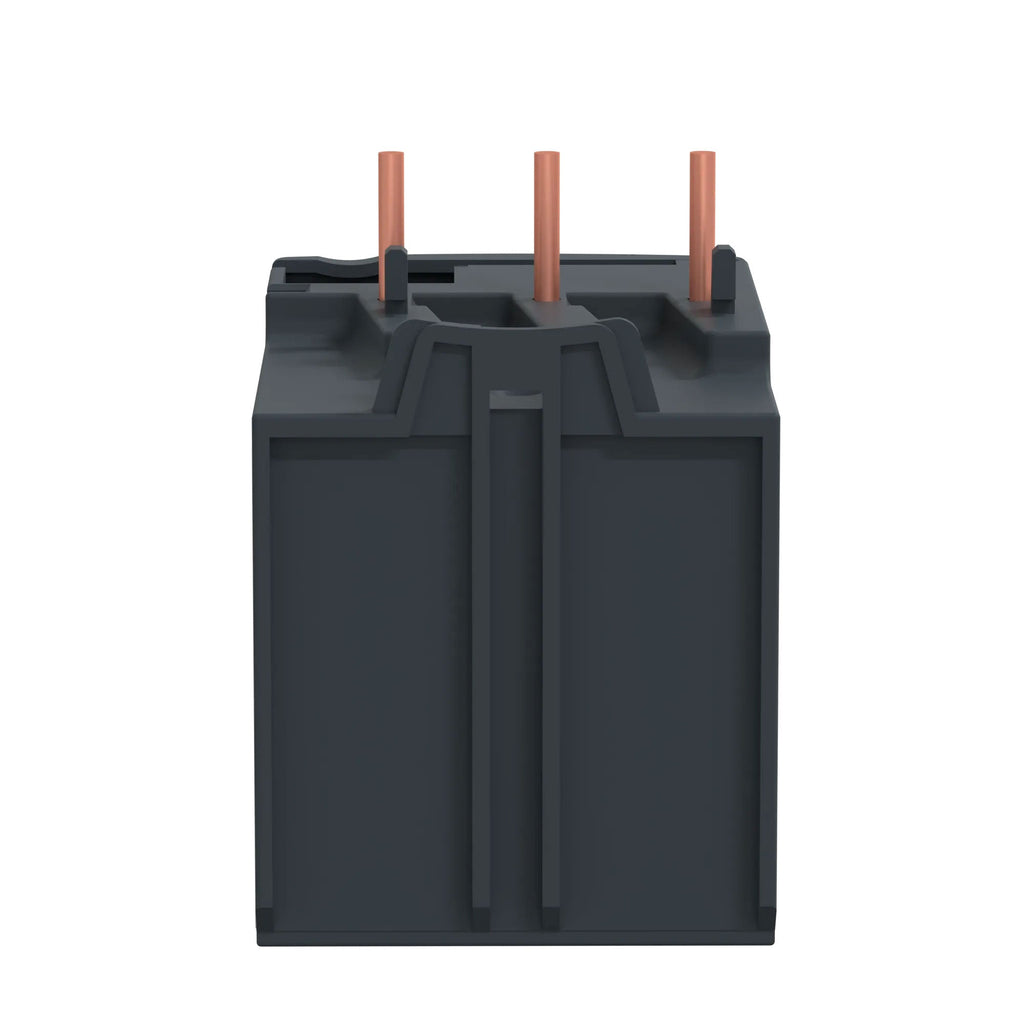

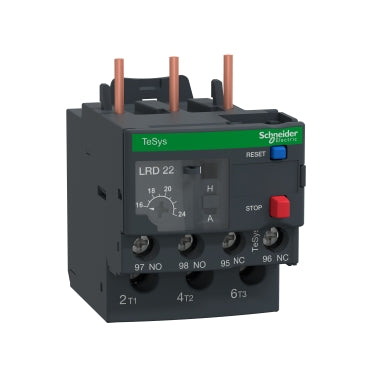

LRD22 is a Schneider Electric TeSys Deca thermal overload relay with an adjustable current range of 16 to 24 amps designed for motor protection.This 3-pole overload relay features Class 10A tripping, single-phase loss sensitivity, and screw clamp terminals for secure installation. It mounts directly to LC1D18 through LC1D32 TeSys contactors and offers manual or automatic reset options. The relay is rated for up to 600V IEC applications and includes 1 normally open and 1 normally closed auxiliary contact for signaling.

• Adjustable current range: 16 to 24 Amps
• 3 poles for three-phase motor protection
• Class 10A trip unit for fast overload response
• Screw clamp terminals for easy wiring
• Manual or automatic reset selectable
• Phase loss sensitivity for motor protection
• Direct mount compatible with LC1D18 to LC1D32 contactors
• Auxiliary contacts: 1NO + 1NC
• Rated voltage: up to 600V IEC
• Compact size and modern design
• IP20 protection rating
• Certified to IEC standards

At Essential Parts, we offer <(more...)

Specifications

• Part Number: LRD22
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : TeSys D
• Type : LRD
• Voltage : 600/690VAC
• Phase : 3
• Poles : 3
• Temp Rating : 28-158 °F (-20-60 °C)
• Relay Style : Thermal
• Aux Contacts : 1NO/1NC
• Amperage Maximum : 24
• Amperage Minimum : 16
• Compatible Frames : WPS,WPH,WPF,WPX

Product Data

• UPC : 785901206804
• GTIN : 03389110346848
• Country of Origin : France
• Dimensions : 2.6 in (66 mm) x 1.8 in (45 mm) x 2.8 in (70 mm) (Height x Width x Depth)
• Weight : 0.313
• Temp Rating : 28-158 °F (-20-60 °C)
• Certification : EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
