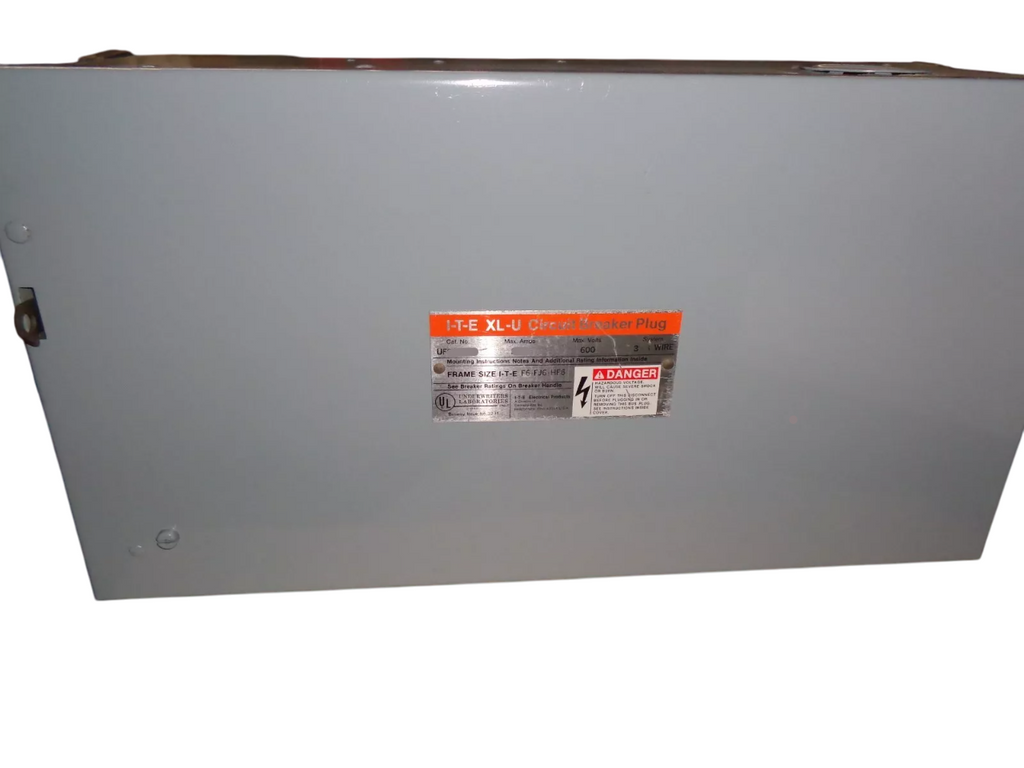

UFC3090 - Siemens 90A 600V 3-Pole XL-X Internal Ground Bus Plug with FD6 Frame IP40 Enclosure

UFC3090

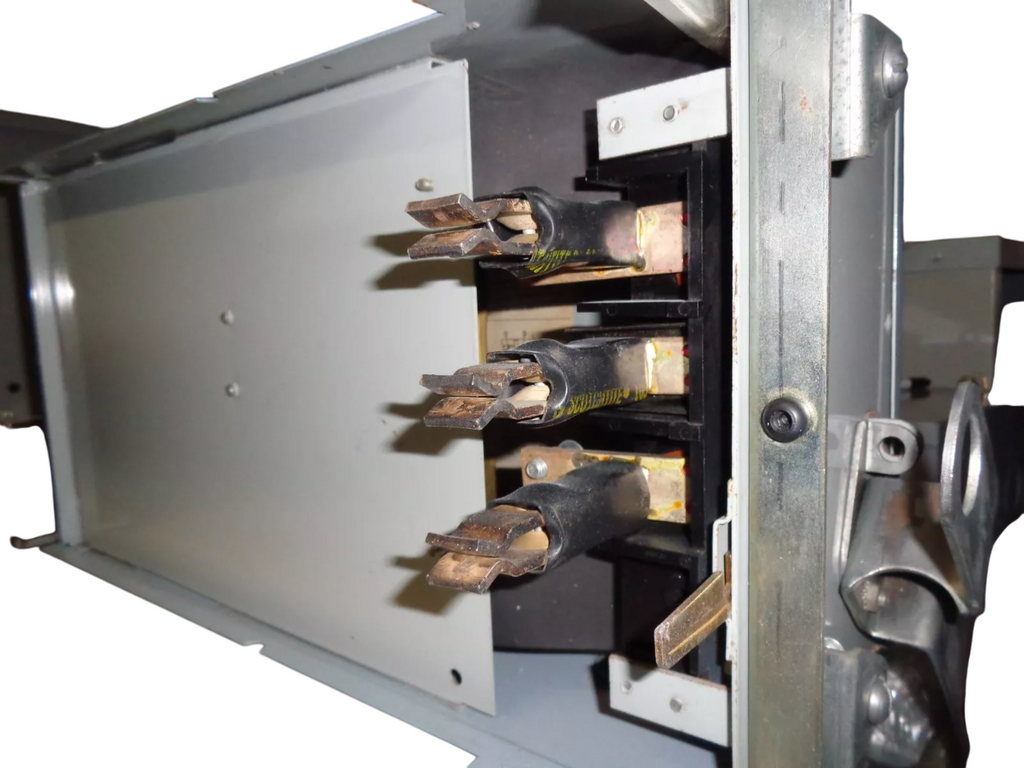

UFC3090 is a Siemens XL-X internal ground low voltage busway plug with circuit breaker, designed for reliable power distribution in industrial and commercial applications. This plug features a 600 VAC rating, 90 amp capacity, and a 3-pole configuration, making it suitable for a wide range of busway systems. The FD6 frame and IP40 enclosure provide robust protection and compatibility with standard Siemens XL-X busway installations. The unit is mechanically interlocked with the busway housing to prevent installation or removal while energized, ensuring safe operation. Ground stabs ensure positive contact with both integral and optional internal busway grounds before the plug fingers contact the phase and neutral bars. Guide stabs prevent incorrect installation and provide vertical support for vertical applications. The cover is interlocked to prevent opening while the unit is energized. The bus plug is suitable for both horizontal and vertical mounting and is certified to UL 857 and UL 489 standards.

• Part Number: UFC3090
• Manufacturer: Siemens
• Series: XL-X
• Frame: FD6
• Amperage: 90 A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Horizontal/Vertical
• Enclosure Rating: IP40
• Ground Type: Internal Ground
• Certifications: UL 857, UL 489
• Application: Low Voltage Busway

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: UFC3090
• Manufacturer : Siemens
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : XL-U
• Type : UFC
• Voltage : 600
• Amperage : 90
• Phase : 3
• AIC rating : 35kA@480V
• Wire : 3
• Compatible Frames : FD

Product Data

• Weight : 55
