Product Info
- Manufacturer:Siemens
- Sub-Category:Breaker Type
Description
UFC3100G

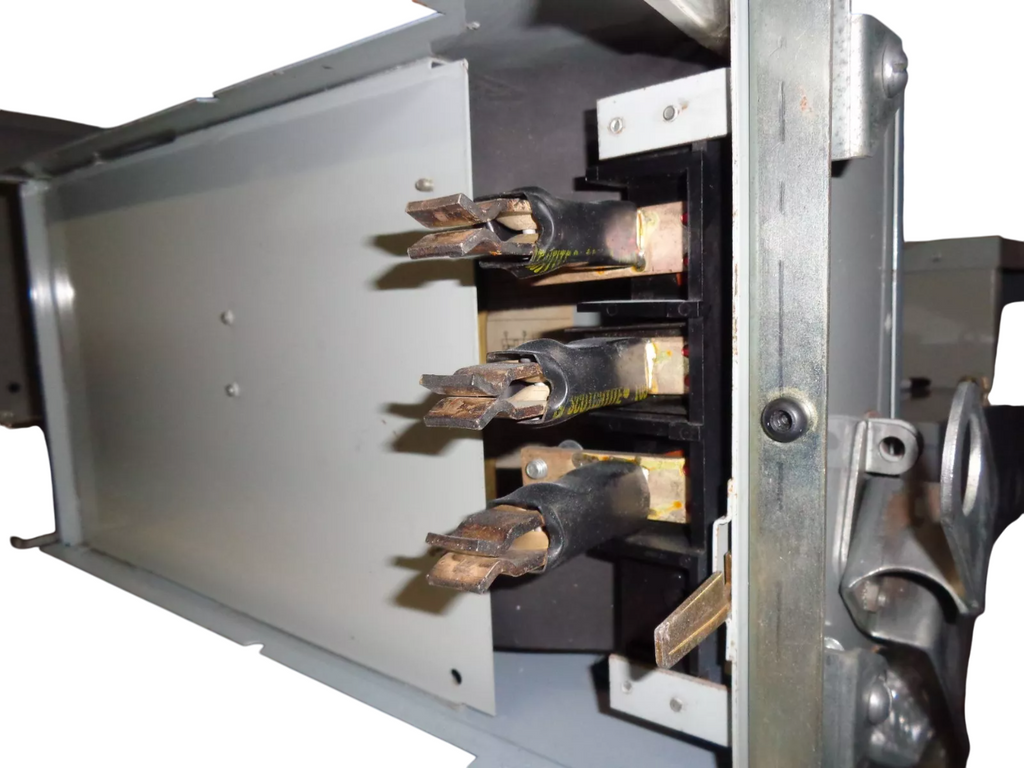

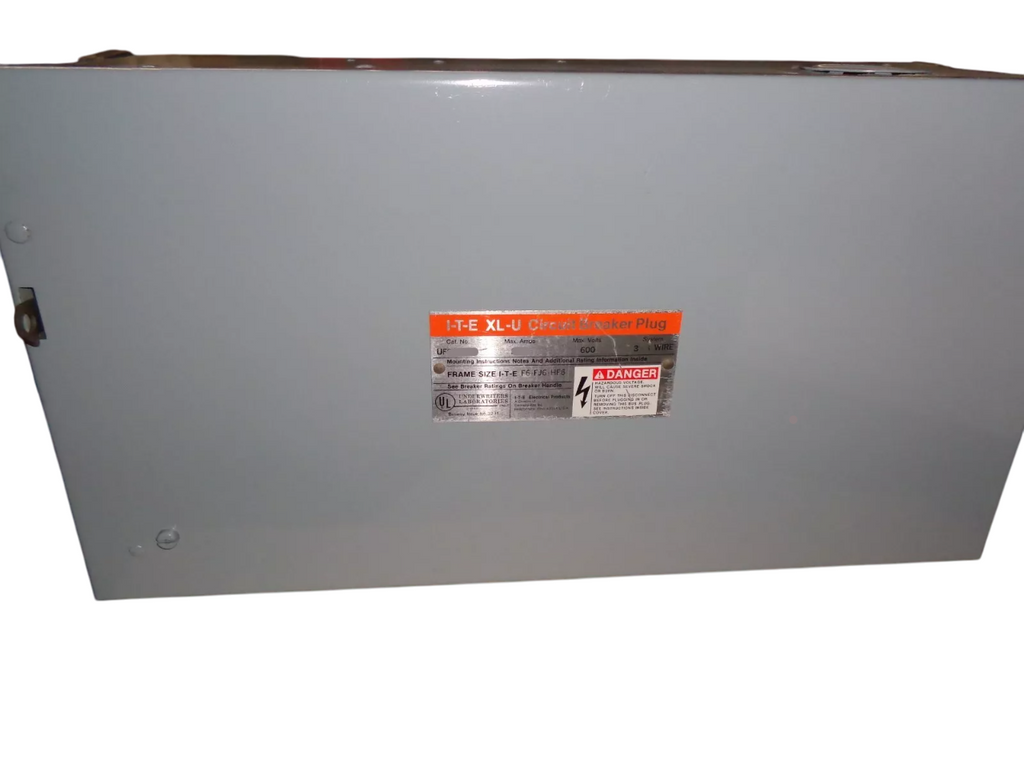

UFC3100G is a Siemens breaker type bus plug designed for reliable power distribution in busway systems. UFC3100G is rated for 100 amps and 600 volts with a 3-pole, 3-wire configuration suitable for 3-phase power applications. This bus plug integrates a circuit breaker from the FD frame series, providing protection and switching capabilities within busway power distribution setups. It is engineered for industrial and commercial use where compact, flexible, and safe power distribution is required.
- Key Specifications
- Amperage: 100 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3
- Phase: 3-Phase
- Wire: 3-Wire
- Type: Breaker Type Bus Plug
- Circuit Breaker Frame: FD Frame
- Mounting: Busway Plug-In
Specifications
- Part Number: UFC3100G
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : XL-U
- Type : UFC
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 3
- Compatible Frames : FD
Product Data
- Weight : 55
