Product Info
- Manufacturer:Siemens
- Sub-Category:Breaker Type
Description
UFC3080G

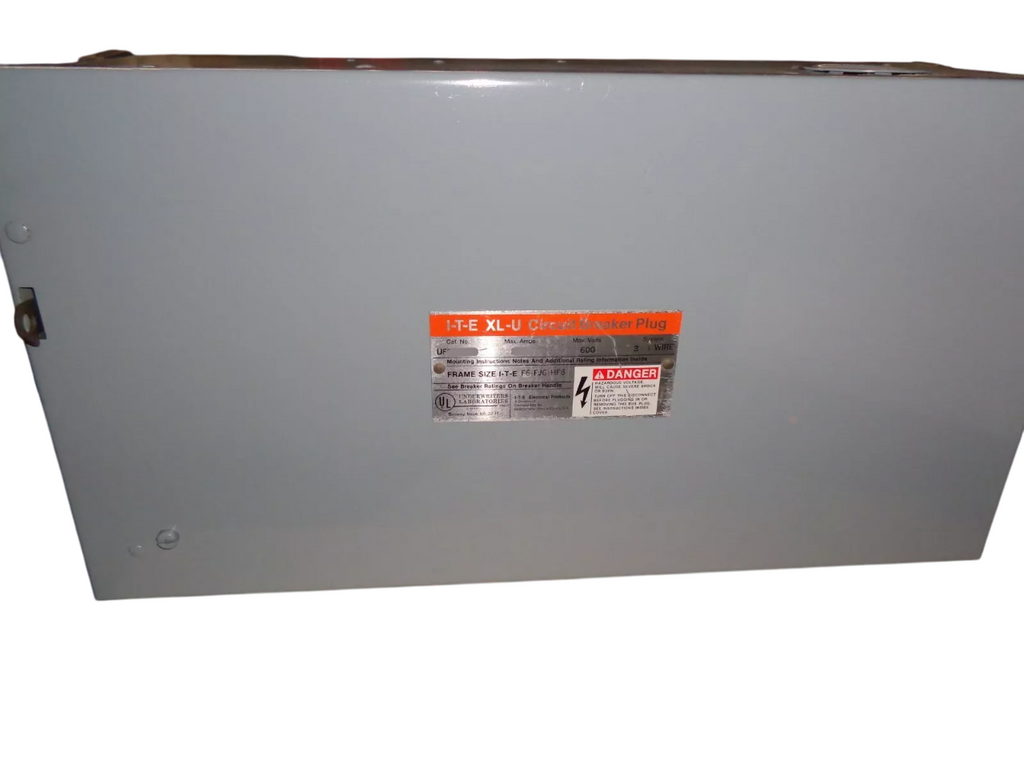

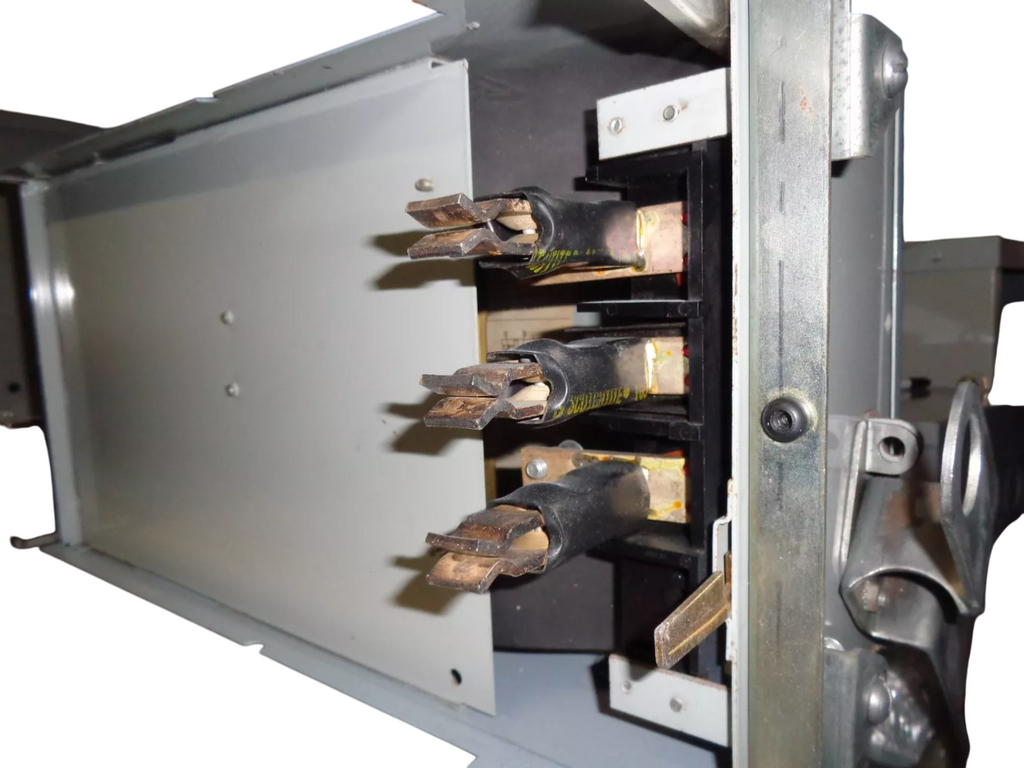

UFC3080G is a Siemens Type XL-X internal ground low voltage busway plug with integrated circuit breaker, designed for 600 VAC three-phase distribution systems. This breaker-type bus plug combines a molded case circuit breaker with an enclosure, providing both switching and overcurrent protection in a single plug-in unit suitable for use with XL-X busway systems. The unit features mechanical interlock design to prevent installation or removal while energized, ground stabs for positive grounding contact, and guide stabs to ensure proper orientation.
- Amperage Rating: 80 Amps
- Voltage: 600 VAC
- Poles: 3 Pole
- Wires: 3 Wire
- Series: XL-X
- Frame: FXD6
- Enclosure Rating: IP40
- Type: Internal Ground Circuit Breaker Bus Plug
- Construction: Mechanically interlocked with busway housing
Specifications
- Part Number: UFC3080G
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : XL-U
- Type : UFC
- Voltage : 600
- Amperage : 80
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 3
- Compatible Frames : FD
Product Data
- Weight : 55
