Product Info
- Manufacturer:Siemens
- Sub-Category:Breaker Type
Description
UFC3070

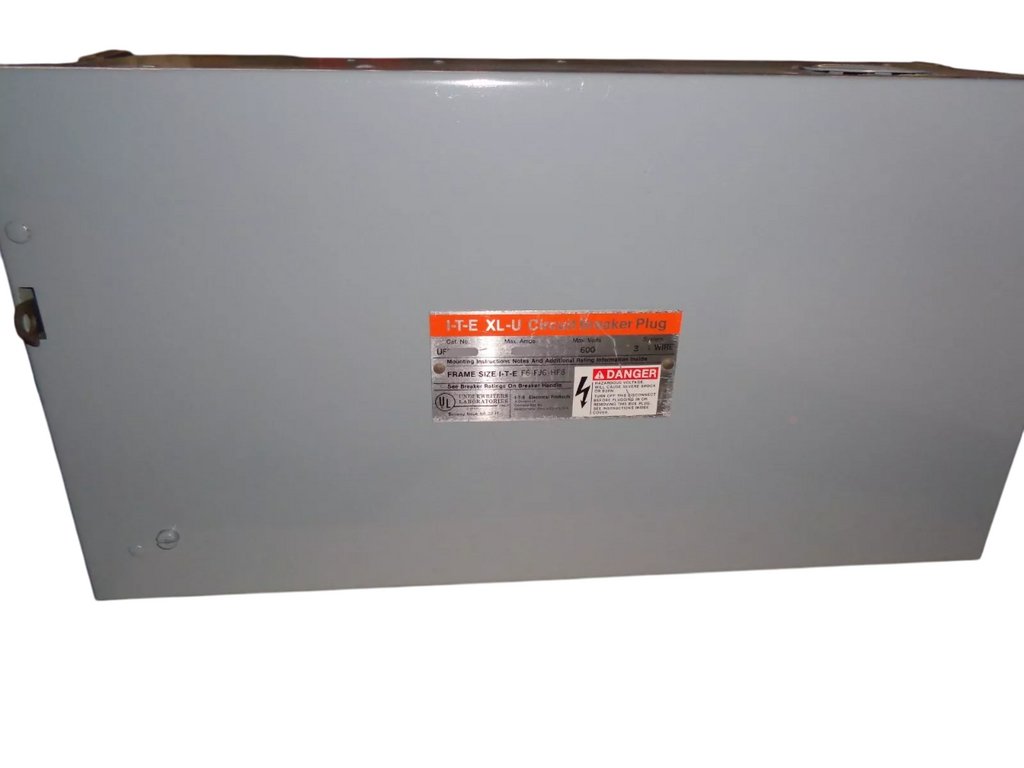

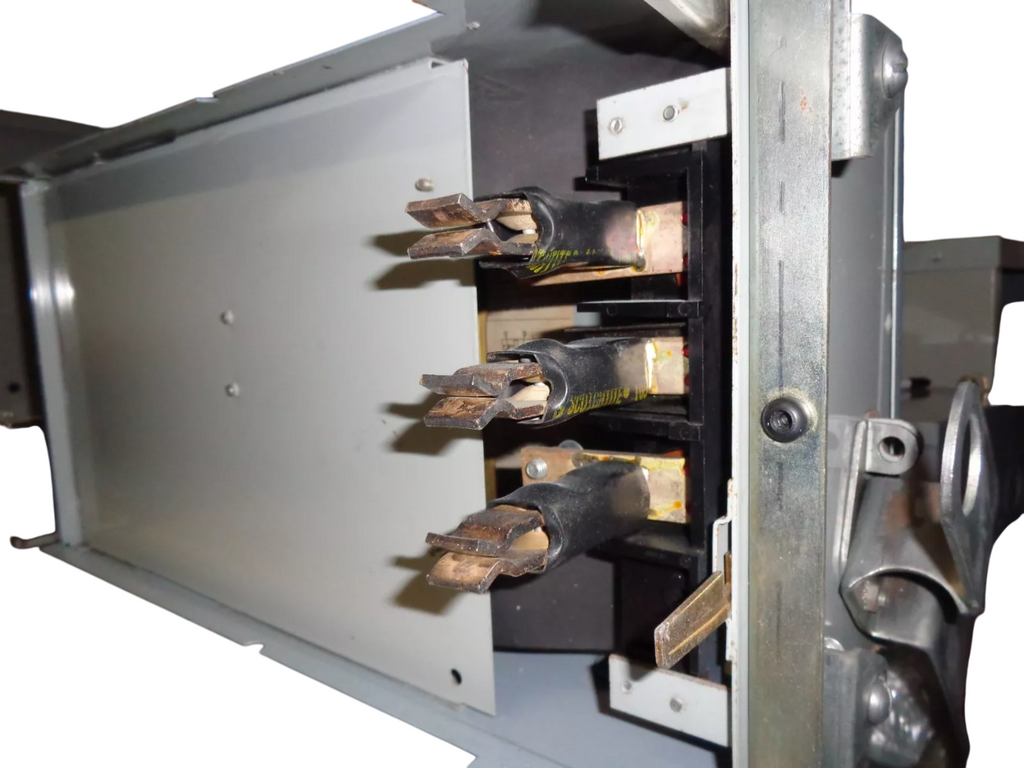

UFC3070 is a 3-phase, 3-wire 600 Volt breaker type bus plug rated for 70 Amps, designed for use with XL-U Series aluminum and copper busway systems. This plug-in unit features an integrated FD frame circuit breaker and is engineered for reliable power distribution in industrial and commercial applications. Key Specifications
- Part Number: UFC3070
- Manufacturer: Siemens (Gould, ITE)
- Amperage Rating: 70A
- Voltage: 600V
- Phase: 3-Phase
- Wire Configuration: 3-Wire
- Type: Breaker Type Bus Plug
- Series: XL-U
- Frame: FD
- Interrupt Rating: 35kA AIC
- Compatible Busway: XL-U Series aluminum and copper
Specifications
- Part Number: UFC3070
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : XL-U
- Type : UFC
- Voltage : 600
- Amperage : 70
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 3
- Compatible Frames : FD
Product Data
- Weight : 55
