Product Info
- Manufacturer:Siemens
- Sub-Category:Breaker Type
Description
UFC3090G

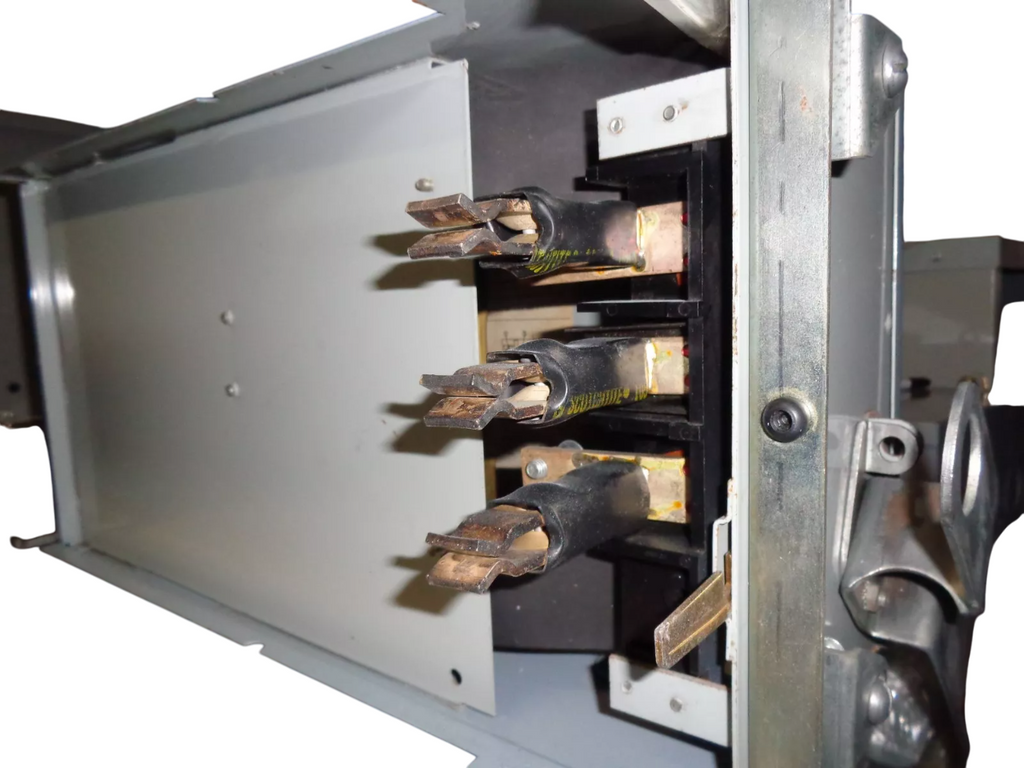

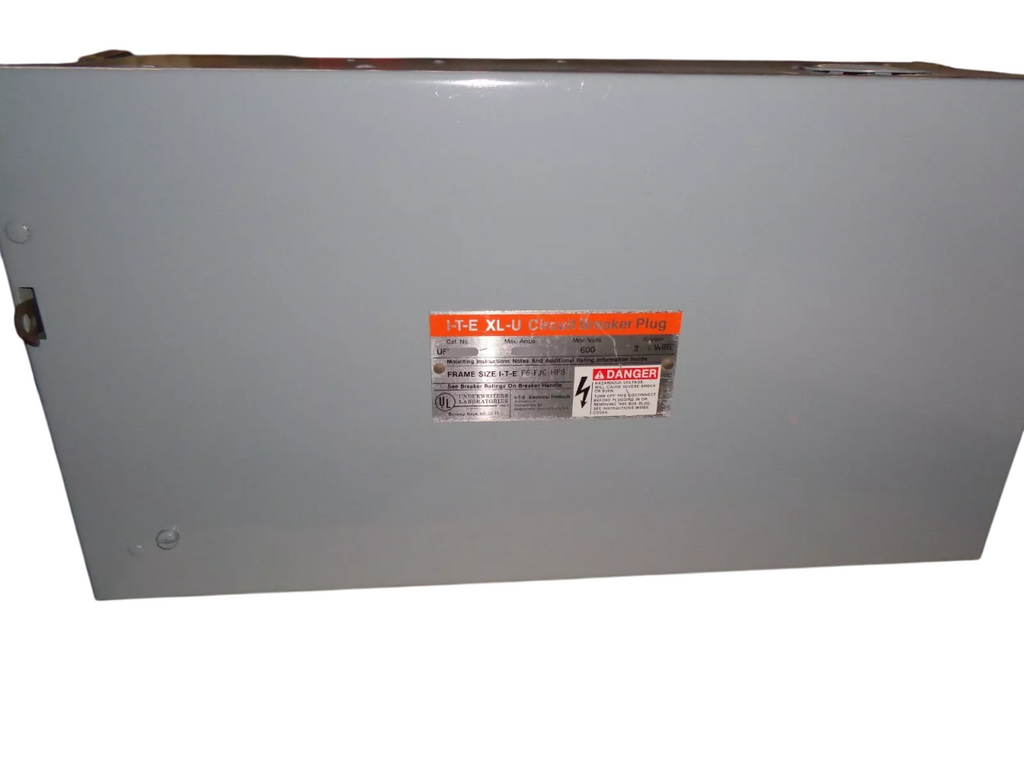

UFC3090G is a Siemens breaker type bus plug designed for use with XL-X Series low voltage busway systems. This unit features a built-in FD6 frame circuit breaker and is rated for 90 amps at 600 volts AC, providing reliable protection and easy integration into industrial and commercial power distribution setups. The UFC3090G is a three-pole, three-wire bus plug with an internal ground configuration. It is engineered for secure mounting to the busway housing and offers a robust solution for power distribution needs. The unit is suitable for applications requiring a compact, high-performance bus plug with integrated circuit protection.
- Part Number: UFC3090G
- Manufacturer: Siemens
- Series: XL-X
- Frame: FD6
- Amperage: 90 A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Busway Plug-In
- Enclosure Rating: IP40
- Application: Low Voltage Busway
- Construction: Internal Ground
- Wire Configuration: 3-Wire
Specifications
- Part Number: UFC3090G
- Manufacturer : Siemens
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : XL-U
- Type : UFC
- Voltage : 600
- Amperage : 90
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 3
- Compatible Frames : FD
Product Data
- Weight : 55
